2009 VOLKSWAGEN PASSAT bulb

375

NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
Information on light bulb replacement

Replacing headlight bulbs

Fig. 217 In the engine compartment: Covers in the left headlight assembly: A Side marker light, B Low beam headlight, C High beam headlight, D Turn signal and parking light, E Daytime running light.

Fig. 218 In the wheel housing: Removing cover.

377
⇒ fig. 217 (A) (B) (C) (D) (E)
Side marker light Low beam High beam Turn signal and parking light
Daytime running lights
3.
Unscrew the fastening screw
⇒ fig. 218 (arrow) with a short screwdriver. To access the screw, turn the wheel in question inward as shown in .

Same as column (A).
4.
Remove the cover from the wheel house lining .
Same as column (A).
5. On the back of the headlight assembly, pull off the rubber cover for the bulb you are replacing.
Turn plastic
cover ⇒ fig. 217 A (E) counterclockwise and remove.
6. Left side of the vehicle: Turn plastic bulb socket counterclockwise (about 1/8 turn) to release it. Right side of the vehicle: Turn plastic bulb socket clockwise (about 1/8 turn) instead.
Turn plastic bulb socket counterclockwise (about 1/8 turn) to release it.
Press plastic tab on back of bulb socket to release it.
Same as column (A). Same as column (A).
7. Pull plastic bulb socket assembly back and out of the headlight assembly.
8. Replace the burned out light bulb with a new bulb of the same type.
9. Reinsert the bulb socket assembly into the headlight assembly.

⇒ fig. 217 (A) (B) (C) (D) (E)
Side marker light Low beam High beam Turn signal and parking light
Daytime running lights
10. Left side of the vehicle: Turn plastic bulb socket clockwise until it locks into place in the headlight assembly. Right side of the vehicle: Turn plastic bulb socket counterclockwise instead.
Turn plastic bulb socket clockwise until it locks into place in the headlight assembly.
Push bulb socket into the headlight assembly until you hear it “click” into place.
Same as column (A). Same as column (A).
11. Replace rubber cover on the back of the headlight assembly for the bulb you replaced.
Place the plastic cover A (E) in the headlight assembly housing and turn clockwise as far as it will go.
12.
Place the cover
⇒ fig. 218 in the wheel housing liner and use the screwdriver in the vehicle tool kit to tighten the fastening screw (arrow).

Same as column (A).
Please carry out each step only in the order specified:
The illustrations show the left headlight assembly from the rear. The right headlight assembly is the mirror image of the left headlight assembly.

379
Replacing light bulbs in the front bumper

Fig. 219 In left front bumper: Removing light assembly.

Fig. 220 Replacing light bulb in headlight.

Please carry out each step only in the order specified:
10. Attach connector plug (1) to the bulb socket assembly. The connector plug must latch with an audible “click.”
11. Slip the headlight into the mounts (small arrows) and fold rearward.
12. Screw fastening screws ⇒ fig. 219 (3) and (4) tight with the screwdriver.
13. Install cover (2) in the bumper.
14. Install cover (1) in the bumper.
Replacing taillight bulbs in the luggage compartment lid

Fig. 221 A: In the luggage compartment lid: Removing the taillight cover. B: Removing the taillight assembly.

Fig. 222 A: Taillight assembly: removing the bulb socket assembly. B: Removing the light bulbs.

381
Please carry out each step only in the order specified:
3. Using the flat blade of the screwdriver in the vehicle tool kit carefully pry the cover out of
the slot ⇒ fig. 221 A (1) (arrow).
4. Pull the red locking tab B (4) in the direction of the arrow to unlock connector plug B (2).
5. Push catch B (5) to release connector plug. Then pull out connector plug B (2).
6. Remove the cover from the side of the taillight, sliding it in the direction of the arrow B. Check the original mounting position of the taillight before removing it.
7. Unscrew the fastening screws B (3) with screwdriver and carefully remove the taillight assembly from the luggage compartment lid. Pull it to the side and away from the vehicle body and place it on a clean, smooth surface.
8. Unlock the bulb socket assembly by pressing the locking tabs in direction of the arrow
⇒ fig. 222 A and remove the bulb socket assembly from the taillight assembly.
9. Replace the burned out light bulb with a new bulb of the same type B.
10. Reinsert the bulb socket assembly in the taillight assembly. The locking tabs must latch with an audible “click.”
11.
Carefully reinsert the taillight assembly into the opening in the luggage compartment lid. Hold the rear light assembly with one hand in the installation position, and with the other
hand tighten the fastening screws ⇒ fig. 221 B (3).
12. Plug connector plug B (2) into the bulb socket and push red locking tab B (4) in the direction opposite to the arrow.
13. Check the taillight assembly for proper installation and secure fit.
14. Attach the cover. The cover must latch tightly and securely into place.
15. Close the luggage compartment lid ⇒ page 57.
Different models may have different taillights, and the light bulb may be in a different location than shown in the illustrations.

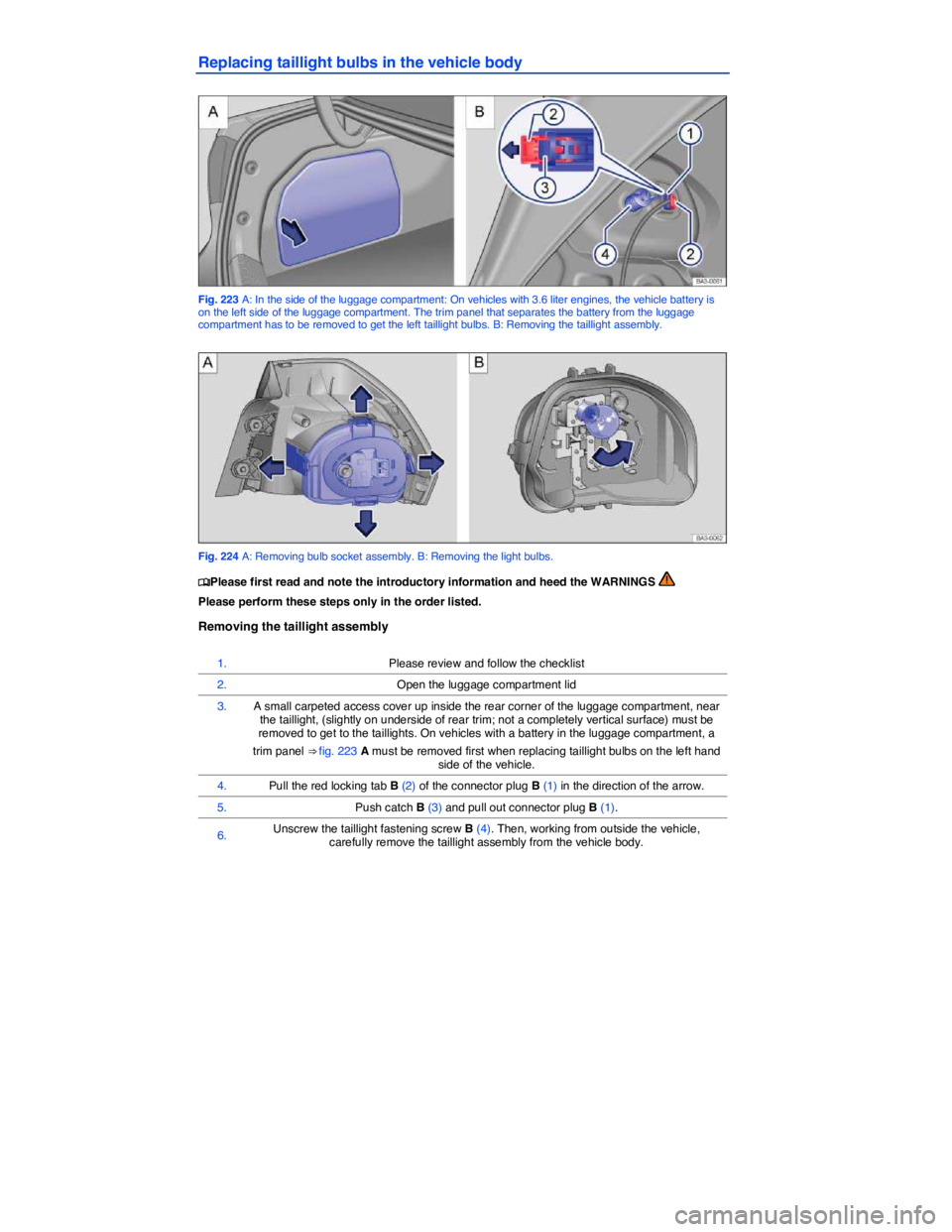

Replacing taillight bulbs in the vehicle body

Fig. 223 A: In the side of the luggage compartment: On vehicles with 3.6 liter engines, the vehicle battery is on the left side of the luggage compartment. The trim panel that separates the battery from the luggage compartment has to be removed to get the left taillight bulbs. B: Removing the taillight assembly.

Fig. 224 A: Removing bulb socket assembly. B: Removing the light bulbs.
