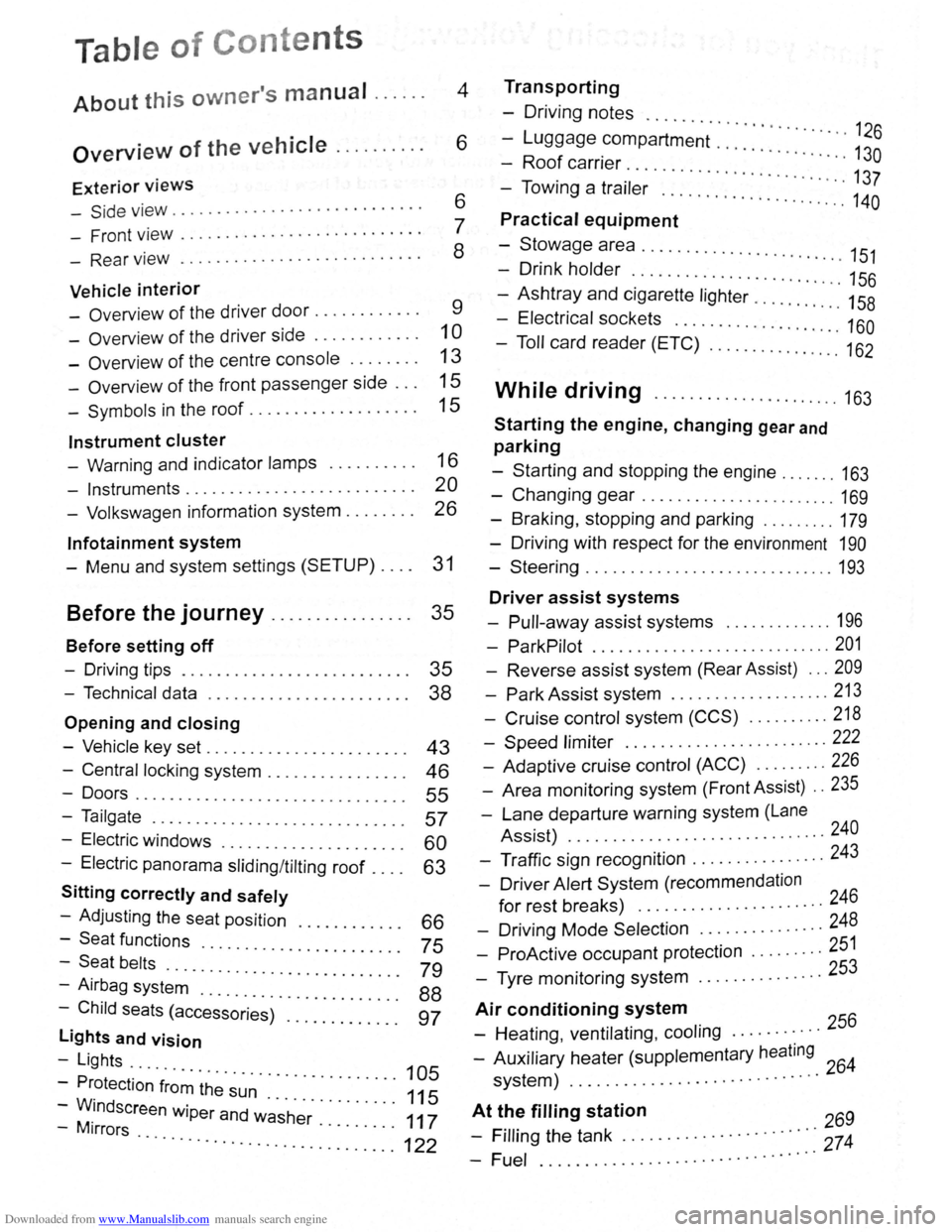

Downloaded from www.Manualslib.com manuals search engine Table of Conte nts
About this owner's manual . . . . . . 4
Overview of the vehicle . . . . . . . . . . 6
Exterior views
-Side v iew . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
- Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
- Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Vehicle interior
- Overview of the driver door........... . 9
-Overv iew of the driver side . . . . . . . . . . . . 1 0
- Overview of the centre console . . . . . . . . 13
- Overview of the front passenger side . . . 15
-Symbols in the roof . . . . . . . . . . . . . . . . . . . 15
Instrument cluster
- Warning and indicator lamps . . . . . . . . . . 16
- Instruments.......................... 20
- Volkswagen information system . . . . . . . . 26
lnfotainment system
- Menu and system settings (SETUP) . . . . 31
Before the journey . . . . . . . . . . . . . . . . 35
Before setting off
- Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . 35
- Technical data . . . . . . . . . . . . . . . . . . . . . . . 38
Opening and closing
-Vehicle key set . . . . . . . . . . . . . . . . . . . . . . . 43
- Central locking system . . . . . . . . . . . . . . . . 46
-Doors....................... .. . 55
-Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
- Electric windows . . . . . . . . . . . . . . . . 60
- Electric panorama sliding/tilting roof . : : : : 63
Sitting correctly and safely
- Adjusting the seat position . . . . 66
-Seat functions · · · · · · · · 75 -Seat belts ..... · · · · · · · · · · · · · · · · · ·
- Airbag syst~~ . : : : : · · · · · · · · · · · · · · · 79
-Child seats (access~;;~~)· :::::::::::: : ~~
lights and vision
-Lights ...
- Protection
·f~~~ ~h~· ~~~ · · · · · · · · · · · 105
-WM.indscreen wiper and w~·s·h~r· . . . . . . . . . 111175
-1rrors · · · · · · · .. ............. ...... ........... 122
Transporting
- Driving notes ..........
-Luggage compartment · · · · · · · · · · · · · · 126
-Roof carrier · · · · · · · · · · · · · · · · 130
- Towing a trai·l~; .. ... · · · · · · · · · · · · · · · · · · 137
..... ................. 140
Practical equipment
-Stowage area ........... .. .
- Drink holder
.. · · · · · .. · 151 . . . . . . . . . . . . . . . . . . . . . . . 156
-Ashtray and cigarette lighter ......... : ." 158
- Electrical sockets ........ .. .......... 160
- Toll card reader (ETC) .............. .. 162
While driving ...................... 163
Starting the engine, changing gear and
parking
-Starting and stopping the engine ....... 163
-Changing gear ....................... 169
-Braking , stopping and parking ........ . 179
- Driving with respect for the environment 190
-Steering ............................. 193
Driver assist systems
- Pull-away assist systems ............. 196
- ParkPilot ............................ 201
- Reverse assist system (Rear Assist) ... 209
-Park Assist system ................... 213
-Cruise control system (CCS) .......... 218
-Speed limiter ........ .. .............. 222
- Adaptive cruise control (ACC) ........ . 226
- Area monitoring system (Front Assist) .. 235
-Lane departure warning system (Lane
Assist) .
.......... ................... 240
- Traffic sign recognition ................ 243
- Driver Alert System (recommendation
for rest breaks) ........... ........... 246
- Driving Mode Selection ............... 248
- ProActive occupant protection ..... .... 251
- Tyre monitoring system .. ............. 253
Air conditioning system
- Heating , ventilating, cooling ........... 256
- Auxiliary heater (supplementary heating 64 system) ................. ............ 2
At t~~ filling station 269
- Frllrng the tank ............. · · · · · · ·::: 274
-Fuel ................ .. · · · · · · · · ·· ·

Downloaded from www.Manualslib.com manuals search engine L
l:l If several w arning reports a re detecte d, the
L!J symbols will appear f or s eve ra l seconds, on e
a ft e r a
noth er. T he symbols will continue to appear
until the fa ults a re rectifie d .
l:l If w arni ng messages about malfunctions are
L!J displa ye d when th e ig nition is switched on, it
m ay
not be possib le to a dju st some settings as de-
Service interval display
A
scribed, or the information display m ay appea r dif­
f e rently .
If this is the case, take the ve hicl e to a
qualified
workshop to have the m alfunction re cti -
fied .
<
B
BSG-0022
Fig. 14 In th e instrum ent cluster display , A: Service warning, B : Serv ice due
Vehicle number: WVWZZZ37083645655
Volkswagen-inspection:
in
5400 mi I 350 day(s)
Oil change service:
in 2300 mi /120 day(s)
I BSG-0021
Fig. 15 Servi ce informatio n displ ay in the infot ain­
m ent sy ste m
r-f"n First read and observe the introductory
l-J=JJ information and safety warnings£ on
page 20 .
The se rvice disp la y i s s hown on th e instrum ent
cl us te r ~Fig. 12@) a nd in th e infota inment syste m
~page 3 1.
V ol
ksw age n se rvi ces are divid ed into two cate go­
r ies,
w ith oil c h a nge, e.g . o il ch a ng e se rvice , and
with out oil cha nge, e.g. in spectio n .
24 Overview of the vehicle
In ve hicles with fixed service, services ta ke place
at prede fin ed int ervals .
The service intervals are calculated on an individu­
al basis in ve hicles with flexible service. Advan­
c es in technology have brought about a considera­
ble redu ction in servi cing re quirements . An oil
chang e service must only be carried out when re ­
quired by the vehicle. The individual conditions in
which the ve hile is used , as the driver's pe rsonal
driv i
ng style , are taken into account. The se rvice
reminder is displayed 30 da ys befor e the service is
due . The dista nce is round ed to the nearest
100 km ; th e re maining time is rounded to full days.
Service warning
If an oil change service or inspection is due soon,
a service warning
will appear th e next time the ig­
nition is switched on
~Fig. 14 A.
Th e numb er
of kilometr es or amount of time shown
c orr espond to the maximum number
of kilometr es
or maximum time that can still be driv en b efo re the
n ext servic
e. ..,..
J

Downloaded from www.Manualslib.com manuals search engine lnfotainment system
Menu and system settings (SETUP)
o:n Introduction
This chapte r con ta in s info rm ation on th e fo llo w in g
su bjects :
V ehi cle se ttin
gs menu . . . . . . . . . . . . . . . . . . . . 31
Additional information and warnings:
• Instrum ents ~page 20
•
V olks wage n informa tion syst em ~page 26
• C entral locking system ~page 46
• Electric windows ~page 60
•
Lights ~page 105
• Windscreen wiper/ wa she r ~page 117
• Mirrors ~page 122
• Brake assist systems ~page 179
• Driver assist systems ~page 196
• Tyre monitoring system ~page 253
• Wheels and tyres ~page 308
•
~Booklet Radio or ~Booklet Navigation sys­
tem
General information on operating the unit
The following section contains information on the
settings that can be adjusted in the
Vehicle set­
tings menu . Basic information on operating the
i nfotainment system and on warning and safety in­
structions are contained in a separate manual
~Booklet Radio or ~Booklet Navigation system.
Systems settings and display of vehicle
information
After pressing the (ill] infotainment button you can
t
ouch the corresponding function button to displ ay
information
or adjust settings , e .g . you can check
the current status
of the start/stop system
~page 196 in the Vehicle status menu .
Vehicle settings menu
r-f"'n First read and observe the i~troductory
L-1=J.1 information and safety warnmgs A on
page 31.
Opening the Vehicle settings menu
• Switch on the ignition .
• If necessary, switch on the infotainment system.
• Vehi cle se ttings (setup) ~page 31.
• Auxili ary hea te r sett ings ~page 256.
• Radio sta tio n selection .
• Vehicle status .
• Driving da ta .
• Conv enien ce consumers .
A WARNING
Accidents and injuries can occur if the driver
is distracted. Operating the lnfotainment sy s­
tem can distract you from the road.
• Always drive carefully and responsibly.
r::l Aft er sta rt ing the engine with a disc harged
L!J ve hi cle battery , or after the battery has been
chang ed,
system settings (time, da te , personal
conveni ence settings and program ming)
may have
be en chang ed or de leted . Ch eck and correc t
the
s e ttin gs as necessa ry once the ve hi cle ba tte ry has
been sufficiently charged .
• Press the (ill) infotainment button.
• Touch the 0 function button to open the Vehi­
cl e settings menu.
• Touc h the corresponding function button to
open additional menus in the
Vehicle settings
menu, or to adjust settings in the menu points. ...,.
lnfotainment system 31
..

Downloaded from www.Manualslib.com manuals search engine -r n -"') ...
Ope ning and closing
Vehi cle key set
ClJJ Introduction
Th is c hapte r contai ns info rmatio n on th e fo llo wi ng
subj ects:
V eh
icle ke y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
I
ndicator l amp in th e ve hi cle key . . . . . . . . . . . 44
Replacing the battery . . . . . . . . . . . . . . . . . . . . 45
S yn ch ronis ing the ve hicle key . . . . . . . . . . . . . 45
Additional information and warnings:
• Settin g s in the Volkswagen inform atio n system
=>page 26
• Central locking sys te m =>page 46
• S tarti ng and stopping the engine =>page 163
• Consumer info rmation =>page 328
• Manua lly closin g or open ing =>page 339
Swallowing batteries with a diameter of
20 mm or other lithium batteries can result in
severe or even fatal injuries within a very
short period of time.
• Always keep the vehicle key, key ring w ith
batteries, spare batteries, round cells and
other batteries that are larger than 20 mm out
of the reach of children.
Vehicle key
Fig. 22 Ve hicle key
r-('n First read and observe the introductory
L-J.=J.I information and safety warnings & on
page 43.
~"iDANGER '(ContinUed) .
• Call for medical help immediately you sus­
pect that someone has swallowed a battery.
A WARNING . .,~
Improper or unsupervised use of the vehicle
key can cause accidents or injuries.
• Always take all vehicle keys with you ev­
ery time you leave the vehicle. Children or
unauthorised persons could lock the doors
and tailgate, start the engine or switch on the
ignition and thus operate electrical equip­
ment, such as the electric windows.
• Never leave children or people requiring
assistance alone in the vehicle. They could
become trapped in the vehicle in an emergen­
cy and may not be able to get themselves to
safety. Depending on the time of year, for ex­
ample, locked vehicles can be subjected to
very high or very low temperatures. This can
cause serious injuries and illness or fatali­
ties, especially for small children.
• Never remove the vehicle key from the ig­
nition Jock when the vehicle is in motion. The
steering Jock may be activated and you will
no longer be able to steer the vehicle. Fig. 23 Vehicle ke y w ith alarm butto n
Vehicle key
Th e ke y ca n b e used t o lock and unlock th e car
f rom a
distance =>page 46.
------------------.............................................. O•p•e•n•i•n•g•a•n•d--c-lo_s_i_n_g ___ l 43

Downloaded from www.Manualslib.com manuals search engine Central locking system
c:DJ Introduction
This chapter contains information on the following
subjects:
Description
of the central locking system 46
Locking and unlocking the vehicle from the
outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
Locking and unlocking the vehicle from the
inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48
Locking and unlocking the vehicle with
Keyless Access . . . . . . . . . . . . . . . . . . . . . . . . . 49
SAFELOCK mechanism . . . . . . . . . . . . . . . . . . 51
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . 52
Interior monitoring system and anti-tow alarm 53
The central locking system
will only work correctly
when all doors and the tailgate are closed properly.
The
vehicle cannot be locked with the key if the
driver door is open .
In vehicles with the Keyless Access locking and
starting system, the
veh icle can only be locked
when the ignition has been switched
off and the
driver door is closed .
If the vehicle is unlocked and not used for a long
time (e.g. in your own garage) the
vehicle battery
could discharge
or the engine may not start.
Additional information and warnings:
• Exterior views ~page 6
• lnfotainment system ~page 31
• Vehicle key set ~page 43
• Doors ~page 55
• Tailgate ~page 57
• Electric windows ~page 60 •
Electric
panorama sliding/tilting roof
~page 63
• Towing a trailer ~page 140
•
Manual opening or closing ~page 339
A WARNING
Improper use of the central locking system
could cause serious injury.
• The central locking system locks all
doors. Locking the vehicle from the inside
may prevent the doors from being opened
unintentionally and unauthorised persons
from entering the vehicle . However, locked
doors can delay assistance to passengers in­
side the vehicle in the event of an accident or
emergency.
• Never leave children or people requiring
assistance alone in the vehicle. All doors can
be
locked from the inside using the central
locking button. This may mean that people
lock themselves in the vehicle. People locked
in the vehicle may be subjected to very high
or very low temperatures.
• Depending on the time of year, locked ve­
hicles can be subjected to very high or very
low temperatures. This can cause serious in­
juries and illness or fatalities, especially for
small children.
• Never leave anyone inside a locked vehi­
cle. People in the vehicle could become trap­
ped in an emergency and may not be able to
get themselves to safety.
Description of the central locking system
r-('n First read and observe the introductory
L-Jr=JJ information and safety warnings & on
page 46.
The central locking system enables you to lock and
unlock
all the doors, the tailgate and tank flap from
one central point:
• From outside the vehi cle with the vehicle key
~page 47.
• From outside the vehicle with Keyless-Access
~page 49.
• From inside the vehicle with the central locking
button ~page 48.
Certain central locking functions can be activated
or deactivated in the infotainm ent system using the
@ill button and the~ and (Open and Clos e) function
buttons =>page 31, or the vehicle can be taken to a~
qualifi ed work shop .
46 Before the journey J
--~--------------------~~

Downloaded from www.Manualslib.com manuals search engine In s m
11 d or
n
d
d =-~ i . 29.
stA nd still nd th v hi -
• In
v 111 I s wit11 n ut m tic g arbox : when
v r is In p iti n P nd th ign ition is
locking and unlocking the vehicle with Keyless Access
I ~K-012~
Fig. 30 Keyless Access locking and starti ng sys­
te m : operating range
r-f"n First read and observe the introductory
1.-.W.J information and safety warnings & on
page 46.
Keyl ess Access is a lock ing and starting sys te m
th at
allows the ve hicle to be locked or unl ocked
without using the key . lt is only necessa ry f
or a va l­
id veh ic le key to be in the operat ing range of th e
vehi cle ~Fig. 30 and for one of the front door han­
dl e
sen sors~ Fig . 31 to be touched, or t he V olks­
wagen badge ~page 57 in the tailga te to be
pres sed
~CD.
General notes
If a valid vehicle key is in the oper ating range
~Fig. 30, the Keyless Access locking and starting
system authorises the ke y to obtain access to the
vehicle as soon as the corresp ond ing sensor on
the driver
or front passenger door handl e or the
Volkswagen b
adge in the ta ilg ate is activate~. The
following functions can then be performed w1thout
active use of the vehicle key:
B~K-OlH
Fig. 31 K yl ss Access loc king and starting sys­
te m : se nsor® fo r loc king on the inside of th e door
ha nd le and s nsor@ fo r unl ockin g on the outside
of the door ha ndl e
• Keyl ess Entry : unlo cks th e ve hi cle v i the sen­
sor in the door ha ndl e on t11e driv er or front pas ­
senger door or the Volk sw age n b dge on the tai l­
g a te .
• Keyl ess Go: allow s you to sta rt th e e ngin e and
driv e . To do this, there mus t be a va lid ve hi cle k e y
insid e th e ve hicle, and the sta
rte r bu tton mu st be
pr essed
=>page 163.
• Keyl ess Exit: locks the v e hi cle vi a t he door h an­
dl e sensor on the driver or front passe nger door.
Th e cen tral l ocking syste m fun c
tions as with the
norm al u nl ocking and loc kin g s yste m . Only the
co ntrol ele m ents are differe nt.
Th e
ve hic le unl ocking procedure is confirm ed by
all the turn signals flas hing twi ce and the locking
proc edure by the turn sig na ls flas hing once .
The ve hicl e will lock aga in within a fe w s conds of
being unl ocked if y ou do no t open one of the doors
or the tai lgate .
Unlocking and opening the doors (Keyless
Entry)
• Grip the door ha nd le on th e driv er or front pas ­
seng er door . Th is makes con tac t wit11 the unlock-
ing surface Fig . 31 @ .
• Open th e door. ..,.
Op ening and closing 49

Downloaded from www.Manualslib.com manuals search engine In vehicles without a SAFELOCK
mechanism: closing and locking the doors
(Keyless Exit)
• Close the driver door.
• Touch the locking sensor@ on the outside of
the driver or front passenger door ha ndle once .
The door being used must be closed.
In vehicles with a SAFELOCK mechanism:
closing and locking the doors (Keyless Exit)
• Close the driver door.
• Touch the locking sensor@ on the outside of
the driver or front passenger door handle once .
The car is locked with the SAFELOCK mechan ism
=>page 51 active. The door be ing used must be
closed.
• Touch the locking sensor@ (arrow) on the out­
side of the driver or fron t passenger door handle
twice to lock the vehicle without activating the
SAFE LOCK mechanism =>page 51.
Locking and unlocking the tailgate
If the vehicle is locked, the tailgate will be unlocke d
automatically when you open it if a valid vehicle
key is located within the operating range of the tail­
gate =>Fig . 30.
Open and close the tailgate as normal
=>page 57.
The tailgate is locked automat ically after it is
closed. This al so applies if a val id vehicle key is lo­
cated on the luggage compart ment cover or in the
luggage compartment.
The tailgate will not lock automat ically after closing
if one of the following criteria applies :
• The vehicle is complete ly un locked .
• A valid vehicle key is located near the front or
rear seats in the v ehicle .
Response when locking the vehicle with a
second vehicle key
If a vehicle key is loca ted inside the vehicle, the
vehicle w ill only lock from the outside if a se cond
valid vehicle key is located outside the vehicle,
within the operating range of the Keyless Access
system.
Automatic switch-off of the sensors
If an exterior sensor in one of the door handles on
a locked
vehicle is activated more often than usual ,
e .g.
if branches from a hedge rub against it, the
proxim i
ty sensor will be switched off for a short
t ime .
The sensors are reactivated if any of the following
takes place:
• Some time has passed.
• OR: the vehicle is unlocked using the 0 button
on the vehicle key.
• OR: the tailgate is opened.
• OR: the vehicle is unlocked with the vehicle
key .
Convenience functions
To use convenience closing for all electric win­
dows and the electric panorama sliding/tilting roof,
hold a finger on the locking sensor
=>Fig . 31 @on
the outside of the driver or front passenger door
handle for a few seconds until the windows and/or
the electric panorama sliding/tilting r
oof have
closed.
When the sensor on the
door handle is to uched ,
the
door will open in accordance with the settings
activated in the infotainment system using
the~
button, and the~ and (Open ing and closing ) function
buttons
=>page 31.
lt is possible that the sensors in the door han­
dles will be activated by a powerful jet of water
or steam if a valid vehicle key is within its oper­
ating range at the same time. If at least one
window is open and the sensor@ (arrow) in a
door handle is activated permanently, all win­
dows close. lt is possible that all windows will
open if the jet of water or steam is moved away
from the door handle sensor® (arrow) briefly
and then moved back onto it =>page 50, Con­
venience functions.
m lt may not be possible to lock or unlock the
L!J vehicle using Keyless Access if the vehicle
battery or battery
in the vehicle key is weak or dis­
charged . The vehicle can be locked or unlocked
manually
=>page 339 .
m If there is no valid vehicle key in the vehicle
L!J or if it is not detected , a co rre spond ing dis­
play w ill be shown in the instrum ent cluster display.
T his may occur if the vehicle key is obstructed
by
another radio signal or is cov ered by another item,
e .g . an aluminium suitcase or briefcase.
m The function of the door handle sens?rs maY
L!J be limited by dirt, e.g . by salty depos1ts.
Clean the vehi cle as necessary =>page 294 .
m A veh icle with an automatic gearbox c~~ only L!J be locked if the selector lever is in pos1t1on P. c5 ~ ;r .q _. (") ....

Downloaded from www.Manualslib.com manuals search engine l

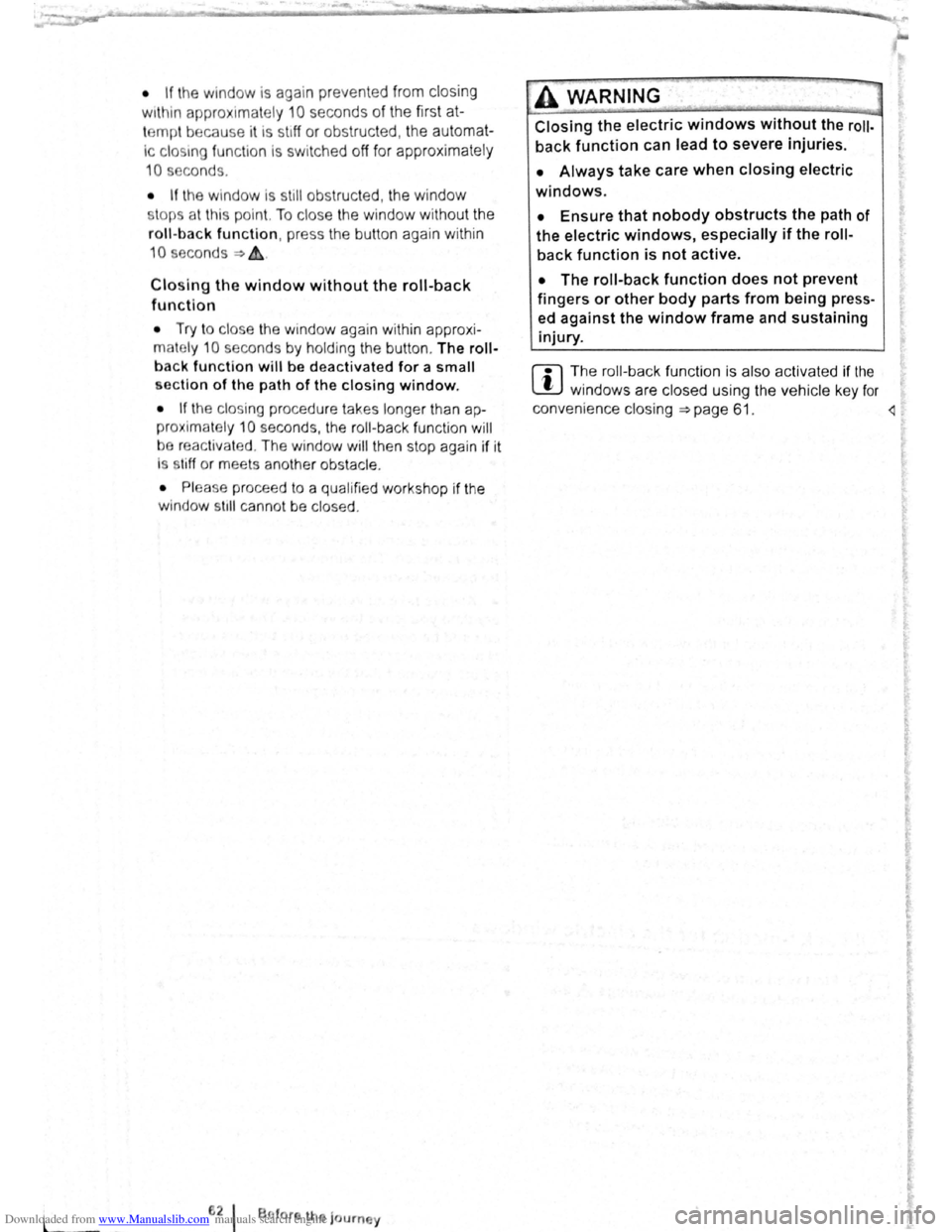

• If the window is again prevented from closing
within approximately
10 seconds of the first at­
temp t because it is stiff or obstructed, the automat­
Ic clo s
1ng fun ctio n Is switched off fo r approximately
10 seconds.
• If the window is still obstructed , the window
st ops at this point. To c lose the window withou t the
roll-bac k function, press the button again within
1 0 seconds ~ &,.
Closing the window without the roll-back
function
• Try to close the window again within approxi­
mately 10 seconds by holding the button . The roll ­
back function will be dea ctiva ted for a small
section of the path of the closing window.
• If the c losing procedure takes longer than ap­
proximately 10 seconds, the roll-back functio n will
be reac tivat ed . The window will then stop again if it
Is s tiff o r meets another obstacle .
• Please proceed to a qualified workshop if the
window
st1ll can not be closed .
t:2 I Bflfore th journey
---
A WARNING
Closing the electric windows without the roll­
back function can lead to severe injuries.
• Always take care when closing electric
windows.
• Ensure that nobody obstructs the path of
the electric windows, especially if the roll­
back function is not active.
• The roll-back function does not prevent
fingers or other body parts from being press­
ed against the window frame and sustaining
injury.
W The roll-back fun ctio n is also ac tivated if the
l!J windows are closed using t he ve hicle key f or
convenience closing
~page 61.
I ..
