2009 TOYOTA SEQUOIA remote control

483

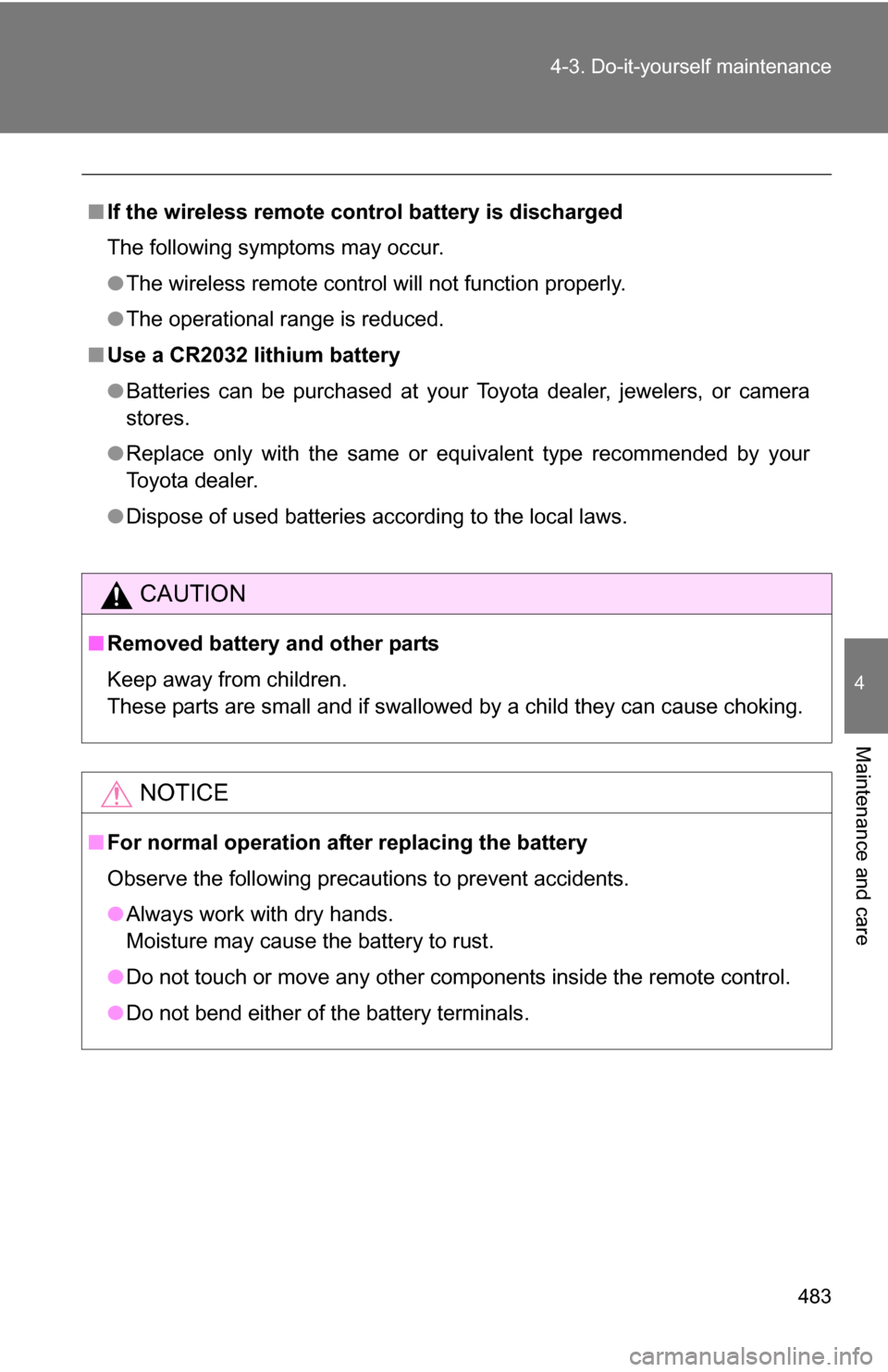

4-3. Do-it-yourself maintenance
4
Maintenance and care
■
If the wireless remote control battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
● The operational range is reduced.
■ Use a CR2032 lithium battery
●Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by your
Toyota dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.

584

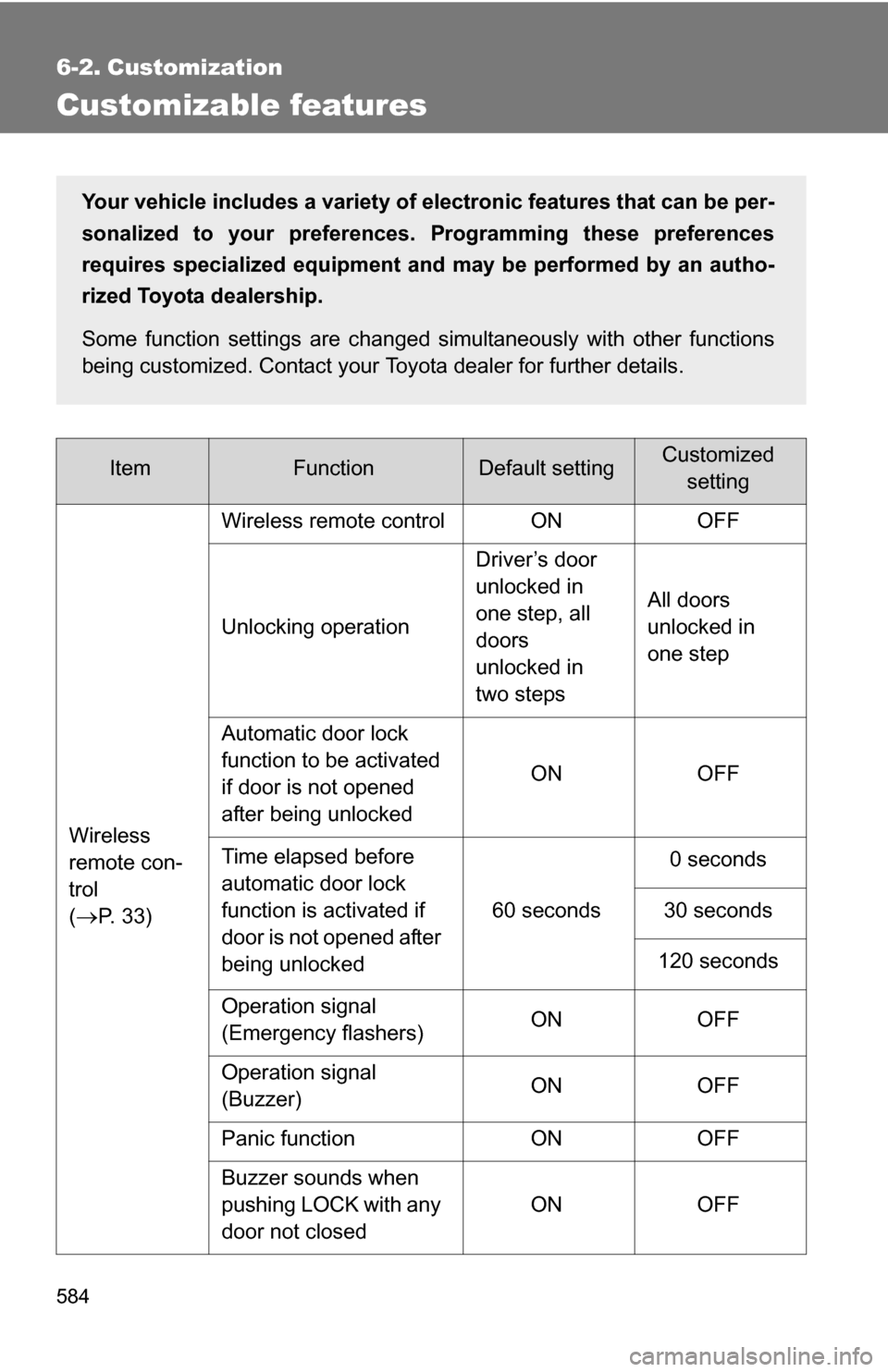

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol
(
P. 33) Wireless remote control ON OFF
Unlocking operation
Driver’s door
unlocked in
one step, all
doors
unlocked in
two stepsAll doors
unlocked in
one step
Automatic door lock
function to be activated
if door is not opened
after being unlocked ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
0 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers) ON OFF
Operation signal
(Buzzer) ON OFF
Panic function ON OFF
Buzzer sounds when
pushing LOCK with any
door not closed ON OFF
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences.
Programming these preferences
requires specialized equipment and may be performed by an autho-
rized Toyota dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

585

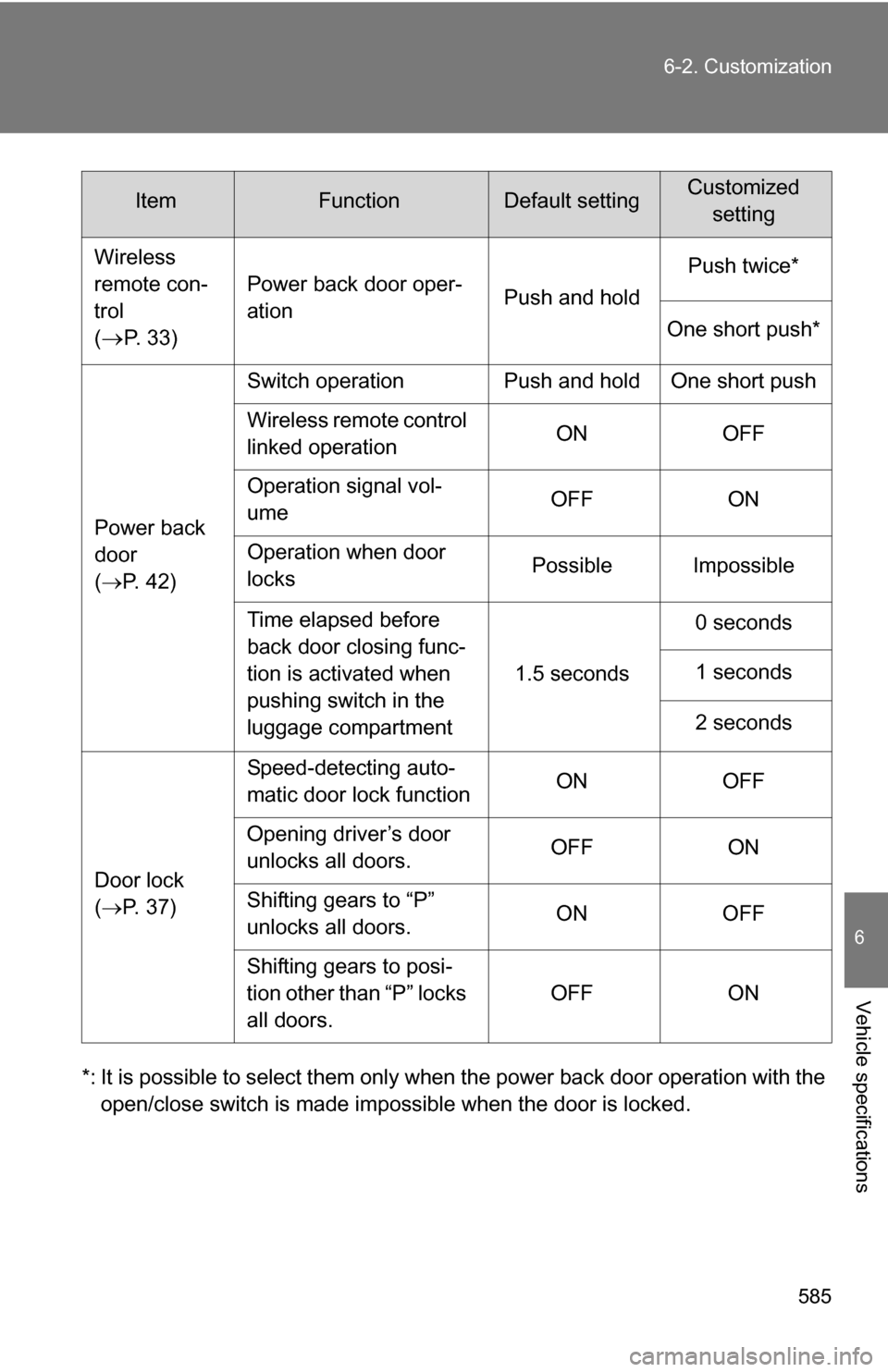

6-2. Customization
6
Vehicle specifications
*: It is possible to select them only wh
en the power back door operation with the
open/close switch is made impossible when the door is locked.
Wireless
remote con-
trol
(
P. 3 3 )
Power back door oper-
ation
Push and holdPush twice*
One short push*
Power back
door
( P. 42) Switch operation Push and hold One short push
Wireless remote control
linked operation
ON OFF
Operation signal vol-
ume OFF ON
Operation when door
locks Possible Impossible
Time elapsed before
back door closing func-
tion is activated when
pushing switch in the
luggage compartment 1.5 seconds
0 seconds
1 seconds
2 seconds
Door lock
( P. 37) Speed-detecting auto-
matic door lock function
ON
OFF
Opening driver’s door
unlocks all doors. OFF
ON
Shifting gears to “P”
unlocks all doors. ON
OFF
Shifting gears to posi-
tion other than “P” locks
all doors. OFF
ON
ItemFunctionDefault settingCustomized
setting

598
Alphabetical index
Alphabetical index
A/C ..................................... 260, 268
ABS ........................................... 221
Active traction control ............. 221
Adaptive variable suspension system .................................... 213
Air conditioning filter............... 479
Air conditioning system Air conditioning filter .............. 479
Front air conditioning system ................................ 260
Rear air conditioning system ................................ 268
Airbags
Airbag operating conditions............................ 110
Airbag precautions for your
child .................................... 114
Airbag warning light............... 519
Curtain shield airbag operating conditions............................ 110
Curtain shield airbag precautions ......................... 114
Front passenger occupant classification system ........... 120
General airbag
precautions ......................... 114
Locations of airbags .............. 107
Modification and disposal of airbags ................................ 118
Proper driving posture ........................ 105, 114
Side airbag operating conditions............................ 110
Side airbag precautions ........ 114
SRS airbags .......................... 107
Alarm ......................................... 102
Antenna..................................... 282
Anti-lock brake system............ 221
Armrest ..................................... 413
Ashtrays.................................... 399
A-TRAC ..................................... 221
Audio input ............................... 303 Audio system
A/V input adapter .................. 328
Antenna................................. 282
Audio input ............................ 303
Audio visual input .................. 328
AUX adapter ......................... 303
CD player/changer ................ 285
DVD player............................ 314
MP3/WMA disc ..................... 292
Optimal use ........................... 301
Portable music player ........... 303
Radio..................................... 279
Rear seat entertainment system ................................ 307
Steering wheel audio switch.................................. 305
Type ...................................... 276
Audio visual input.................... 328
AUTO LSD system ................... 219
Automatic light control system .................................... 181
Automatic
transmission .......................... 154
AUX adapter ............................. 303
Auxiliary box ........................... 392
A/V input adapter ..................... 328
AVS ........................................... 213
Back-up lights Replacing light bulbs ............. 495
Wattage................................. 568
Back door Back door ................................ 42
Wireless remote control .......... 33
Back window ........................... 90
Battery Checking ............................... 462
If the vehicle has discharged
battery................................. 546
Preparing and checking before
winter .................................. 237
Bluetooth
................................ 342
Bottle holder............................. 391
A
B

602 Alphabetical index
Ignition switch........................ 151
Keyless entry...........................33
Key number .............................32
Keys ........................................32
Wireless remote control key ........................................33
LATCH system ......................... 130
License plate lights Replacing light bulbs ............. 495
Wattage ................................. 568
Light bulbs Replacing .............................. 495
Wattage ................................. 568
Lights Door courtesy lights .............. 371
Emergency flasher switch ..... 508
Fog light switch ..................... 183
Hazard light switch ................508
Headlight switch .................... 180
Interior light switch ........373, 374
Outer foot lights ..................... 371
Personal light switch ............. 373
Replacing light bulbs ............. 495
Turn signal lever.................... 158
Vanity lights ........................... 395
Wattage ................................. 568
Load capacity ........................... 236
Lock steering column .............. 152
Luggage compartment features................................... 418
Maintenance Do-it-yourself maintenance ....................... 445
General maintenance ............ 441
Maintenance data.................. 556
Maintenance requirements.... 439
Map holder ................................ 380
Meter
Accessory meter ................... 177 Instrument panel light
control ................................. 165
Meters ................................... 161
Mirrors Conversation mirror .............. 401
Inside rear view mirror ............ 79
Side mirror heaters ............... 272
Side mirrors............................. 82
Vanity mirrors ........................ 395
Moon roof ................................... 92
MP3 disc ................................... 292
Multi-information display .................................... 171
Odometer .................................. 161
Off-road precautions ............... 227
Oil Engine oil .............................. 452
Opener
Back door ................................ 42
Fuel door ................................. 95
Fuel filler door ......................... 95
Hood ..................................... 449
Outside rear view mirrors Adjusting and folding............... 82
Outside temperature display .................................... 397
Overhead console.................... 385
Overheating, Engine ................ 550
Parking assist .......................... 202
Parking brake ........................... 159
Parking lights
Replacing light bulbs ............. 495
Switch ................................... 180
Wattage................................. 568
Pen holder ................................ 381
Personal lights Switch ................................... 373
Wattage................................. 568
Power back door ........................ 43
Power back window................... 90
L
M
O
P

604 Alphabetical index
Shopping bag hooks ............... 420
Side airbags.............................. 107
Side marker lightsReplacing .............................. 495
Switch.................................... 180
Wattage ................................. 568
Side mirrors Adjusting and folding ...............82
Spare tire Inflation pressure................... 567
Spare tire............................... 532
Spark plug ................................ 563
Specifications........................... 556
Speedometer ............................ 161
Steering Column lock release.............. 152
Steering wheel
Adjustment ........................77, 78
Audio switches ...................... 305
Climate remote control switches .............................. 274
Steering wheel memory ..........61
Telephone switches .............. 343
Stop lights Replacing light bulbs ............. 495
Wattage ................................. 568
Storage feature......................... 375
Storage precautions ................234
Stuck If your vehicle becomes stuck ................................... 553
Sun visors................................. 394
Sunshade .................................. 414
Switch Emergency flasher switch ..... 508
Engine switch ........................ 151
Fog light switch ..................... 183
Hazard light switch ................508
Ignition switch........................ 151
Light switches........................ 180
Power back door switch ....33, 43
Power back window switch .....90
Power door lock switch ...........37 Power window switch .............. 88
Rear window wiper and
washer switch ..................... 186
Seatback folding/returning switch.............................. 54, 59
Window lock switch ................. 88
Wiper and washer switch.......................... 184, 186
Tachometer .............................. 161
Tail lights Replacing light bulbs ............. 495
Switch ................................... 180
Wattage................................. 568
Talk switch ............................... 343
Telephone switch..................... 343
Theft deterrent system Alarm..................................... 102
Engine immobilizer system ... 100
Theft prevention labels ........... 104
Tire inflation pressure ............. 473
Tire information Glossary ................................ 578
Size ....................................... 575
Tire identification number...... 574
Uniform tire quality grading................................ 576
Tires
Chains ................................... 238
Checking ............................... 466
If you have a flat tire.............. 532
Inflation pressure .......... 473, 567
Information ............................ 573
Replacing .............................. 532
Rotating tires ......................... 466
Size ....................................... 567
Snow tires ............................. 237
Tire pressure warning system ........................ 466, 521
Tissue pocket ........................... 382
Tools ......................................... 532
Total load capacity .................. 236
T

605
Alphabetical index
Towing
Dinghy towing ....................... 257
Emergency towing ................ 509
Trailer towing ........................ 241
Traction control ....................... 221
TRAC ........................................ 221
Trip information....................... 171
Trip meter................................. 161
Turn signal lights
Replacing light bulbs ............ 495
Switch ................................... 158
Wattage ................................ 568
Valet key..................................... 32
Vanity lights Vanity lights .......................... 395
Wattage ................................ 568
Vanity mirrors .......................... 395
Vehicle identification number................................... 558
Vehicle stability control .......... 221
VSC ........................................... 221
Warning buzzers Brake system........................ 518
Open door ............................ 520
Seat belt reminder ................ 520
Warning lights ABS ...................................... 519
Airbag system....................... 519
Anti-lock brake system ......... 519
Brake assist system ............. 519
Brake system........................ 518
Charging system .... .............. 518
Electronic engine control system................................ 519
Engine oil pressure............... 519
Malfunction indicator lamp.... 519
Master warning light ............. 521
Open door ............................ 520
Pretensioners ....................... 519
Seat belt reminder light ........ 520 SRS airbags ..........................519
Tire pressure warning light ....521
Warning messages ..................527
Washer Checking ...............................464
Preparing and checking
before winter .......................237
Switch............................184, 186
Washing and waxing ...............434
Weight Cargo capacity ......................232
Load limits .............................236
Weight ...................................557
Wheels ......................................477
Window glasses ..................88, 90
Window lock switch ...................88
Windows
Power back window ................90
Power windows .......................88
Rear window defogger ..........272
Washer ..........................184, 186
Windshield wiper de-icer.........273
Windshield wipers ...................184
Wireless remote control key Replacing the battery ............482
Wireless remote control ..........33
WMA disc ..................................292
V
W
