2009 TOYOTA SEQUOIA steering wheel

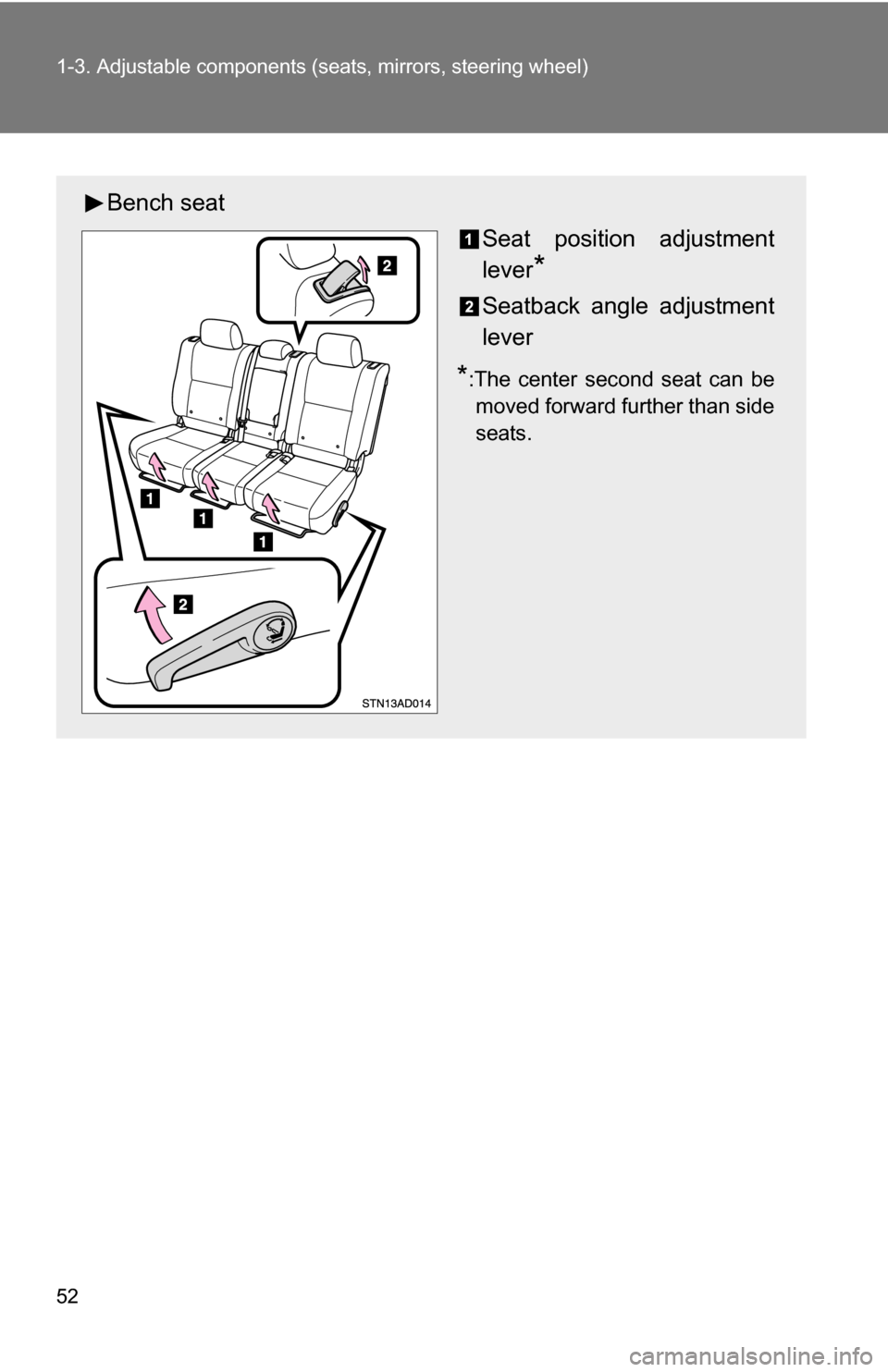

52 1-3. Adjustable components (seats, mirrors, steering wheel)
Bench seat
Seat position adjustment
lever
*
Seatback angle adjustment
lever
*:The center second seat can bemoved forward further than side
seats.

53
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

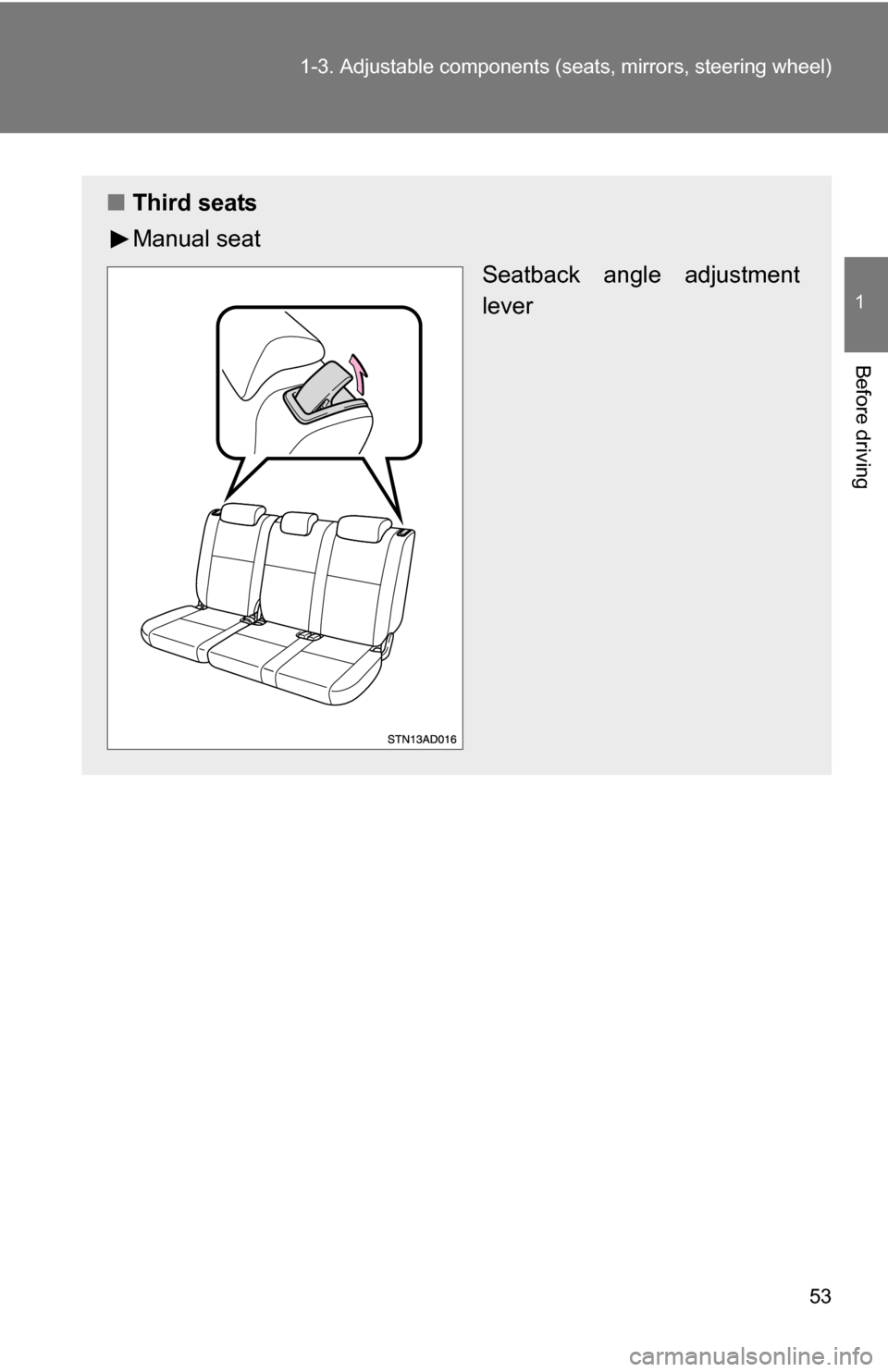

■Third seats
Manual seat
Seatback angle adjustment
lever

54 1-3. Adjustable components (seats, mirrors, steering wheel)
Moving a second seat for third seat access
■Getting in the vehicle
Pull up the lever and fold down
the seatback. The seat will slide
forward.
Move the seat to the front-most
position
Power seat Seatback angle adjustment
switch
Seatback folding/returning
switch

55
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Getting out of the vehicle
Depress the release pedal and
fold down the seatback. The seat
will slide forward.
Move the seat to the front-most
position
Make sure that no passenger is
seated on the second seat before
depressing the release pedal.
■After passengers have entered/exited the vehicle
Lift up the seatback and slide th e seat backward until it locks.
Folding down the second seat
■ Before folding down the second seat
Adjust the head restraint to the
downmost position.
Stow the rear seat belt buckle.

56 1-3. Adjustable components (seats, mirrors, steering wheel)

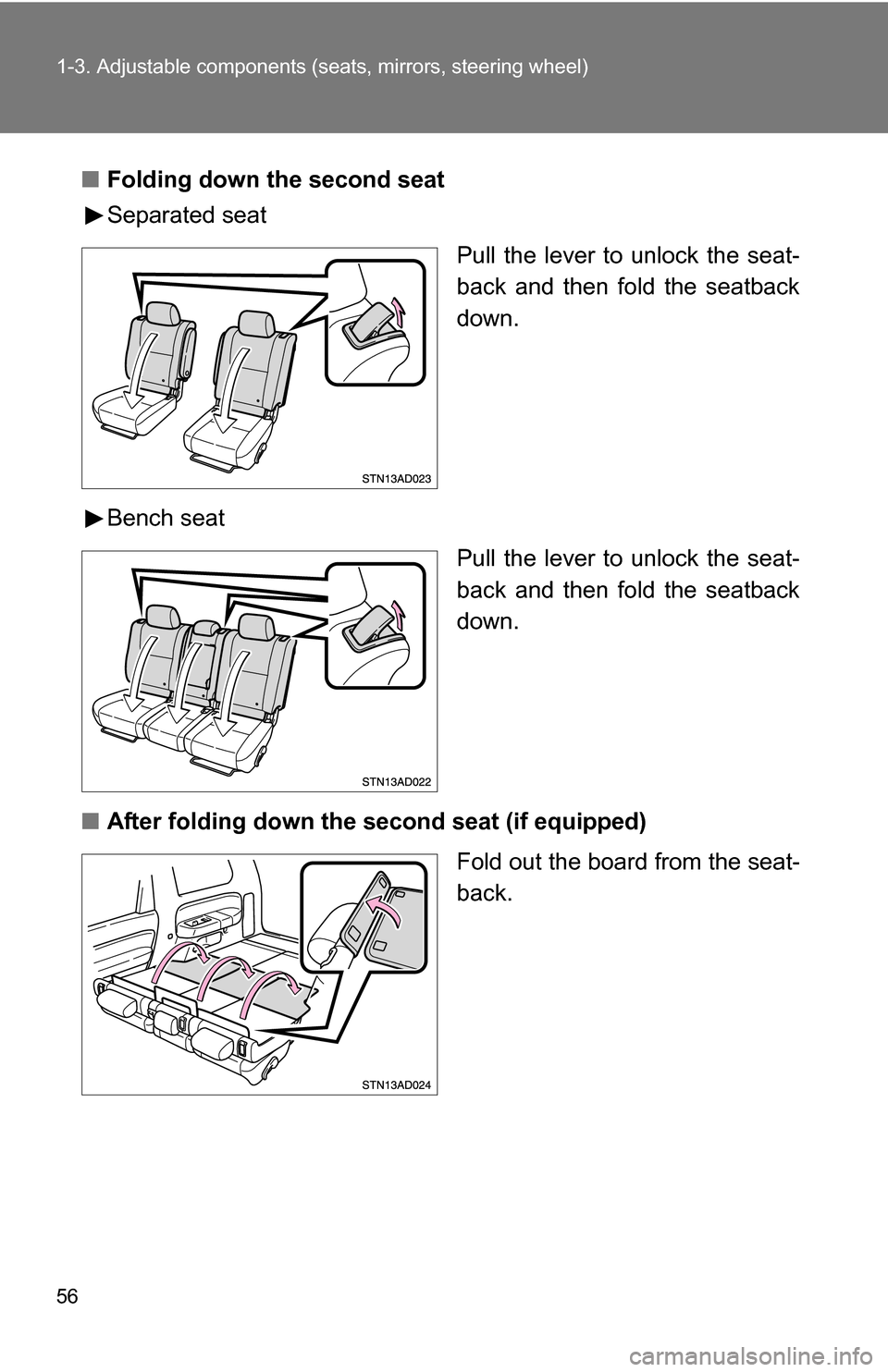

■Folding down the second seat
Separated seat
Pull the lever to unlock the seat-
back and then fold the seatback
down.
Bench seat Pull the lever to unlock the seat-
back and then fold the seatback
down.
■ After folding down the second seat (if equipped)
Fold out the board from the seat-
back.

57
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding down the third seat
■ Before folding down the third seat
Insert the key into the hole on
the center seat belt buckle to
release tab (with hooked end),
and allow the belt to retract.
Stow the seat belt tabs in the
cover set in the roof as shown.

58 1-3. Adjustable components (seats, mirrors, steering wheel)
Adjust the head restraint to the
downmost position.
Stow the third seat belt buckles.
■ Folding down the third seat
Manual seat (from rear door side)
Pull the lever to unlock the seat-
back and then fold the seatback
down.

59
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Manual seat (from back door side)
Pull the lever to unlock the seat-
back and then fold the seatback
down.
Power seat (from rear door side) Press and hold the seatback
folding switch until the seatback
folds down fully and the buzzer
sounds.
Power seat (from back door side) Press and hold the seatback
folding switch until the seatback
folds down fully and the buzzer
sounds.
■The power third seat can be folded down/returned when
● The engine switch is off or the shift lever is in P, with the rear door
opened. (from rear door side)
● The engine switch is off or the shift lever is in P, with the back door
opened. (from back door side)
