2009 TOYOTA LAND CRUISER diff lock

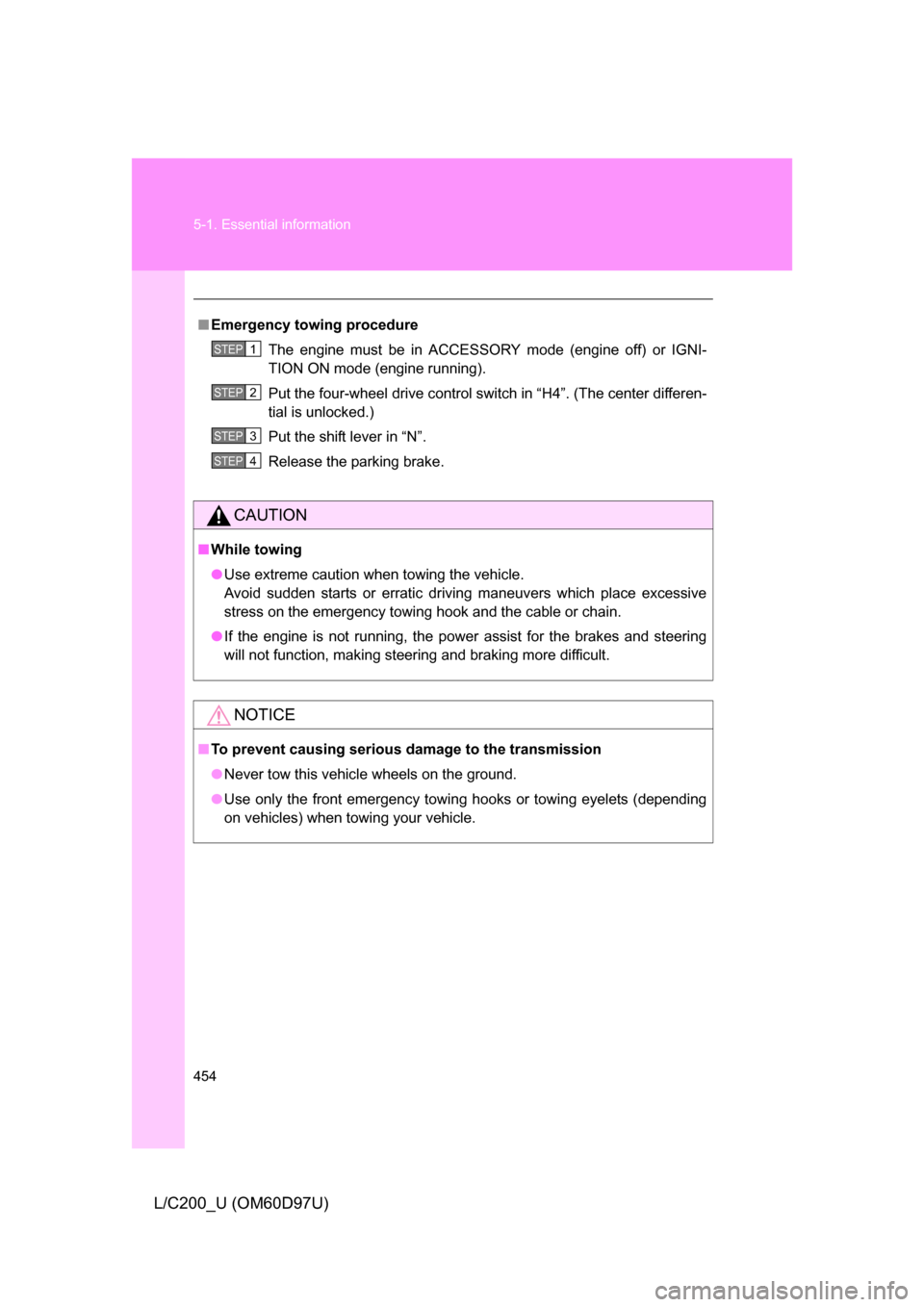

454 5-1. Essential information
L/C200_U (OM60D97U)
■Emergency towing procedure
The engine must be in ACCESSORY mode (engine off) or IGNI-
TION ON mode (engine running).
Put the four-wheel drive control swit ch in “H4”. (The center differen-
tial is unlocked.)
Put the shift lever in “N”.
Release the parking brake.
CAUTION
■ While towing
● Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing hook and the cable or chain.
● If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
■To prevent causing serious dama ge to the transmission
● Never tow this vehicle wheels on the ground.
● Use only the front emergency towing hooks or towing eyelets (depending
on vehicles) when towing your vehicle.
STEP1
STEP2
STEP3
STEP4

5
When trouble arises
467
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■
If the malfunction indicator lamp comes on while driving
First check the following:
● Is the fuel empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The malfunction indicator lamp will go off after taking several driving trips. If
the malfunction indicator lamp does not go off even after several trips, con-
tact your Toyota dealer as soon as possible.
■ If the low speed four-wheel drive in dicator light or the center differen-
tial lock indicator light blinks
Take the specified steps. ( P. 206)
If the brake system warning light or the malfunction indicator light also
comes on, or the low speed four-wheel drive indicator light or the center dif-
ferential lock indicator light continues to blink after taking the specified steps,
there may be a malfunction in the engine, the brake system or the four-
wheel drive system. In this case, you may not be able to transfer between
“H4” and “L4” modes, and the center differential lock may not be able to be
locked or unlocked. Have the vehicle inspected by your Toyota dealer imme-
diately.
■ Front passenger detection sensor and passenger seat belt reminder
● If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.

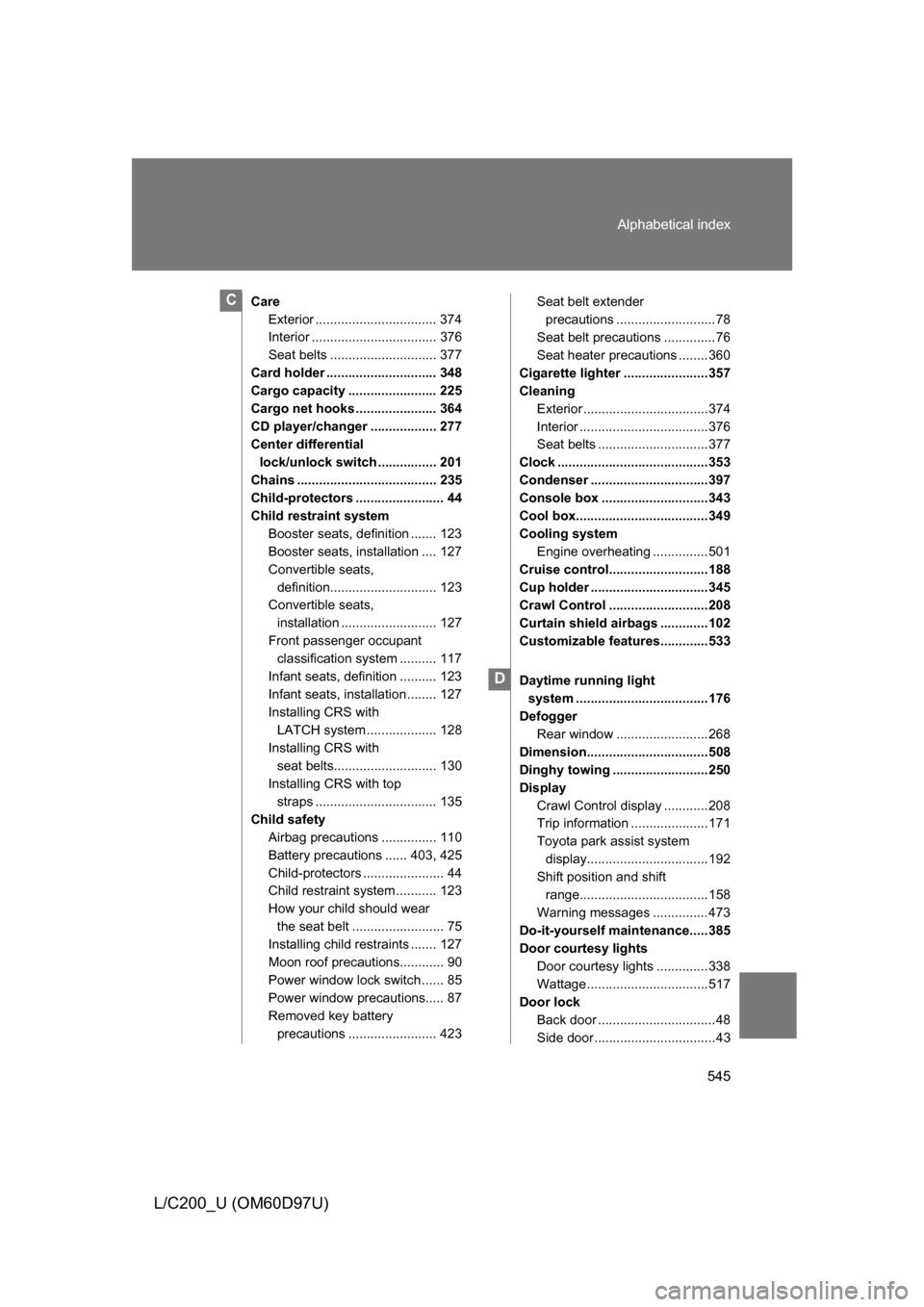

545
Alphabetical index
L/C200_U (OM60D97U)
Care
Exterior ................................. 374
Interior .................................. 376
Seat belts ............................. 377
Card holder .............................. 348
Cargo capacity ........................ 225
Cargo net hooks ...................... 364
CD player/changer .................. 277
Center differential lock/unlock switch ................ 201
Chains ...................................... 235
Child-protectors ........................ 44
Child restraint system Booster seats, definition ....... 123
Booster seats, installation .... 127
Convertible seats, definition............................. 123
Convertible seats,
installation .......................... 127
Front passenger occupant classification system .......... 117
Infant seats, definition .......... 123
Infant seats, installation ........ 127
Installing CRS with LATCH system ..... .............. 128
Installing CRS with seat belts............................ 130
Installing CRS with top
straps ................................. 135
Child safety Airbag precautions ............... 110
Battery precautions ...... 403, 425
Child-protectors ...................... 44
Child restraint system ........... 123
How your child should wear
the seat belt ......................... 75
Installing child restraints ....... 127
Moon roof precautions............ 90
Power window lock switch ...... 85
Power window precautions..... 87
Removed key battery
precautions ........................ 423 Seat belt extender
precautions ...........................78
Seat belt precautions ..............76
Seat heater precautions ........360
Cigarette lighter .......................357
Cleaning Exterior ..................................374
Interior ...................................376
Seat belts ..............................377
Clock .........................................353
Condenser ................................397
Console box .............................343
Cool box....................................349
Cooling system Engine overheating ...............501
Cruise control...........................188
Cup holder ................................345
Crawl Control ...........................208
Curtain shield airbags .............102
Customizable features.............533
Daytime running light system ....................................176
Defogger
Rear window .........................268
Dimension.................................508
Dinghy towing ..........................250
Display Crawl Control display ............208
Trip information .....................171
Toyota park assist system display.................................192
Shift position and shift
range...................................158
Warning messages ...............473
Do-it-yourself main tenance.....385
Door courtesy lights Door courtesy lights ..............338
Wattage .................................517
Door lock Back door ................................48
Side door .................................43C
D
