2009 TOYOTA LAND CRUISER child restraint

129
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)

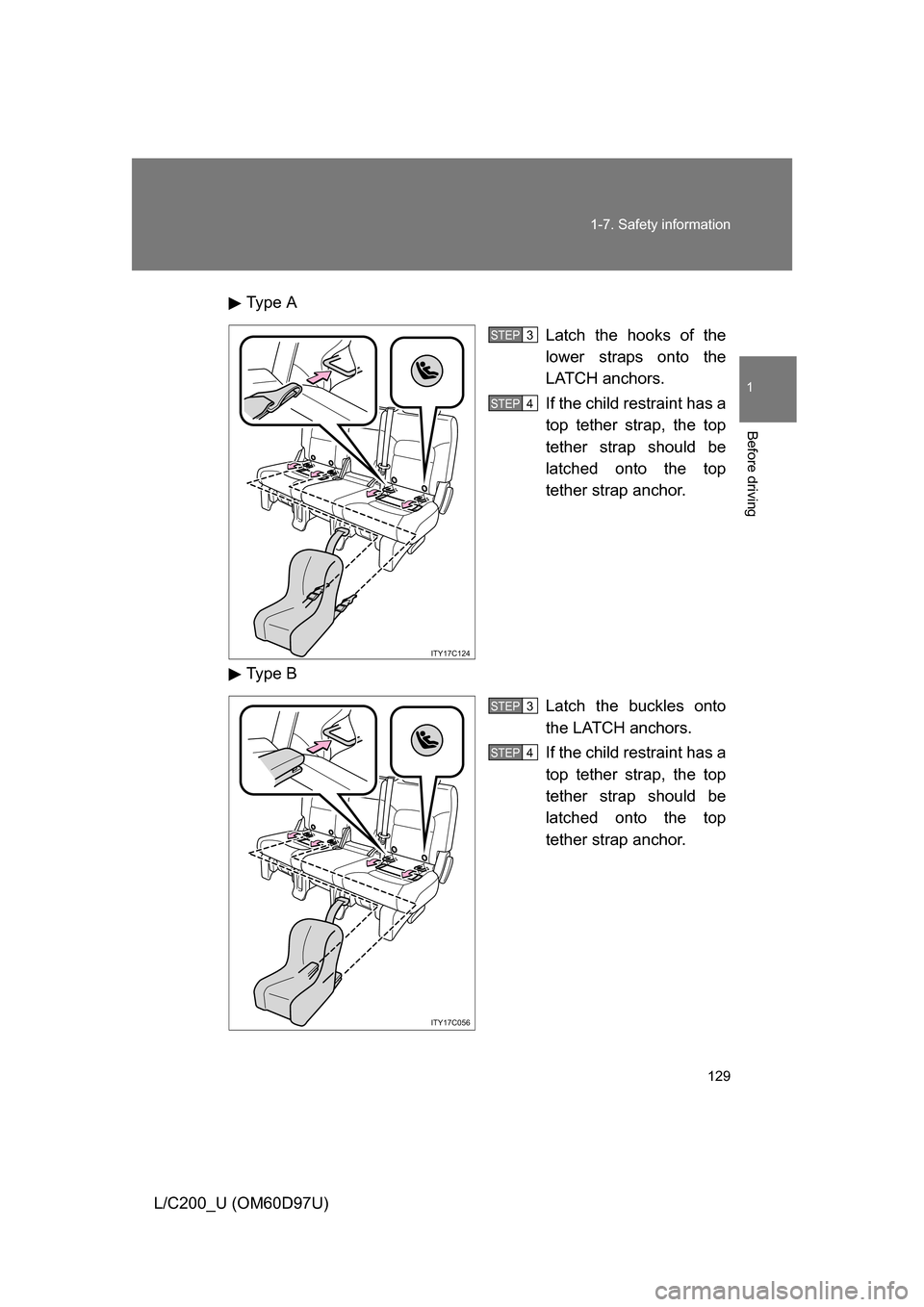

Type A
Latch the hooks of the
lower straps onto the
LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
Type B Latch the buckles onto
the LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
ITY17C124
STEP3
STEP4
ITY17C056
STEP3
STEP4

130 1-7. Safety information
L/C200_U (OM60D97U)
Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear-facing  Infant seat/convertible seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 53)
Place the infant seat/convertible
seat on the second or third seat
facing the rear of the vehicle.
Run the seat belt through the
infant seat/convertible seat and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
STEP1
STEP2
STEP3

133
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)
Fully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the convertible
seat into the seat, allow the
shoulder belt to retract until the
convertible seat is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (
P. 128)
STEP4
STEP5
STEP6

135
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)
Removing a child restraint installed with a seat belt
Press the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint using a seat belt or lower anchors,
and do the following.
Outside
Adjust the head restraint to the
upmost position.
Center Lower the head restraint to the
lowest position.
STEP1
ITY17C055
STEP1
ITY17C099

137
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)
■

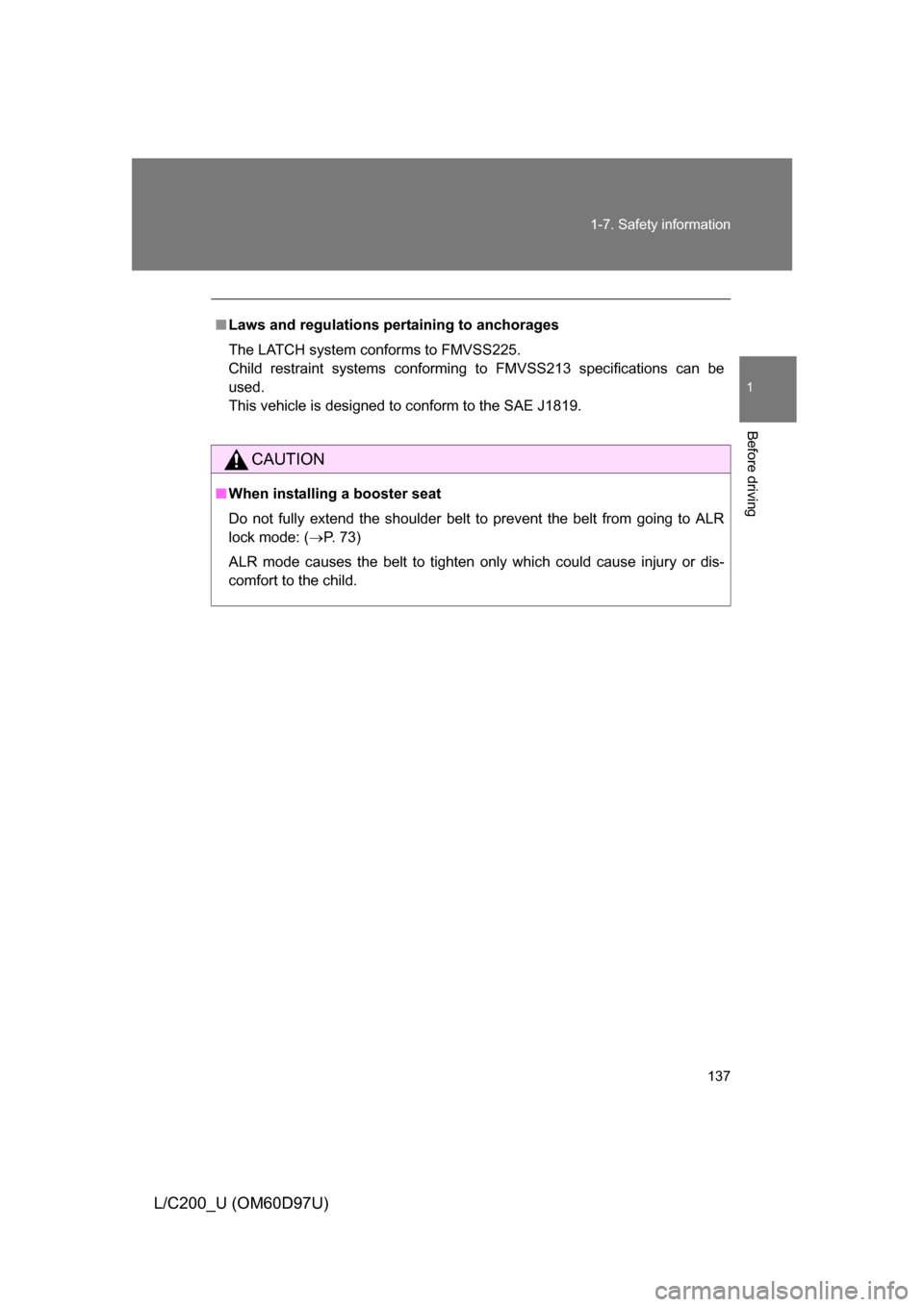

Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225.
Child restraint systems conforming to FMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: ( P. 73)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.

138 1-7. Safety information
L/C200_U (OM60D97U)
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking or an accident.
● When using the LATCH anchors for a child restraint system, move the seat
as far as possible and adjust the seatback as upright as possible, with \
the
seatback close to the child restraint system.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or sudden braking.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Child restraint system installed on the
third seat should not contact the second
seatbacks.
● Only put a forward facing or booster
child seat on the front seat when
unavoidable. When installing a forward
facing or booster child restraint on the
front passenger seat, move the seat as
far back as possible even if the AIR
BAG OFF indicator light illuminates.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

139
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)
CAUTION
■
When installing a child restraint system
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● Push and pull the child restraint system from side to side and forward to be
sure it is secure.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a colli-
sion.
■ To correctly attach a child r estraint system to the anchors
● When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it
may cause death or serious injury to the child or other passengers in the
event of a sudden stop or accident.
● When using the left side lower anchors
for the child restraint system, do not sit
in the center seat. Seat belt function
may be impaired, such as being posi-
tioned overly high or loose-fitting, which
may result in death or serious injury in
the event of a collision.

542
L/C200_U (OM60D97U)
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABS Anti-lock Brake System
ALR Automatic Locking Retractor
AUX Auxiliary
CRS Child Restraint System
DISP Display
ECT Electronic Controlled Transmission
ECU Electronic Control Unit
EDR Event Data Recorder
ELR Emergency Locking Retractor
GAWR Gross Axle Weight Rating
GVWR Gross Vehicle Weight Rating
I/M Emission inspection and maintenance
INT Intermittent
KDSS Kinetic Dynamic Suspension System
LATCH Lower Anchors and Tethers for Children
LED Light Emitting Diode
MMT Methylcy clopentadienyl Manganese Tricarbonyl
M+S Mud and Snow
MTBE Methyl Tertiary Butyl Ether
OBD On Board Diagnostics
PWR Power
RSCA Roll Sensing of Curtain Shield airbag
SRS Supplemental Restraint System
