2009 TOYOTA LAND CRUISER cruise control

190 2-4. Using other driving systems
L/C200_U (OM60D97U)
■Cruise control can be set when
● The shift lever is in the “D” or “4”, “5” or “6” range of “S”.
● Vehicle speed is more than approximately 25 mph (40 km/h).
■ Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■ Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
● Actual vehicle speed falls more than 10 mph (16 km/h) below the preset
vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below 25 mph (40 km/h).
● VSC is activated.
■ If the cruise control indicator light flashes
Turn the “ON-OFF” button off once, and then reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Contact your Toyota dealer, and have your Toyota inspected.

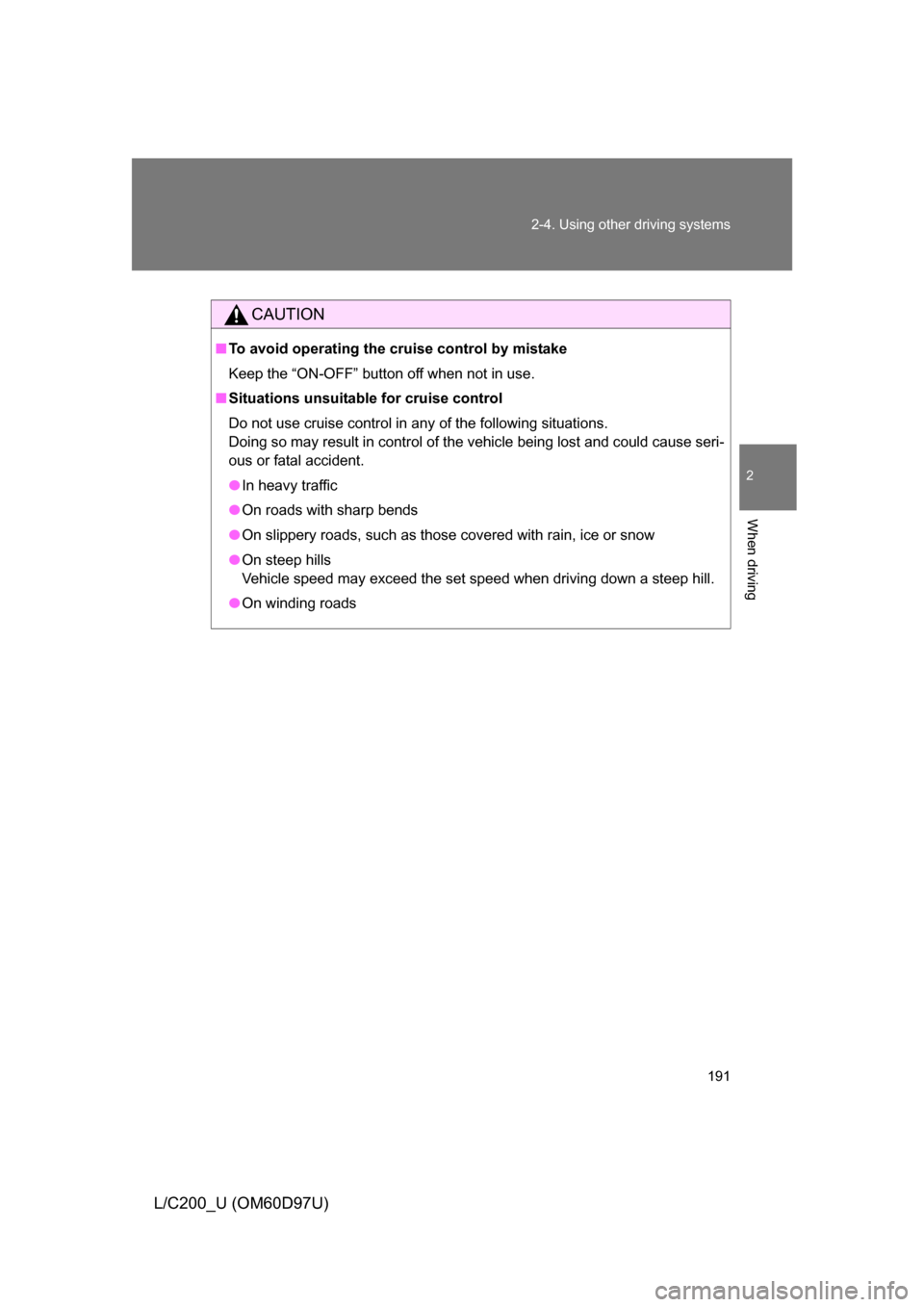

191
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
CAUTION
■To avoid operating the cruise control by mistake
Keep the “ON-OFF” button off when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in control of the vehicle being lost and could cause seri-
ous or fatal accident.
● In heavy traffic
● On roads with sharp bends
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● On winding roads

205
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
■The four-wheel drive control switch can be operated when
● The “ENGINE START STOP” switch is in IGNITION ON mode.
● The shift lever is in the “N” position.
● The vehicle is stopped completely.
■ The low speed four-wheel drive indicator light
The indicator light blinks while shifting between “H4” and “L4”.
■ Advice for driving on slippery roads
● If you shift the four-wheel drive control switch to “L4” and the shift lever to
the “2” range of “S” while driving in steep off-road areas, the output of the
brake can be controlled effectively by the Active TRAC, which assists the
driver to control the driving power of 4 wheels.
● Use the “1” range of “S” of the shift lever for maximum power and traction
when your wheels get stuck or when driving down a steep incline.
■ The center differential lock indicator light
The indicator light blinks while locking/unlocking the center differential.
■ The center differential lock/unlo ck button can be operated when
● The “ENGINE START STOP” switch is in IGNITION ON mode.
● The vehicle speed is less than 60 mph (100 km/h).
■ Locking/unlocking the center differential
● When the center differential is locked, VSC (vehicle stability control) is
automatically turned off. (The center differential lock and “VSC OFF” indi-
cator lights come on.)
● If the operation is not completed, the center differential lock indicator
blinks. If the indicator light does not turn off when unlocking the center
differential, drive straight ahead while accelerating or decelerating, or
drive in reverse.
● If the center differential lock/unlock is not completed within 5 seconds
while the cruise control system is on, cancel the cruise control system.

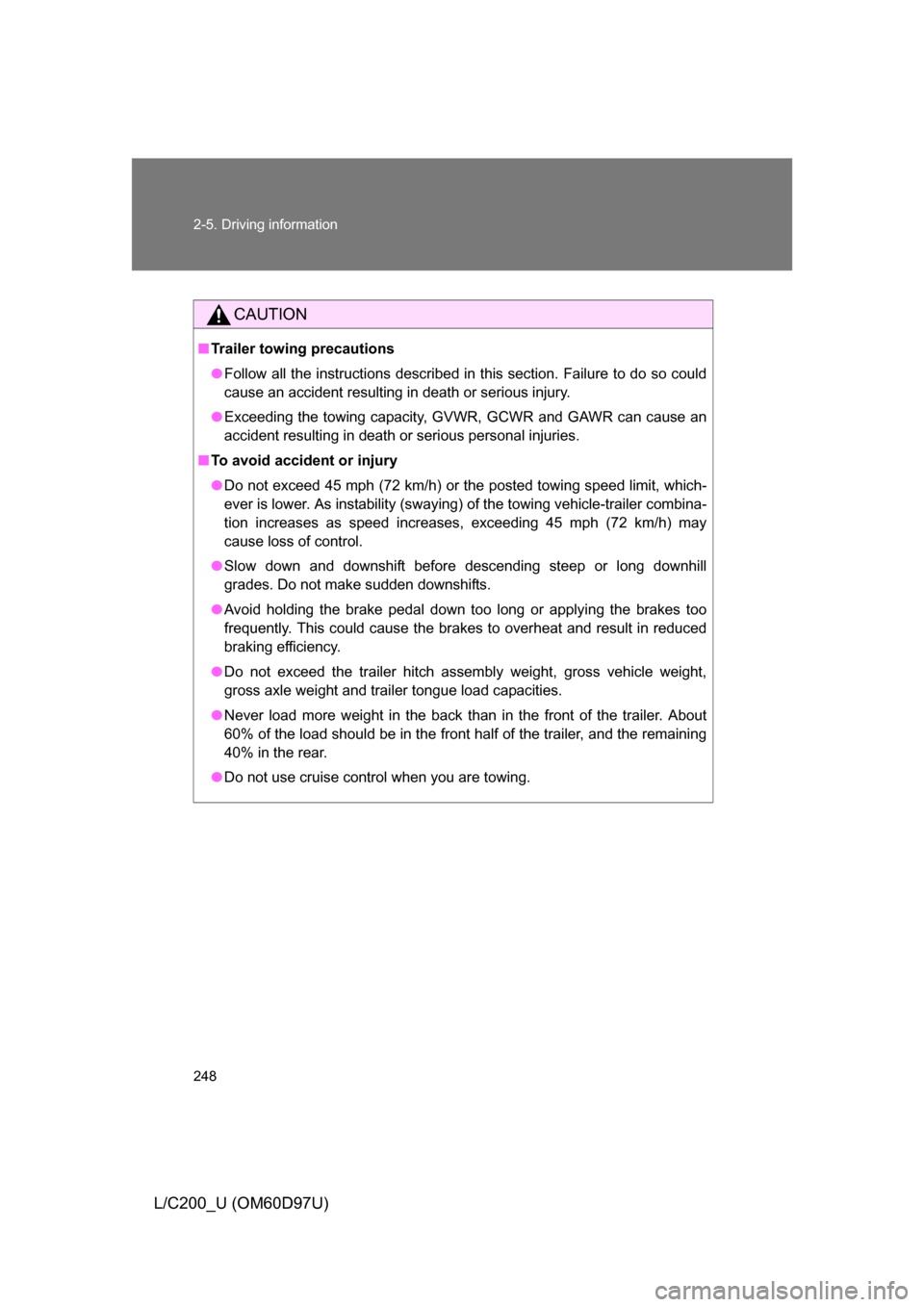

248 2-5. Driving information
L/C200_U (OM60D97U)
CAUTION
■Trailer towing precautions
● Follow all the instructions described in this section. Failure to do so could
cause an accident resulting in death or serious injury.
● Exceeding the towing capacity, GVWR, GCWR and GAWR can cause an
accident resulting in death or serious personal injuries.
■ To avoid accident or injury
● Do not exceed 45 mph (72 km/h) or the posted towing speed limit, which-
ever is lower. As instability (swaying) of the towing vehicle-trailer combina-
tion increases as speed increases, exceeding 45 mph (72 km/h) may
cause loss of control.
● Slow down and downshift before descending steep or long downhill
grades. Do not make sudden downshifts.
● Avoid holding the brake pedal down too long or applying the brakes too
frequently. This could cause the brakes to overheat and result in reduced
braking efficiency.
● Do not exceed the trailer hitch assembly weight, gross vehicle weight,
gross axle weight and trailer tongue load capacities.
● Never load more weight in the back than in the front of the trailer. About
60% of the load should be in the front half of the trailer, and the remaining
40% in the rear.
● Do not use cruise control when you are towing.

434 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■
Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Stereo component amplifier
assembly, multi-display
assembly, gateway ECU, radio
receiver assembly, main body
ECU, mirror ECU, rear seat
entertainment, smart key sys-
tem, clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
DAC, multi-display assembly,
seat heater, air conditioning
system, glove box light, emer-
gency flasher, radio receiver
assembly, headlight cleaner,
inverter, driving position mem-
ory system, mirror ECU, over-
head module, roll sensing of
curtain shield airbags off
switch, shift lever switch, steer-
ing switches, VSC, console
switch

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
5ECU-IG NO.210 A
Air conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 A
Cool box, condenser fan,
cooler compressor, MG CL,
rear window defogger, RR
MGC VLV
8TA I L15 ATail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 A Rear wiper
124WD20 A 4WD
13LH-IG5 AAlternator, sub battery, seat
heater, windshield wiper de-
icer, seat belt pretensioners,
emergency flasher, inverter,
shift lever switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit

5
When trouble arises
475
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■
Resetting the tire pressure warning data
After adjusting the tire inflation pressure, be sure to initialize the data.
(P. 406)
If the message remains on, the system may have malfunctioned. Have the
vehicle inspected by your Toyota dealer as soon as possible.
■ Warning messages in th e cruise control mode
In the following instances, there is a possibility that the approach warning will
not illuminate even when vehicle-to-vehicle distance is closing.
● When the speed of the vehicle ahead matches or exceeds your vehicle’s
speed.
● When the vehicle ahead is traveling at an extremely slow speed.
● Immediately after the cruise control speed has been set.
● At the instant the accelerator is applied.
NOTICE
■Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

545
Alphabetical index
L/C200_U (OM60D97U)
Care
Exterior ................................. 374
Interior .................................. 376
Seat belts ............................. 377
Card holder .............................. 348
Cargo capacity ........................ 225
Cargo net hooks ...................... 364
CD player/changer .................. 277
Center differential lock/unlock switch ................ 201
Chains ...................................... 235
Child-protectors ........................ 44
Child restraint system Booster seats, definition ....... 123
Booster seats, installation .... 127
Convertible seats, definition............................. 123
Convertible seats,
installation .......................... 127
Front passenger occupant classification system .......... 117
Infant seats, definition .......... 123
Infant seats, installation ........ 127
Installing CRS with LATCH system ..... .............. 128
Installing CRS with seat belts............................ 130
Installing CRS with top
straps ................................. 135
Child safety Airbag precautions ............... 110
Battery precautions ...... 403, 425
Child-protectors ...................... 44
Child restraint system ........... 123
How your child should wear
the seat belt ......................... 75
Installing child restraints ....... 127
Moon roof precautions............ 90
Power window lock switch ...... 85
Power window precautions..... 87
Removed key battery
precautions ........................ 423 Seat belt extender
precautions ...........................78
Seat belt precautions ..............76
Seat heater precautions ........360
Cigarette lighter .......................357
Cleaning Exterior ..................................374
Interior ...................................376
Seat belts ..............................377
Clock .........................................353
Condenser ................................397
Console box .............................343
Cool box....................................349
Cooling system Engine overheating ...............501
Cruise control...........................188
Cup holder ................................345
Crawl Control ...........................208
Curtain shield airbags .............102
Customizable features.............533
Daytime running light system ....................................176
Defogger
Rear window .........................268
Dimension.................................508
Dinghy towing ..........................250
Display Crawl Control display ............208
Trip information .....................171
Toyota park assist system display.................................192
Shift position and shift
range...................................158
Warning messages ...............473
Do-it-yourself main tenance.....385
Door courtesy lights Door courtesy lights ..............338
Wattage .................................517
Door lock Back door ................................48
Side door .................................43C
D
