2009 TOYOTA LAND CRUISER automatic transmission

386 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
ItemsParts and tools
Power steering fluid (P. 400)
• Automatic transmission fluid
DEXRON®II or III
• Rag or paper towel
• Funnel (used only for adding power steering fluid)
Radiator and condenser (P. 397)
Tire inflation pressure ( P. 414)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 404)
• Water
• Washer fluid containing antifreeze
(for winter use)
• Funnel (used only for adding washer fluid)

400 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
Power steering fluid■ Fluid level
The fluid level should be within the appropriate range.
Full (when hot)
Add fluid (when hot)
Full (when cold)
Add fluid (when cold)
Hot:Vehicle has been driven around 50 mph (80 km/h) for 20 min- utes, or slightly longer in frigid temperatures. (Fluid tempera-
ture, 140°F - 175°F [60°C - 80°C]).
Cold:Engine has not been run for about five hours. (Room temper- ature, 50°F - 85°F [10°C - 30°C]).
■ Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
1
23
4
ITY43C070
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, Clean funnel (only for adding fluid)
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
463

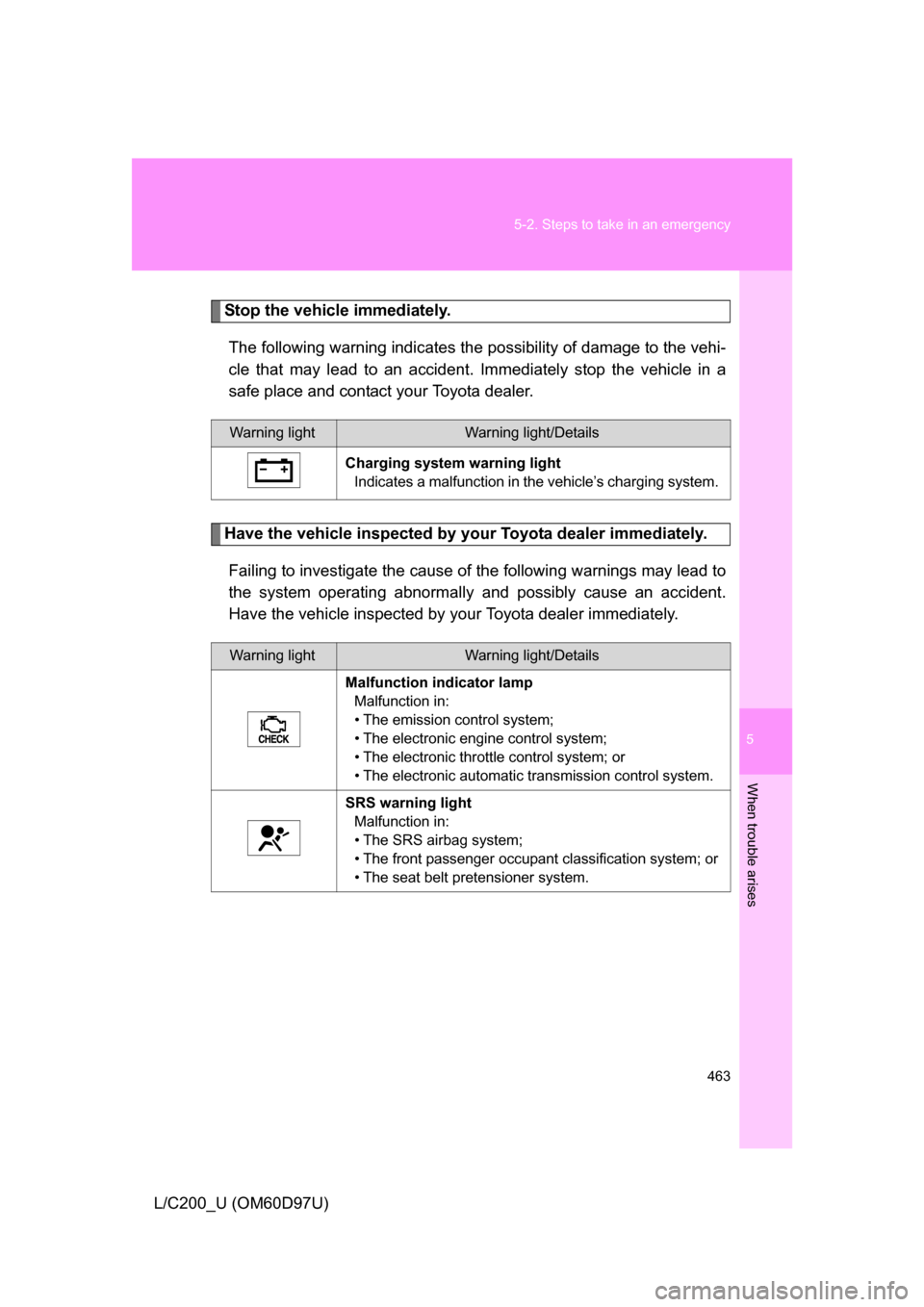

5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected by your Toyota dealer immediately.Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system.
Warning lightWarning light/Details
Malfunction indicator lamp Malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
SRS warning light Malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.

514 6-1. Specifications
L/C200_U (OM60D97U)
Automatic transmission
Transfer
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50kgf) while the engine is running.
*2: Parking brake pedal travel when pulled with a force of 45 lbf (200 N, 20 kgf).
Fluid
capacityWithout oil cooler11.5 qt. (10.9 L, 9.6 Imp.qt.)
With oil cooler11.7 qt. (11.1 L, 9.8 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.
Oil capacity1.53 qt. (1.45 L, 1.28 lmp.qt.)
Oil typeGear oil API GL-5
Recommended oil viscositySAE 75W-90
Pedal clearance *13.62 in. (92 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake adjustment *25  7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

515
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
Chassis lubrication
Steering
Propeller shafts
Spider
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum-disulfide lithium base chas-
sis grease, NLGI No.2 or lithium base
chassis grease, NLGI No.2
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III

542
L/C200_U (OM60D97U)

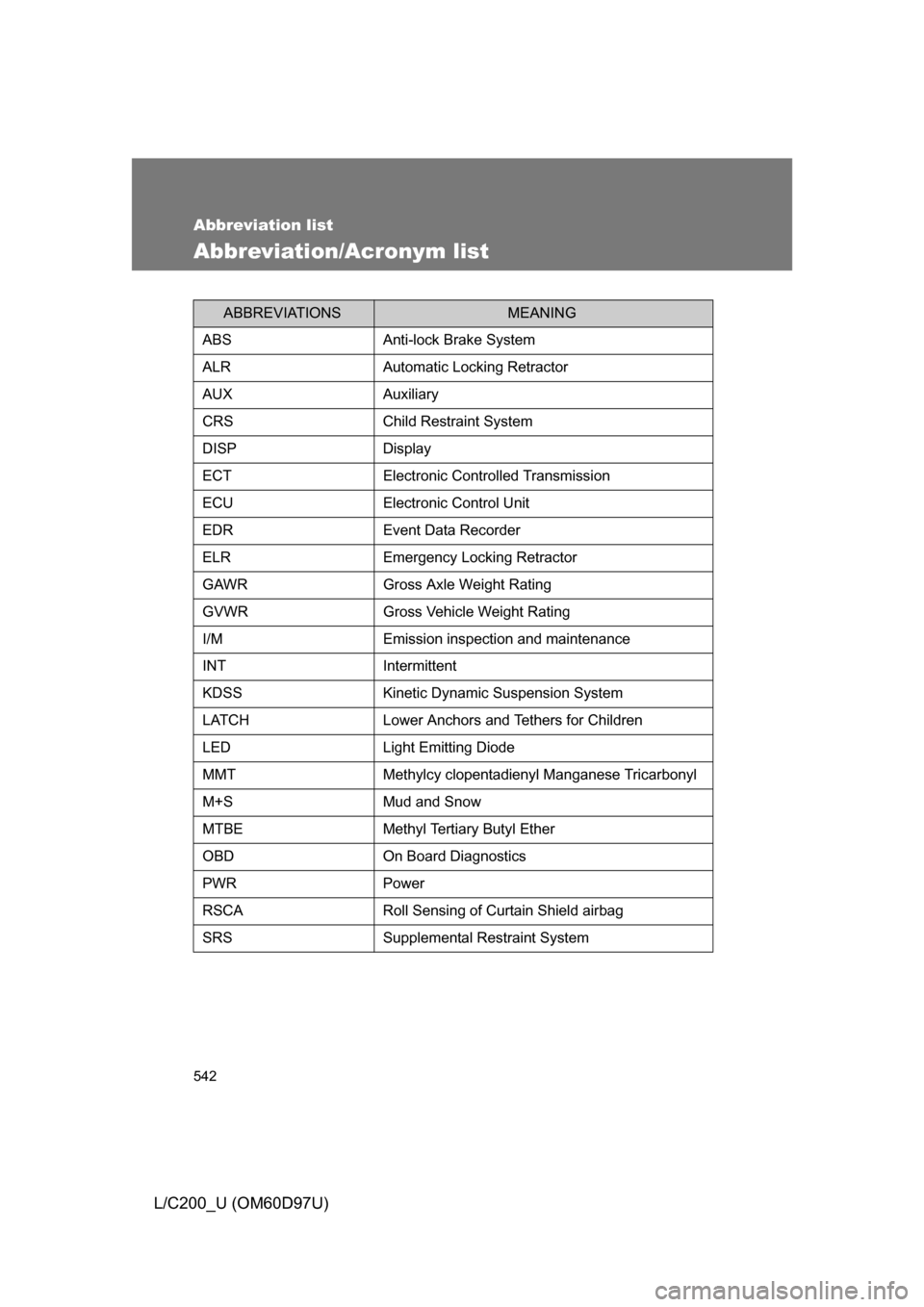

Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABS Anti-lock Brake System
ALR Automatic Locking Retractor
AUX Auxiliary
CRS Child Restraint System
DISP Display
ECT Electronic Controlled Transmission
ECU Electronic Control Unit
EDR Event Data Recorder
ELR Emergency Locking Retractor
GAWR Gross Axle Weight Rating
GVWR Gross Vehicle Weight Rating
I/M Emission inspection and maintenance
INT Intermittent
KDSS Kinetic Dynamic Suspension System
LATCH Lower Anchors and Tethers for Children
LED Light Emitting Diode
MMT Methylcy clopentadienyl Manganese Tricarbonyl
M+S Mud and Snow
MTBE Methyl Tertiary Butyl Ether
OBD On Board Diagnostics
PWR Power
RSCA Roll Sensing of Curtain Shield airbag
SRS Supplemental Restraint System

544
L/C200_U (OM60D97U)
Alphabetical index
Alphabetical index
A/CAir conditioning filter ..............420
Automatic air conditioning
system ................................254
ABS ...........................................212
Active traction control ............. 212
Air conditioning filter............... 420
Air conditioning system
Air conditioning filter ..............420
Automatic air conditioning system ................................254
Airbags
Airbag operating conditions...106
Airbag precautions for your child .................................... 110
Airbag warning light............... 463
Curtain shield airbag operating conditions............106
Curtain shield airbag precautions .........................110
Front passenger occupant
classification system ...........118
General airbag precautions ...110
Locations of airbags ..............102
Modification and disposal of airbags ................................113
Proper driving posture ...100, 110
Roll sensing of curtain shield
airbags off switch ................116
Side airbag operating
conditions............................ 106
Side airbag precautions ........ 110
SRS airbags .......................... 102
Alarm ........................................... 97
Antenna.....................................275
Anti-lock brake system............212
Armrest .....................................362
Ashtrays.................................... 355
Audio input ............................... 295
Audio system Antenna .................................275 Audio input ............................ 295
AUX adapter ......................... 295
CD player/changer ................ 277
MP3/WMA disc ..................... 285
Optimal use ........................... 293
Portable music player ........... 295
Radio..................................... 272
Steering wheel audio
switch.................................. 296
Automatic air conditioning system .................................... 254
Automatic light control
system .................................... 174
Automatic transmission Automatic transmission ......... 155
If the shift lever cannot be
shifted from P ..................... 491
S mode.................................. 158
AUX adapter ............................. 295
Back door Back door ................................ 48
Wireless remote control key.... 40
Back-up lights Replacing light bulbs ............. 439
Wattage................................. 517
Battery Checking ............................... 401
If the vehicle has discharged battery ................................ 497
Preparing and checking before winter ....................... 233
Bottle holder............................. 346
Brake Fluid ...................................... 398
Parking brake ........................ 162
Brake assist.............................. 212
Break-in tips ............................. 143
Brightness control Instrument light control.......... 165A
B

549
Alphabetical index
L/C200_U (OM60D97U)
Rear turn signal lights
Replacing light bulbs ............ 439
Wattage ................................ 517
Rear window defogger............ 268
Rear window wiper.................. 185
Replacing Fuses.................................... 426
Key battery ........................... 423
Light bulbs ............................ 439
Tires ..................................... 476
Reporting safety defects for U.S.A. owners........................ 540
Roll sensing of curtain shield airbags off switch ................. 116
Roof luggage carrier ............... 225
Seat belts
Adjusting the seat belt ............ 71
Automatic Locking Retractor .............................. 73
Child restraint system
installation .......................... 127
Cleaning and maintaining the seat belts...................... 377
Emergency Locking Retractor .............................. 73
How to wear your seat belt ..... 70
How your child should wear
the seat belt ......................... 75
Pregnant women,
proper seat belt use ............. 74
Reminder light ...................... 465
Seat belt extenders ................ 75
Seat belt pretensioners .......... 73
Seat heaters ............................. 360
Seats Adjustment precautions .......... 52
Child seats/child restraint system installation.............. 127 Cleaning ................................376
Driver’s seat position
memory .................................62
Front seat adjustment .............51
Head restraint..........................66
Properly sitting in the seat .....100
Rear seat adjustment ..............53
Seat heaters ..........................360
Service reminder
indicators ..............................167
Shift lever Automatic transmission .........155
If the shift lever cannot be
shifted from P......................491
Side airbags..............................102
Side marker lights
Replacing light bulbs .............439
Switch....................................174
Wattage .................................517
Side mirror Adjusting and folding ...............82
Mirror position memory ...........62
Smart key system Entry function ..........................26
Starting the engine ................151
Spare tire Inflation pressure...................414
Spare tire...............................476
Spark plug ................................512
Specifications...........................508
Speech command switch
*
Speedometer ............................164
Steering Column lock release..............153
Fluid ......................................400
Steering wheel Adjustment ..............................79
Audio switches ......................296
Steering wheel position memory .................................62
S
*: Refer to the “Navigation System Owner’s Manual”.
