2009 TOYOTA FJ CRUISER Quick Reference Guide

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
RADIO
Preset buttons Tune in the desired station and press a preset button (1-6)
until you hear a beep. Push desired preset button (1-6) to select.
“SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
“ ”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to the next or previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio OFF.
>>
Steering wheel switches (if equipped)
Subwoofer switch (if equipped)
ON/OFF
By inserting a mini plug into the AUX audio jack, you can listen to musi\
c
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
AUX audio jack
Volume control
M2.qxd 7/28/08 3:06 PM Page 15

16
FEATURES/OPERATIONS
Clock
H-Hour set
M- Minute set
Air Conditioning/Heating
Fresh or recirculated cabin air
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Temperature selector
Fan speed
Rear defogger
M2.qxd 7/28/08 3:06 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESLight control-Instrument panel
Brightness
control
+
-
When vehicle is in reverse, a buzzer will sound to inform driver when
nearing an obstacle. The system can only be used when the transmission i\
s
in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFFFunctions
System ON/OFFResume
2/Increase
speed
Set/Decrease speedCancel1
M2.qxd 7/28/08 3:06 PM Page 17

18
Power outlet-12V DC
ON/OFF switchLuggage compartment
Push
Instrument panel
The illumination changes according to the maximum available capacity.
•Green and Yellow115V AC/400W
•Yellow 115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Green light
Power outlet-115V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Yellow light
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
M2.qxd 7/28/08 3:06 PM Page 18

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bottle holders-Rear seat
Cup holders
Rear console
Manual
Transmission models
Automatic
Transmission models
M2.qxd 7/28/08 3:06 PM Page 19

20
SAFETY AND
EMERGENCY FEATURES
Seat belts
Seat belts-Shoulder belt anchor
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Push up, or squeeze
lock release to lower
Door locks
Unlock
Lock
M2.qxd 7/28/08 3:06 PM Page 20

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the wheel ornament (aluminum wheel only).
(2) Turn the hold-down nuts counterclockwise and remove.
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
21
If tire pressure becomes critically low on any of the tires (including \
the
spare), indicator light will come on. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn \
off,
have the system checked by your Toyota dealer.
Refer to the
Owner’s Manual for more details.
Tool bag
Jack
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(2)
(1)
Tire Pressure Monitoring (warning)
System
M1.qxd 7/28/08 3:04 PM Page 3

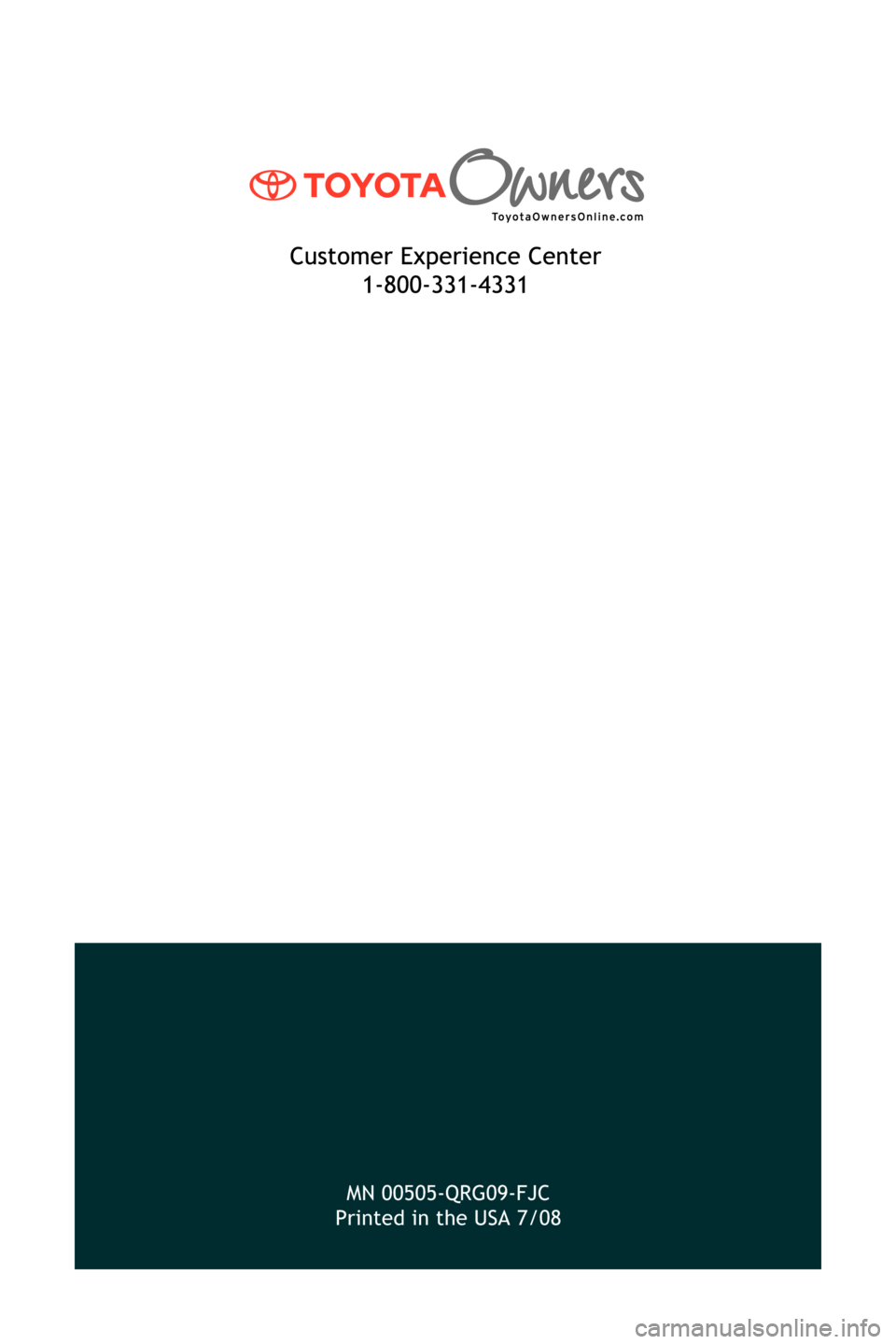

MN 00505-QRG09-FJC
Printed in the USA 7/08
