2009 TOYOTA CAMRY Quick Reference Guide

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system* (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Locking/Unlocking operation
Carry remote
to lock/unlock
Push
Unlocking
front door*
GraspLocking front door
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping front passenger door handle will unlock all
doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Opening trunk
Push

8
Fuel tank door release and cap
NOTE:Tighten until one click is heard. If the cap is not tightened
enough, Check Engine “ ” indicator may illuminate.
Pull
Tu r n
Store
Light control-Instrument panel
Brightness
control
-
+
OVERVIEW

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch and
raise hoodPull
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
4 cylinder (2AZ-FE) engine6 cylinder(2GR-FE) engine

10
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The “ENGINE START STOP”/engine switch must be ON and the brake
pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
4 cylinder (2AZ-FE) engine6 cylinder (2GR-FE) engine
Park*
Reverse
Neutral
Drive
N

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Steering lock release
Tu r n
Tu r n Smart Key system* Without Smart Key system
Push
Tu r n
Parking brake
Lever typePedal type
Set: Depress
Release: Depress again
Pull(2) Push
Set Release
(3) Lower
Hold wheel, push lever down, set angle and length, and return lever.
Angle
Length
Lock release lever
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
* Gently turn wheel while pressing the ENGINE
START STOP switch. If the lock does not
release, the switch will flash green.
(1) Pull
slightly

12
FEATURES/OPERATIONS
Moonroof (if equipped)
Sliding operationTilting operation
Open
Tilt
Close
Close
Recommended driving position
to minimize wind noise.
Seats-Head restraints
Lock release button
Windows-Power
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down
or pull it completely up and release to fully open or close.* To stop
window midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
* If equipped
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

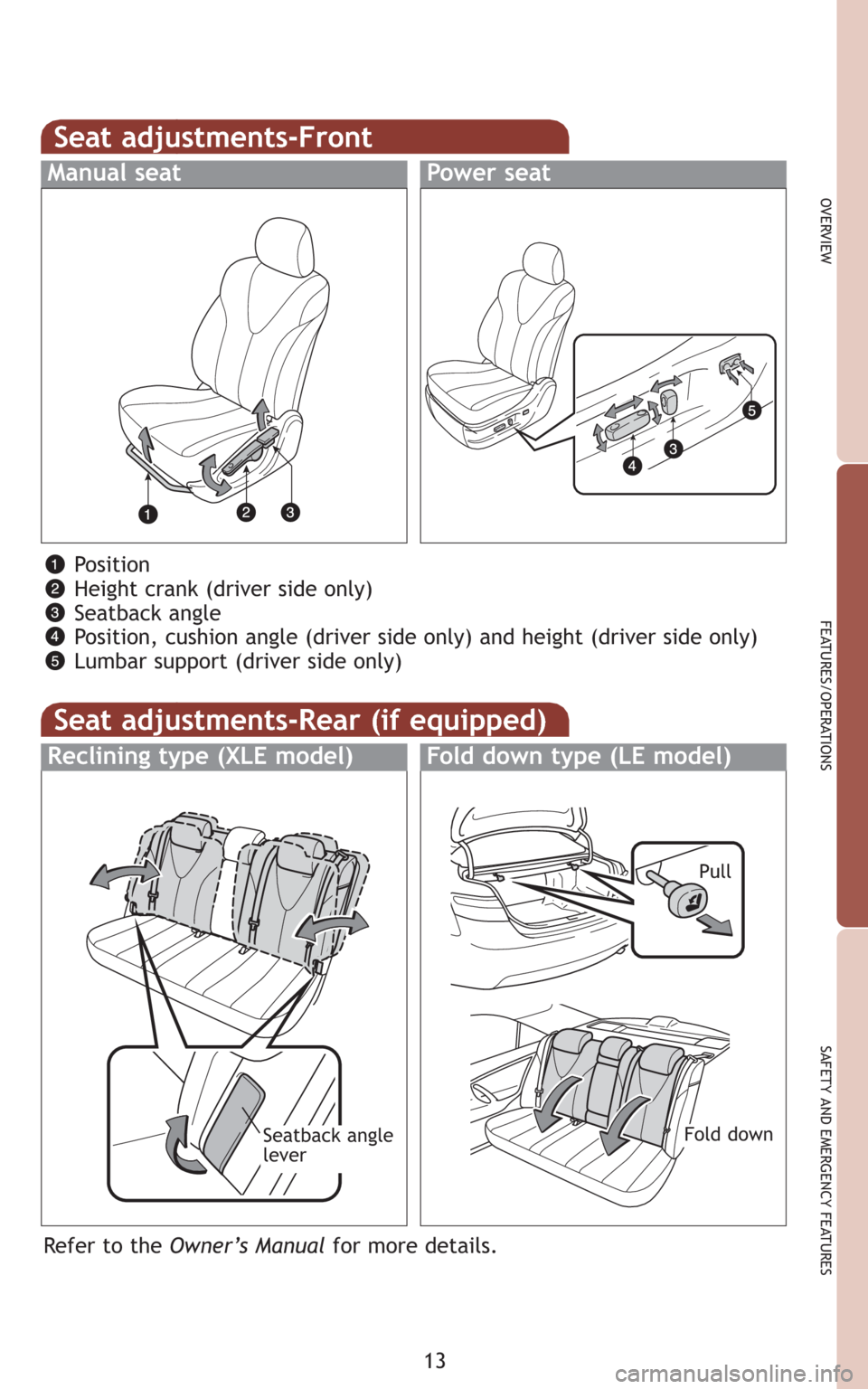

Seat adjustments-Front
Manual seatPower seat
Position
Height crank (driver side only)
Seatback angle
Position, cushion angle (driver side only) and height (driver side only)
Lumbar support (driver side only)
Seat adjustments-Rear (if equipped)
Reclining type (XLE model)
Seatback angle
lever
Fold down type (LE model)
Pull
Fold down
Refer to the Owner’s Manualfor more details.

14
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed.
Parking lights
Right turn
Lane change
Lane change
Left turnHigh beam
Auto
DRL OFF
Tu r n
Windshield wipers & washers
Adjust interval
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Front fog lights come on only when the headlights are on low beam.
FEATURES/OPERATIONS
