2009 SUBARU TRIBECA sensor

VDC(diag)-32
Warning Light Illumination Pattern
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
G: BRAKE WARNING LIGHT DOES NOT GO OFF
DETECTING CONDITION:
•Brake warning light circuit is shorted.
•Defective sensor/connector
TROUBLE SYMPTOM:
After starting the engine, the brake warning light is kept on though the parking lever is released.
WIRING DIAGRAM:
B16
12
B38
E
MAIN SBF
SBF-6
E
NO.5
B16
B404
A3A4
12
34B405
1234 5678910 11 12 13 14 15 16 17 18 19 20
BATTERY
IGNITIONSWITCH
BRAKE FLUIDLEVEL SWITCH
PARKING BRAKESWITCH
BRAKEWARNINGLIGHTABSWARNINGLIGHT
316
B310B38
i3
i10A:
i11B:
VDCCM & H/U
B8
1817B403
i2B7B6
VDC00369
12
B405
1234
B403
567821943
10
2422 23 25
1112131415161718192021
B310
1234
1516171819202122232425262728293031323334353637383940414245464344568910 11 12 13 147
1234567891011121314
i11B:
123456789101112131415161718192021222324252627282930
i10A:

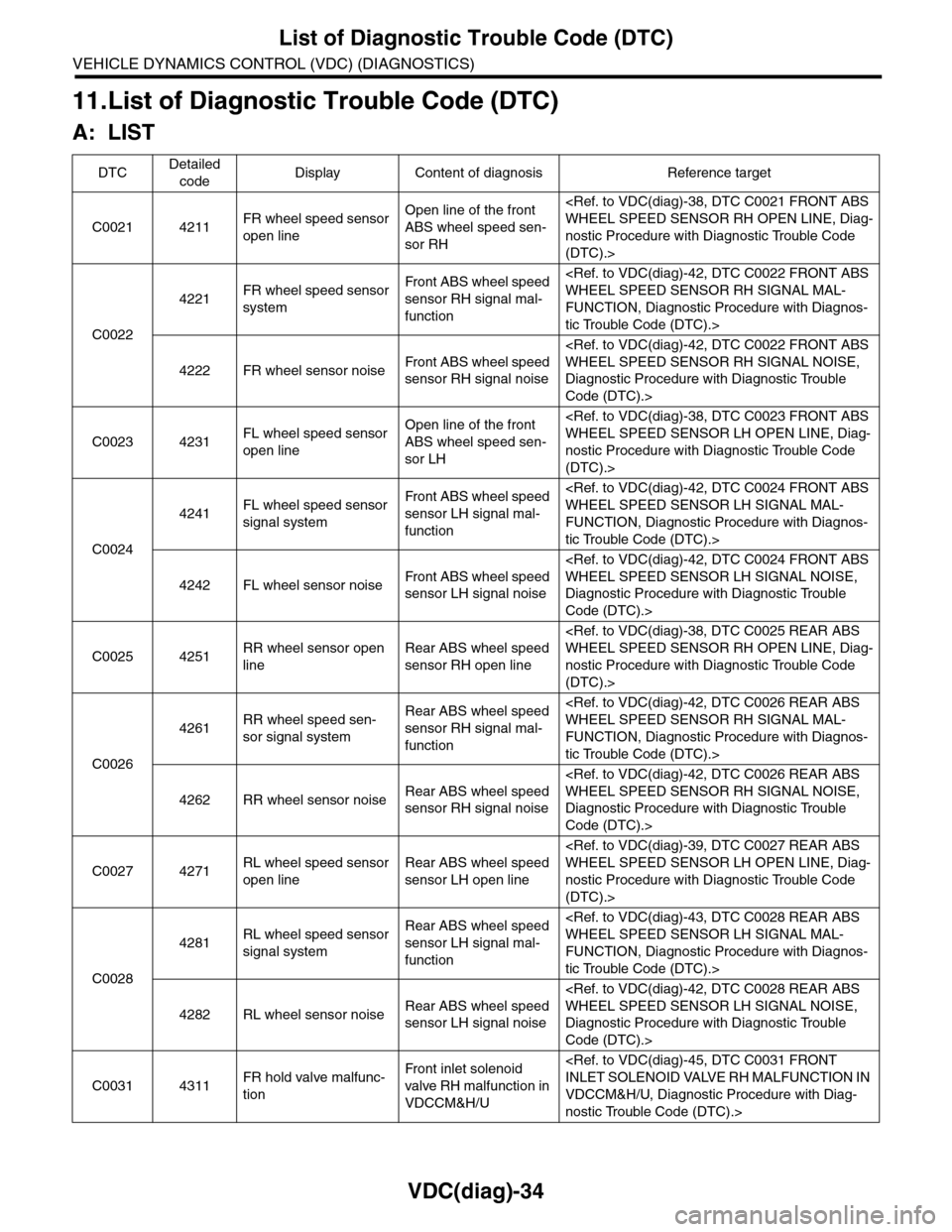

VDC(diag)-34
List of Diagnostic Trouble Code (DTC)
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
11.List of Diagnostic Trouble Code (DTC)
A: LIST
DTCDetailed
codeDisplay Content of diagnosis Reference target
C0021 4211FR wheel speed sensor
open line
Open line of the front
ABS wheel speed sen-
sor RH
WHEEL SPEED SENSOR RH OPEN LINE, Diag-
nostic Procedure with Diagnostic Trouble Code
(DTC).>
C0022
4221FR wheel speed sensor
system
Fr o nt A B S w h e el sp e ed
sensor RH signal mal-
function
WHEEL SPEED SENSOR RH SIGNAL MAL-
FUNCTION, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
4222 FR wheel sensor noiseFr o nt A B S w h e el sp e ed
sensor RH signal noise
WHEEL SPEED SENSOR RH SIGNAL NOISE,
Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
C0023 4231FL wheel speed sensor
open line
Open line of the front
ABS wheel speed sen-
sor LH
WHEEL SPEED SENSOR LH OPEN LINE, Diag-
nostic Procedure with Diagnostic Trouble Code
(DTC).>
C0024
4241FL wheel speed sensor
signal system
Fr o nt A B S w h e el sp e ed
sensor LH signal mal-
function
WHEEL SPEED SENSOR LH SIGNAL MAL-
FUNCTION, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
4242 FL wheel sensor noiseFr o nt A B S w h e el sp e ed
sensor LH signal noise
WHEEL SPEED SENSOR LH SIGNAL NOISE,
Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
C0025 4251RR wheel sensor open
line
Rear ABS wheel speed
sensor RH open line
WHEEL SPEED SENSOR RH OPEN LINE, Diag-
nostic Procedure with Diagnostic Trouble Code
(DTC).>
C0026
4261RR wheel speed sen-
sor signal system
Rear ABS wheel speed
sensor RH signal mal-
function
WHEEL SPEED SENSOR RH SIGNAL MAL-
FUNCTION, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
4262 RR wheel sensor noiseRear ABS wheel speed
sensor RH signal noise
WHEEL SPEED SENSOR RH SIGNAL NOISE,
Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
C0027 4271RL wheel speed sensor
open line
Rear ABS wheel speed
sensor LH open line
WHEEL SPEED SENSOR LH OPEN LINE, Diag-
nostic Procedure with Diagnostic Trouble Code
(DTC).>
C0028
4281RL wheel speed sensor
signal system
Rear ABS wheel speed
sensor LH signal mal-
function
WHEEL SPEED SENSOR LH SIGNAL MAL-
FUNCTION, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
4282 RL wheel sensor noiseRear ABS wheel speed
sensor LH signal noise
WHEEL SPEED SENSOR LH SIGNAL NOISE,
Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
C0031 4311FR hold valve malfunc-
tion
Fr o nt i nl e t s ol e no i d
valve RH malfunction in
VDCCM&H/U
INLET SOLENOID VALVE RH MALFUNCTION IN
VDCCM&H/U, Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>

VDC(diag)-36
List of Diagnostic Trouble Code (DTC)
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
C0052
4521Motor relay system
open line
Motor / motor relay sys-
tem open line
MOTOR RELAY SYSTEM OPEN LINE, Diagnos-
tic Procedure with Diagnostic Trouble Code
(DTC).>
4522Motor relay system
short
Motor / motor relay sys-
tem short
MOTOR RELAY SYSTEM SHORT, Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
4523Motor system not run-
ning
Motor system not run-
ning
SYSTEM NO ROTATION, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
4524 Motor systemMotor system malfunc-
tion
SYSTEM MALFUNCTION, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
4525Motor fail safe system
short
Motor fail safe system
short
SAFE RELAY SHORT CIRCUIT, Diagnostic Pro-
cedure with Diagnostic Trouble Code (DTC).>
C0054 4541Brake light switch open
line
Brake light switch open
line
LIGHT SWITCH OPEN LINE, Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
C0056
4561G Sensor Output Sei-
zureG sensor output seizure
OUTPUT SEIZURE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
4562 G sensor signalG sensor signal mal-
function
SIGNAL MALFUNCTION, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
4563Ya w G s e n s o r p o w e r
voltage
Fau l t y yaw ra te & la t era l
G sensor power supply
voltage
G SENSOR POWER SUPPLY VOLTAGE MAL-
FUNCTION, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
4564 G sensor outputDefective G sensor out-
put
OUTPUT MALFUNCTION, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
C565G sensor communica-
tion
Defective G sensor
communication
G SENSOR COMMUNICATION, Diagnostic Pro-
cedure with Diagnostic Trouble Code (DTC).>
4566 G sensor inside Defect inside G sensor
INSIDE G SENSOR, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
C0057
C571ECM communication
circuit
ECM communication
circuit
MUNICATION, Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
C573TCM communication
circuit
TCM communication
circuit
NICATION, Diagnostic Procedure with Diagnostic
Tr o u b l e C o d e ( D T C ) . >
4574 Transmission systemTr a n s m i s s i o n s y s t e m
malfunction
SION SYSTEM MALFUNCTION, Diagnostic Pro-
cedure with Diagnostic Trouble Code (DTC).>
DTCDetailed
codeDisplay Content of diagnosis Reference target

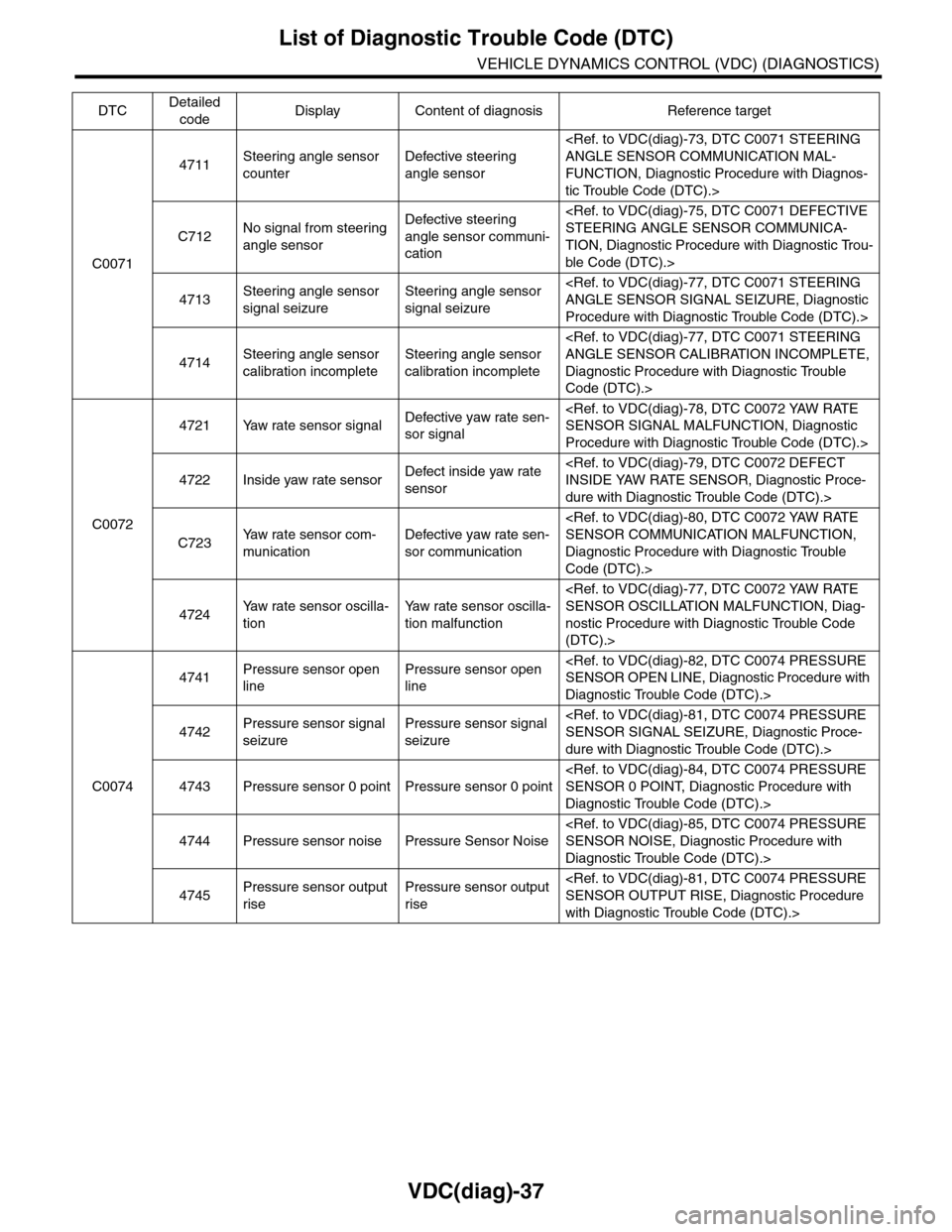

VDC(diag)-37
List of Diagnostic Trouble Code (DTC)
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
C0071
4711Steering angle sensor
counter
Defective steering
angle sensor
ANGLE SENSOR COMMUNICATION MAL-
FUNCTION, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
C712No signal from steering
angle sensor
Defective steering
angle sensor communi-
cation
STEERING ANGLE SENSOR COMMUNICA-
TION, Diagnostic Procedure with Diagnostic Trou-
ble Code (DTC).>
4713Steering angle sensor
signal seizure
Steering angle sensor
signal seizure
ANGLE SENSOR SIGNAL SEIZURE, Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
4714Steering angle sensor
calibration incomplete
Steering angle sensor
calibration incomplete
ANGLE SENSOR CALIBRATION INCOMPLETE,
Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
C0072
4721 Yaw rate sensor signalDefective yaw rate sen-
sor signal
SENSOR SIGNAL MALFUNCTION, Diagnostic
Procedure with Diagnostic Trouble Code (DTC).>
4722 Inside yaw rate sensorDefect inside yaw rate
sensor
INSIDE YAW RATE SENSOR, Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
C723Ya w r a t e s e n s o r c o m -
munication
Defective yaw rate sen-
sor communication
SENSOR COMMUNICATION MALFUNCTION,
Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>
4724Ya w r a t e s e n s o r o s c i l l a -
tion
Ya w r a t e s e n s o r o s c i l l a -
tion malfunction
SENSOR OSCILLATION MALFUNCTION, Diag-
nostic Procedure with Diagnostic Trouble Code
(DTC).>
C0074
4741Pressure sensor open
line
Pressure sensor open
line
SENSOR OPEN LINE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
4742Pressure sensor signal
seizure
Pressure sensor signal
seizure
SENSOR SIGNAL SEIZURE, Diagnostic Proce-
dure with Diagnostic Trouble Code (DTC).>
4743 Pressure sensor 0 point Pressure sensor 0 point
SENSOR 0 POINT, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
4744 Pressure sensor noise Pressure Sensor Noise
SENSOR NOISE, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
4745Pressure sensor output
rise
Pressure sensor output
rise
SENSOR OUTPUT RISE, Diagnostic Procedure
with Diagnostic Trouble Code (DTC).>
DTCDetailed
codeDisplay Content of diagnosis Reference target

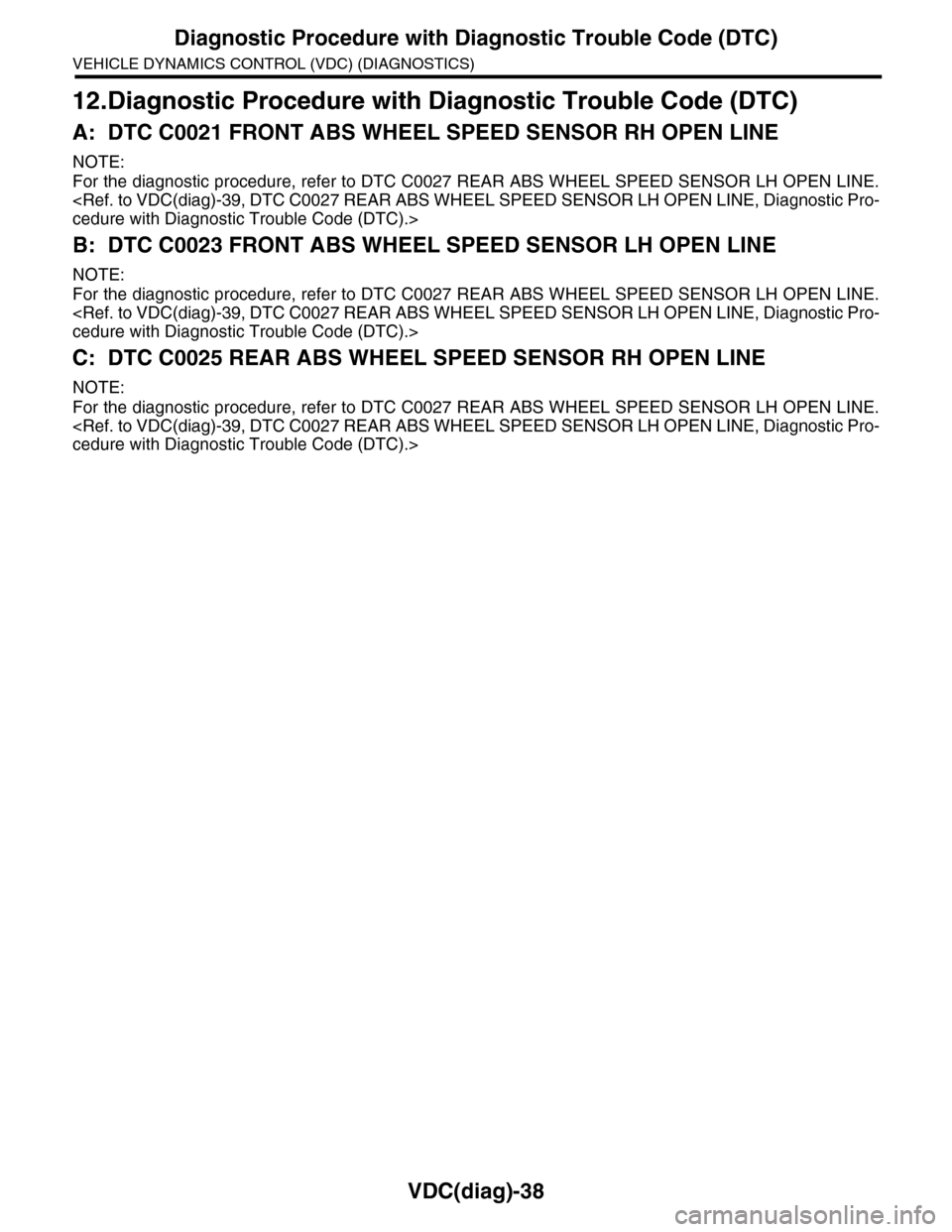

VDC(diag)-38
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
12.Diagnostic Procedure with Diagnostic Trouble Code (DTC)
A: DTC C0021 FRONT ABS WHEEL SPEED SENSOR RH OPEN LINE
NOTE:
For the diagnostic procedure, refer to DTC C0027 REAR ABS WHEEL SPEED SENSOR LH OPEN LINE.
cedure with Diagnostic Trouble Code (DTC).>
B: DTC C0023 FRONT ABS WHEEL SPEED SENSOR LH OPEN LINE
NOTE:
For the diagnostic procedure, refer to DTC C0027 REAR ABS WHEEL SPEED SENSOR LH OPEN LINE.
cedure with Diagnostic Trouble Code (DTC).>
C: DTC C0025 REAR ABS WHEEL SPEED SENSOR RH OPEN LINE
NOTE:
For the diagnostic procedure, refer to DTC C0027 REAR ABS WHEEL SPEED SENSOR LH OPEN LINE.
cedure with Diagnostic Trouble Code (DTC).>

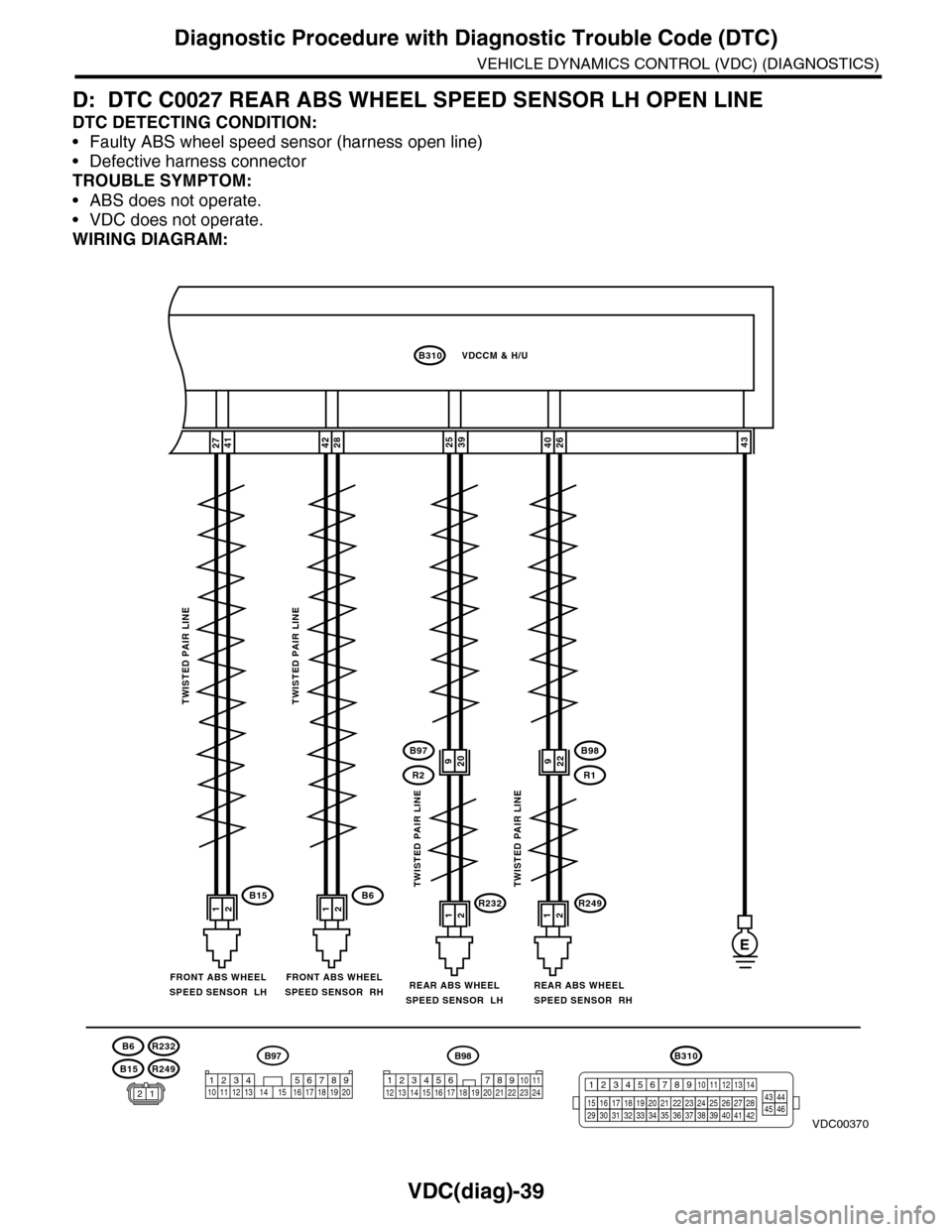

VDC(diag)-39
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
D: DTC C0027 REAR ABS WHEEL SPEED SENSOR LH OPEN LINE
DTC DETECTING CONDITION:
•Faulty ABS wheel speed sensor (harness open line)
•Defective harness connector
TROUBLE SYMPTOM:
•ABS does not operate.
•VDC does not operate.
WIRING DIAGRAM:
26404127392543
B98
R249R232
R1
B97
R2
E
12121212B6B15
2842
B310VDCCM & H/U
TWISTED PAIR LINETWISTED PAIR LINE
TWISTED PAIR LINETWISTED PAIR LINE
REAR ABS WHEELSPEED SENSOR RH
FRONT ABS WHEELSPEED SENSOR RHFRONT ABS WHEELSPEED SENSOR LHREAR ABS WHEELSPEED SENSOR LH
B15
B6
R249
R232
VDC00370
920922
B310
1234
1516171819202122232425262728293031323334353637383940414245464344568910 11 12 13 147
B98
3412 8910 1112 13 14 15 16 17 18 19 20 21 22 23 2456 7
B97
1234 5678910 11 12 13 14 15 16 17 18 19 2012

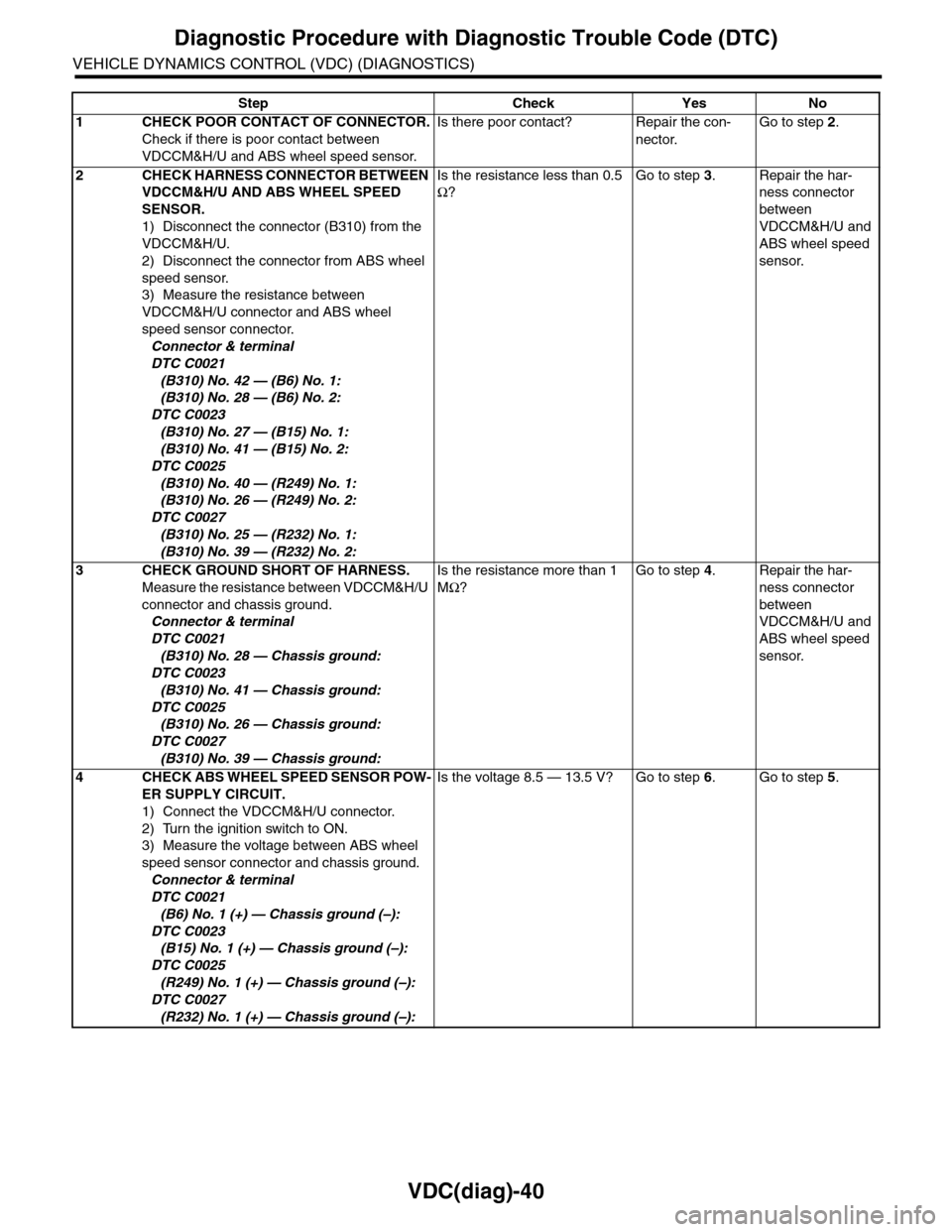

VDC(diag)-40
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNECTOR.
Check if there is poor contact between
VDCCM&H/U and ABS wheel speed sensor.
Is there poor contact? Repair the con-
nector.
Go to step 2.
2CHECK HARNESS CONNECTOR BETWEEN
VDCCM&H/U AND ABS WHEEL SPEED
SENSOR.
1) Disconnect the connector (B310) from the
VDCCM&H/U.
2) Disconnect the connector from ABS wheel
speed sensor.
3) Measure the resistance between
VDCCM&H/U connector and ABS wheel
speed sensor connector.
Connector & terminal
DTC C0021
(B310) No. 42 — (B6) No. 1:
(B310) No. 28 — (B6) No. 2:
DTC C0023
(B310) No. 27 — (B15) No. 1:
(B310) No. 41 — (B15) No. 2:
DTC C0025
(B310) No. 40 — (R249) No. 1:
(B310) No. 26 — (R249) No. 2:
DTC C0027
(B310) No. 25 — (R232) No. 1:
(B310) No. 39 — (R232) No. 2:
Is the resistance less than 0.5
Ω?
Go to step 3.Repair the har-
ness connector
between
VDCCM&H/U and
ABS wheel speed
sensor.
3CHECK GROUND SHORT OF HARNESS.
Measure the resistance between VDCCM&H/U
connector and chassis ground.
Connector & terminal
DTC C0021
(B310) No. 28 — Chassis ground:
DTC C0023
(B310) No. 41 — Chassis ground:
DTC C0025
(B310) No. 26 — Chassis ground:
DTC C0027
(B310) No. 39 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 4.Repair the har-
ness connector
between
VDCCM&H/U and
ABS wheel speed
sensor.
4CHECK ABS WHEEL SPEED SENSOR POW-
ER SUPPLY CIRCUIT.
1) Connect the VDCCM&H/U connector.
2) Turn the ignition switch to ON.
3) Measure the voltage between ABS wheel
speed sensor connector and chassis ground.
Connector & terminal
DTC C0021
(B6) No. 1 (+) — Chassis ground (–):
DTC C0023
(B15) No. 1 (+) — Chassis ground (–):
DTC C0025
(R249) No. 1 (+) — Chassis ground (–):
DTC C0027
(R232) No. 1 (+) — Chassis ground (–):
Is the voltage 8.5 — 13.5 V? Go to step 6.Go to step 5.

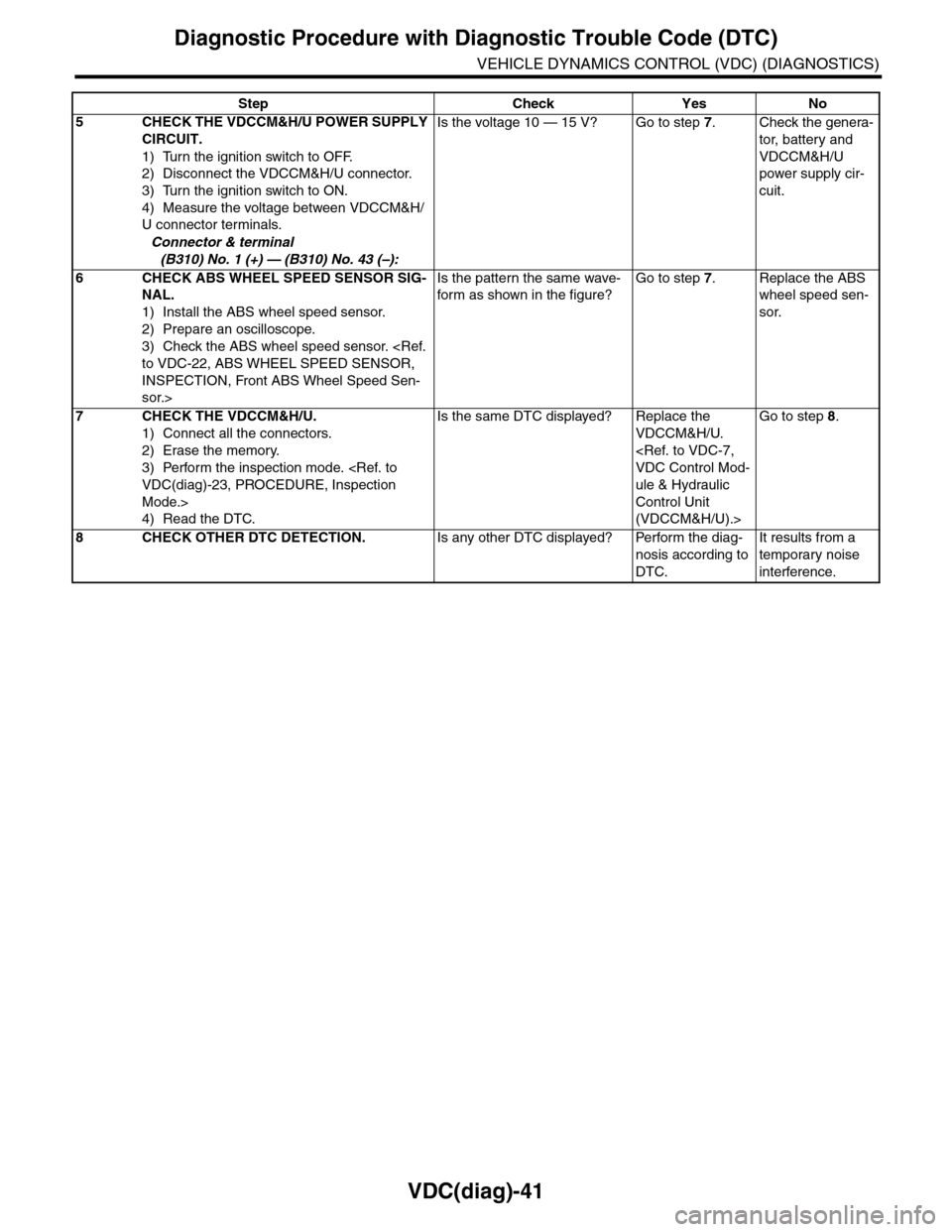

VDC(diag)-41
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS)
5CHECK THE VDCCM&H/U POWER SUPPLY
CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the VDCCM&H/U connector.
3) Turn the ignition switch to ON.
4) Measure the voltage between VDCCM&H/
U connector terminals.
Connector & terminal
(B310) No. 1 (+) — (B310) No. 43 (–):
Is the voltage 10 — 15 V? Go to step 7.Check the genera-
tor, batter y and
VDCCM&H/U
power supply cir-
cuit.
6CHECK ABS WHEEL SPEED SENSOR SIG-
NAL.
1) Install the ABS wheel speed sensor.
2) Prepare an oscilloscope.
3) Check the ABS wheel speed sensor. to VDC-22, ABS WHEEL SPEED SENSOR,
INSPECTION, Front ABS Wheel Speed Sen-
sor.>
Is the pattern the same wave-
for m as shown in the figure?
Go to step 7.Replace the ABS
wheel speed sen-
sor.
7CHECK THE VDCCM&H/U.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode. VDC(diag)-23, PROCEDURE, Inspection
Mode.>
4) Read the DTC.
Is the same DTC displayed? Replace the
VDCCM&H/U.
VDC Control Mod-
ule & Hydraulic
Control Unit
(VDCCM&H/U).>
Go to step 8.
8CHECK OTHER DTC DETECTION.Is any other DTC displayed? Perform the diag-
nosis according to
DTC.
It results from a
temporary noise
interference.
Step Check Yes No
