2009 SUBARU FORESTER remote start

transmitter within a few seconds immedi-
ately following remote engine start shut-down. &Pre-heating or pre-cooling
the interior of the vehicle
Before exiting the vehicle, set the tem-
perature controls to the desired setting
and operation. After the system starts the
vehicle, the heater or air-conditioning will
activate and heat or cool the interior to
your setting. & Service mode
In service mode, the remote start function
is temporarily disabled to prevent the
system from unexpectedly starting the
engine while being serviced. ! To engage the service mode
Turn the ignition switch to the “ON ”
position, depress and hold the brake
pedal, then press and release the “
”
button on the remote control transmitter
three times. The system will pause for 1
second and then flash the turn signal
lights and honk the horn three times
indicating that the system is in service
mode. When attempting to activate the
remote start system while in service
mode, the turn signal lights will flash and
the horn will honk two times and will not start. !
To disengage the service mode
Turn the ignition switch to the “ON ”
position, depress and hold the brake
pedal, then press and release the “
”
button on the remote control transmitter
three times. The system will pause for 1
second and flash the turn signal lights 1
time indicating that the system has exited
service mode. NOTE
When taking your vehicle in for service,
it is recommended that you inform the
service personnel that your vehicle is
equipped with a remote control startsystem. & Remote transmitter program-
ming and programmable fea-
ture option
New transmitters can be programmed to
the engine starter system in the event that
remote transmitters are lost, stolen or
damaged. The remote engine start system
also has one programmable feature that
can be adjusted for user preference.
The remote engine starter system can be
programmed to either make an audible
horn chirp upon remote start activation or
not. Remote transmitter programming and feature programming can be adjusted
using the following procedure.
1. Open the driver
’s door (the driver ’s
door must remain opened throughout the
entire process).
2. Insert the key into the vehicle ’s ignition
switch and turn to the “ON ”position.
3. Locate the small black programming
button behind the fuse box cover, on the
driver ’s side left under the dashboard
panel.
4. Press and hold the black programming
button for 10 to 15 seconds. The horn will
honk and the turn signal lights will flash
three times to indicate that the system has
entered programming mode. At this point
you can proceed to either step 5 or step 6.
5. To program a remote transmitter:
press and release the “
”button on each
transmitter. The horn will honk and the
turn signal lights will flash one time to
indicate a successful transmitter learn
each time the “
”button is pressed. You
can program up to eight transmitters.
6. To toggle the Horn Confirmation chirps
ON/OFF: press and release the brake to
toggle the feature. The horn will chirp and
the turn signal lights will flash one time to
indicate Confirmation Horn Chirps are“ OFF ”. The horn will honk and the turn
signal lights will flash 2 times to indicate
Confirmation Horn Chirps are “ON ”.
Starting and operating
7-11
– CONTINUED –

7-12Starting and operating
Pressing the brake pedal repeatedly will
toggle the feature ON or OFF each time.
7. To exit the remote transmitter and
feature programming mode, turn the igni-
tion switch to the “LOCK ”position, remove
the key from the ignition switch and test
operation of the remote transmitter(s) and
horn confirmation feature. & System maintenance
! Changing the remote control bat- teries
The two 3-volt lithium batteries (model
CR-1220) supplied in your remote control
should last approximately 3 years, de-
pending on usage. When the batteries
begin to weaken, you will notice a
decrease in range (distance from the
vehicle that your remote control operates).
Follow the instructions below to change
the remote control batteries.
1. Carefully pry the remote control halves
apart using a small flathead screwdriver.2. Remove the circuit board from the
bottom half of the case and slide the white
plastic battery holder out from under the
battery tab releasing the batteries. Re-
move the old batteries and replace with
new ones. Be sure to observe the (+) sign

on the old batteries before removing them
to ensure that the new batteries are
inserted properly (battery“+ ” should be
pointed away from the transmitter circuit
board on both batteries).
3. Carefully snap the case halves back
together, then test the remote control.
NOTE
This device complies with Part 15 of
the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions: (1) This
device may not cause harmful inter-
ference, and (2) this device must
accept any interference received, in-
cluding interference that may cause
undesired operation.
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void theuser ’s authority to operate the equip-
ment. Manual transmission
The manual transmission is a fully syn-
chromeshed, 5-forward-speed and 1-re-
verse-speed transmission.
The shift pattern is shown on the shift
lever knob. When shifting from 5th gear to
reverse gear, first return the shift lever to
the neutral position then shift into reverse
gear.
To change gears, fully depress the clutch
pedal, move the shift lever, and gradually
let up on the clutch pedal.
If it is difficult to shift into gear, put the
transmission in neutral, release the clutch
pedal momentarily, and then try again.
WARNING
Do not drive the vehicle with the
clutch disengaged (i.e., when the
clutch pedal is depressed) or with
the shift lever in the neutral position.
Engine braking has no effect in
either of these conditions and the
risk of an accident is consequentlyincreased.
CAUTION
Shift into reverse ONLY when the
vehicle has completely stopped. It
may cause damage to the transmis-
sion to try shifting into reverse when
the vehicle is moving.
NOTE
To protect the engine while the shift
lever is in the neutral position, the
engine is controlled so that the engine
speed may not become too high even if
the accelerator pedal is fully de-pressed. Starting and operating
7-13
– CONTINUED –

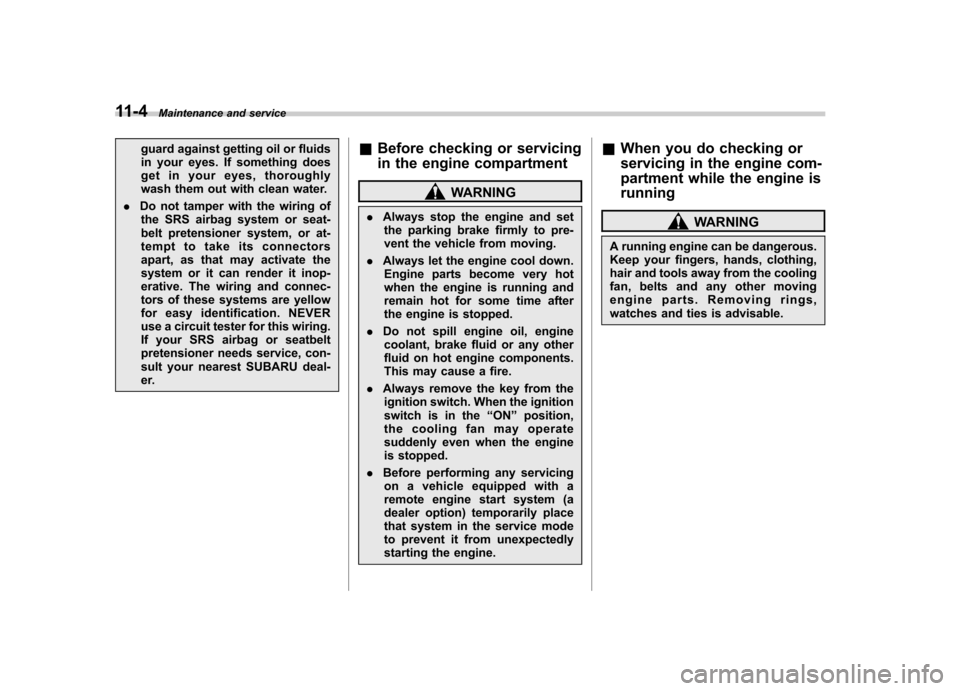

11-4Maintenance and service
guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly
wash them out with clean water.
. Do not tamper with the wiring of
the SRS airbag system or seat-
belt pretensioner system, or at-
tempt to take its connectors
apart, as that may activate the
system or it can render it inop-
erative. The wiring and connec-
tors of these systems are yellow
for easy identification. NEVER
use a circuit tester for this wiring.
If your SRS airbag or seatbelt
pretensioner needs service, con-
sult your nearest SUBARU deal-
er. &
Before checking or servicing
in the engine compartment
WARNING
. Always stop the engine and set
the parking brake firmly to pre-
vent the vehicle from moving.
. Always let the engine cool down.
Engine parts become very hot
when the engine is running and
remain hot for some time after
the engine is stopped.
. Do not spill engine oil, engine
coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.
. Always remove the key from the
ignition switch. When the ignition
switch is in the “ON ”position,
thecoolingfanmayoperate
suddenly even when the engine
is stopped.
. Before performing any servicing
on a vehicle equipped with a
remote engine start system (a
dealer option) temporarily place
that system in the service mode
to prevent it from unexpectedly
starting the engine. &
When you do checking or
servicing in the engine com-
partment while the engine is running
WARNING
A running engine can be dangerous.
Keep your fingers, hands, clothing,
hair and tools away from the cooling
fan, belts and any other moving
engine parts. Removing rings,
watches and ties is advisable.

14-2Index
A
ABS (Anti-lock Brake System) ..................................... 7-23
Warning light ................................................. 3-15, 7-23
Accessories ....................................................... 5-4, 11-45
Accessory power outlet ................................................. 6-9
Active head restraint ..................................................... 1-5
Air cleaner element ................................................... 11-15
Air conditioner ..................................................... 4-7, 4-10
Air filtration system ..................................................... 4-13
Air flow selection .......................................................... 4-2
Alarm system ............................................................ 2-14
All-Wheel Drive warning light ....................................... 3-17
Aluminum wheel cleaning ............................................ 10-3
Aluminum wheels ...................................................... 11-38
Antenna system ........................................................... 5-2
Anti-lock Brake System (ABS) ..................................... 7-23
Arming the system ..................................................... 2-15
Armrest ....................................................................... 1-7
AT OIL TEMP warning light ......................................... 3-14
Audio control button ................................................... 5-26
Audio set .................................................................... 5-5
Auto-dimming mirror/compass ...................................... 3-34
Automatic climate control system ................................... 4-8
Automatic headlight beam leveler ................................. 3-26
Automatic transmission ............................................... 7-15
Capacities ............................................................. 12-4
Fluid .................................................................... 11-20
MANUAL mode ..................................................... 7-18
Selector lever ........................................................ 7-15
Shift lock release ................................................... 7-20
SPORT mode ........................................................ 7-20 Temperature warning light (AT OIL TEMP)
................. 3-14
Automatic/Emergency Locking Retractor (A/ELR) ........... 1-11
AUX unit operation ..................................................... 5-25
B Battery .................................................................... 11-43
Jump starting .......................................................... 9-9
Replacement (remote keyless entry system) .............. 2-10
Booster seat .............................................................. 1-28
Bottle holder ............................................................... 6-8
Brake
Assist .................................................................... 7-22
Booster ....................................................... 7-22, 11-27
Fluid ................................................................... 11-25
Pad and lining ...................................................... 11-30
Parking ....................................................... 7-31, 11-30
Pedal .................................................................. 11-28
System .................................................................. 7-22
Brake pedal Free play ............................................................. 11-28
Reserve distance .................................................. 11-28
Brake system ............................................................. 7-22
Warning light .......................................................... 3-16
Braking ..................................................................... 7-21
Tips ...................................................................... 7-21
Breaking-in of new brake pads and linings ................... 11-30
Bulb Chart .................................................................... 12-9
Replacing ............................................................ 11-46

P ParkingBrake ................................................................... 7-31
Brake stroke ......................................................... 11-30
Tips...................................................................... 7-32
Parking your vehicle ................................................... 7-31
Periodic inspections ..................................................... 8-4
Petrol fuel ................................................................... 7-2
Power
Door locking switch .................................................. 2-6
Seat ....................................................................... 1-4
Steering ................................................................ 7-21
Steering fluid ........................................................ 11-24
Windows ............................................................... 2-19
Precautions against vehicle modification ............... 1-22, 1-60
Preparing to drive ........................................................ 7-7
RRear Combination lights ................................................. 11-50
Gate ............................................................. 2-21, 9-16
Seats ..................................................................... 1-6
Rear differential Gear oil ............................................................... 11-22
Rear seat Center table ............................................................ 6-6
Folding down ........................................................... 1-9
Reclining ................................................................. 1-9
Rear turn signal ........................................................ 11-50
Rear window
Defogger button ..................................................... 3-31 Wiper and washer switch
......................................... 3-30
Wiper blades ........................................................ 11-41
Recommended
Automatic transmission fluid ................................... 11-21
Brake fluid ........................................................... 11-26
Clutch fluid .......................................................... 11-27
OIL grade and viscosity ... 11-11, 11-12, 11-20, 11-22, 11-23
Power steering fluid .............................................. 11-25
Spark plugs ......................................................... 11-18
Refueling .................................................................... 7-3
Remote engine start system ......................................... 7-9
Remote keyless entry system ........................................ 2-7
Replacement Brake pad and lining ............................................. 11-29
Wiper blades ........................................................ 11-39
Replacing
Air cleaner element ............................................... 11-16
Battery (remote keyless entry system) ....................... 2-10
Lost transmitters (remote keyless entry system) . ........ 2-10
Replacing bulbs ....................................................... 11-46
Cargo area light ................................................... 11-51
Dome light ........................................................... 11-51
Door step light ..................................................... 11-51
Front turn signal light ............................................ 11-50
Headlight ............................................................. 11-47
License plate light ................................................. 11-51
Map light ............................................................. 11-51
Position light ........................................................ 11-50
Rear combination light .......................................... 11-50
Rocking the vehicle .................................................... 8-11
Roof rail .................................................................... 8-13 Index
14-7
