2009 SKODA YETI display

Airbag system
152
−Always work with an authorised Škoda dealer or have it carried out by a competent specialist workshop.
•
Only hang light items of clothing on the clothes hooks to the vehicle. Never
leave any heavy or sharp-edged objects in the pockets of the items of clothing.•
Ensure that there are no excessive forc
es, such as violent knocks, kicks etc.,
impact on the backrests of the seats
otherwise the system may be damaged.
The side airbags would not be deployed in such a case!•
Any seat or protective covers which you fit to the driver or front passenger
seats must only be of the type expressly authorised by Škoda Auto. In view of the fact that the airbag inflates out of the backrest of the seat, use of non- approved seat or protective covers would considerably impair the protective function of the side airbag.•
Any damage to the original seat covers in the area of the side airbag module
must be repaired without dela
y by your specialist garage.
•
The airbag modules in the front seats must not display any damage, cracks
or deep scratches. It is not permissible to use force in order to open the modules.•
Any work on the side airbag system including removing and installing
system components because of other repair work (e.g. removing seats) must only be carried out by a specialist garage.
Head airbags*Description of the head airbags The head airbag together with the side airbag offers enhanced occu- pant protection in the event of a side collision.The head airbags are positioned above the door
s on both sides in the interior of the
car
⇒fig. 143
. The installation positions are each marked with the “AIRBAG” logo.
The head airbag together with the three-poin
t seat belts and the side airbags, offers
additional protection for the head and neck ar
ea of the occupants in the event of a side
collision of major severity
⇒page 153.
Apart from their normal protective function, a further task of the
seat belts
is to also
hold the driver and the occupants in a correct seated position in the event of a side collision so as to enable the head airbags to offer the maximum protection. You should therefore always fasten the seat belts, not only because this is required by law, but also for safety reasons and for your own protection
⇒page 141, “Why seat belts?”.
Together with other elements (such as cross ba
rs in the seats, stable vehicle structure)
the head airbags are the consequent further development of occupant protection in the case of side collisions.
WARNING (continued)
Fig. 143 Installation position of the head airbags
sgg.6.book Page 152 Thursday, September 24, 2009 2:32 PM

Airbag system
154
being deployed. When the deployed head
airbag is inflated, parts of the acces-
sories fitted may in certain circumstances be thrown into the interior of the car and cause injuries to the occupants
⇒page 221, “Accessories, changes and
replacement of parts”.•
Any work on the head airbag system
including installing and removing
system components because
of other repair work (e.g. removing headliner)
must only be carried out by a specialist garage.Deactivating an airbagDeactivating airbags If any airbags have been deactivated, switch them on again as soon as possible so that they are able to again provide their proper protection.There is the technical means installed within your vehicle to switch off the front, side* or head* airbag (take out of commission). This is why you should have the deactivation
of the airbags carried out by a specialist
garage. On vehicles equipped with the switch for de
activation of the airbags, you can deacti-
vate the front passenger airbag
by means of this switch
⇒page 154.
Deactivation of airbags is envisaged only for particular instances, such as if:•
Yo u m u s t i n
exceptional cases
use a child seat on the front passenger seat where
the child is seated with its back to the dire
ction of travel (in some countries this must
be in the direction of travel due to other legal regulations applying)
⇒page 156,
“Important safety information regarding the use of child safety seats”;•
you are not able to maintain the distance
of at least 25 cm between middle of
steering wheel and chest, despite the driver seat being correctly adjusted;•
special attachments are required in the ar
ea of the steering wheel because of a
physical disability;•
you have installed other seats (e.g. orthopaedic seats without side airbags).
Monitoring the airbag system The functionality of the airbag system is al
so monitored electronically when one airbag
has been switched off. If the airbag was switched off using diagnostic equipment:•
The warning light for the airbag system li
ghts up for 4 seconds after switching on
the ignition and then flashes for 12 seco
nds afterwards in 2 second intervals.
Front passenger airbags sw
itched off using the switch for front passenger
airbags* in storage compartmen
t on the front passenger side:
•
the airbag indicator light in the instrume
nt cluster comes on for about 4 seconds
each time the igniti
on is switched on;
•
switching off the airbag is indicated in the middle of the dash panel by the lighting
up of the yellow indicator light in display

 
  ⇒fig. 145
.
Note
A specialist garage will be able to advise you whether national legislation in your country allows airbags in
your vehicle to be deactivated, and which ones.
Switch for the front passenger airbagFig. 145 Storage compartment: Switch for the
front passenger airbag / indicator light for a
switched off front seat passenger airbagThe front passenger airbag is deactivated with the switch.
WARNING (continued)
sgg.6.book Page 154 Thursday, September 24, 2009 2:32 PM

Airbag system
155
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Deactivating an airbag– Switch off the ignition. – Turn the slot of the airbag switch using the key in the position (
OFF
) ⇒fig. 145
.
– Check whether the yellow airbag indicator light in display

 
 
in the middle of the dash panel lights up when the ignition is turned on
⇒fig. 145
.
Switching on an airbag– Switch off the ignition. – Turn the slot of the airbag switch using the key in the position (
ON
) ⇒fig. 145
.
– Check whether the yellow airbag indicator light in display

 
 
in the middle of the dash panel lights up when the ignition is turned on
⇒fig. 145
.
The warning light
  goes out 65 seconds after th
e ignition is switched on.
The airbag should only be switched off under exceptional circumstances
⇒page 154.
Indicator light in display

 
  (airbag switched off)
The airbag indicator ligh
t is located in the middle of the dash panel
⇒fig. 145
.
If the front passenger airbag is
switched off
, the warning light comes on about 4
seconds after the ignition is switched on. There is a system fault present in the airbag switch off
⇒
if the indicator light
flashes.
Please have the car inspected immediately by a specialist garage.WARNING
•
The driver is responsible
for whether the airbag is switched on or switched
off.•
Only switch off the airbag when the ignition is switched off! Otherwise a
fault can occur in the system for the airbag deactivation.•
If the yellow indicator light in display

 
  (airbag
switched off) flashes:
− Front passenger airbag is not deployed in the event of an accident! − It is also important to have the system inspected without delay by a specialist garage.
A2A1
sgg.6.book Page 155 Thursday, September 24, 2009 2:32 PM

Intelligent Technology
171
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•
TCS Off-road
⇒page 165,
•
ABS Off-road
⇒page 167.
Switch on Off-road The Off-road mode is switched on by pressing the button
⇒page 170, fig. 158
. The
warning light in the button lights up. The wa
rning light lights up in the instrument
cluster if the system is switched on
 ⇒page 38.
Switch off Off-road The Off-road mode is switched off by repe
ated pressing of the button. The warning
light in the button goes out. When switching
off the ignition, the Off-road mode is also
switched off and can be switched on again, if necessary, after switching on the ignition. If the engine is switched off by accident an
d restarted within 30 seconds, the Off-road
mode remains switched on. All four wheels must be fitted with the same tyres in order to achieve proper operation of the Off-road mode. Differing rolling circum
ferences of the tyres can lead to an unde-
sirable reduction in the engine output.
WARNING
•
Always adjust your speed to suit weat
her, road and traffic conditions. The
increased safety must not tempt you to take a greater safety risk than otherwise - risk of accident!•
The Off-road equipment can also not overcome the physical limits of your
vehicle.•
The effect of the Off-road equipm
ent depends as well on the tyres.
•
The Off-road equipment
is not designed for the use on common roads.
Start-Off Assist*The Start-Off Assist enhances the driving comfort and can be used when starting off, in particular on a slope. When the vehicle is stationary, the Start-Off Assist is activated after switching it on using the button for the Off-road mode
⇒page 170, fig. 158
.
Operating principle When depressing the accelerator pedal fully, the engine speed required for the start- up procedure of the stationary vehicle is restricted. The overspeed trip unit is automat-ically deactivated after terminating the start-up procedure. As part of the Assist System, the accelerator pedal is adapted in its characteristics for an easier start-off on slippery and loose soil.Downhill Drive Support*Operating principle The Downhill Drive Support maintains a cons
tant speed on a steep downhill section
when driving forwards and backwards by
automatically intervening in the brake
system of all wheels. It prevents the wheels locking because the ABS remains active. The warning light
 in the information display of the instrument cluster indicates that
the Downhill Drive Support is available
⇒page 38.
The vehicle speed, which is maintained by the Assist System, is selected by the driver while driving on a downhill section as of the
moment the first intervention of the Assist
System is performed or else, while driving on a downhill section, the driver must control the vehicle speed until the Assist System intervenes for the first time. When the Assist System actively intervenes, this is indicated by the warning light flashing or by a pulsating movement of the brake pedal,
similar to the intervention of the ABS.
The Downhill Drive Support is available in the speed range of 2 km/h up to 30 km/h. If the gear is engaged and the clutch pedal is
not pressed, the lower limit of the idling
speed corresponds to the respective gear which is engaged. You can increase or reduce the speed, even when no gear is engaged, by operating the accelerator or brake pedal. Thus the function
is always interrupted and is reactivated
afterwards. The Downhill Drive Support is activated auto
matically if the following conditions are
met:•
the Off-road mode is switched on and the warning light
 lights up in the instru-
ment cluster,•
the engine of the vehicle is running and either the 1st, 2nd, 3rd gear, the reverse
gear or no gear is engaged,•
the speed is less than 30 km/h,
sgg.6.book Page 171 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
175
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The technical requirements for low fuel usage and economic efficiency of the vehicle have already been built into the vehicle at
the works. Special atte
ntion has been given
to minimising nega
tive effects on the environment. It
is necessary to take note of the
guidelines given in this chapter in order to
make best use of these characteristics and
to maintain their effectiveness. The optimal engine speed should be obtained
when accelerating, in order to avoid a
high fuel consumption and
resonance of the vehicle.
Looking ahead when driving A vehicle's highest fuel consumption occurs it accelerates.Avoid accelerating and braking unnecessarily.
If you drive with forsight you will not
need to brake so often and will also then
not have to accelerate so much. Let your
vehicle coast to a stop, for example, if this is possible, when you see that the next set of traffic lights is at red.Shifting gears and saving energy Shifting up early saves on fuel.Fig. 159 Fuel consumption in litres/100 km. and speed in km/h.Manual gearbox– Drive no more than about one length of your vehicle in first gear. – Shift up into the next higher gear at approx. 2 000 to 2 500 revs.
Automatic gearbox– Depress the accelerator pedal
slowly
. Do not depress it beyond the kickdown
position, however.
An effective way of achieving good fuel economy is to shift up
early
. You will consume
more fuel if you drive at unnecessaril
y high revolutions in any given gear.
The
⇒fig. 159
shows the ratio of fuel consumption
to the speed of your vehicle in the
relevant gear. Fuel consumption in 1st gear
is the highest. The consumption is the
lowest in the highest gear. You will achieve good fuel economy by shif
ting up early and shifting down late.
Shift recommendation
for changing gears*
An information for the engaged gear
⇒fig. 159
is shown in the display of the
instrument cluster. In order to minimise the fuel consumptio
n, a recommendation for shifting into
another gear is indicated in the display. If the control unit recognises
that it is appropriate to change the gear, an arrow is
shown in the display. The arrow points up or down, depending on whether it is recom- mended to shift into a higher or lower gear. At the same time, the recommended gear is indicated instead of the currently engaged gear .
Note
Also use the information supplied by the multi-functional indicator*
⇒page 20.
AA
AB
AA
sgg.6.book Page 175 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
179
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
HeadlightThe low beam of your headlights is set asymmetrically. It illuminates the side of the road on which you are driving to a greater ex
tent. If you drive abroad on the other side
of the road, you will
dazzle oncoming traffic.
In order to prevent the dazzling of oncoming traffic, it is necessary that an adjustment of the headlights is carried out by a specialist garage. The adaptation of the headlights with Xenon
lights* (applies only to
vehicles which are
designed for driving on the right and on the left) is performed in the menu
Setup

Tr a v e l m o d e
in the main menu of the Information display*
⇒page 24.
Note
You can obtain further information regarding masking over the headlights from a specialist garage.Avoiding damage to your vehicleWhen driving on poor roads and lanes or
when driving over kerbstones, steep ramps
etc., you must pay particular attention to
ensuring that any low-slung parts of the
vehicle, such as spoiler and exhaust,
do not touch the ground and get damaged.
This particularly applies to
models with a lowered suspen
sion (sport suspension) and
also when your vehicle is fully laden.Driving through bodies of water on roads
In order to avoid damage to the vehicle wh
en driving through bodies of water (e.g.
flooded roads), observe the following:•
Determine the depth of the water when driv
ing through bodies of water. The water
can reach at the maximum the web on the lower sill of the vehicle
⇒fig. 162
.
•
Drive no more than at walking speed. At a higher speed, a water wave can form in
front of the vehicle which can cause water to
penetrate into the air induction system of
the engine or into other parts of the vehicle.•
Never let the vehicle stand in the water,
never drive backwards and do not switch
off the engine.
WARNING
•
Driving through water, mud, sludge etc. can reduce the braking power and
extend the braking distance - risk of accident!•
Avoid sudden and severe braking manoeuvres immediately after driving
through bodies of water.•
After driving through bodies of water, the brakes must be cleaned and dried
as soon as possible by intermittent braking. Only apply the brakes for the purpose of drying and cleaning the brake
discs if the traffic conditions permit
this. Do not place any other road users in jeopardy.
Caution
•
When driving through bodies of water, pa
rts of the vehicle such as the engine,
gearbox, catalytic converter, chassis
or electrics can be severely damaged.
•
Oncoming vehicles can gene
rate water waves which ca
n exceed the permissible
water level for your vehicle.•
Potholes, mud or rocks can be
hidden under the water making it difficult or impos-
sible to drive through the body of water.•
Do not drive through salt water. The salt
can lead to corrosion. Immediately rinse
all the parts of the vehicle, which came into
contact with the salt water, with fresh
water.
Fig. 162 Crossing bodies of water
sgg.6.book Page 179 Thursday, September 24, 2009 2:32 PM

Inspecting and replenishing
206
Oil level within range –You
must
top up the oil
⇒page 206. It is sufficient, once this is done, to keep the
oil level within range .
It is normal for the engine to consume oil.
The oil consumption may be as much as 0.5
l/1 000 km depending on your style of driving and the conditions under which you operate your vehicle. The oil
consumption may be slightly hi
gher than this during the
first 5 000 kilometres. One should therefore check the oil level at regular intervals, preferably every time after the fuel tank is filled or after driving for long stretches. We recommend maintaining the oil level within the range -
but not above this
, if
the engine has been operating at high load
s, for example during a lengthy motorway
trip during the summer months, towing a tr
ailer or negotiating
a high mountain pass.
The warning light in the instrument cluster* will indicate
⇒page 33, “Engine oil pres-
sure

” whether the oil level is too low. In this case, check the oil level as soon as
possible. Top up with an appropriate quantity of oil.
Caution
•
The oil level must on no account extend
beyond the range . Danger of damaging
the catalytic converter.•
Do not continue your journey
if for some reason it is not possible under the
conditions prevailing to top up with oil.
Switch the engine off
and obtain professional
assistance from a specialist garage, otherwise it could lead to severe engine damage.
Note
Engine oil specifications
⇒page 243, “Technical Data”.
Replenishing engine oil– Inspecting the engine oil level
⇒page 205.
– Unscrew the cap of the engine oil filler opening. – Pour in a suitable grade of oil in portions of 0.5 litres
⇒page 246, “Engine oil spec-
ifications”.
– Inspect the oil level
⇒page 205.
– Carefully screw on the cap of the filler opening and push the dipstick in fully.
WARNING
•
Avoid dripping oil onto hot parts of the engine when topping up will oil - a
risk of fire!•
Read and observe the warning notes
⇒page 204, “Working in the engine
compartment” before working in the engine compartment.
For the sake of the environment
The oil level must on no acco
unt extend beyond the range
⇒page 205. Oil will
otherwise be drawn in through the crankc
ase ventilation and may pass through the
exhaust system to atmosphere. The oil ma
y combust in the cata
lytic converter and
damage it.Changing engine oilThe engine oil must be changed at the intervals stated in the Service schedule or according to the service interval indicator
⇒page 18, “Service Interval Display”.
WARNING
•
Only carry out the engine oil change, if you have the required professional
knowledge!•
Read and observe the warning notes
⇒page 204, “Working in the engine
compartment” before working in the engine compartment.•
First of all, let the engine cool down, we
ar an eye protection and gloves - risk
of caustic burns due to hot oil.
Caution
You must not pour any
additives into the engine oil - risk of engine damage! Damage,
which results from such product, are excluded from the warranty.
ACAB
AAAA
AA
sgg.6.book Page 206 Thursday, September 24, 2009 2:32 PM

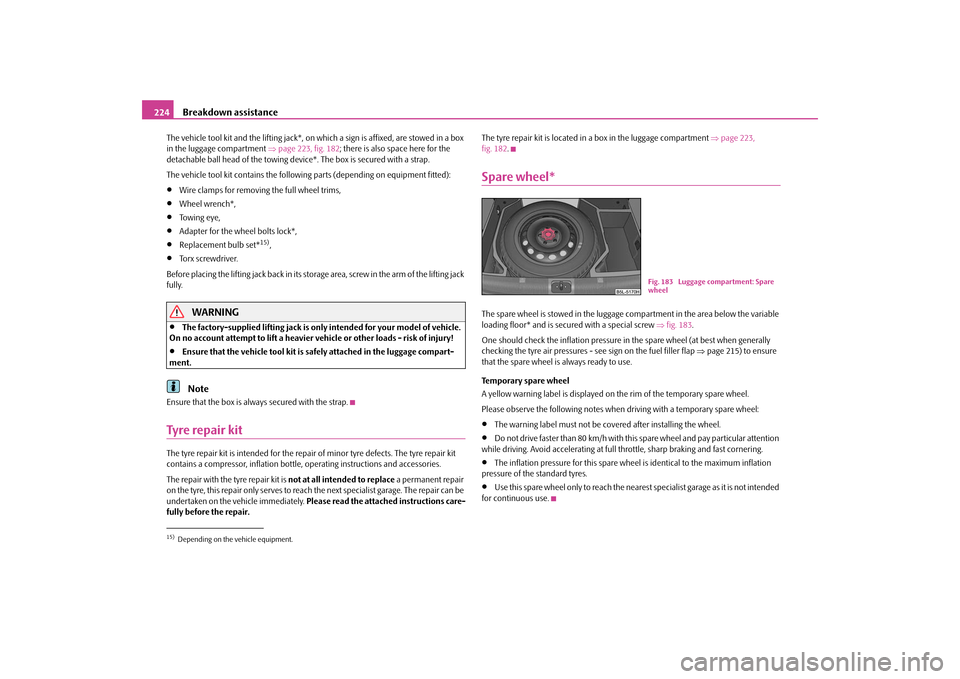

Breakdown assistance
224
The vehicle tool kit and the lifting jack*, on which a sign is affixed, are stowed in a box in the luggage compartment
⇒page 223, fig. 182
; there is also space here for the
detachable ball head of the towing devi
ce*. The box is secured with a strap.
The vehicle tool kit contains the following
parts (depending on equipment fitted):
•
Wire clamps for removing the full wheel trims,
•
Wheel wrench*,
•
To w i n g e y e ,
•
Adapter for the wheel bolts lock*,
•
Replacement bulb set*
15),
•
To r x s c r e w d r i v e r.
Before placing the lifting jack back in its storage area, screw in the arm of the lifting jack fully.
WARNING
•
The factory-supplied lifting jack is only intended for your model of vehicle.
On no account attempt to lift a heavier vehicle or other loads - risk of injury!•
Ensure that the vehicle tool kit is safely attached in the luggage compart-
ment.
Note
Ensure that the box is always secured with the strap.Tyre repair kitThe tyre repair kit is intended for the repair
of minor tyre defects. The tyre repair kit
contains a compressor, inflation bottle,
operating instructions and accessories.
The repair with the tyre repair kit is
not at all intended to replace
a permanent repair
on the tyre, this repair only serves to reach the next specialist garage. The repair can be undertaken on the vehicle immediately.
Please read the attached instructions care-
fully before the repair.
The tyre repair kit is located in
a box in the luggage compartment
⇒page 223,
fig. 182
.
Spare wheel*The spare wheel is stowed in the luggage compartment in the area below the variable loading floor* and is secured with a special screw
⇒fig. 183
.
One should check the inflation pressure in
the spare wheel (at best when generally
checking the tyre air pressures - see sign on the fuel filler flap
⇒page 215) to ensure
that the spare wheel is always ready to use. Temporary spare wheel A yellow warning label is displayed on the rim of the temporary spare wheel. Please observe the following notes when driving with a temporary spare wheel:•
The warning label must not be covered after installing the wheel.
•
Do not drive faster than 80 km/h with this spare wheel and pay particular attention
while driving. Avoid accelerating at full throttle, sharp braking and fast cornering.•
The inflation pressure for this spare wheel is identical to the maximum inflation
pressure of the standard tyres.•
Use this spare wheel only to reach the nearest specialist garage as it is not intended
for continuous use.
15)Depending on the vehicle equipment.
Fig. 183 Luggage compartment: Spare wheel
sgg.6.book Page 224 Thursday, September 24, 2009 2:32 PM
