Unlocking and locking
49
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
You can also open the small boot lid by pressing the button on the remote control
⇒page 51 for approx. 2 seconds.
A handle which makes the clos
ing easier is located on
the inner paneling of the
boot lid.
WARNING
•
Ensure that the lock is properly enga
ged after closing the boot lid. Other-
wise, the boot lid might open suddenly wh
en driving even if the boot lid lock
is closed - risk of accident!•
Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
Hinweis
•
After closing the boot lid, it is automatically locked within 2 seconds and
the anti-theft alarm system* is activated.
This applies only if the vehicle was
locked before closing the boot lid.•
The function of the hand grip on the bottom edge of the boot lid is deactivated
when starting off or as of a speed of more
than 5 km/hour. The function of the hand
grip is acitvated again after stopping the vehicle and after opening the driver or front passenger door or after pressing th
e button on the radio remote control
⇒ page 51.•
Repeated opening and closing of the boot
lid can lead to a temporary failure of
the function due to the overheating prot
ection of the motors of the Twindoor
system.
Twindoor - large boot lidAfter unlocking the vehicle using the radio remote control or the key ⇒
page 47, “Emergency unlocking and lo
cking of the driver's door” you
can open the large boot lid
⇒
fig. 46
.
Open large boot lid – Press the handle
⇒
fig. 45
on the bottom edge of the boot lid.
– Yo u must wait until the brake light in the rea r window f lashes twic e. – Press on the handle and at the same time raise the boot lid.
A2
A1
Fig. 45 Handle of boot lidFig. 46 Boot lid
A1
A2
A3
s2dk.1.book Page 49 Wednesday, April 8, 2009 12:23 PM

Unlocking and locking
50
Close large boot lid – Pull the boot lid down and close it with a slight swing
⇒
. The
bonnet locks automatically.
A handle which makes the closing easier is
located on the inner paneling of the
boot lid.
WARNING
•
Ensure that the lock is
properly engaged after clos
ing the boot lid. Other-
wise, the boot lid might open suddenly when
driving even if the boot lid lock
is closed - risk of accident!•
Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
Hinweis
•
After closing the boot lid, it is automatically locked within 2 seconds and
the anti-theft alarm system* is activated.
This applies only if the vehicle was
locked before closing the boot lid.•
The function of the hand grip on the bott
om edge of the boot lid is deactivated
when starting off or as of
a speed of more than 5 km/hou
r. The function of the hand
grip is acitvated again after stopping th
e vehicle and after opening the driver or
front passenger door or after pressing the button on the radio remote control ⇒ page 51.•
Repeated opening and closing of the boot lid can lead to a temporary failure of
the function due to the overheating protection of the motors of the Twindoor system.
Emergency unlocking of the boot lidIf there is a fault in the central locking, you can open the boot lid as follows: – Fold the seat backrest forwards
⇒
page 84.
– Guide the key into the slot in the trim panel as far as the stop
⇒
fig. 47
.
– You can unlock the boot lid by mo
ving in the direction of arrow.
– Open the boot lid/luggage compartment door from outside.Remote controlDescriptionYou can use the remote control:•
to unlock and lock the car,
•
unlock or open the boot lid,
•
Opening and closing window.
A1
Fig. 47 Emergency unlocking of the boot lid
s2dk.1.book Page 50 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
126
Switch on display of the park assist in the information display* – Press the button
⇒
fig. 141
.
– Drive past the parking row up to maximum 30 km/h and with a
distance of 0.5 m to 1.5 m
⇒
page 125, fig. 142
.
Operate the turn signal for the driver's side
if you wish to park on this side of the
road. In the information display* the search area for the parking place is indicated on the driver's side. If the button is pressed above a speed of 30 km/h, the display appears in the display of the instrument cluster as soon as you drive slower than 30 km/h.
Note
•
If the park assist is switched on, a yello
w warning light lights up in the button.
•
The search for suitable parking places is automatic after switching on the igni-
tion at speeds of more than 30 km/h. Searching for a parking place is performed at the same time on the driver and front passenger side.•
If the sensors find a suitable parking place, they store its parameters until
another suitable parking place has been found or until a distance of 10 m had been driven after finding the parking place. This is
why it is possible to switch on the park
assist after driving past the parking space,
on the information display* appears the
information if this parking space is suitable for parking.
Parking with the help of the pa
rk assist and concluding the
parking procedureThe time limit for the parking procedure with the help of the park assist lasts 180 seconds. – If the park assist has recognized a suitable parking place, the parking
place is shown in the information display*
⇒
fig. 143
.
– Drive on further until the display
⇒
fig. 144
appears.
– Bring the vehicle to a stop for at least 1 second. – Engage the reverse gear or set the selector lever* in the position
R.
Fig. 143 Information display: Parking place recog-nized with the information to drive onFig. 144 Information display: Parking place recog-nized with the information to engage the reverse gear
s2dk.1.book Page 126 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
127
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– As soon as the following message is indicated in the information
display*:
Steering intervention! M
onitor area around veh.!
let go
of the steering wheel, the steering will be taken over by the system.
– Observe the surroundings and drive backwards with a speed of
maximum 7 km/h, at the same time operate the pedal.
– End the parking procedure from a distance on the basis of the infor-
mation of the system.
As soon as the parking procedure is completed, an audible signal sounds and in the information display* the following message appears:
Steering intervention
finished! Please take over steering!
.
If your vehicle is not proper
ly parked, the position of th
e wheels is corrected by the
system after disengaging the reverse gear when your vehicle is stationary, so that you can align the vehicle yourself during
a forward movement after taking over the
steering. Switch off park assist The park assist switches off during
one of the following occurences:
•
A speed of 30 km/h exceeded
•
A speed of 7 km/h exceeded during the parking procedure
•
A time limit of 180 seconds exceeded
for engaging the reverse gear after
switching on the park assist.•
A time limit of 180 seconds exceeded for the parking procedure
•
The button pressed
for the park assist
•
Parking aid activated
•
Switch off ESP
•
Intervention of the driver in the automatic steering procedure (stop the steering
wheel)•
Disengage reverse gear or take out selector lever* out of the position
R during
the parking procedure. Further warning and information texts of the park assist in the information display*:
Park Assist cancelled! The parking procedure has ended or after sw
itching on the ignition, the vehicle has
not been driven above 10 km/h. Park Assist: Speed too high! Reduce the speed below 30 km/h. Driver steering intervention!
Please take over steering!
The parking procedure is ended through driver intervention. Park Assist cancelled! ESP switched off! The parking procedure cannot be carried ou
t because the ESP system is switched
off. ESP switched off! Please take over steering! The parking procedure was ended because th
e ESP system was switched off during
the parking procedure. Park Assist cancelled! Trailer The parking procedure is not possible becaus
e the trailer is hitched and a plug is
inserted in the socket of the towing device. Park Assist cancelled! Time limit exceeded! The parking procedure was not started because a time limit of 180 seconds for engaging the reverse gear was exceeded. Time limit exceeded! Please take over steering! The parking procedure was ended because a
time limit of 180 seconds for parking
was exceeded. Park Assist cancelled! System error The parking procedure is not possible because a fault exists on the vehicle. Have the fault rectified by a specialist workshop. Park Assist defective! Service now! The parking procedure is not possible because
a fault exists on the park assist. Have
the fault rectified by a specialist workshop.
s2dk.1.book Page 127 Wednesday, April 8, 2009 12:23 PM

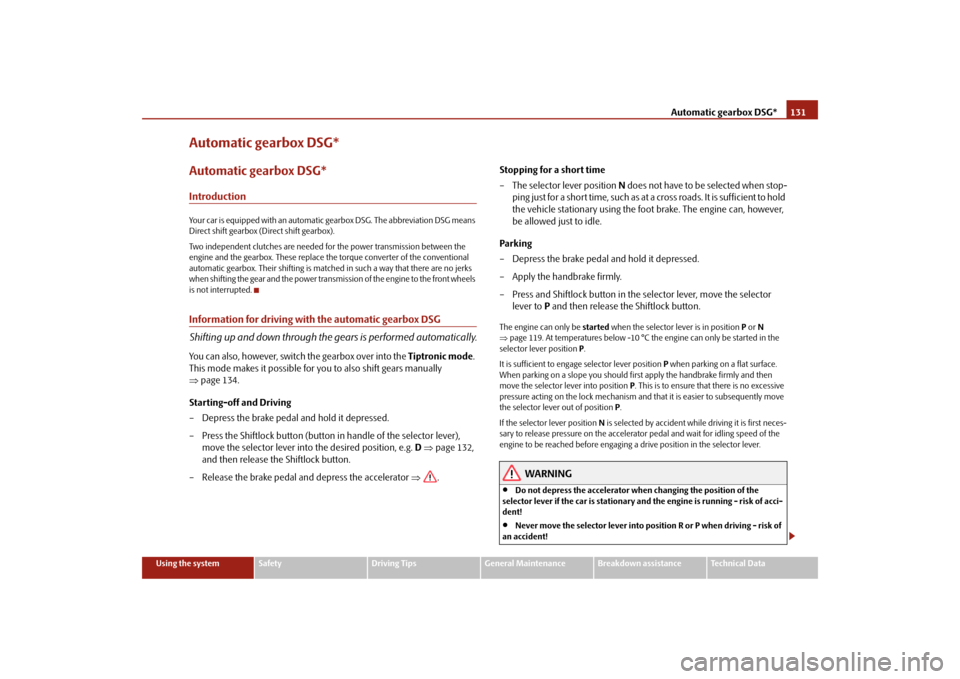

Automatic gearbox DSG*
131
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Automatic gearbox DSG*Automatic gearbox DSG*IntroductionYour car is equipped with an automatic
gearbox DSG. The abbr
eviation DSG means
Direct shift gearbox (Direct shift gearbox). Two independent clutches are needed for the power transmission between the engine and the gearbox. These replace the torque converter of the conventional automatic gearbox. Their shifting is matched in such a way that there are no jerks when shifting the gear and the power transmission of the engine to the front wheels is not interrupted.Information for driving with the automatic gearbox DSG Shifting up and down through the gears is performed automatically.You can also, however, switch
the gearbox over into the
Tiptronic mode
.
This mode makes it possible for
you to also shift gears manually
⇒
page 134.
Starting-off and Driving – Depress the brake pedal and hold it depressed. – Press the Shiftlock button (button
in handle of the selector lever),
move the selector lever into the desired position, e.g.
D ⇒
page 132,
and then release the Shiftlock button.
– Release the brake pedal and depress the accelerator
⇒
.
Stopping for a short time – The selector lever position
N does not have to be selected when stop-
ping just for a short time, such as at a
cross roads. It is sufficient to hold
the vehicle stationary using the foot
brake. The engine can, however,
be allowed just to idle.
Parking – Depress the brake pedal and hold it depressed. – Apply the handbrake firmly. – Press and Shiftlock button in the
selector lever, move the selector
lever to
P and then release the Shiftlock button.
The engine can only be
started
when the selector lever is in position
P or N
⇒ page 119. At temperatures below -10 °C the engine can only be started in the selector lever position
P.
It is sufficient to engage
selector lever position
P when parking on a flat surface.
When parking on a slope you should first apply the handbrake firmly and then move the selector le
ver into position
P. This is to ensure that there is no excessive
pressure acting on the lock mechanism and
that it is easier to subsequently move
the selector lever out of position
P.
If the selector lever position
N is selected by accident while driving it is first neces-
sary to release pressure on the accelerato
r pedal and wait for idling speed of the
engine to be reached before engaging a drive position in the selector lever.
WARNING
•
Do not depress the accelerator when changing the position of the
selector lever if the car is stationary an
d the engine is running - risk of acci-
dent!•
Never move the selector lever into position R or P when driving - risk of
an accident!
s2dk.1.book Page 131 Wednesday, April 8, 2009 12:23 PM

Communication
151
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Universal telephone preinstallation GSM III*IntroductionThis enables you to make full use of the
advantages of a norm
al carphone (“hands-
free system” using a microphone integrated in the vehicle, optimal transmission of signals using an external aerial etc.). The equipment includes also the voice control. The telephone is connected using the
rSAP
profile -
Remote SIM access profile
(telecommunication of the SIM data)
by means of Bluetooth
® technology, if your
telephone supports this profile. The equipment includes the following functions:•
Display of the SMS text in the information display.
•
Free talking in the vehicle interior.
•
MUTE signal to the radio.
•
Voice control (with the set-up possibility for “short and long dialogue”,
depending on the user's knowledg
e of the operating structure).
•
Convenience mode with the multifunction
steering wheel and the display in the
information display.•
Handsfree-system.
The voice control of the telephone is acti
vated by pressing the button PTT on the
multifunction st
eering wheel
⇒page 153, fig. 157
.
A phone phonebook is part of the univers
al telephone preinstallation GSM III with
voice control. In the phone phonebook ther
e are 1000 free memory locations avail-
able. This phone phonebook is independent of the appliance used for the mobile phone. Furthermore the volume can be changed indi
vidually at any time with the button
for setting the radio or on vehicles fitted with multifunction steering wheel* with function buttons on
the steering wheel.
Dialogue The period, in which the telephone system is ready to receive voice commands and carry out the voice commands, is called DIALOGUE. The system gives audible feed-back and guides you if necessary through
the relevant functions. You can start or
end the dialogue at any time by pressing the PTT button.
The dialogue is always automatically ended after carrying out an operation, e.g. after erasing the name from the phonebook. The dialogue of the incoming call is im
mediately interrupted and you can accept
the call by pressing the button
.
If a voice command is not detected, the system answers with “
Sorry?
” and a new
entry can be performed. After the 2nd error the system repeats the aid. After the 3rd error the answer “
Cancel
” is given and the dialogue is ended.
Optimum understanding of the voice commands depends on the following factors:•
Speak with a normal tone of voice without intonation and excessive voice
pauses.•
Avoid insufficient articulation.
•
Close the doors, windows and sliding roof, in order to reduce or stop disturbing
exterior noise.•
It is recommended to speak louder at higher speeds, so that the tone of your
voice is louder than the increased surrounding noise.•
During the dialogue avoid additional noise in the vehicle, e.g. simultaneously
talking occupants.•
Do not speak, if the system makes an announcement.
•
The microphone for voice control is in
serted in the moulded headliner and
directed to the driver and front passenger. Therefore the driver and the front passenger can operate the equipment.
WARNING
Pay attention primarily to the traffic situation! As the driver you are fully responsible for road safety. Use the tele
phone system only to such an extent,
so that you are in full control of your vehicle at any time.
Note
•
Should you have any questions, please
contact an authorised Škoda Service
Par tner.
s2dk.1.book Page 151 Wednesday, April 8, 2009 12:23 PM
