2009 Seat Ibiza SC boot

Seats and stowage

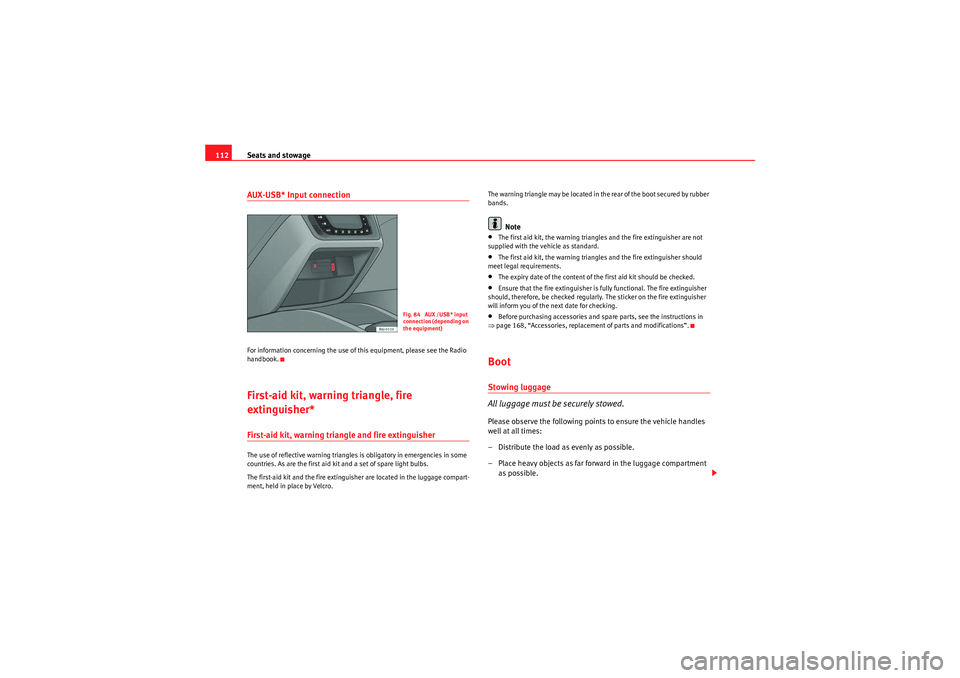

112AUX-USB* Input connectionFor information concerning the use of this equipment, please see the Radio
handbook.First-aid kit, warning triangle, fire
extinguisher*First-aid kit, warning triangle and fire extinguisherThe use of reflective warning triangles is obligatory in emergencies in some
countries. As are the first aid kit and a set of spare light bulbs.
The first-aid kit and the fire extinguisher are located in the luggage compart-
ment, held in place by Velcro. The warning triangle may be located in the rear of the boot secured by rubber
bands.
Note
•The first aid kit, the warning triangles and the fire extinguisher are not
supplied with the vehicle as standard.•The first aid kit, the warning triangles and the fire extinguisher should
meet legal requirements.•The expiry date of the content of the first aid kit should be checked.•Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.•Before purchasing accessories and spare parts, see the instructions in
⇒ page 168, “Accessories, replacement of parts and modifications”.BootStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
Fig. 84 AUX /USB* input
connection (depending on
the equipment)
IbizaSC_EN.book Seite 112 Mittwoch, 16. September 2009 12:11 12

Seats and stowage113
Safety First
Controls and equipment
Practical tips
Technical Data
WARNING
•Loose luggage and other loose items in the vehicle may cause serious
injuries.•Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.•In case of sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring passengers.•Always put objects in the boot.•When you transport heavy objects, always take in account that a
change in the centre of gravity can also cause changes in vehicle handling.•Please observe information on safe driving ⇒page 7, “Safe driving”.Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.
Open stowage compartmentRemoving the cover
– Disengage the loops ⇒fig. 85 from the retaining pins
– Extract the cover from its slot, in its rest position and pull outwards.
WARNING
Do not place heavy or hard objects on the open stowage compartment,
because they will endanger the vehicle occupants in case of sudden
braking.
Caution
•Before closing the tailgate, ensure that the stowage compartment tray is
correctly fitted.
Fig. 85 Stowage tray
AB
AA
IbizaSC_EN.book Seite 113 Mittwoch, 16. September 2009 12:11 12

Seats and stowage
114•An overloaded boot could mean that the rear stowage tray is not correctly
seated and it may be bent or damaged.•If the boot is overloaded, remove the tray.Note
•Ensure that, when placing items of clothing on the luggage compartment
cover, rear visibility is not reduced.Roof carrier*Please observe the following points if you intend to carry loads on the roof:•For safety reasons, only luggage racks and accessories approved by SEAT
should be used.•It is essential that you follow the assembly instructions included with the
bars exactly, being especially careful to position front and rear luggage
compartment cover bars on the special housings on the longitudinal bars.
You must also respect their position according to the direction of travel indi-
cated in the assembly manual. Not following these instructions may damage
the bodywork.•Pay special attention to the tightening torque of the attachment bolts and
check them following a short journey. If necessary, retighten the bolts and
check them at regular intervals.•Distribute the load evenly. A maximum load of 40 kg only is permitted for
each roof carrier system support bar, the load must be distributed evenly
along the entire length. However, the maximum load permitted for the entire
roof (including the support system) of 75 kg must not be exceeded nor should
the total weight of the vehicle be exceeded. See the chapter on “Technical
Data”.•When transporting heavy or large objects on the roof, any change in the
normal vehicle behaviour due to a change in the centre of gravity or an increased wind resistance must be taken into account. For this reason, a suit-
able speed and driving style must be used.
•For those vehicles fitted with a sunroof*, ensure that it does not interfere
with the load on the roof carrier system when opened.
IbizaSC_EN.book Seite 114 Mittwoch, 16. September 2009 12:11 12

If and when207
Safety First
Controls and equipment
Practical tips
Technical Data
15
Right-hand AFS headlamps
15
16
Va can t
17
Registration plate light /Dimmer /Side light indi-
cator light
5
18
Dimmer
5
19
Electronic control unit
5
20
Indicators
15
21
Light switch, dash panel
5
22
Electronic control unit, heated mirrors
5
23
Engine injection module/ Rain sensor/ Gear
lever/ Starter relay
7,5
24
Glovebox light, boot light, interior light
10
25
Parking aid
5
26
Towing hook
27
12 volt Input/Cigarette lighter
15
28
Lambda probe
10
29
Engine power supply
20
30
Petrol engine operation
10
31
Petrol engine operation/Glow plugs/Relay
coil/Bi-turbo electric fan
10
32
Engine control unit
15
33
Clutch switch power supply/preheating relay
5
34
Fuel control unit / Bi-turbo engine supply
15
35
Heated seats control unit
25
36
Main beam headlight, right
10
Number
Consumer
Amperes
37
LHS full beam lamp/Coming Home
10
38
Electric fan motor
30
39
Va can t
40
Va can t
41
Va can t
42
Horn
20
43
Panoramic roof
30
44
Windscreen wipers
20
45
Rear window heater
20
46
Radio/telephone VDA/Bluetooth/Steering col-
umn controls
20
47
Climatronic/autoclimate
5
48
Locking unit
25
49
Front electric window
30
50
Rear electric windows
30
51
Automatic gearbox control unit
30
52
Alarm/Volume sensor
15
53
Electro-kinetic pump relay/bi-turbo fuel control
unit
15
54
Reverse light for automatic gearbox, fog light
15
55
Transformer on
15
56
Rear windscreen wiper
10
57
Dipped headlight (right side)
15
58
Dipped headlight (left side)
15
Number
Consumer
Amperes
IbizaSC_EN.book Seite 207 Mittwoch, 16. September 2009 12:11 12

If and when
218
– First fit the glass with the fastening tabs over the frame of the switch. Next press the front part until the two long tabs click on
the support.Additional brake lights*Given the difficulty involved in the replacement of this light it should be done
by the Technical Service.Boot light*
– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver ⇒fig. 149 .
– Press the lamp sideways and remove it from its housing ⇒fig. 150 .Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Fig. 149 Luggage
compartment light
Fig. 150 Luggage
compartment light
IbizaSC_EN.book Seite 218 Mittwoch, 16. September 2009 12:11 12

General notes on the technical data
226Vehicle identification data
The most important data are given on the type plate and the
vehicle data sticker.Vehicles for certain export countries do not have a type plate.
Type plate
The type plate is located on the left rib inside the engine compartment.
Vehicle identification number
The vehicle identification number (chassis number) can be read from outside
the vehicle through a viewer in the windscreen. This is located on the left-
hand side of the vehicle in the lower area of the windscreen. It is also located
on the right hand side of the engine compartment. Vehicle data
The data sticker is placed on the inside of the spare wheel recess in the
luggage compartment.
The following information is provided on the vehicle data sticker:
⇒fig. 154
These data are also provided in the Maintenance Program. Production control number
Vehicle identification number (chassis number)
Model code number
Model designation / engine power output
Engine and gearbox code letters
Paintwork number / interior trim code
Optional equipment codes
Consumption values
CO
2 emissions values.
Data from 2 to 9 are also provided in the Maintenance Program.
Consumption figures and CO
2
Consumption (litres/100 km) / CO
2 emissions (g/km) urban
Consumption (litres/100 km) / CO2 emissions (g/km) motorway
Consumption (l/100 km) / CO
2 Emissions (g/km) mixed
Fig. 154 Vehicle data
sticker – boot
A1A2A3A4A5A6A7A8A9AAABAC
IbizaSC_EN.book Seite 226 Mittwoch, 16. September 2009 12:11 12

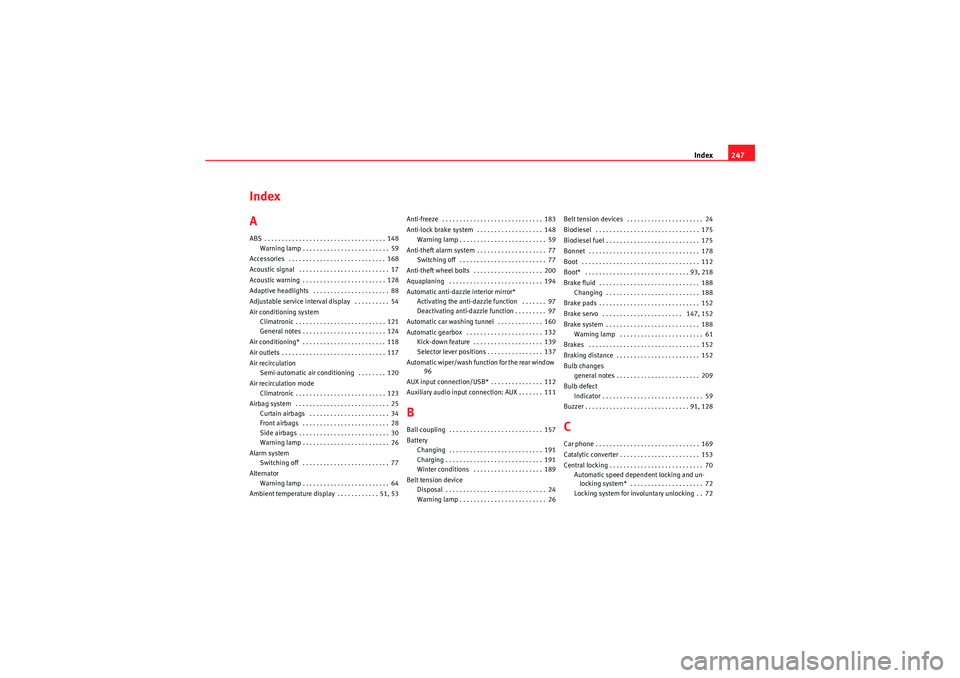

Index247
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 59
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 128
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . . 88
Adjustable service interval display . . . . . . . . . . 54
Air conditioning system Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 121
General notes . . . . . . . . . . . . . . . . . . . . . . . . 124
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 118
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Air recirculation Semi-automatic air conditioning . . . . . . . . 120
Air recirculation mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 34
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 28
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 26
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 77
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Ambient temperature display . . . . . . . . . . . . 51, 53 Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 148
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 59
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 77 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 77
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 200
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . . 97
Deactivating anti-dazzle function . . . . . . . . . 97
Automatic car washing tunnel . . . . . . . . . . . . . 160
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 132 Kick-down feature . . . . . . . . . . . . . . . . . . . . 139
Selector lever positions . . . . . . . . . . . . . . . . 137
Automatic wiper/wash function for the rear window 96
AUX input connection/USB* . . . . . . . . . . . . . . . 112
Auxiliary audio input connection: AUX . . . . . . . 111
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Battery Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Winter conditions . . . . . . . . . . . . . . . . . . . . 189
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 26 Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 24
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Boot* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93, 218
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 147, 152
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 188 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 61
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 152
Bulb changes general notes . . . . . . . . . . . . . . . . . . . . . . . . 209
Bulb defect Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91, 128
CCar phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . 153
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 72
Locking system for involuntary unlocking . . 72
IbizaSC_EN.book Seite 247 Mittwoch, 16. September 2009 12:11 12

Index
250Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Front cup holder* . . . . . . . . . . . . . . . . . . . . . . . 109
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 92
Front passenger airbag deactivation . . . . . . . . . 36
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 93
Front seat adjustment
Lumbar support . . . . . . . . . . . . . . . . . . . . . . 103
Frontal airbags Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 173
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 62
Fuel: Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 131
General overview of the engine compartment 230
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 106
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 130 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 58 GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Warning lamp . . . . . . . . . . . . . . . . . . . . 61, 140
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 90
head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 101, 102
adjustment of the head restraint angle . . . 102
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 91
Headlight range control . . . . . . . . . . . . . . . . . . . 87
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 156
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Washer system . . . . . . . . . . . . . . . . . . . . . . . 97
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 104
Heated wing mirrors* . . . . . . . . . . . . . . . . . . . . . 98
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 116
High pressure cleaners . . . . . . . . . . . . . . . . . . . 161
Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 141
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
How to jump start description . . . . . . . . . . . . . 219IIdentification number . . . . . . . . . . . . . . . . . . . . 226
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
indication lamp . . . . . . . . . . . . . . . . . . . . . . . 64
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 91
Instrument and switch lighting . . . . . . . . . . . . . 87
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 47
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 47
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Interior monitor and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Intermittent wipe, windscreen . . . . . . . . . . . . . . 94
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 218KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74LLeather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 166
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Load compartment in the boot See Luggage compartment . . . . . . . . . . . . . 15
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Luggage compartment . . . . . . . . . . . . . . . . . . . . 15 See also Luggage compartment . . . . . . . . . 15
IbizaSC_EN.book Seite 250 Mittwoch, 16. September 2009 12:11 12
