Steering column controls*

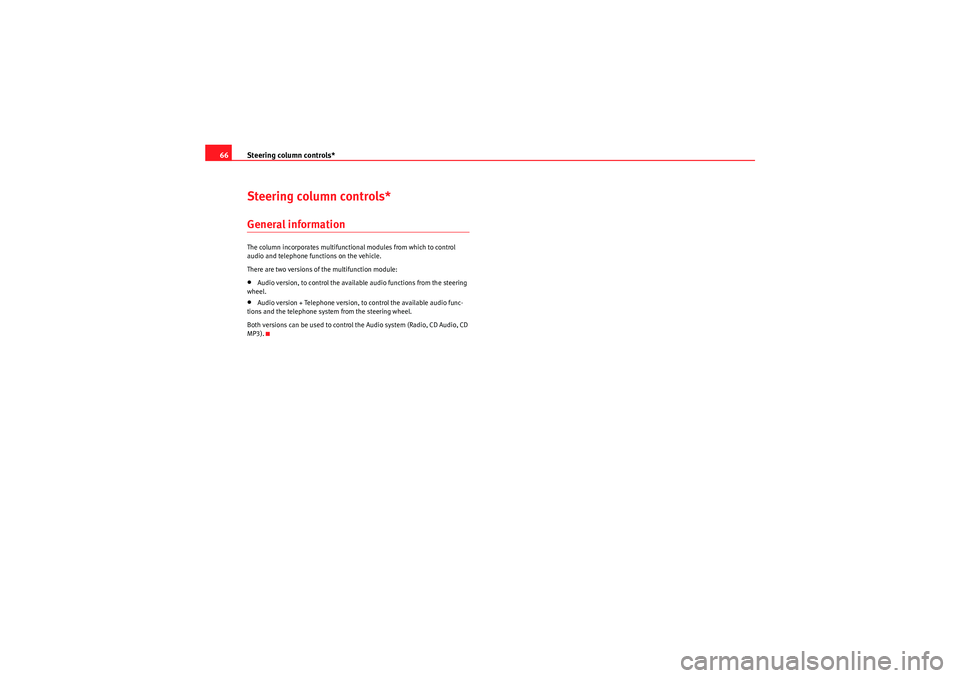

66Steering column controls*General informationThe column incorporates multifunctional modules from which to control
audio and telephone functions on the vehicle.
There are two versions of the multifunction module:•Audio version, to control the available audio functions from the steering
wheel.•Audio version + Telephone version, to control the available audio func-
tions and the telephone system from the steering wheel.
Both versions can be used to control the Audio system (Radio, CD Audio, CD
MP3).
Ibiza_EN.book Seite 66 Montag, 14. September 2009 6:19 18

Steering column controls*67
Safety First
Controls and equipment
Practical tips
Technical Data
Audio Control
Fig. 39 Audio controls
Button Short press
Radio CD Audio
CD MP3/ USB/iPod
a)
a)Only for mp3 compatible radio.*
AUX-IN
Vol u m e up
Vol um e d own
Cyclic source control FM - AM - CD - FM...
Station search. Higher frequency
. Next track No function
Station search. Lower frequency 
Previous track No function
Next preset No functionChange folder (forward) No function
Previous preset No functionChange folder (back) No function
AAABACADADAEAF
Ibiza_EN.book Seite 67 Montag, 14. September 2009 6:19 18

Steering column controls*

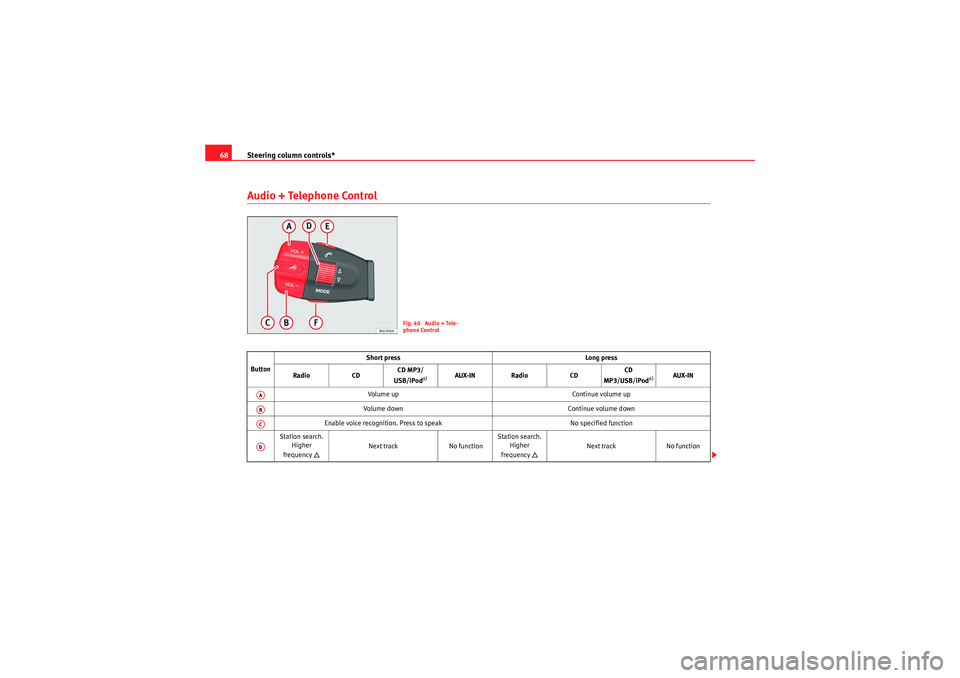

68Audio + Telephone Control
Fig. 40 Audio + Tele-
phone Control
Button Short press
Long press
Radio CDCD MP3/
USB/iPod
a)
AUX-IN Radio CDCD
MP3/USB/iPod
a)
AUX-IN
Volume up Continue volume up
Volume down Continue volume down
Enable voice recognition. Press to speak No specified function
Station search. Higher
frequency

Next track No functionStation search.
Higher
frequency

Next track No function
AAABACAD
Ibiza_EN.book Seite 68 Montag, 14. September 2009 6:19 18

Steering column controls*69
Safety First
Controls and equipment
Practical tips
Technical Data
Station search.
Lower
frequency

Previous track No functionStation search.
Lower
frequency

Previous track No function
Accept call / hang up Reject call
Cyclic source control FM - AM - CD - FM... Cyclic source control FM - AM - CD - FM.
a)Only for mp3 compatible radio.ADAEAF
Ibiza_EN.book Seite 69 Montag, 14. September 2009 6:19 18

Unlocking and locking77
Safety First
Controls and equipment
Practical tips
Technical Data
•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•Never leave the keys inside the vehicle. Otherwise, this could result in
serious injuries, accidents or even the theft of your vehicle. Always take the
key with you when you leave the vehicle.•An uncontrolled use of the key could start the engine or activate any
electric equipment (e.g. electric windows), causing risk of accident. The
vehicle can be locked when using the remote control key. This could
complicate the aid in case of emergency.Note
•The remote control key functions only when you are within range
⇒ page 76, fig. 45.•If the vehicle cannot be unlocked or locked by using the radio-frequency
remote control, the remote control key will have to be re-synchronised. In this
case, please refer to your Technical Service.Changing the batteryIf the battery indicator does not flash when the buttons are pushed, the
battery must be replaced.
Caution
The use of inappropriate batteries may damage the radio frequency remote
control. For this reason, always replace the dead battery with another of the
same size and power.
For the sake of the environment
The flat batteries must be thrown away in accordance with regulations
governing the protection of the environment.Synchronising the remote control key
If it is not possible to unlock or lock the door with the remote
control, it should be re-synchronised.While the vehicle is open:
– Press the button ⇒page 76, fig. 44 on the remote control.
– Then close the vehicle using the key bit within one minute.
While the vehicle is closed:
– Press button ⇒page 76, fig. 44 on the remote control.
– Then close the vehicle using the key bit within one minute.It is possible that the vehicle could no longer be opened and closed with the
remote control if the button is repeatedly pressed outside of the effective
range of the radio frequency remote control. The remote control key will have
to be resynchronised.
Spare remote control keys are available in your Authorised Service Centres,
where they must be matched to the locking system.
Up to five remote control keys can be used.
WARNING (continued)

A2

A1

Ibiza_EN.book Seite 77 Montag, 14. September 2009 6:19 18

Seats and stowage113
Safety First
Controls and equipment
Practical tips
Technical Data
AUX-USB* Input connection For information concerning the use of this equipment, please see the Radio
handbook.First-aid kit, warning triangle, fire
extinguisher*First-aid kit, warning triangle and fire extinguisherThe use of reflective warning triangles is obligatory in emergencies in some
countries. As are the first aid kit and a set of spare light bulbs.
The first-aid kit and the fire extinguisher are located in the luggage compart-
ment, held in place by Velcro. The warning triangle may be located in the rear of the boot secured by rubber
bands.
Note
•The first aid kit, the warning triangles and the fire extinguisher are not
supplied with the vehicle as standard.•The first aid kit, the warning triangles and the fire extinguisher should
meet legal requirements.•The expiry date of the content of the first aid kit should be checked.•Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.•Before purchasing accessories and spare parts, see the instructions in
⇒ page 170, “Accessories, replacement of parts and modifications”.BootStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
Fig. 85 AUX /USB* input
connection (depending on
the equipment)
Ibiza_EN.book Seite 113 Montag, 14. September 2009 6:19 18
