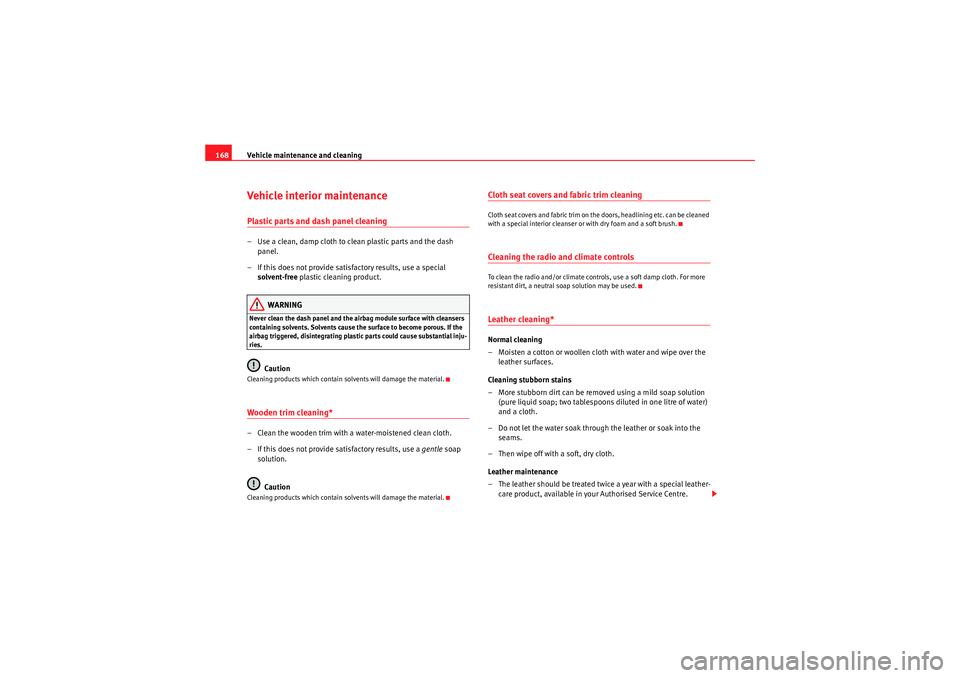

Vehicle maintenance and cleaning
168Vehicle interior maintenancePlastic parts and dash panel cleaning– Use a clean, damp cloth to clean plastic parts and the dash
panel.
– If this does not provide satisfactory results, use a special solvent-free plastic cleaning product.
WARNING
Never clean the dash panel and the airbag module surface with cleansers
containing solvents. Solvents cause the surface to become porous. If the
airbag triggered, disintegrating plastic parts could cause substantial inju-
ries.
Caution
Cleaning products which contain solvents will damage the material.Wooden trim cleaning*– Clean the wooden trim with a water-moistened clean cloth.
– If this does not provide satisfactory results, use a gentle soap
solution.
CautionCleaning products which contain solvents will damage the material.
Cloth seat covers and fabric trim cleaningCloth seat covers and fabric trim on the doors, headlining etc. can be cleaned
with a special interior cleanser or with dry foam and a soft brush.Cleaning the radio and climate controlsTo clean the radio and/or climate controls, use a soft damp cloth. For more
resistant dirt, a neutral soap solution may be used.Leather cleaning*Normal cleaning
– Moisten a cotton or woollen cloth with water and wipe over the leather surfaces.
Cleaning stubborn stains
– More stubborn dirt can be removed using a mild soap solution (pure liquid soap; two tablespoons diluted in one litre of water)
and a cloth.
– Do not let the water soak through the leather or soak into the seams.
– Then wipe off with a soft, dry cloth.
Leather maintenance
– The leather should be treated twice a year with a special leather- care product, available in your Authorised Service Centre.
Ibiza_EN.book Seite 168 Montag, 14. September 2009 6:19 18

Accessories, replacement of parts and modifications171
Safety First
Controls and equipment
Practical tips
Technical Data
WARNING
Incorrectly performed modifications or other kind of work on your vehicle
can lead to malfunctions and cause accidents.Roof aerial*The vehicle can be fitted with a collapsible roof aerial* with antitheft system*,
which can be folded backwards, when, for example, going through an auto-
matic carwash.
To f o l d
Unscrew the aerial rod, tilting it backwards into a horizontal position and then
screw in again.
To return to working position
Continue in the reverse order to the previous instruction.
Caution
Before putting the vehicle through the car washing tunnel, do not tighten the
aerial if it is folded because it may be damaged.
Mobile telephones and two-way radiosYou will require an external aerial for mobile phones and two-
way radios. SEAT has approved for your vehicle the use of mobile telephones and two-way
radios under the following conditions:•The correct installation of an external aerial,•transmitting power of a maximum 10 watts.
The optimum range of the equipment is only achieved with an external aerial.
First consult your Authorised Service Centre if you wish to use a mobile tele-
phone or a two-way radio with a transmitting power output in excess of
10 watts. Here you will receive information concerning the technical possibil-
ities for retrofitting this equipment.
Mobile telephones and two-way radios should be only fitted by a qualified
workshop, for example an Authorised Service Centre.WARNING
•Always concentrate primarily on driving. If you are distracted while
driving you could have an accident.•Never attach the telephone mountings to the surfaces covering the
airbag units or within the range of the airbags. There is a high risk of injury
if the airbag is triggered.•If using your mobile telephones or two-way radios in the vehicle
without an external aerial, electromagnetic radiation in the vehicle could
exceed authorised limits. This also may occur to external aerials that have
not been correctly installed.
Ibiza_EN.book Seite 171 Montag, 14. September 2009 6:19 18

If and when209
Safety First
Controls and equipment
Practical tips
Technical Data
14
Left-hand AFS headlamps
15
15
Right-hand AFS headlamps
15
16
Va can t
17
Registration plate light /Dimmer /Side light indi-
cator light
5
18
Dimmer
5
19
Electronic control unit
5
20
Indicators
15
21
Lights control, instrument panel
5
22
Electronic control unit, heated mirrors
5
23
Engine injection module/ Rain sensor/ Gear
lever/ Starter relay
7,5
24
Glovebox light, boot light, interior light
10
25
Parking aid
5
26
Towing hook
27
12 Volt Input/Cigarette lighter
15
28
Lambda probe
10
29
Engine power supply
20
30
Petrol engine operation
10
31
Petrol engine operation/Glow plugs/Relay
coil/Bi-turbo electric fan
10
32
Engine control unit
15
33
Clutch switch power supply/preheating relay
5
34
Fuel control unit / Bi-turbo engine supply
15
Number
Consumer
Amperes
35
Heated seats control unit
25
36
Main beam headlight, right
10
37
LHS full beam lamp/Coming Home
10
38
Electric fan motor
30
39
Va can t
40
Va can t
41
Va can t
42
Horn
20
43
Panoramic roof
30
44
Windscreen wipers
20
45
Rear window heater
20
46
Radio/telephone VDA/Bluetooth/Steering col-
umn controls
20
47
Climatronic/autoclimate
5
48
Locking unit
25
49
Front electric window
30
50
Rear electric windows
30
51
Automatic gearbox control unit
30
52
Alarm/Volume sensor
15
53
Electro-kinetic pump relay/bi-turbo fuel control
unit
15
54
Reverse light for automatic gearbox, fog light
15
55
Transformer on
15
Number
Consumer
Amperes
Ibiza_EN.book Seite 209 Montag, 14. September 2009 6:19 18

Index251
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Load compartment in the boot
See Luggage compartment . . . . . . . . . . . . . . 15
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Luggage compartment . . . . . . . . . . . . . . . . . . . . 15 See also Luggage compartment . . . . . . . . . . 15MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 92
Main beam headlights
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Main headlight lamps . . . . . . . . . . . . . . . 212, 214
Maintenance airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Maintenance and cleaning . . . . . . . . . . . . . . . . 161
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 132
Manual heating . . . . . . . . . . . . . . . . . . . . . . . . . 117 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Manual heating system Defrosting the windscreen . . . . . . . . . . . . . 117
Demisting the windscreen and side windows . .117
MFD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Mileage display . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Mirrors Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . 98
vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Wing mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Multi-function display . . . . . . . . . . . . . . . . . . . . . 52
NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . 16OObject compartment right-hand front seat . . . . . . . . . . . . . . . . . . 109
Observations . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 176
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . . 83
Open stowage compartment . . . . . . . . . . . . . . 114
Opening and locking . . . . . . . . . . . . . . . . . . . . . . 80
Operation when a fault occurs Panoramic/ tilting roof . . . . . . . . . . . . . . . . . 86
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . 56
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . 56PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Panoramic roof . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 158
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 177
Petrol engines, starting . . . . . . . . . . . . . . . . . . . 130
Physical principles of a frontal collision . . . . . . 17
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 168
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Products for vehicle maintenance . . . . . . . . . . 161
RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . . . 77
Radio wave remote control . . . . . . . . . . . . . . . . . 76
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Rear cupholder* . . . . . . . . . . . . . . . . . . . . . . . . . 110
Rear fog light Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 59
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 87
Rear head restraints . . . . . . . . . . . . . . . . . . . . . . 13
Rear seat folding down . . . . . . . . . . . . . . . . . . . . . . . . 106
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 106
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 165
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . . 97
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Ibiza_EN.book Seite 251 Montag, 14. September 2009 6:19 18
