2009 Seat Ibiza 5D Owner's manual

Unlocking and locking71
Safety First
Controls and equipment
Practical tips
Technical Data
Deactivation
Rotate the key inserted in the lock cylinder twice towards the locking direc-
tion.
To activate the system using the remote control, press the lock button on the
remote control twice in less than five seconds.
On deactivating the “Safe” system, the alarm volumetric sensor is also deac-
tivated.
With the “Safe” switched off, doors can be opened from the interior but not
from the exterior.
See “Selective unlocking system*”
“Safe” status
On the driver's door, there is a visible light indicator which shows the “Safe”
system status.
The flashing warning light indicates that the “Safe” system is activated. The
indicator will flash on all vehicles, fitted and nor fitted with an alarm, until
they unlock.
Remember:
Safe activated with or without an alarm:
Continuous flashing of warning
lamp.
Safe deactivated without an alarm: The indicator remains off.
Safe deactivated with an alarm: The indicator remains off.
WARNING
No one should remain inside the vehicle if the “Safe” mechanism is acti-
vated because it will not be possible to open the doors in case of emer-
gency either from the inside or the outside. Danger of death. Passengers
could become trapped inside in case of emergency.
Selective unlocking system*
This system allows the unlocking of either just the driver's
door or all the vehicle.doorsUnlocking the driver's door
Unlock once. Use either the key or the remote control.
Once the key is inserted in the lock cylinder, rotate once in the unlock direc-
tion. The driver's door will remain without “Safe” and unlocked. See Anti-theft
Alarm chapter for vehicles fitted with an alarm ⇒page 78.
Using the remote control, press the unlock button on the remote once. The
“Safe” system for all the vehicle is deactivated, only the driver's door is
unlocked and both the alarm and the light indicator are also turned off.
Unlocking all doors and the boot
The unlock button on the remote must be pressed twice so that all doors
and the boot can be opened.
Press twice within 5 seconds to deactivate the “Safe” system for all the
vehicle, to unlock all doors and to use the boot. The indicator and the alarm
(only vehicles fitted with one) are turned off.
Unlocking the boot
See ⇒page 80.
Activating the selective unlocking system*
With the door open, insert a key in the start cylinder and start the ignition.
Insert the other key into the driver's door lock and turn in the direction of
opening for at least 3 seconds. The indicators will flash twice.
Deactivating the selective unlocking system*
With the door open, insert a key in the start cylinder and start the ignition.
Insert the other key into the driver's door lock and turn in the direction of
locking for at least 3 seconds. The indicators will flash once.



Ibiza_EN.book Seite 71 Montag, 14. September 2009 6:19 18

Unlocking and locking
72Involuntary unlocking
This is an anti-theft system and prevents the unintentional
unlocking of the vehicle.If the vehicle is unlocked and none of the doors (including the tailgate) are
opened within 30 seconds, the vehicle is re-locked automatically.Automatic speed dependent locking and unlocking system*
This is a safety system which prevents access to the vehicle
from the outside when it is running (for example, when
stopped at a traffic light).Locking
The doors lock automatically at speeds of above 15 km/h. The tailgate locks
automatically at speeds of above 6 km/h.
If the vehicle stops and any of the doors is opened, when the vehicle is
started again and the above speed exceeded, the door or tailgate will lock
again.
Unlocking
On removing the ignition key, the vehicle returns to the status prior to self-
locking.
Each door can be unlocked and opened independently from the inside (for
example, when a passenger gets out of it). To do so, simply operate the lever
inside the door.
Activating the system*
With the ignition on, press the locking key on the central locking system for 3
to 10 seconds. Deactivating the system*
With the ignition on, press the unlocking key on the central locking system for
3 to 10 seconds.
In both cases, if the operation has been carried out correctly, the locking lamp
will flash ⇒
page 73, fig. 41 .
WARNING
The door handles must not be operated when the vehicle is moving: the
door would open.
Note
If the airbags are triggered during an accident, the vehicle is unlocked, except
for the boot. It is possible to lock the vehicle from inside with the central
locking, after turning the ignition off and back on again.Emergency unlocking systemIf the airbags are triggered during an accident, the vehicle is unlocked, except
for the boot. It is possible to lock the vehicle from inside with the central
locking, after turning the ignition off and back on again.

Ibiza_EN.book Seite 72 Montag, 14. September 2009 6:19 18

Unlocking and locking73
Safety First
Controls and equipment
Practical tips
Technical Data
Central locking button*
The central locking button allows you to lock and unlock the
vehicle from the inside.Locking the vehicle
– Press button ⇒fig. 41 ⇒ .
Unlocking the doors
– Press the button ⇒fig. 41 .The central locking button is still operative when the ignition is switched off.
Except when the "safe" security system is activated.
Please note the following if you lock your vehicle with the central locking
button:•For safety reasons it is not possible to open the doors or the tailgate from
the outside (for instance, when stopped at a traffic light).
•The driver door cannot be locked. This avoids the user from forgetting his
key inside the vehicle.•All doors can be locked separately from inside the car. Do this by pulling
the door release lever once.WARNING
•If the vehicle is locked, children and disabled people may be trapped
inside it.•Repeated operation of central locking will prevent the central locking
button from working for a few seconds. In this case, it can only be unlocked
if it has been previously locked. After a few seconds, the central locking
becomes operative again.•The central locking button is not operative when the vehicle is locked
from the outside (with the remote control or the key).Note
•Vehicle locked, button.•Vehicle unlocked, button.
Fig. 41 Central locking
button



Ibiza_EN.book Seite 73 Montag, 14. September 2009 6:19 18

Unlocking and locking

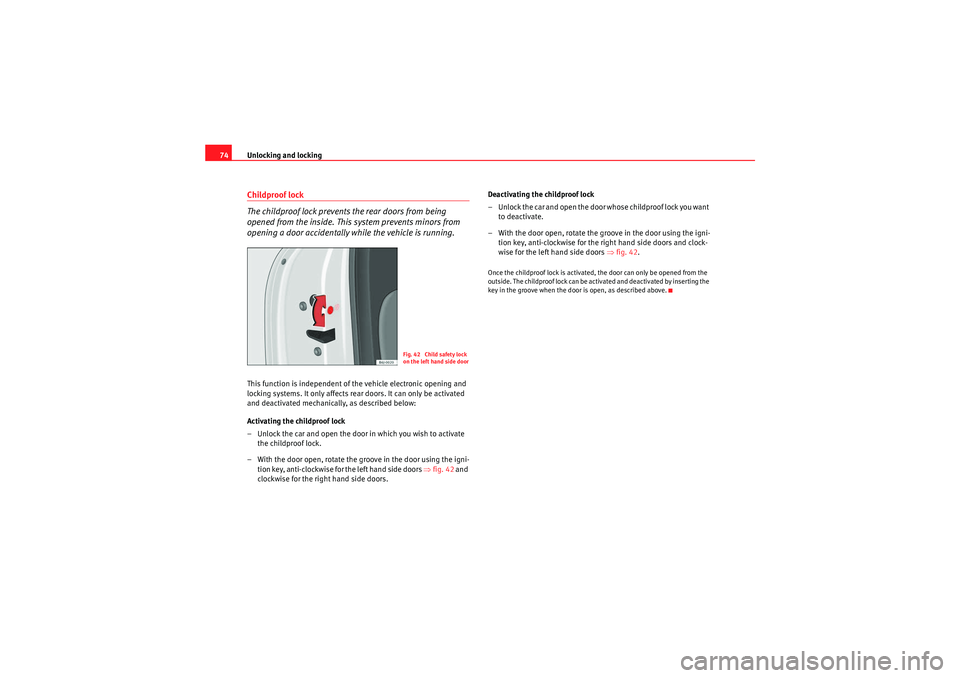

74Childproof lock
The childproof lock prevents the rear doors from being
opened from the inside. This system prevents minors from
opening a door accidentally while the vehicle is running.This function is independent of the vehicle electronic opening and
locking systems. It only affects rear doors. It can only be activated
and deactivated mechanically, as described below:
Activating the childproof lock
– Unlock the car and open the door in which you wish to activate the childproof lock.
– With the door open, rotate the groove in the door using the igni- tion key, anti-clockwise for the left hand side doors ⇒fig. 42 and
clockwise for the right hand side doors. Deactivating the childproof lock
– Unlock the car and open the door whose childproof lock you want
to deactivate.
– With the door open, rotate the groove in the door using the igni- tion key, anti-clockwise for the right hand side doors and clock-
wise for the left hand side doors ⇒fig. 42 .
Once the childproof lock is activated, the door can only be opened from the
outside. The childproof lock can be activated and deactivated by inserting the
key in the groove when the door is open, as described above.
Fig. 42 Child safety lock
on the left hand side door
Ibiza_EN.book Seite 74 Montag, 14. September 2009 6:19 18

Unlocking and locking75
Safety First
Controls and equipment
Practical tips
Technical Data
KeysSet of keys
The set of keys includes a remote control, a key without a
remote control and a plastic key tab*.The set of keys may consist of the following, depending on the version of your
vehicle:•a remote control key ⇒fig. 43 •a key without remote control ,•a plastic key tab* .
or•two keys without remote control •a plastic key tab* . Duplicate keys
If you need a replacement key, take your key tab to an Authorised Service
Centre.
WARNING
•An incorrect use of the keys can cause serious injuries.•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•An uncontrolled use of the key could start the engine or activate any
electric equipment (e.g. electric windows), causing risk of accident. The
doors can be locked using the remote control key. This could make assist-
ance difficult in an emergency situation.•Never leave the keys inside the vehicle. An unauthorised use of your
vehicle could result in injury, damage or theft. Always take the key with you
when you leave the vehicle.•Never remove the key from the ignition if the vehicle is in motion.
Otherwise, the steering could suddenly block and it would be impossible
to steer the vehicle.Caution
There are electronic components in the remote control key. Avoid wetting and
hitting the keys.
Fig. 43 Set of keys
AAAB
AC
AB
AC
Ibiza_EN.book Seite 75 Montag, 14. September 2009 6:19 18

Unlocking and locking
76Radio frequency remote control*Locking and unlocking the vehicle
The remote control key is used to lock and unlock the vehicle
from a distance.
Using the button ⇒fig. 44 (arrow) on the control, the key shaft is released.
Unlocking the vehicle ⇒fig. 44 .
Locking the vehicle ⇒fig. 44 .
Unlocking the tailgate. Press button ⇒fig. 44 until all the indicators
on the vehicle flash briefly. When the unlocking button is pressed,
you have 2 minutes to open the door. After this period, the door is locked
once more.
Also, the battery indicator on the key ⇒fig. 45 flashes.
The remote control transmitter and the batteries are integrated in the key. The
receiver is inside the vehicle. The maximum range of the remote control
depends on various factors. This range is reduced when the batteries start to
lose power.
WARNING
•An improper use of the key can cause serious injuries.
Fig. 44 Assignment of
buttons on the remote
control key
Fig. 45 Range of the
remote control:

A1

A2
A3
A3
Ibiza_EN.book Seite 76 Montag, 14. September 2009 6:19 18

Unlocking and locking77
Safety First
Controls and equipment
Practical tips
Technical Data
•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•Never leave the keys inside the vehicle. Otherwise, this could result in
serious injuries, accidents or even the theft of your vehicle. Always take the
key with you when you leave the vehicle.•An uncontrolled use of the key could start the engine or activate any
electric equipment (e.g. electric windows), causing risk of accident. The
vehicle can be locked when using the remote control key. This could
complicate the aid in case of emergency.Note
•The remote control key functions only when you are within range
⇒ page 76, fig. 45.•If the vehicle cannot be unlocked or locked by using the radio-frequency
remote control, the remote control key will have to be re-synchronised. In this
case, please refer to your Technical Service.Changing the batteryIf the battery indicator does not flash when the buttons are pushed, the
battery must be replaced.
Caution
The use of inappropriate batteries may damage the radio frequency remote
control. For this reason, always replace the dead battery with another of the
same size and power.
For the sake of the environment
The flat batteries must be thrown away in accordance with regulations
governing the protection of the environment.Synchronising the remote control key
If it is not possible to unlock or lock the door with the remote
control, it should be re-synchronised.While the vehicle is open:
– Press the button ⇒page 76, fig. 44 on the remote control.
– Then close the vehicle using the key bit within one minute.
While the vehicle is closed:
– Press button ⇒page 76, fig. 44 on the remote control.
– Then close the vehicle using the key bit within one minute.It is possible that the vehicle could no longer be opened and closed with the
remote control if the button is repeatedly pressed outside of the effective
range of the radio frequency remote control. The remote control key will have
to be resynchronised.
Spare remote control keys are available in your Authorised Service Centres,
where they must be matched to the locking system.
Up to five remote control keys can be used.
WARNING (continued)

A2

A1

Ibiza_EN.book Seite 77 Montag, 14. September 2009 6:19 18

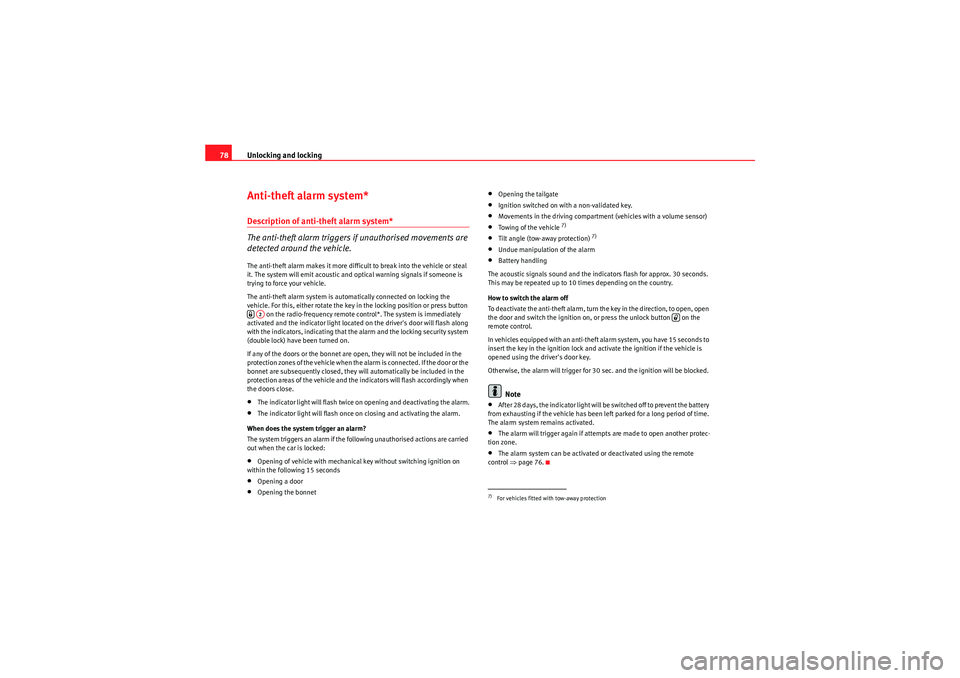

Unlocking and locking
78Anti-theft alarm system*Description of anti-theft alarm system*
The anti-theft alarm triggers if unauthorised movements are
detected around the vehicle.The anti-theft alarm makes it more difficult to break into the vehicle or steal
it. The system will emit acoustic and optical warning signals if someone is
trying to force your vehicle.
The anti-theft alarm system is automatically connected on locking the
vehicle. For this, either rotate the key in the locking position or press button
on the radio-frequency remote control*. The system is immediately
activated and the indicator light located on the driver's door will flash along
with the indicators, indicating that the alarm and the locking security system
(double lock) have been turned on.
If any of the doors or the bonnet are open, they will not be included in the
protection zones of the vehicle when the alarm is connected. If the door or the
bonnet are subsequently closed, they will automatically be included in the
protection areas of the vehicle and the indicators will flash accordingly when
the doors close.•The indicator light will flash twice on opening and deactivating the alarm.•The indicator light will flash once on closing and activating the alarm.
When does the system trigger an alarm?
The system triggers an alarm if the following unauthorised actions are carried
out when the car is locked:•Opening of vehicle with mechanical key without switching ignition on
within the following 15 seconds•Opening a door•Opening the bonnet
•Opening the tailgate•Ignition switched on with a non-validated key.•Movements in the driving compartment (vehicles with a volume sensor)•Towing of the vehicle
7)
•Tilt angle (tow-away protection)
7)
•Undue manipulation of the alarm•Battery handling
The acoustic signals sound and the indicators flash for approx. 30 seconds.
This may be repeated up to 10 times depending on the country.
How to switch the alarm off
To deactivate the anti-theft alarm, turn the key in the direction, to open, open
the door and switch the ignition on, or press the unlock button on the
remote control.
In ve hicles eq ui ppe d wit h an a nti -t he f t a lar m s yste m , you have 1 5 s e co nds to
insert the key in the ignition lock and activate the ignition if the vehicle is
opened using the driver's door key.
Otherwise, the alarm will trigger for 30 sec. and the ignition will be blocked.Note
•After 28 days, the indicator light will be switched off to prevent the battery
from exhausting if the vehicle has been left parked for a long period of time.
The alarm system remains activated.•The alarm will trigger again if attempts are made to open another protec-
tion zone.•The alarm system can be activated or deactivated using the remote
control ⇒page 76.
A2
7)For vehicles fitted with tow-away protection

Ibiza_EN.book Seite 78 Montag, 14. September 2009 6:19 18
