2009 Seat Exeo ST technical data

Airbag system35
Safety First
Controls and equipment
Practical tips
Technical Data
that the airbag system can only help to protect you if you are wearing your
safety belt and wearing it properly.
Remember too that airbags will deploy only once and only in certain kinds of
accidents - your safety belts are always there to offer protection in those acci-
d e nts i n whi ch a ir ba gs a re not supp os ed t o de ploy or wh en the y hav e alr ead y
deployed, for example when your vehicle strikes or is struck by another after
the first collision.
This is just one of the reasons why an airbag is not a substitute for the safety
belt. The airbag system works most effectively when used with the safety
belts. Therefore, always wear your safety belts correctly.
It is important to remember that while the supplemental airbag system is
designed to reduce the likelihood of serious injuries, other injuries, for
example, swelling, bruising, and minor abrasions can also be associated with
airbags.
The knee airbag system basically consists of:
•The electronic control module•One inflatable airbag (airbag and gas generator) for the driver•An airbag indicator light in the instrument panel
The knee airbag system will not deploy:•when the ignition is turned off•in frontal collisions when the deceleration measured by the control unit is
too low•in side collisions•in rear-end collisions•in rollovers•in the event of a system malfunction (warning/indicator light illuminated)
⇒ page 65.
WARNING
•Safety belts and the airbag system can only provide protection when
occupants are in the proper seating position.•If the airbag indicator light comes on when the vehicle is being used,
have the system inspected immediately by your Authorised Service Centre.
The airbag may not work properly when the vehicle acceleration in a side
collision is high enough to deploy the airbag. See also ⇒page 65.
How knee airbags work
The risk of injury to the leg area is reduced by fully deployed
knee airbags.The knee airbag system has been designed so that the airbag for the driver is
deployed in certain but not all frontal collisions.
Fig. 22 Inflated airbags
protect in a frontal colli-
sion.
ExeoST_EN.book Seite 35 Donnerstag, 3. September 2009 12:24 12

Airbag system37
Safety First
Controls and equipment
Practical tips
Technical Data
Side airbags*Description of side airbags
The airbag system is not a substitute for the seat belts.The front side airbags are located in the driver's seat and front passenger's
seat backrests ⇒fig. 23. The rear side airbags are located in the rear wheel
housing lining. The locations are identified by the text “AIRBAG” in the upper
region of the backrests and in the rear wheel housing lining.
Together with the seat belts, the side airbag system gives the front seat occu-
pants additional protection for the upper body in the event of a severe side
collision ⇒page 40, “Safety notes on the operation of the side airbag
system”.
In a side collision, the side airbags reduce the risk of injury to passengers on
the front seats to the areas of the body facing the impact. In addition to their
normal function of protecting the occupants in a collision, the seat belts also hold the passengers in the front seats and the outer rear seats in a position
where the side airbags can provide maximum protection.
The airbag system is not a substitute for seat belts, but it is an integral part
of the vehicle's overall passive safety system. Please bear in mind that the
airbag system can only work effectively when the occupants are wearing their
seat belts. Therefore, it is most important to wear the seat belts at all times,
not only because this is required by law in most countries, but also for your
safety
⇒page 18, “Brief introduction”.
The side airbag system will not be triggered if:
•the ignition is switched off,•there is a minor side collision,•there is a frontal collision,•there is a rear-end collision,•the vehicle turns over.
The main parts of the airbag system are:•an electronic control and monitoring system (control unit),•The front side airbags in the backrests of the front seats and the rear side
airbags in the lining of the rear wheel housing.•a warning lamp
 in the dash panel insert ⇒page 29.
The airbag system operation is monitored electronically. The airbag warning
lamp will light up for approx. 4 seconds every time the ignition is switched on
(self-diagnosis).
WARNING
•In a side-on collision, the side airbags will not work, if the sensors do
not correctly measure the pressure increase on the interior of the doors,
due to air escaping through the areas with holes or openings in the door
panel.•Never drive the vehicle if the interior panels have been removed.
Fig. 23 Side airbag in
driver seat
ExeoST_EN.book Seite 37 Donnerstag, 3. September 2009 12:24 12

Airbag system39
Safety First
Controls and equipment
Practical tips
Technical Data
The special design of the airbag allows the controlled escape of the propel-
lant gas when an occupant puts pressure on the bag. Thus, the head and
chest are surrounded and protected by the airbag.
ExeoST_EN.book Seite 39 Donnerstag, 3. September 2009 12:24 12

Airbag system41
Safety First
Controls and equipment
Practical tips
Technical Data

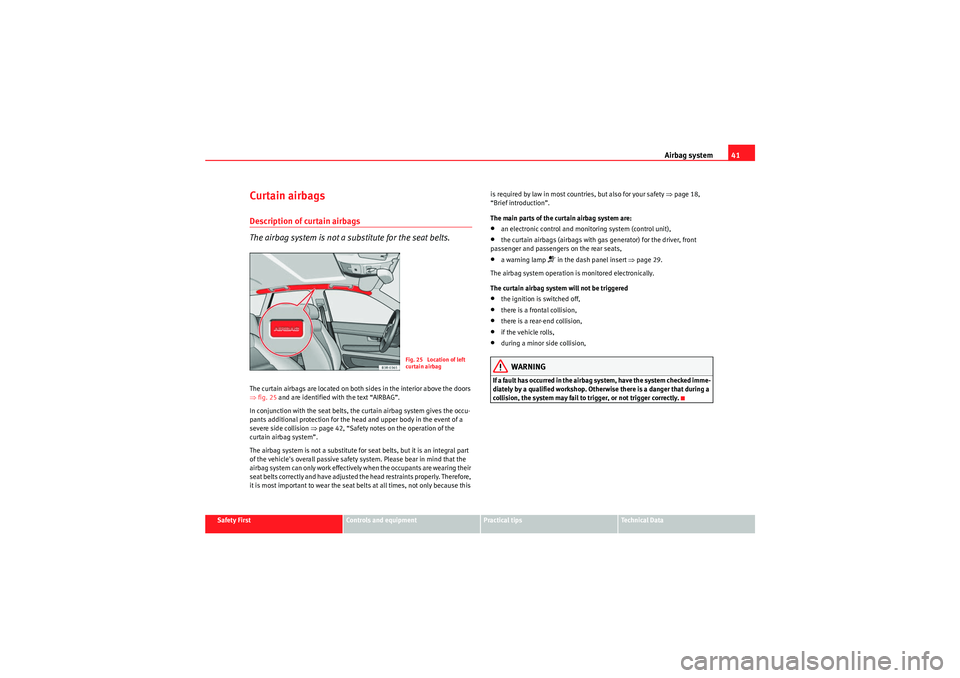

Curtain airbagsDescription of curtain airbags
The airbag system is not a substitute for the seat belts.The curtain airbags are located on both sides in the interior above the doors
⇒fig. 25 and are identified with the text “AIRBAG”.
In conjunction with the seat belts, the curtain airbag system gives the occu-
pants additional protection for the head and upper body in the event of a
severe side collision ⇒ page 42, “Safety notes on the operation of the
curtain airbag system”.
The airbag system is not a substitute for seat belts, but it is an integral part
of the vehicle's overall passive safety system. Please bear in mind that the
airbag system can only work effectively when the occupants are wearing their
seat belts correctly and have adjusted the head restraints properly. Therefore,
it is most important to wear the seat belts at all times, not only because this is required by law in most countries, but also for your safety
⇒page 18,
“Brief introduction”.
The main parts of the curtain airbag system are:
•an electronic control and monitoring system (control unit),•the curtain airbags (airbags with ga s generator) for the driver, front
passenger and passengers on the rear seats,•a warning lamp
 in the dash panel insert ⇒page 29.
The airbag system operation is monitored electronically.
The curtain airbag system will not be triggered
•the ignition is switched off,•there is a frontal collision,•there is a rear-end collision,•if the vehicle rolls,•during a minor side collision,WARNING
If a fault has occurred in the airbag system, have the system checked imme-
diately by a qualified workshop. Otherwise there is a danger that during a
collision, the system may fail to trigger, or not trigger correctly.
Fig. 25 Location of left
curtain airbag
ExeoST_EN.book Seite 41 Donnerstag, 3. September 2009 12:24 12

Airbag system43
Safety First
Controls and equipment
Practical tips
Technical Data
should only be performed by a qualified workshop. Otherwise, faults may
occur during the airbag system operation.
•Do not attempt to modify components of the airbag system in any way.•The side and head airbags are managed through sensors located in the
interior of the front doors. To ensure the correct functioning of the side and
head airbags neither the doors nor the door panels should be modified in
any way (e.g. fitting loudspeakers). If the front door is damaged, the airbag
system may not work correctly. All work carried out on the front door must
be made in a qualified workshop.WARNING (continued)
ExeoST_EN.book Seite 43 Donnerstag, 3. September 2009 12:24 12

Airbag system45
Safety First
Controls and equipment
Practical tips
Technical Data
– Check that the warning lamp on the instrument panel does
⇒page 44, fig. 28 not light up when the ignition is switched on
⇒ .
WARNING
•The driver is responsible for the proper position of the key-operated
switch. •You should only deactivate the front passenger airbag when, in excep-
tional cases, you have to use a rear-facing child seat ⇒page 46, “Child
safety”•Never install a child seat facing backwards (or rear-facing) on the front
passenger seat unless the front passenger airbag has been disabled. This
represents a risk of fatal injuries to the child! However, if it is necessary in
exceptional circumstances to transport a child in a rear-facing child seat on
the front passenger seat, you must always disable the front passenger
airbag.•As soon as the child seat is no longer needed on the front passenger
seat, enable the front passenger airbag again.•Only deactivate the passenger airbag when the ignition is off, other-
wise a fault may occur in the airbag system, this will create a danger that
in case of an accident, the airbag does not deploy properly or does not
deploy at all.•When the passenger airbag is deactivated, if the warning lamp AIRBAG
OFF is not continuously lit up when the front passenger airbag is disabled,
there may be a fault in the airbag system:
−Have the airbag system inspected immediately by a qualified work-
shop.
− Do not use a child seat on the front passenger seat! The front
passenger airbag could be triggered despite the fact that there is a fault
in the system and, as a result, a child could sustain serious or fatal inju-
ries. −
It is predictable whether the front passenger airbag will deploy
during an accident! Warn all your passengers of this.
•When using the ignition key to activate / deactivate the passenger front
airbag, only the passenger front airbag will be activated / deactivated. The
side airbag and head airbag on the passenger side will remain active.WARNING (continued)
ExeoST_EN.book Seite 45 Donnerstag, 3. September 2009 12:24 12

Child safety47
Safety First
Controls and equipment
Practical tips
Technical Data
“Deactivating airbags*”. If the passenger seat has a height adjustment
option, move it to the highest position.
•For those vehicles that do not include a key lock switch to turn the
airbag off, an Authorised Service Centre must be consulted.•All passengers, especially children, must assume the proper sitting
position and be properly belted in while travelling.•Never hold children or babies on your lap, this can result in potentially
fatal injuries to the child!•Never allow a child to be transported in a vehicle without being properly
secured, or to stand up or kneel on a seat while travelling. In an accident,
the child could be flung through the vehicle, causing possibly fatal injuries
to themselves and to the other passengers.•If children assume an improper sitting position when the car is moving,
they expose themselves to greater risk of injury in the event of sudden
braking manoeuvre or in an accident. This is particularly important if the
child is travelling on the front passenger seat and the airbag system is trig-
gered in an accident; as this could cause serious injury or even death.•A suitable child seat can protect your child!•Never leave an unsupervised child alone on a child seat or in the
vehicle.•Depending on weather conditions, it may become extremely hot or cold
inside the vehicle. This can be fatal.•Children who are less than 1.5 metres tall must not wear a normal seat
belt without a child restraint system, as this could cause injuries to the
abdominal and neck areas during a sudden braking manoeuvre or in an
accident.•Do not allow the belt webbing to become twisted or jammed, or to rub
on any sharp edges.•Incorrectly worn seat belts can cause injuries even in a minor collision
or in sudden braking manoeuvres.
•The seat belt provides maximum protection only when the belt web is
properly positioned ⇒page 22, “Seat belts”.•Only one child may occupy a child seat ⇒page 48, “Child seats”.
WARNING (continued)
WARNING (continued)
ExeoST_EN.book Seite 47 Donnerstag, 3. September 2009 12:24 12

Child safety49
Safety First
Controls and equipment
Practical tips
Technical Data
Group 1 child seats
A suitable child seat and a correctly adjusted seat belt can
help you to protect your child.Child seats using the “ISOFIX” system or seats in which the child faces the
rear of the car are most appropriate for babies and small children weighing
between 9 and 18 kg.
Follow the manufacturer's instructions and observe any statutory require-
ments when installing and using child seats.
We recommend you to include together with the on-board documentation,
the manufacturer's Child Seat instructions manual.
WARNING
Read and always observe information and warnings concerning the use of
child seats ⇒ in “Safety notes on using child seats” on page 46.
Group 2 and 3 child seats
A suitable child seat and a correctly adjusted seat belt can
help you to protect your child.Follow the manufacturer's instructions and observe any statutory require-
ments when installing and using child seats.
We recommend you to include together with the on-board documentation,
the manufacturer's Child Seat instructions manual.
Group 2 child seats
Children under 7 years of age weighing between 15 and 25 kg are best
protected by group 2 child seats together with properly adjusted seat belts.
Group 3 child seats
Children over 7 years of age weighing between 22 and 36 kg but less than 1.5
metres tall are best protected by seat cushions with head restraints together
with properly worn seat belts ⇒fig. 31 .
Fig. 30 A category 1
forward-facing child seat
fitted on the rear seat.
Fig. 31 Forward-facing
child seat installed on rear
seat.
ExeoST_EN.book Seite 49 Donnerstag, 3. September 2009 12:24 12
