Tire Pressure Light...........3-29
Malfunction
Indicator Lamp................3-30
Oil Pressure Light.............3-33
Change Engine Oil Light. . .3-33
Security Light....................3-33
Cruise Control Light..........3-33
Highbeam On Light...........3-34
Low Washer Fluid
Warning Light..................3-34
Fuel Gage........................3-34
Low Fuel Warning Light. . . .3-34
Auto Stop Mode................3-35
Charge/Assist Gage..........3-35
Fuel Economy Light..........3-35
Driver Information
Center (DIC)
Driver Information
Center (DIC)...................3-36
DIC Operation and
Displays..........................3-36
DIC Compass...................3-40
DIC Warnings and
Messages........................3-42
DIC Vehicle
Customization..................3-49
Audio System(s)
Audio System(s)................3-56
Setting the Clock..............3-56
Radio(s)............................3-58
Using an MP3...................3-66
XM Radio Messages.........3-71
Bluetooth®........................3-72
Theft-Deterrent Feature.....3-82
Audio Steering Wheel
Controls..........................3-82
Radio Reception...............3-83
Fixed Mast Antenna..........3-84
XM™ Satellite Radio
Antenna System..............3-84
Chime Level Adjustment. . .3-84
3-2 Instrument Panel
ProCarManuals.com

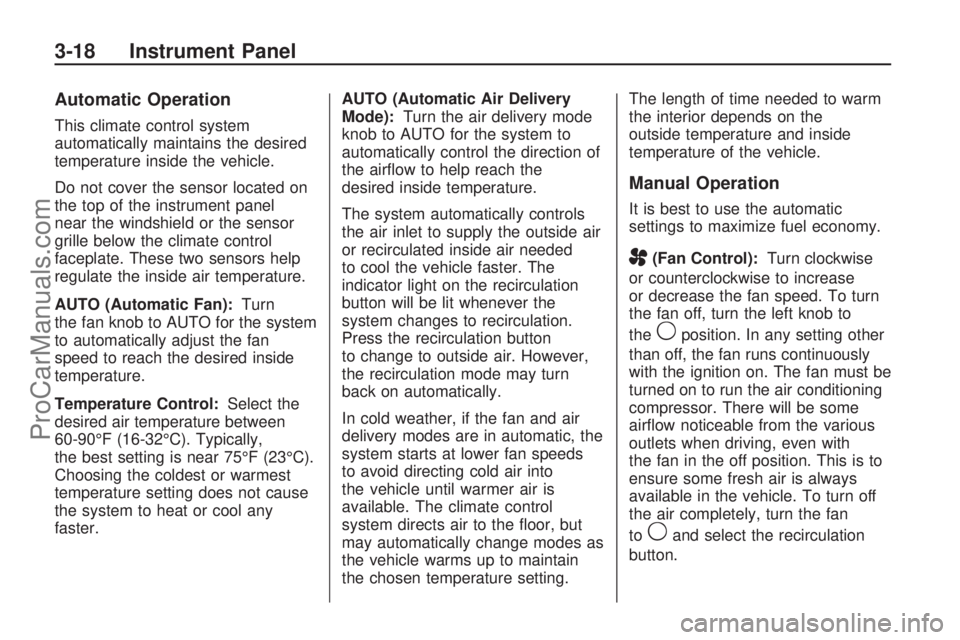

Automatic Operation
This climate control system
automatically maintains the desired
temperature inside the vehicle.
Do not cover the sensor located on
the top of the instrument panel
near the windshield or the sensor
grille below the climate control
faceplate. These two sensors help
regulate the inside air temperature.
AUTO (Automatic Fan):Turn
the fan knob to AUTO for the system
to automatically adjust the fan
speed to reach the desired inside
temperature.
Temperature Control:Select the
desired air temperature between
60-90°F (16-32°C). Typically,
the best setting is near 75°F (23°C).
Choosing the coldest or warmest
temperature setting does not cause
the system to heat or cool any
faster.AUTO (Automatic Air Delivery
Mode):Turn the air delivery mode
knob to AUTO for the system to
automatically control the direction of
the airow to help reach the
desired inside temperature.
The system automatically controls
the air inlet to supply the outside air
or recirculated inside air needed
to cool the vehicle faster. The
indicator light on the recirculation
button will be lit whenever the
system changes to recirculation.
Press the recirculation button
to change to outside air. However,
the recirculation mode may turn
back on automatically.
In cold weather, if the fan and air
delivery modes are in automatic, the
system starts at lower fan speeds
to avoid directing cold air into
the vehicle until warmer air is
available. The climate control
system directs air to the oor, but
may automatically change modes as
the vehicle warms up to maintain
the chosen temperature setting.The length of time needed to warm
the interior depends on the
outside temperature and inside
temperature of the vehicle.
Manual Operation
It is best to use the automatic
settings to maximize fuel economy.
A(Fan Control):Turn clockwise
or counterclockwise to increase
or decrease the fan speed. To turn
the fan off, turn the left knob to
the
9position. In any setting other
than off, the fan runs continuously
with the ignition on. The fan must be
turned on to run the air conditioning
compressor. There will be some
airow noticeable from the various
outlets when driving, even with
the fan in the off position. This is to
ensure some fresh air is always
available in the vehicle. To turn off
the air completely, turn the fan
to
9and select the recirculation
button.
3-18 Instrument Panel
ProCarManuals.com

Temperature Control:Turn
clockwise or counterclockwise to
increase or decrease the
temperature. Typically, the best
setting is near 75°F (23°C).
Choosing the coldest or warmest
temperature setting does not cause
the system to heat or cool any faster.
Air Delivery Mode Control:Turn
clockwise or counterclockwise
to change the direction of the
airow inside the vehicle.
Select from the following air delivery
modes:
H(Vent):Air is directed to the
instrument panel outlets.
)(Bi-Level):Air is divided
between the instrument panel and
the oor outlets.
6(Floor):Air is directed to the
oor outlets with some air directed to
the windshield. When this mode is
selected, the system turns the
recirculation mode off. Recirculation
mode cannot be selected while
in oor mode. This is to help prevent
window fogging.
-(Defog):This mode clears the
windows of fog or moisture. Air
is directed to the oor outlets, with
some air directed to the windshield
and side window outlets. In this
mode, the system turns the
recirculation mode off and runs the
air conditioning compressor
unless the outside air is at or below
freezing. Recirculation mode
cannot be selected while in defog
mode. This helps prevent window
fogging.
0(Defrost):This mode removes
fog or frost from the windshield
more quickly. Air is directed to the
windshield, with some air directed to
the side window outlets and the
oor outlets. In this mode, the
system turns the recirculation mode
off automatically and runs the air
conditioning compressor unless the
outside air is at or below freezing.
The recirculation mode cannot
be selected while in defrost mode.
This helps prevent window
fogging and moisture building up
inside the vehicle. In this mode, the
climate control system prevents
all automatic engine start/stop
operations. This ensures the best
defrost performance.
For best results, clear all snow and
ice from the windshield before
defrosting.
Instrument Panel 3-19
ProCarManuals.com

Audio System(s)
Determine which radio the vehicle
has and read the following pages to
become familiar with its features.
{CAUTION
Taking your eyes off the road
for extended periods could cause
a crash resulting in injury or
death to you or others. Do not
give extended attention to
entertainment tasks while driving.
This system provides access to
many audio and non audio listings.
To minimize taking your eyes off
the road while driving, do the
following while the vehicle is parked:
Become familiar with the
operation and controls of
the audio system.
Set up the tone, speaker
adjustments, and preset radio
stations.For more information, seeDefensive
Driving on page 4-3.
Notice:Contact your
dealer/retailer before adding any
equipment.
Adding audio or communication
equipment could interfere
with the operation of the vehicle’s
engine, radio, or other systems,
and could damage them.
Follow federal rules covering
mobile radio and telephone
equipment.
Notice:The chime signals
related to safety belts, parking
brake, and other functions of your
vehicle operate through the
radio/entertainment system. If
that equipment is replaced
or additional equipment is added
to your vehicle, the chimes
may not work. Make sure that
replacement or additional
equipment is compatible with
your vehicle before installing it.
SeeAccessories and
Modifications on page 5-3.The vehicle has Retained Accessory
Power (RAP). With RAP, the
audio system can be played even
after the ignition is turned off.
SeeRetained Accessory Power
(RAP) on page 2-15for more
information.
Setting the Clock
Radio with Single CD (MP3)
Player
To set the time and date:
1. Turn the ignition key to
ACC/ACCESSORY or ON/RUN.
Press
Oto turn the radio on.
2. Press
Hand the HR, MIN, MM,
DD, YYYY (hour, minute, month,
day, and year) displays.
3. Press the softkey located below
any one of the tabs that you
want to change.
3-56 Instrument Panel
ProCarManuals.com

4. To increase the time or date do
one of the following:
Press the softkey located
below the selected tab.
Press¨SEEK, or\FWD.
Turnfclockwise.
5. To decrease the time or date do
one of the following:
Press©SEEK orsREV.
Turnfcounterclockwise.
The date does not automatically
display. To see the date press
Hwhile the radio is on. The date
with display times out after a
few seconds and goes back to the
normal radio and time display.To change the time default setting
from 12 hour to 24 hour or to
change the date default setting from
month/day/year to day/month/year:
1. Press
Hand then the softkey
located below the forward
arrow label. Once the time 12H
and 24H, and the date
MM/DD/YYYY (month, day, and
year) and DD/MM/YYYY (day,
month, and year) displays.
2. Press the softkey located below
the desired option.
3. Press
Hagain to apply the
selected default, or let the screen
time out.
Six-Disc CD (MP3) Player
To set the time and date:
1. Turn the ignition key to
ACC/ACCESSORY or ON/RUN.
Press
Oto turn the radio on.
2. Press MENU.3. Press the softkey below the
H
tab. The HR, MIN, MM, DD,
YYYY displays.
4. Press the softkey below any one
of the tabs you want to change.
5. To increase the time or date do
one of the following:
Press the softkey located
below the selected tab.
Press¨SEEK, or\FWD.
Turnfclockwise.
6. To decrease the time or date do
one of the following:
Press©SEEK orsREV.
Turnfcounterclockwise.
The date does not automatically
display. To see the date press
MENU and then softkey below the
Htab while the radio is on. The
date with display times out after a
few seconds and goes back to
the normal radio and time display.
Instrument Panel 3-57
ProCarManuals.com

Turn thefknob clockwise or
counterclockwise to adjust the
highlighted setting. The highlighted
setting can also be adjusted by
pressing either SEEK arrow,
\FWD, orsREV until the
desired levels are obtained.
To quickly adjust balance or fade
to the middle position, press the
pushbutton positioned under the
BAL or FADE label for more than
two seconds. A beep sounds and the
level adjusts to the middle position.
To quickly adjust all speaker and
tone controls to the middle position,
press the
fknob for more than
two seconds until a beep sounds.
Finding a Category (CAT)
Station
CAT (Category):The CAT button
is used to nd XM stations when
the radio is in the XM mode. To nd
XM channels within a desired
category, perform the following:
1. Press the BAND button until the
XM frequency displays. Press
the CAT button to display
the category tabs on the radio
display. Continue pressing
the CAT button until the desired
category name displays.
2. Press either of the two buttons
below the desired category tab
to immediately tune to the
rst XM station associated with
that category.
3. Turn the
fknob, press the
buttons below the right or
left arrows displayed, or press
either SEEK arrow to go to
the previous or to the next XM
station within the selected
category.4. To exit the category search
mode, press the FAV button
or BAND button to display
favorites again.
Undesired XM categories can be
removed through the setup
menu. To remove an undesired
category:
1. Press the MENU button to
display the radio setup menu.
2. Press the pushbutton located
below the XM CAT tab.
3. Turn the
fknob to display the
category to be removed.
4. Press the pushbutton located
under the Remove tab until
the category name along with the
word Removed displays.
5. Repeat the steps to remove
more categories.
Instrument Panel 3-61
ProCarManuals.com

A
About Driving Your Vehicle......... ii
Accessories and
Modications...................... 5-3
Accessory Power Outlets......3-16
Adding Equipment to Your
Airbag-Equipped Vehicle....1-55
Additives, Fuel...................... 5-5
Add-On Electrical
Equipment.......................5-75
Air Cleaner/Filter, Engine.......5-15
Air Conditioning...................3-17
Airbag
Passenger Status
Indicator.......................3-26
Readiness Light................3-25
Airbag System.....................1-41
Adding Equipment to
Your Airbag-Equipped
Vehicle........................1-55
How Does an Airbag
Restrain?.....................1-47
Passenger Sensing
System........................1-49Airbag System (cont.)
Servicing Your
Airbag-Equipped
Vehicle........................1-54
What Makes an Airbag
Inate?........................1-47
What Will You See After an
Airbag Inates?.............1-48
When Should an Airbag
Inate?........................1-45
Where Are the Airbags?.....1-44
Antenna, Fixed Mast............3-84
Antenna, XM™ Satellite
Radio Antenna System......3-84
Antilock Brake
System (ABS).................... 4-6
Antilock Brake, System
Warning Light...................3-28
Appearance Care
Aluminum Wheels.............5-72
Care of Safety Belts..........5-69
Chemical Paint Spotting.....5-73
Cleaning Exterior Lamps/
Lenses........................5-70
Fabric/Carpet...................5-68Appearance Care (cont.)
Finish Care......................5-70
Finish Damage.................5-73
Instrument Panel, Vinyl,
and Other Plastic
Surfaces......................5-69
Interior Cleaning...............5-66
Leather...........................5-68
Sheet Metal Damage........5-73
Tires...............................5-72
Underbody Maintenance....5-73
Washing Your Vehicle........5-69
Weatherstrips...................5-69
Windshield and Wiper
Blades.........................5-71
Appointments, Scheduling
Service............................. 7-7
Audio System......................3-56
Audio Steering Wheel
Controls.......................3-82
Chime Level Adjustment....3-84
Fixed Mast Antenna..........3-84
Radio Reception...............3-83
Setting the Clock..............3-56
Theft-Deterrent Feature......3-82
XM™ Satellite Radio
Antenna System............3-84
INDEX i-1
ProCarManuals.com

Child Restraints (cont.)
Securing a Child Restraint
in the Right Front Seat
Position.......................1-38
Where to Put the
Restraint......................1-29
Chime Level Adjustment........3-84
Cleaning
Aluminum Wheels.............5-72
Exterior Lamps/Lenses......5-70
Fabric/Carpet...................5-68
Finish Care......................5-70
Instrument Panel, Vinyl,
and Other Plastic
Surfaces......................5-69
Interior............................5-66
Leather...........................5-68
Tires...............................5-72
Underbody Maintenance....5-73
Washing Your Vehicle........5-69
Weatherstrips...................5-69
Windshield and Wiper
Blades.........................5-71
Climate Control System
Automatic........................3-17
Outlet Adjustment.............3-22
Clock, Setting......................3-56Collision Damage Repair......... 7-9
Compass............................3-40
Compressor Kit
Storing............................5-66
Compressor Kit, Tire
Sealant...........................5-59
Content Theft-Deterrent.........2-10
Control of a Vehicle............... 4-4
Convenience Net.................2-38
Coolant
Engine............................5-20
Engine Temperature
Warning Light...............3-29
Surge Tank
Pressure Cap...............5-22
Cooling System...................5-17
Cruise Control....................... 3-9
Cruise Control Light..............
3-33
Cupholders.........................2-37
Customer Assistance
Information
Courtesy Transportation....... 7-8
Customer Assistance for
Text Telephone (TTY)
Users............................ 7-4
Customer Assistance
Offices........................... 7-5
Customer Satisfaction
Procedure...................... 7-1Customer Assistance Information
(cont.)
GM Mobility
Reimbursement
Program........................ 7-5
Reporting Safety Defects to
Saturn.........................7-13
Reporting Safety Defects to
the Canadian
Government..................7-12
Reporting Safety Defects to
the United States
Government..................7-12
Roadside Assistance
Program........................ 7-5
Service Publications
Ordering Information......7-13
D
Daytime Running Lamp.........3-13
Defensive Driving................... 4-3
Delayed Locking.................... 2-6
DIC Compass......................3-40
Disc, MP3...........................3-66
Doing Your Own
Service Work..................... 5-4
Dome Lamp ........................3-14
INDEX i-3
ProCarManuals.com
