(A) Temporary Use Only:The
compact spare tire or temporary
use tire has a tread life of
approximately 3,000 miles
(5 000 km) and should not be
driven at speeds over 65 mph
(105 km/h). The compact spare
tire is for emergency use when a
regular road tire has lost air and
gone at. If your vehicle has a
compact spare tire, seeCompact
Spare Tire on page 5-83andIf a
Tire Goes Flat on page 5-61.(B) Tire Ply Material
:The type
of cord and number of plies in the
sidewall and under the tread.
(C) Tire Identication Number
(TIN)
:The letters and numbers
following the DOT (Department
of Transportation) code is the
Tire Identication Number (TIN).
The TIN shows the manufacturer
and plant code, tire size, and
date the tire was manufactured.
The TIN is molded onto both
sides of the tire, although only
one side may have the date of
manufacture.
(D) Maximum Cold Ination
Load Limit
:Maximum load that
can be carried and the maximum
pressure needed to support
that load.(E) Tire Ination
:The
temporary use tire or compact
spare tire should be inated to
60 psi (420 kPa). For more
information on tire pressure and
ination seeInflation - Tire
Pressure on page 5-45.
(F) Tire Size
:A combination of
letters and numbers dene a
tire’s width, height, aspect ratio,
construction type, and service
description. The letter T as the
rst character in the tire size
means the tire is for temporary
use only.
(G) TPC Spec (Tire
Performance Criteria
Specication)
:Original
equipment tires designed to
GM’s specic tire performance
criteria have a TPC specication
code molded onto the sidewall.
GM’s TPC specications meet
or exceed all federal safety
guidelines. Compact Spare Tire Example
Service and Appearance Care 5-41
ProCarManuals.com

After the tires have been rotated,
adjust the front and rear ination
pressures as shown on the Tire
and Loading Information label.
SeeInflation - Tire Pressure on
page 5-45andLoading the
Vehicle on page 4-18.
Reset the Tire Pressure Monitor
System. SeeTire Pressure
Monitor Operation on page 5-48.
Make certain that all wheel
nuts are properly tightened.
See “Wheel Nut Torque” under
Capacities and Specifications
on page 5-98.{CAUTION
Rust or dirt on a wheel, or on
the parts to which it is fastened,
can make wheel nuts become
loose after time. The wheel
could come off and cause an
accident. When you change a
wheel, remove any rust or
dirt from places where the
wheel attaches to the vehicle.
(Continued)
CAUTION (Continued)
In an emergency, you can use
a cloth or a paper towel to do
this; but be sure to use a
scraper or wire brush later, if
needed, to get all the rust or
dirt off. SeeChanging a Flat
Tire on page 5-70.
Make sure the spare tire, if the
vehicle has one, is stored
securely. Push, pull, and then
try to rotate or turn the tire.
If it moves, tighten the cable.
SeeStoring a Flat or Spare
Tire and Tools on page 5-80.
Service and Appearance Care 5-53
ProCarManuals.com

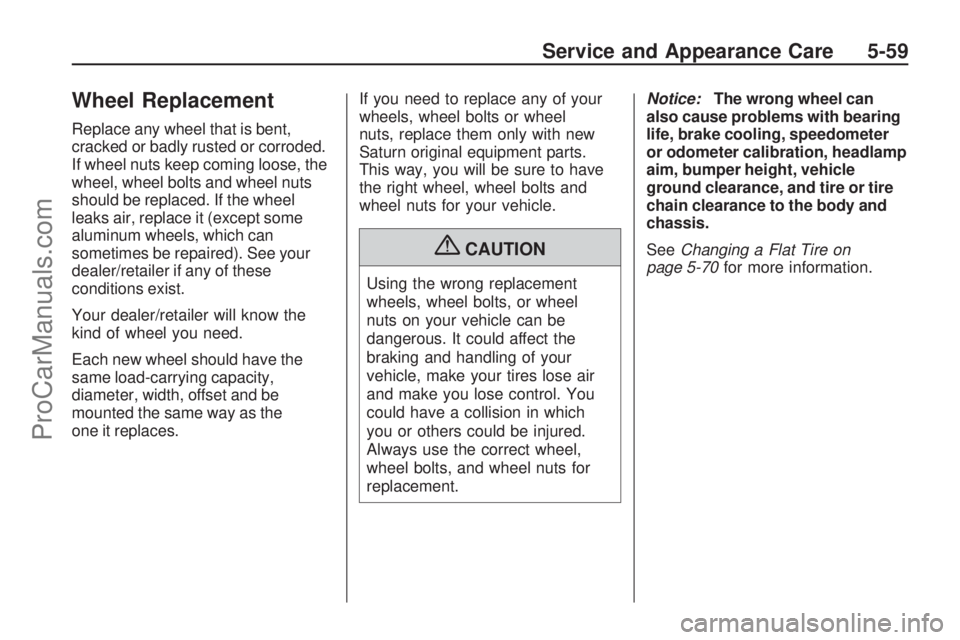

Wheel Replacement
Replace any wheel that is bent,
cracked or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts
should be replaced. If the wheel
leaks air, replace it (except some
aluminum wheels, which can
sometimes be repaired). See your
dealer/retailer if any of these
conditions exist.
Your dealer/retailer will know the
kind of wheel you need.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset and be
mounted the same way as the
one it replaces.If you need to replace any of your
wheels, wheel bolts or wheel
nuts, replace them only with new
Saturn original equipment parts.
This way, you will be sure to have
the right wheel, wheel bolts and
wheel nuts for your vehicle.
{CAUTION
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts on your vehicle can be
dangerous. It could affect the
braking and handling of your
vehicle, make your tires lose air
and make you lose control. You
could have a collision in which
you or others could be injured.
Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.Notice:The wrong wheel can
also cause problems with bearing
life, brake cooling, speedometer
or odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
SeeChanging a Flat Tire on
page 5-70for more information.
Service and Appearance Care 5-59
ProCarManuals.com

If a Tire Goes Flat
It is unusual for a tire to blowout
while you are driving, especially if
you maintain the tires properly. See
Tires on page 5-39. If air goes out of
a tire, It is much more likely to leak
out slowly. But if you should ever
have a blowout, here are a few tips
about what to expect and what to do:
If a front tire fails, the at tire will
create a drag that pulls the vehicle
toward that side. Take your foot off
the accelerator pedal and grip the
steering wheel rmly. Steer to
maintain lane position, and then
gently brake to a stop well out of the
traffic lane.A rear blowout, particularly on a
curve, acts much like a skid and may
require the same correction you
would use in a skid. In any rear
blowout, remove your foot from the
accelerator pedal. Get the vehicle
under control by steering the way
you want the vehicle to go. It may be
very bumpy and noisy, but you can
still steer. Gently brake to a stop, well
off the road if possible.
If a tire goes at, avoid further tire
and wheel damage by driving slowly
to a level place and stopping.
1. Turn on the hazard warning
ashers. SeeHazard Warning
Flashers on page 3-5.
2. Park the vehicle. Set the parking
brake rmly and put the shift
lever in P (Park).
3. Turn off the engine.
4. Inspect the at tire.{CAUTION
Lifting a vehicle and getting under
it to do maintenance or repairs is
dangerous without the appropriate
safety equipment and training. If a
jack is provided with the vehicle,
it is designed only for changing a
at tire. If it is used for anything
else, you or others could be badly
injured or killed if the vehicle slips
off the jack. If a jack is provided
with the vehicle, only use it for
changing a at tire.
This vehicle may come with a jack
and spare tire or a tire sealant
and compressor kit. To use the jack
and spare tire, seeChanging a
Flat Tire on page 5-70. To use the
tire sealant and compressor kit,
seeTire Sealant and Compressor
Kit on page 5-62.
Service and Appearance Care 5-61
ProCarManuals.com

Using the Tire Sealant
and Compressor Kit to
Temporarily Seal and
Inate a Punctured Tire
Follow the directions closely for
correct sealant usage.
When using the tire sealant and
compressor kit during cold
temperatures, warm the kit in a
heated environment for 5 minutes.
This will help to inate the tire faster.
Always do a safety check rst.
SeeIf a Tire Goes Flat on
page 5-61. Do not remove any
objects that have penetrated the tire.
1. Remove the tire sealant and
compressor kit from its storage
location. SeeTire Sealant and
Compressor Kit Storage on
page 5-70.
5-64 Service and Appearance Care
ProCarManuals.com

Always do a safety check rst. See
If a Tire Goes Flat on page 5-61.
1. Remove the tire sealant and
compressor kit from its storage
location. SeeTire Sealant
and Compressor Kit Storage on
page 5-70.
2. Unwrap the air only hose (G)
and the power plug (H).
3. Place the kit on the ground.
Make sure the tire valve
stem is positioned close to the
ground so the hose will reach it.4. Remove the tire valve stem cap
from the at tire by turning it
counterclockwise.
5. Attach the air only hose (G) onto
the tire valve stem by turning it
clockwise until it is tight.
6. Plug the power plug (H) into the
accessory power outlet in the
vehicle. Unplug all items
from other accessory power
outlets. SeeAccessory Power
Outlet(s) on page 3-17.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
7. Start the vehicle. The vehicle
must be running while using
the air compressor.8. Turn the selector switch (A)
clockwise to the Air Only position.
9. Press the on/off (B) button to turn
the compressor on.
The compressor will inate the
tire with air only.
10. Inate the tire to the
recommended ination pressure
using the pressure gage (C).
The recommended ination
pressure can be found on the
Tire and Loading Information
label. SeeInflation - Tire
Pressure on page 5-45.
The pressure gage (C) may
read higher than the actual tire
pressure while the compressor
is on. Turn the compressor
off to get an accurate reading.
The compressor may be
turned on/off until the correct
pressure is reached.
5-68 Service and Appearance Care
ProCarManuals.com

Tire Sealant and
Compressor Kit Storage
The tire sealant and compressor
kit is located in the storage
compartment on the driver side,
at the rear of the vehicle.
1. Press down on the latch tab and
pull the cover off to access the
storage compartment.2. Press the two tabs on the quick
release buckle to release the tire
sealant and compressor kit strap.
3. Remove the sealant and
compressor kit from its tray.
To store the tire sealant and
compressor kit, reverse the steps.
Changing a Flat Tire
If a tire goes at, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the hazard
warning ashers. SeeHazard
Warning Flashers on page 3-5.
{CAUTION
Changing a tire can be
dangerous. The vehicle can slip
off the jack and roll over or fall on
you or other people. You and they
could be badly injured or even
killed. Find a level place to
change your tire. To help prevent
the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in
P (Park).
3. Turn off the engine and do
not restart while the vehicle
is raised.
4. Do not allow passengers to
remain in the vehicle.
To be even more certain the
vehicle will not move, you should
put blocks at the front and rear of
the tire farthest away from the
one being changed. That would
be the tire, on the other side, at
the opposite end of the vehicle.
5-70 Service and Appearance Care
ProCarManuals.com
