The TPMS matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the
engine off.
3. Press and hold the Remote Keyless Entry (RKE)
transmitter’s LOCK and UNLOCK buttons, at the
same time, for about ve seconds to start the TPMS
learn mode. The horn sounds twice indicating the
TPMS receiver is ready and in learn mode.
4. Start with the driver side front tire. The driver side
front turn signal also comes on to indicate that
corner’s sensor is ready to be learned.
5. Remove the valve cap from the tire’s valve
stem. Activate the TPMS sensor by increasing
or decreasing the tire’s air pressure for about
eight seconds. The horn chirp, can take up to
30 seconds to sound. It chirps one time and then
all the turn signals ash one time to conrm the
sensor identication code has been matched to
the tire/wheel position.
6. The passenger side front turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the passenger side front tire and
repeat the procedure in Step 5.7. The passenger side rear turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the passenger side rear tire and
repeat the procedure in Step 5.
8. The driver side rear turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the driver side rear tire, and repeat
the procedure in Step 5.
9. After hearing the single horn chirp for the driver
side rear tire, two additional horn chirps sound
to indicate the tire learning process is done.
Turn the ignition switch to LOCK/OFF.
If no tires are learned after entering the TPMS learn
mode, or if communication with the receiver stops, or
if the time limit has expired, turn the ignition switch to
LOCK/OFF and start over beginning with Step 2.
10. Set all four tires to the recommended air pressure
level as indicated on the Tire and Loading
Information label.
11. Put the valve caps back on the valve stems.
5-58
ProCarManuals.com

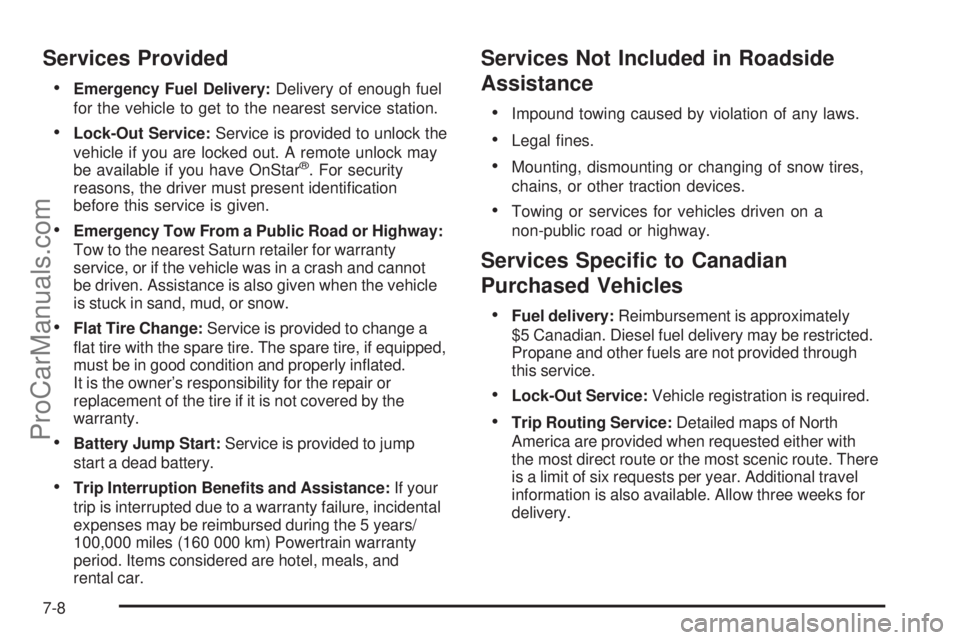

Services Provided
Emergency Fuel Delivery:Delivery of enough fuel
for the vehicle to get to the nearest service station.
Lock-Out Service:Service is provided to unlock the
vehicle if you are locked out. A remote unlock may
be available if you have OnStar
®. For security
reasons, the driver must present identication
before this service is given.
Emergency Tow From a Public Road or Highway:
Tow to the nearest Saturn retailer for warranty
service, or if the vehicle was in a crash and cannot
be driven. Assistance is also given when the vehicle
is stuck in sand, mud, or snow.
Flat Tire Change:Service is provided to change a
at tire with the spare tire. The spare tire, if equipped,
must be in good condition and properly inated.
It is the owner’s responsibility for the repair or
replacement of the tire if it is not covered by the
warranty.
Battery Jump Start:Service is provided to jump
start a dead battery.
Trip Interruption Benets and Assistance:If your
trip is interrupted due to a warranty failure, incidental
expenses may be reimbursed during the 5 years/
100,000 miles (160 000 km) Powertrain warranty
period. Items considered are hotel, meals, and
rental car.
Services Not Included in Roadside
Assistance
Impound towing caused by violation of any laws.
Legal nes.
Mounting, dismounting or changing of snow tires,
chains, or other traction devices.
Towing or services for vehicles driven on a
non-public road or highway.
Services Specic to Canadian
Purchased Vehicles
Fuel delivery:Reimbursement is approximately
$5 Canadian. Diesel fuel delivery may be restricted.
Propane and other fuels are not provided through
this service.
Lock-Out Service:Vehicle registration is required.
Trip Routing Service:Detailed maps of North
America are provided when requested either with
the most direct route or the most scenic route. There
is a limit of six requests per year. Additional travel
information is also available. Allow three weeks for
delivery.
7-8
ProCarManuals.com

OnStar®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and use.
See alsoOnStar
®System on page 2-38in this manual
for more information.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in Saturn vehicles does not
use or record personal information or link with any other
Saturn system containing personal information.
7-18
ProCarManuals.com

J
Jump Starting.................................................5-37
K
Keyless Entry, Remote Operation........................ 2-5
Keyless Entry System....................................... 2-4
Keys............................................................... 2-3
L
Labeling, Tire Sidewall.....................................5-46
Lamp
Malfunction Indicator....................................3-37
Lamps
Daytime Running (DRL)................................3-14
Dome ........................................................3-16
License Plate..............................................5-43
Reading.....................................................3-16
Lap-Shoulder Belt...........................................1-23
LATCH System for Child Restraints...................1-43
Lift Seat, Power............................................... 1-8
Lighting
Entry/Exit...................................................3-16
Parade Dimming..........................................3-16Lights............................................................3-13
Airbag Readiness........................................3-30
Antilock Brake System (ABS) Warning............3-34
Brake System Warning.................................3-33
Charging System.........................................3-32
Cruise Control.............................................3-41
Engine Coolant Temperature Warning.............3-35
Flash-to-Pass............................................... 3-8
Highbeam On.............................................3-41
High/Low Beam Changer................................ 3-8
Oil Pressure...............................................3-40
On Reminder..............................................3-13
Passenger Airbag Status Indicator..................3-31
Safety Belt Reminders..................................3-29
Security.....................................................3-41
Tire Pressure..............................................3-36
Loading Your Vehicle.......................................4-21
Locks
Delayed Locking..........................................2-11
Door ..........................................................2-10
Lockout Protection.......................................2-12
Power Door ................................................2-10
Programmable Automatic Door Locks.............2-11
Rear Door Security Locks.............................2-12
Loss of Control
...............................................4-13
Lower Anchors and Tethers for Children.............1-43
Lumbar
Manual Controls............................................ 1-3
7
ProCarManuals.com

R
Radio Frequency Identication (RFID), Privacy....7-18
Radio(s)........................................................3-57
Radios
Reception...................................................3-91
Setting the Clock.........................................3-56
Theft-Deterrent............................................3-89
Range Adjustment, Headlamps........................... 1-7
Reading Lamps..............................................3-16
Rear Door Security Locks................................2-12
Rear Seat Audio (RSA) System........................3-86
Rear Seat Entertainment System
Rear Seat Audio (RSA)................................3-86
Rearview Mirror, Automatic Dimming..................2-35
Rearview Mirrors.............................................2-35
Reclining Seatbacks.......................................... 1-4
Recommended Fluids and Lubricants.................6-12
Recreational Vehicle Towing.............................4-26
Reimbursement Program, GM Mobility................. 7-6
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System, Operation . . . 2-5
Remote Vehicle Start........................................ 2-7Removing the Flat Tire and Installing the
Spare Tire..................................................5-71
Removing the Spare Tire and Tools...................5-69
Replacement Bulbs.........................................5-44
Replacement Parts, Maintenance......................6-13
Reporting Safety Defects to Saturn....................7-15
Reporting Safety Defects to the
Canadian Government..................................7-15
Reporting Safety Defects to the
U.S. Government.........................................7-14
Restraint System Check
Checking the Restraint Systems....................1-72
Replacing Restraint System Parts
After a Crash..........................................1-73
Retained Accessory Power (RAP)......................2-23
Ride Control Systems....................................... 4-6
Electronic Stability (ESC)................................ 4-6
Roadside Assistance Program............................ 7-7
Rocking Your Vehicle to Get it Out....................4-21
Roof
Sunroof......................................................2-49
Running the Vehicle While Parked.....................
2-34
10
ProCarManuals.com

S
Safety Belt Reminders.....................................3-29
Safety Belts
Care of ......................................................5-84
Extender....................................................1-29
How to Wear Safety Belts Properly................1-15
Lap-Shoulder Belt........................................1-23
Safety Belts Are for Everyone.......................1-10
Use During Pregnancy.................................1-29
Safety Defects
Reporting to Canadian Government................7-15
Reporting to Saturn.....................................7-15
Reporting to the U.S. Government.................7-14
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-4
Additional Required Services........................... 6-6
Scheduling Appointments................................... 7-9
Seats
Heated Seats............................................... 1-4
Manual Lumbar............................................. 1-3
Power Lift Seat............................................. 1-8
Power Seats................................................. 1-3
Reclining Seatbacks...................................... 1-4
Split Folding Rear Seat.................................. 1-8
Securing a Child Restraint
Rear Seat Position......................................1-50
Right Front Seat Position..............................1-52
Security Light.................................................3-41Service........................................................... 5-3
Accessories and Modications......................... 5-3
Adding Equipment to the Outside of the
Vehicle..................................................... 5-5
Doing Your Own Work................................... 5-4
Engine Soon Lamp......................................3-37
Publications Ordering Information...................7-15
Scheduling Appointments................................ 7-9
Service Parts Identication Label.......................5-89
Servicing Your Airbag-Equipped Vehicle..............1-70
Setting the Clock............................................3-56
Sheet Metal Damage.......................................5-88
Shifting
Out of Park................................................2-32
Shifting Into Park............................................2-30
Signals, Turn and Lane-Change.......................... 3-7
Spare Tire
Compact....................................................5-80
Installing....................................................5-71
Removing...................................................5-69
Storing.......................................................5-76
Specications and Capacities..........................5-100
Speedometer..................................................3-29
Split Folding Rear Seat..................................... 1-8
Start Vehicle, Remote....................................... 2-7
Starting the Engine.........................................2-23
Steering........................................................4-11
Steering Wheel Controls, Audio.........................3-89
Steering Wheel, Tilt and Telescopic..................... 3-6
11
ProCarManuals.com

Towing
Recreational Vehicle.....................................4-26
Towing a Trailer..........................................4-30
Your Vehicle...............................................4-26
Traction
Control System (TCS).................................... 4-8
Traction Control System...................................3-34
Transmission
Fluid, Automatic...........................................5-22
Transmission Operation, Automatic....................2-26
Transportation, Courtesy..................................7-10
Trip Odometer................................................3-29
Trunk............................................................2-13
Turn and Lane-Change Signals.......................... 3-7
Turn Signal/Multifunction Lever........................... 3-7
U
Uniform Tire Quality Grading............................5-63
Universal Home Remote System.......................2-41
Operation...................................................2-42
V
Vehicle
Control........................................................ 4-3
Loading......................................................4-21
Running While Parked..................................2-34
Symbols......................................................... iii
Vehicle Data Recording and Privacy..................7-16
Vehicle Data Recording,
Radio Frequency (RFID)...............................7-18
Vehicle Identication
Number (VIN).............................................5-89
Service Parts Identication Label...................5-89
Vehicle Personalization
DIC ...........................................................3-50
Vehicle, Remote Start....................................... 2-7
Ventilation Adjustment......................................3-26
Visors...........................................................2-17
13
ProCarManuals.com
