{CAUTION
Airbags inate with great force,
faster than the blink of an eye.
Anyone who is up against, or very
close to, any airbag when it
inates can be seriously injured or
killed. Do not sit unnecessarily
close to the airbag, as you would
be if you were sitting on the edge
of your seat or leaning forward.
Safety belts help keep you in
position before and during a
crash. Always wear your safety
belt, even with airbags. The driver
should sit as far back as possible
while still maintaining control of
the vehicle.
Occupants should not lean on or
sleep against the door or side
windows in seating positions with
seat-mounted side impact airbags
and/or roof-rail airbags.
{CAUTION
Children who are up against, or
very close to, any airbag when it
inates can be seriously injured or
killed. Airbags plus lap-shoulder
belts offer protection for adults
and older children, but not for
young children and infants.
Neither the vehicle’s safety belt
system nor its airbag system is
designed for them. Young children
and infants need the protection
that a child restraint system can
provide. Always secure children
properly in your vehicle. To read
how, seeOlder Children on
page 1-38orInfants and Young
Children on page 1-40.There is an airbag readiness light
on the instrument panel cluster,
which shows the airbag symbol.
The system checks the airbag
electrical system for malfunctions.
The light tells you if there is an
electrical problem. SeeAirbag
Readiness Light on page 4-14for
more information.
Seats and Restraints 1-25
ProCarManuals.com

Where Are the Airbags?
The driver frontal airbag is in the
middle of the steering wheel.
The right front passenger frontal
airbag is in the instrument panel on
the passenger’s side.The seat-mounted side impact
airbags for the driver and right front
passenger are in the side of the
seatbacks closest to the door.
The roof-rail airbags for the driver,
right front passenger, and second
row outboard passengers are in the
ceiling above the side windows.
{CAUTION
If something is between an
occupant and an airbag, the
airbag might not inate properly or
it might force the object into that
person causing severe injury or
even death. The path of an
inating airbag must be kept
clear. Do not put anything
between an occupant and an
airbag, and do not attach or put
anything on the steering wheel
hub or on or near any other
airbag covering.
Do not use seat accessories that
block the ination path of a
seat-mounted side impact airbag.
Never secure anything to the roof
of a vehicle with roof-rail airbags
by routing a rope or tie down
through any door or window
opening. If you do, the path of an
inating roof-rail airbag will be
blocked.
Driver Side shown, Passenger
Side similar
1-26 Seats and Restraints
ProCarManuals.com

The vehicle has seat-mounted
side impact and roof-rail airbags.
SeeAirbag System on page 1-24.
Seat-mounted side impact and
roof-rail airbags are intended
to inate in moderate to severe
side crashes. Seat-mounted
side impact and roof-rail airbags will
inate if the crash severity is above
the system’s designed threshold
level. The threshold level can vary
with specic vehicle design.
Seat-mounted side impact and
roof-rail airbags are not intended to
inate in frontal impacts, near-frontal
impacts, rollovers, or rear impacts.
A seat-mounted side impact airbag is
intended to deploy on the side of the
vehicle that is struck. A roof-rail
airbag is intended to deploy on the
side of the vehicle that is struck.
In any particular crash, no one can
say whether an airbag should
have inated simply because of the
damage to a vehicle or because
of what the repair costs were.For frontal airbags, ination is
determined by what the vehicle hits,
the angle of the impact, and how
quickly the vehicle slows down.
For seat-mounted side impact and
roof-rail airbags, deployment is
determined by the location
and severity of the side impact.
What Makes an Airbag
Inate?
In a deployment event, the sensing
system sends an electrical signal
triggering a release of gas from the
inator. Gas from the inator lls
the airbag causing the bag to
break out of the cover and deploy.
The inator, the airbag, and
related hardware are all part of the
airbag module.
Frontal airbag modules are located
inside the steering wheel and
instrument panel. For vehicles with
seat-mounted side impact airbags,
there are airbag modules in the side
of the front seatbacks closest tothe door. For vehicles with roof-rail
airbags, there are airbag modules
in the ceiling of the vehicle, near the
side windows that have occupant
seating positions.
How Does an Airbag
Restrain?
In moderate to severe frontal or
near frontal collisions, even belted
occupants can contact the steering
wheel or the instrument panel.
In moderate to severe side
collisions, even belted occupants
can contact the inside of the vehicle.
Airbags supplement the protection
provided by safety belts. Frontal
airbags distribute the force of the
impact more evenly over the
occupant’s upper body, stopping
the occupant more gradually.
Seat-mounted side impact and
roof-rail airbags distribute the force
of the impact more evenly over the
occupant’s upper body.
1-28 Seats and Restraints
ProCarManuals.com

But airbags would not help in
many types of collisions, primarily
because the occupant’s motion
is not toward those airbags.
SeeWhen Should an Airbag Inflate?
on page 1-27for more information.
Airbags should never be regarded
as anything more than a supplement
to safety belts.
What Will You See After
an Airbag Inates?
After the frontal airbags and
seat-mounted side impact airbags
inate, they quickly deate, so
quickly that some people may not
even realize an airbag inated.
Roof-rail airbags may still be at least
partially inated for some time after
they deploy. Some components of
the airbag module may be hot for
several minutes. For location of the
airbag modules, seeWhat Makes an
Airbag Inflate? on page 1-28.The parts of the airbag that come
into contact with you may be warm,
but not too hot to touch. There may
be some smoke and dust coming
from the vents in the deated
airbags. Airbag ination does not
prevent the driver from seeing out of
the windshield or being able to
steer the vehicle, nor does it prevent
people from leaving the vehicle.
{CAUTION
When an airbag inates, there
may be dust in the air. This dust
could cause breathing problems
for people with a history of
asthma or other breathing trouble.
(Continued)
CAUTION (Continued)
To avoid this, everyone in the
vehicle should get out as soon as
it is safe to do so. If you have
breathing problems but cannot get
out of the vehicle after an airbag
inates, then get fresh air by
opening a window or a door.
If you experience breathing
problems following an airbag
deployment, you should seek
medical attention.
The vehicle has a feature that may
automatically unlock the doors,
turn the interior lamps on, and turn
the hazard warning ashers on
when the airbags inate. You can
lock the doors, turn the interior
lamps off, and turn the hazard
warning ashers off by using the
controls for those features.
Seats and Restraints 1-29
ProCarManuals.com

Child Restraint Systems
A rear-facing infant seat (A) provides
restraint with the seating surface
against the back of the infant.
The harness system holds the infant
in place and, in a crash, acts to keep
the infant positioned in the restraint.A forward-facing child seat (B)
provides restraint for the child’s
body with the harness.A booster seat (C) is a child
restraint designed to improve the t
of the vehicle’s safety belt system.
A booster seat can also help a child
to see out the window. (A) Rear-Facing Infant Seat
(B) Forward-Facing Child Seat(C) Booster Seats
Seats and Restraints 1-43
ProCarManuals.com

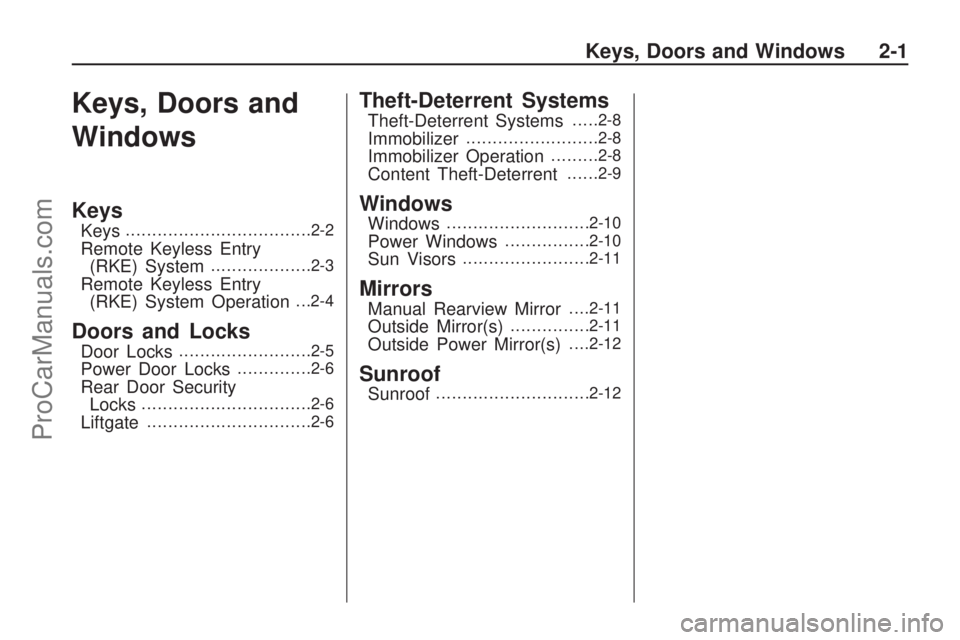

Keys, Doors and
Windows
Keys
Keys...................................2-2
Remote Keyless Entry
(RKE) System...................2-3
Remote Keyless Entry
(RKE) System Operation. . .2-4
Doors and Locks
Door Locks.........................2-5
Power Door Locks..............2-6
Rear Door Security
Locks................................2-6
Liftgate...............................2-6
Theft-Deterrent Systems
Theft-Deterrent Systems.....2-8
Immobilizer.........................2-8
Immobilizer Operation.........2-8
Content Theft-Deterrent......2-9
Windows
Windows...........................2-10
Power Windows................2-10
Sun Visors........................2-11
Mirrors
Manual Rearview Mirror. . . .2-11
Outside Mirror(s)...............2-11
Outside Power Mirror(s). . . .2-12
Sunroof
Sunroof.............................2-12
Keys, Doors and Windows 2-1
ProCarManuals.com

Keys
{CAUTION
Leaving children in a vehicle with
the ignition key is dangerous for
many reasons, children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in
a vehicle with children.The key, located in the Remote
Keyless Entry (RKE) transmitter, is
used for the ignition and all locks.Press the button on the RKE
transmitter to extend the key.
Press the button and the key blade
to retract the key.
When a new vehicle is delivered,
a key number is included in
the vehicle documents.
Each key number tells your
dealer/retailer or a qualied
locksmith how to make extra keys.
Keep this number in a safe
place. If you lose your keys, you will
be able to have one made easily
using this number. If you need
a new key, go to your dealer/retailer
for the correct key code.
2-2 Keys, Doors and Windows
ProCarManuals.com
