2009 SATURN ASTRA display

To use the CD menu function:
1. Select CD from the CD menu.
2. Select the desired CD.
Random Mode
There are two modes for random:
Random play CD.
Random magazine.
Tracks on the current CD are
played in random order for Random
play CD:
To use Random play CD:
1. Select Extras from the CD menu.
2. Select Random CD, and
T
displays.
To turn off random:
1. Select Extras from the CD menu.
2. Select Normal, and
T
disappears.4 tracks per CD are played before
changing to the next CD for Random
magazine:
To use random for all CDs:
1. Select Extras from the CD menu.
2. Select Random Magazine, and
Udisplays.
To turn off random:
1. Select Extras from the CD menu.
2. Select Normal, and
U
disappears.
Repeat Track
The Repeat function repeats the
current track. The function can
be enabled and disabled by using
the four-way switch or the CD menu.To use repeat using the four-way
switch:
1. Press and hold
_untilSappears
on the display.
2. Press and hold
^untilSis no
longer on the display to turn
off repeat track.
To use repeat using the CD menu:
1. Select Extras from the CD menu.
2. Select Repeat Track,
Sappears
on the display.
To turn off repeat using the
CD menu:
1. Select Extras from the CD menu.
2. Select Normal,
Sdisappears
from the display.
Scan CD
The Scan CD function scans the
rst ten seconds of each track
on the current CD. The function can
be enabled and disabled by using
the four-way switch or the CD menu.
Infotainment 6-19
ProCarManuals.com

To use Scan CD using the four-way
switch:
1. Press and hold
_untilu
appears on the display.
2. Press and hold
^untiluis no
longer on the display to turn off
repeat track.
To use Scan CD using the
CD menu:
1. Select Extras from the CD menu.
2. Select Scan CD,
uappears
on the display.
To turn off Scan CD using the
CD menu:
1. Select Extras from the CD menu.
2. Select Scan CD,
udisappears
from the display.Ejecting a CD
To eject a CD:
1. Press
Z.
2. Select the desired CD to eject by
using the station preset buttons
or the multifunction knob.
To eject all CDs:
1. Press and hold
Zuntil Eject all
CDs displays.
2. Press the multifunction knob to
conrm. The CDs are ejected.
Using an MP3 or Mixed
Mode CD
Supported File Structure
The CDC 40 supports up to:
253 albums.
65,535 tracks.
Bit rates up to 256 kbps.File Naming
Files must be named .mp3 for the
CD to work. ID3 tags are supported.
The following information shows
on the display when a CD MP3, or
a mixed mode CD is playing.
CD number
Album name
Track title and artist
Playing an MP3 or Mixed
Mode CD
CDC:Press to play an MP3 CD
that is already loaded into the
CD player while the radio is playing.
The CD Menu displays.
Selecting a Track
Tracks can be selected using the
four-way switch or the CD menu
functions.
Selecting a track using the four-way
switch:
\or]:Press to go to the next or
previous track within an album.
6-20 Infotainment
ProCarManuals.com

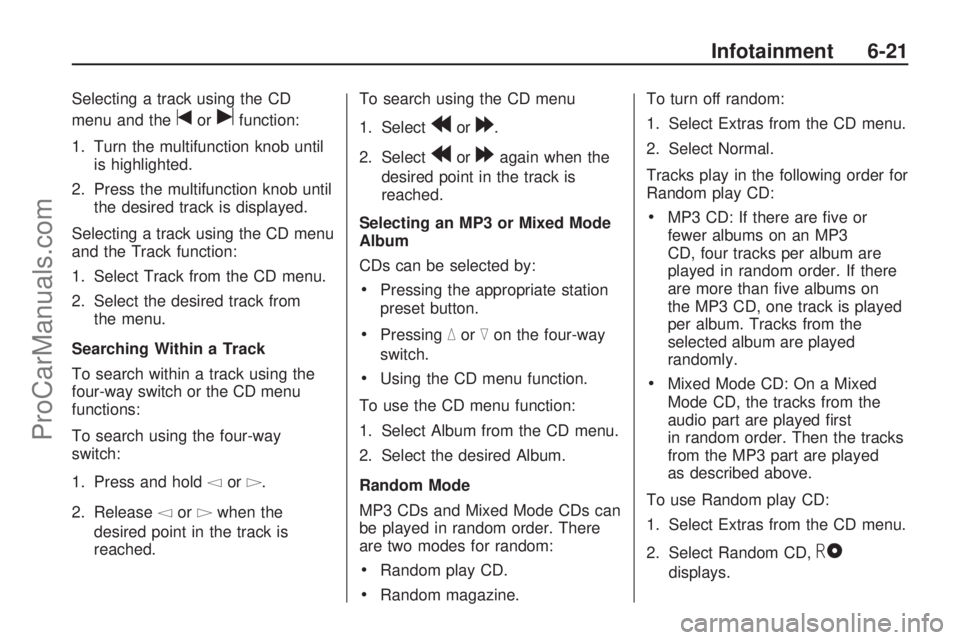

Selecting a track using the CD
menu and the
torufunction:
1. Turn the multifunction knob until
is highlighted.
2. Press the multifunction knob until
the desired track is displayed.
Selecting a track using the CD menu
and the Track function:
1. Select Track from the CD menu.
2. Select the desired track from
the menu.
Searching Within a Track
To search within a track using the
four-way switch or the CD menu
functions:
To search using the four-way
switch:
1. Press and hold
\or].
2. Release
\or]when the
desired point in the track is
reached.To search using the CD menu
1. Select
ror[.
2. Select
ror[again when the
desired point in the track is
reached.
Selecting an MP3 or Mixed Mode
Album
CDs can be selected by:
Pressing the appropriate station
preset button.
Pressing_or^on the four-way
switch.
Using the CD menu function.
To use the CD menu function:
1. Select Album from the CD menu.
2. Select the desired Album.
Random Mode
MP3 CDs and Mixed Mode CDs can
be played in random order. There
are two modes for random:
Random play CD.
Random magazine.To turn off random:
1. Select Extras from the CD menu.
2. Select Normal.
Tracks play in the following order for
Random play CD:
MP3 CD: If there are ve or
fewer albums on an MP3
CD, four tracks per album are
played in random order. If there
are more than ve albums on
the MP3 CD, one track is played
per album. Tracks from the
selected album are played
randomly.
Mixed Mode CD: On a Mixed
Mode CD, the tracks from the
audio part are played rst
in random order. Then the tracks
from the MP3 part are played
as described above.
To use Random play CD:
1. Select Extras from the CD menu.
2. Select Random CD,
T
displays.
Infotainment 6-21
ProCarManuals.com

Tracks play in the following order for
Random magazine:
MP3 CD: If there are ve or
fewer albums on an MP3
CD, four tracks per album are
played before changing to
the next CD. If there are more
than ve albums, one track
per album is played before
changing to the next CD.
Mixed Mode CD: On a Mixed
Mode CD, the rst of all four
tracks from the audio part
are played in random order and
then the system changes to
the next CD. The next time the
system changes to the Mixed
Mode CD, the tracks from
the MP3 part are played as
described above.
To use random for all CDs:
1. Select Extras from the CD menu.
2. Select Random Magazine,
Udisplays.
Care of CD’s and the CD
Player
Care of CDs
Store CDs in their original cases or
other protective cases and away
from direct sunlight and dust. The CD
player scans the bottom of the disc. If
the bottom of a CD is damaged it
may not play properly or at all. Do not
touch the bottom of a CD while
handling it. Pick up CDs by grasping
the outer edges or the edge of the
hole and the outer edge.
If the surface of a CD is dirty, take a
soft, lint free cloth or dampen a
clean, soft cloth in a mild, neutral
detergent solution mixed with water,
and clean it. Make sure the wiping
process starts from the center to
the edge.Care of the CD Player
Do not add labels to a CD, it could
get caught in the CD player. Use a
marking pen to write on the top of the
CD if a description is needed.
Do not use CD lens cleaners, they
could damage the CD player.
Notice:If a label is added to a
CD, or more than one CD is
inserted into the slot at a time, or
an attempt is made to play
scratched or damaged CDs, the
CD player could be damaged.
While using the CD player,
use only CDs in good condition
without any label, load one
CD at a time, and keep the CD
player and the loading slot free of
foreign materials, liquids, and
debris.
6-22 Infotainment
ProCarManuals.com

C (ON/RUN):The ignition switch
stays in this position when the
engine is running. This position can
be used to operate the electrical
accessories, as well as to display
some warning and indicator lights.
The battery could be drained if you
leave the key in the ON/RUN position
with the engine off. You may not be
able to start the vehicle if the battery
is allowed to drain for an extended
period of time.
D (START):This position starts the
engine. When the engine starts,
release the key. The ignition switch
will return to ON/RUN for normal
driving. A warning tone will
sound when the driver door is
opened and the key is in the ignition.Retained Accessory
Power (RAP)
The power windows and mirrors
may be used for up to ve minutes
after the key is turned to
LOCK/OFF.
The power windows and mirrors will
not operate after any of the front
doors are opened.
The radio may be used for up to
sixty minutes after the key is turned
to LOCK/OFF.
Starting the Engine
Automatic Transmission
Move the shift lever to P (Park) or
N (Neutral). The engine will not start
in any other position. To restart the
engine when the vehicle is already
moving, use N (Neutral) only.
Notice:Do not try to shift to
P (Park) if the vehicle is moving.
If you do, you could damage
the transmission. Shift to P (Park)
only when the vehicle is stopped.
Manual Transmission
The shift lever should be in
N (Neutral) and the parking brake
engaged. Hold the clutch pedal
to the oor and start the engine. The
vehicle will not start if the clutch
pedal is not all the way down.
Driving and Operating 8-3
ProCarManuals.com

Automatic Transmission
Operation
If the vehicle has an automatic
transmission, the shift lever
is located on the console between
the seats.
The vehicle may also have an
electronic shift position indicator that
displays the position of the shift
lever. This indicator is located above
the trip odometer on the instrument
panel cluster.P (Park):This position locks the
front wheels. It is the best position to
use when the engine is started
because the vehicle cannot move
easily.
{CAUTION
It is dangerous to get out of the
vehicle if the shift lever is not fully
in P (Park) with the parking brake
rmly set. The vehicle can roll.
Do not leave the vehicle when the
engine is running unless you have
to. If you have left the engine
running, the vehicle can move
suddenly. You or others could be
injured. To be sure the vehicle will
not move, even when you are on
fairly level ground, always set the
parking brake and move the shift
lever to P (Park). SeeShifting Into
Park on page 8-11.Make sure the shift lever is fully in
P (Park) before starting the
engine. The vehicle has an
automatic transmission shift lock
control system. The regular brakes
must be applied before you can
shift from P (Park) when the ignition
key is in ON/RUN. If you cannot
shift out of P (Park) while holding the
brake pedal down, seeShifting
Out of Park on page 8-12.
R (Reverse):Use this gear to
back up.
Notice:Shifting to R (Reverse)
while the vehicle is moving
forward could damage the
transmission. The repairs would
not be covered by the vehicle
warranty. Shift to R (Reverse)
only after the vehicle is stopped.
To rock the vehicle back and
forth to get out of snow, ice, or sand
without damaging the transmission,
seeRocking Your Vehicle to Get
It Out on page 8-29.
8-6 Driving and Operating
ProCarManuals.com

Notice:Use only engine oil
identied as meeting GM Standard
GM6094M and showing the
American Petroleum Institute
Certied For Gasoline Engines
starburst symbol. Failure to use
the recommended oil can result
in engine damage not covered by
the vehicle warranty.
Cold Temperature Operation
If in an area of extreme cold, where
the temperature falls below−20°F
(−29°C), use either an SAE 5W-30
synthetic oil or an SAE 0W-30
engine oil. Both provide easier cold
starting for the engine at extremely
low temperatures. Always use
an oil that meets the required
specication, GM6094M.
See “What Kind of Engine Oil to
Use” for more information.
Engine Oil Additives / Engine
Oil Flushes
Do not add anything to the oil.
The recommended oils with
the starburst symbol that meet
GM Standard GM6094M are all that
is needed for good performance
and engine protection.
Engine oil system ushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system
that indicates when to change the
engine oil and lter. This is based on
engine revolutions and engine
temperature, and not on mileage.
Based on driving conditions,
the mileage at which an oil change
is indicated can vary considerably.
For the oil life system to work
properly, the system must be reset
every time the oil is changed.When the system has calculated
that oil life has been diminished,
it indicates that an oil change
is necessary. The letters InSP will
appear in the odometer display.
Change the oil as soon as possible
within the mileage indicated on
the display. If driving under the
best conditions, the oil life system
might indicate that an oil change
is necessary once a year.
The engine oil and lter must be
changed at least once a year and
at this time the system must be
reset. Your dealer/retailer has
trained service people who will
perform this work using genuine
parts and reset the system. It is also
important to check the oil regularly
and keep it at the proper level.
If the system is ever reset
accidentally, the oil must be
changed at 3,000 miles (5 000 km)
since the last oil change.
Remember to reset the oil life
system whenever the oil is changed.
Vehicle Service and Care 9-9
ProCarManuals.com

How to Reset the Engine Oil
Life System
The Engine Oil Life System
calculates when to change the
engine oil and lter based on vehicle
use. Whenever the oil is changed,
reset the system so it can calculate
when the next oil change is required.
If a situation occurs where the oil is
changed prior to the letters InSP
appearing in the odometer display,
reset the system.
After changing the engine oil, reset
the system:
1. Turn the ignition key to
LOCK/OFF.
2. Press the instrument panel
cluster stem until the odometer is
displayed, then release the stem.3. Re-press and hold the cluster
stem until the letters InSP are
displayed.
4. Press and hold the brake pedal
down, hold the cluster stem
down, and turn the ignition key
to ON/RUN.
5. The letters InSP in the instrument
panel cluster display will ash.
6. Keep the cluster stem down for
at least 10 seconds and release
the stem and the brake pedal
when the message “new
remaining milage” is displayed.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer’s warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your own
oil, be sure to drain all the oil from the
lter before disposal. Never dispose
of oil by putting it in the trash, pouring
it on the ground, into sewers, or into
streams or bodies of water. Recycle
it by taking it to a place that collects
used oil.
9-10 Vehicle Service and Care
ProCarManuals.com
