{CAUTION
An electric engine cooling fan
under the hood can start up even
when the engine is not running and
can cause injury. Keep hands,
clothing, and tools away from any
underhood electric fan.
If the coolant inside the coolant
reservoir is boiling, do not do
anything else until it cools down.
The vehicle should be parked on a
level surface.
The coolant level should be at or
above the KALT/COLD mark on the
coolant reservoir. If it is not, you
may have a leak at the coolant
reservoir pressure cap or in the
radiator hoses, heater hoses,
radiator, water pump, or somewhere
else in the cooling system.
{CAUTION
Heater and radiator hoses, and
other engine parts, can be very
hot. Do not touch them. If you do,
you can be burned.
Do not run the engine if there is a
leak. If you run the engine, it
could lose all coolant. That could
cause an engine re, and you
could be burned. Get any leak
xed before you drive the vehicle.
If there seems to be no leak,
with the engine on, check to see
if the electric engine cooling fans are
running. If the engine is overheating,
both fans should be running.
If they are not, your vehicle needs
service.Notice:Engine damage from
running the engine without
coolant is not covered by the
warranty.
Notice:Using coolant other
than DEX-COOL
®can cause
premature engine, heater core, or
radiator corrosion. In addition,
the engine coolant could require
changing sooner, at 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst.
Any repairs would not be
covered by the vehicle warranty.
Always use DEX-COOL
®
(silicate-free) coolant in the
vehicle.
Vehicle Service and Care 9-13
ProCarManuals.com

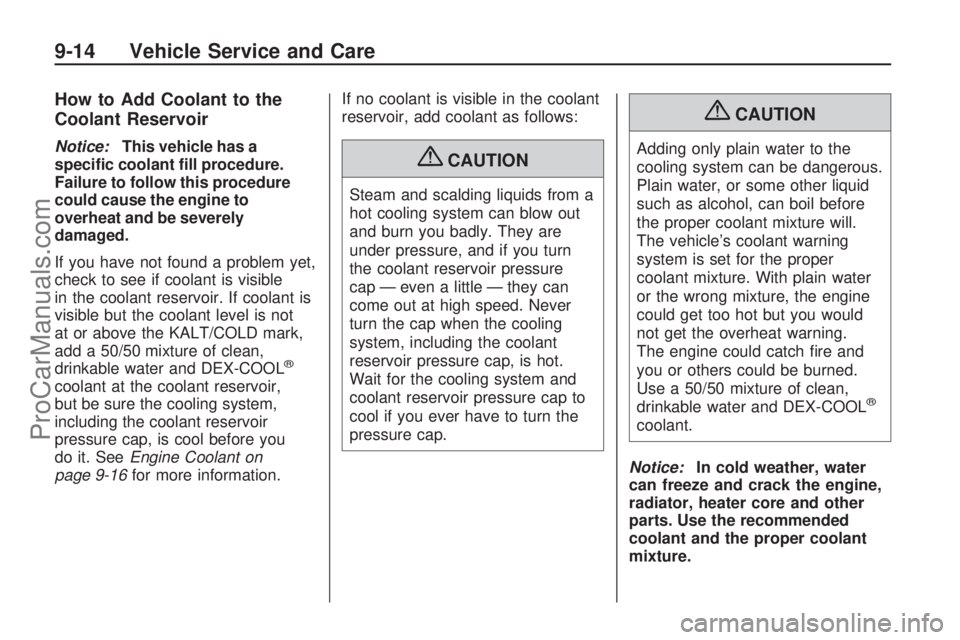

How to Add Coolant to the
Coolant Reservoir
Notice:This vehicle has a
specic coolant ll procedure.
Failure to follow this procedure
could cause the engine to
overheat and be severely
damaged.
If you have not found a problem yet,
check to see if coolant is visible
in the coolant reservoir. If coolant is
visible but the coolant level is not
at or above the KALT/COLD mark,
add a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant at the coolant reservoir,
but be sure the cooling system,
including the coolant reservoir
pressure cap, is cool before you
do it. SeeEngine Coolant on
page 9-16for more information.If no coolant is visible in the coolant
reservoir, add coolant as follows:
{CAUTION
Steam and scalding liquids from a
hot cooling system can blow out
and burn you badly. They are
under pressure, and if you turn
the coolant reservoir pressure
cap — even a little — they can
come out at high speed. Never
turn the cap when the cooling
system, including the coolant
reservoir pressure cap, is hot.
Wait for the cooling system and
coolant reservoir pressure cap to
cool if you ever have to turn the
pressure cap.
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but you would
not get the overheat warning.
The engine could catch re and
you or others could be burned.
Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant.
Notice:In cold weather, water
can freeze and crack the engine,
radiator, heater core and other
parts. Use the recommended
coolant and the proper coolant
mixture.
9-14 Vehicle Service and Care
ProCarManuals.com

{CAUTION
You can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
1. Remove the coolant reservoir
pressure cap when the cooling
system, including the coolant
reservoir pressure cap and upper
radiator hose, is no longer hot.
Turn the coolant reservoir
pressure cap slowly
counterclockwise about two or
two and one-half turns.
If you hear a hiss, wait for that
to stop. This will allow any
pressure still left to be vented
out the discharge hose.2. Keep turning the coolant
reservoir pressure cap slowly,
and remove it.
3. Fill the coolant reservoir with
the proper mixture, to the
KALT/COLD mark. Wait about
ve minutes, then check to see
if the level is below the mark.
If the level is below the
KALT/COLD mark, add additional
coolant to bring the level up to
the mark. Repeat this procedure
until the level remains constant
at the KALT/COLD mark for
at least ve minutes.4. With the coolant reservoir
pressure cap off, start the
engine and let it run until you
can feel the upper radiator hose
getting hot. Watch out for the
engine cooling fans.
By this time, the coolant level
inside the coolant reservoir might
be lower. If the level is lower
than the KALT/COLD mark,
add more of the proper
mixture to the coolant reservoir
until the level reaches the
KALT/COLD mark.
5. Replace the coolant reservoir
pressure cap. Be sure the
pressure cap is hand-tight and
fully seated. Coolant Reservoir Pressure Cap
Vehicle Service and Care 9-15
ProCarManuals.com

Notice:If an improper coolant
mixture is used, the engine could
overheat and be badly damaged.
The repair cost would not be
covered by the vehicle warranty.
Too much water in the mixture
can freeze and crack the engine,
radiator, heater core, and
other parts.
Notice:If you use extra
inhibitors and/or additives in
your vehicle’s cooling system,
you could damage your vehicle.
Use only the proper mixture of
the engine coolant listed in
this manual for the cooling
system. See Recommended
Fluids and Lubricants in the
Maintenance and Limited
Warranty and Owner Assistance

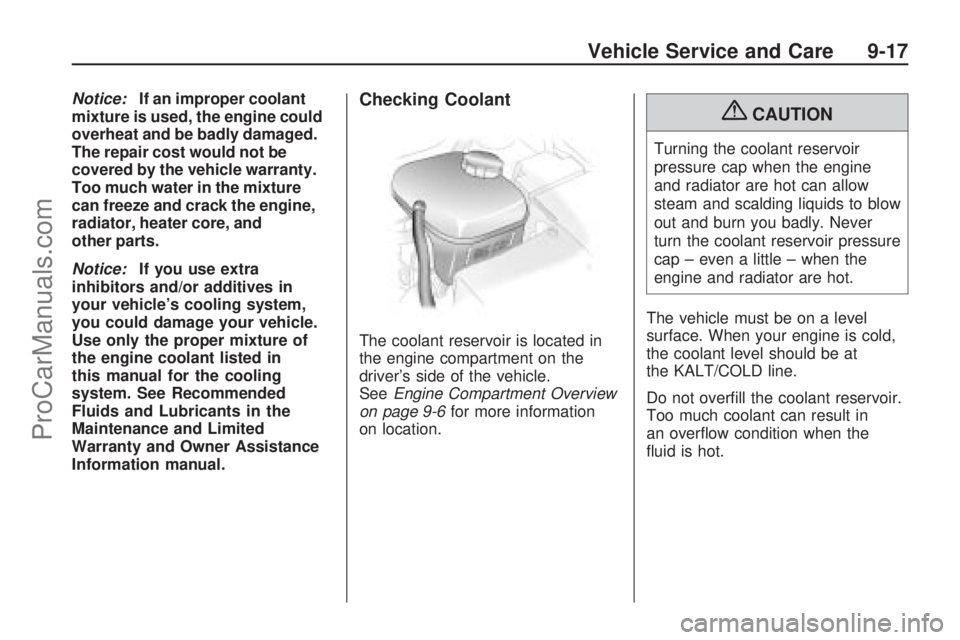

Information manual.Checking Coolant
The coolant reservoir is located in
the engine compartment on the
driver’s side of the vehicle.
SeeEngine Compartment Overview
on page 9-6for more information
on location.
{CAUTION
Turning the coolant reservoir
pressure cap when the engine
and radiator are hot can allow
steam and scalding liquids to blow
out and burn you badly. Never
turn the coolant reservoir pressure
cap – even a little – when the
engine and radiator are hot.
The vehicle must be on a level
surface. When your engine is cold,
the coolant level should be at
the KALT/COLD line.
Do not overll the coolant reservoir.
Too much coolant can result in
an overow condition when the
uid is hot.
Vehicle Service and Care 9-17
ProCarManuals.com

Power Steering Fluid
When to Check Power
Steering Fluid
It is not necessary to check the
power steering uid level. A power
steering uid leak is the only
reason for uid loss. If a leak
occurs, take your vehicle to the
dealer/retailer service department
and have it repaired as soon
as possible.
Windshield Washer Fluid
What to Use
When you need windshield
washer uid, be sure to read the
manufacturer’s instructions before
use. If you will be operating
your vehicle in an area where
the temperature may fall below
freezing, use a uid that has
sufficient protection against freezing.
Adding Washer Fluid
Open the cap with the washer
symbol on it. Add washer uid
until the tank is full. SeeEngine
Compartment Overview on page 9-6
for reservoir location.Notice:
When using concentrated
washer uid, follow the
manufacturer’s instructions
for adding water.
Do not mix water with
ready-to-use washer uid.
Water can cause the solution
to freeze and damage your
washer uid tank and other
parts of the washer system.
Also, water does not clean as
well as washer uid.
Fill the washer uid tank only
three-quarters full when it is
very cold. This allows for uid
expansion if freezing occurs,
which could damage the tank
if it is completely full.
Do not use engine coolant
(antifreeze) in your windshield
washer. It can damage the
vehicle’s windshield washer
system and paint.
9-20 Vehicle Service and Care
ProCarManuals.com

Brakes
Brake Fluid
The brake master cylinder and, on
manual transmission vehicles,
the clutch hydraulic system use the
same reservoir. The reservoir is
lled with DOT-4 brake uid.
SeeEngine Compartment Overview
on page 9-6for the location of
the reservoir.
There are only two reasons why the
brake uid level in the reservoir
might go down:
The brake uid level goes down
because of normal brake lining
wear. When new linings are
installed, the uid level goes
back up.
A uid leak in the brake and/or
clutch hydraulic system can also
cause a low uid level. Have the
brake and/or clutch hydraulic
system xed, since a leak means
that sooner or later the brakes
and/or clutch will not work well.
Do not top off the brake/clutch uid.
Adding uid does not correct a leak.
If uid is added when the brake
linings are worn, there will be too
much uid when new brake linings
are installed. Add or remove uid, as
necessary, only when work is done
on the brake/clutch hydraulic system.
{CAUTION
If too much brake uid is added,
it can spill on the engine and
burn, if the engine is hot enough.
You or others could be burned,
(Continued)
CAUTION (Continued)
and the vehicle could be
damaged. Add brake uid only
when work is done on the brake
and/or clutch hydraulic system.
Refer toScheduled Maintenance on
page 11-3to determine when to
check the brake uid.
Checking Brake Fluid
The brake uid can be checked
without taking off the cap by looking
at the brake uid reservoir.
The uid level should be above
MIN. If it is not, have your brake
hydraulic system checked to see if
there is a leak. After work is
done on the brake hydraulic system,
make sure the level is above the
MIN but not over the MAX mark.
9-22 Vehicle Service and Care
ProCarManuals.com

{CAUTION
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Check that the jumper cables
do not have loose or missing
insulation. If they do, you could
get a shock. The vehicles
could be damaged too.
Before you connect the cables,
here are some things you to
know. Positive (+) will go
to positive (+) or to a remote
positive (+) terminal if the vehicle
has one. Negative (−) will go
to the engine lift hook.
Do not connect positive (+) to
negative (−) or you will get
a short that would damage the
battery and maybe other
parts too. And do not connect
the negative (−) cable tothe negative (−) terminal on the
dead battery because this
can cause sparks.
6. Connect the red positive (+)
cable to the positive (+) terminal
of the dead battery. Use a
remote positive (+) terminal if
the vehicle has one.
7. Do not let the other end touch
metal. Connect it to the
positive (+) terminal of the
good battery. Use a remote
positive (+) terminal if the
vehicle has one.
8. Now connect the black
negative (−) cable to the
negative (−) terminal of the
good battery. Use a remote
negative (−) terminal if the
vehicle has one.
Do not let the other end touch
anything until the next step.
The other end of the negative (−)
cabledoes notgo to the dead
battery.9. Connect the other end of the
negative (−) cable at least
18 inches (45 cm) away from
the dead battery, but not
near engine parts that move.
Connect it to the engine lift hook.
You may need to scrape the
surface with your jumper cable
to obtain a proper ground.
The electrical connection is just
as good there, and the chance
of sparks getting back to the
battery is much less.
Vehicle Service and Care 9-71
ProCarManuals.com

Service and
Maintenance
Service and Maintenance
Introduction.......................11-1
Maintenance
Requirements..................11-1
Your Vehicle and the
Environment....................11-2
Using the Maintenance
Schedule.........................11-2
Scheduled Maintenance. . . .11-3
Additional Required
Services..........................11-6
Maintenance Footnotes.....11-8
Owner Checks and
Services..........................11-9
At Each Fuel Fill...............11-9
At Least Once a Month. . .11-10
At Least Once a Year.....11-10
Recommended Fluids
and Lubricants...............11-12
Maintenance
Replacement Parts........11-14
Engine Drive Belt
Routing..........................11-15
Maintenance Record........11-16
Service and
Maintenance
Introduction
Important: Keep engine oil at
the proper level and change as
recommended.
Maintenance
Requirements
Notice:Maintenance intervals,
checks, inspections, replacement
parts, and recommended uids
and lubricants as prescribed
in this manual are necessary to
keep this vehicle in good working
condition. Any damage caused
by failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.
Service and Maintenance 11-1
ProCarManuals.com
