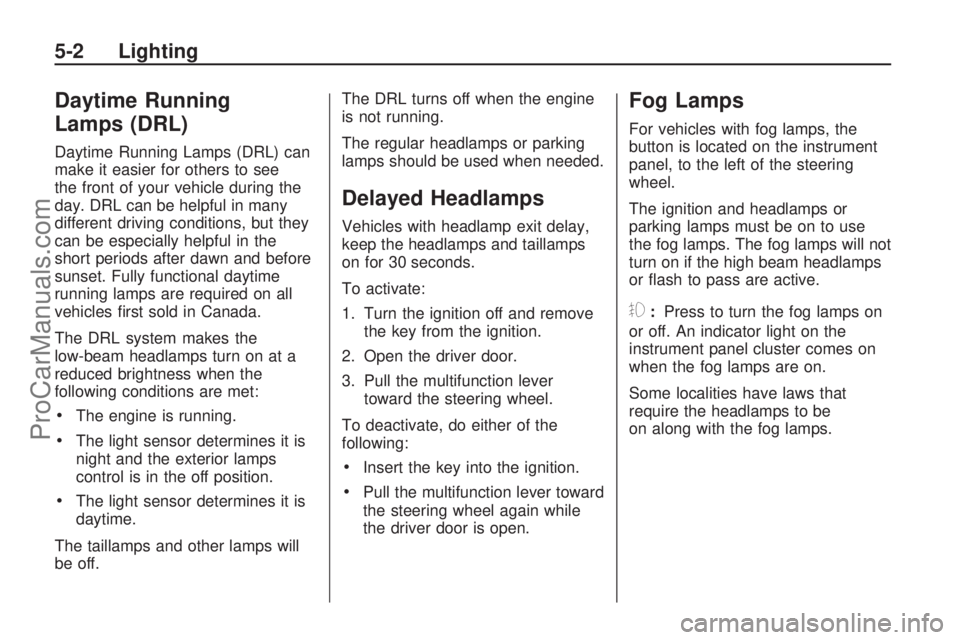

2009 SATURN ASTRA headlamp

Daytime Running
Lamps (DRL)
Daytime Running Lamps (DRL) can
make it easier for others to see
the front of your vehicle during the
day. DRL can be helpful in many
different driving conditions, but they
can be especially helpful in the
short periods after dawn and before
sunset. Fully functional daytime
running lamps are required on all
vehicles rst sold in Canada.
The DRL system makes the
low-beam headlamps turn on at a
reduced brightness when the
following conditions are met:
The engine is running.
The light sensor determines it is
night and the exterior lamps
control is in the off position.
The light sensor determines it is
daytime.
The taillamps and other lamps will
be off.The DRL turns off when the engine
is not running.
The regular headlamps or parking
lamps should be used when needed.
Delayed Headlamps
Vehicles with headlamp exit delay,
keep the headlamps and taillamps
on for 30 seconds.
To activate:
1. Turn the ignition off and remove
the key from the ignition.
2. Open the driver door.
3. Pull the multifunction lever
toward the steering wheel.
To deactivate, do either of the
following:
Insert the key into the ignition.
Pull the multifunction lever toward
the steering wheel again while
the driver door is open.
Fog Lamps
For vehicles with fog lamps, the
button is located on the instrument
panel, to the left of the steering
wheel.
The ignition and headlamps or
parking lamps must be on to use
the fog lamps. The fog lamps will not
turn on if the high beam headlamps
or ash to pass are active.
#:Press to turn the fog lamps on
or off. An indicator light on the
instrument panel cluster comes on
when the fog lamps are on.
Some localities have laws that
require the headlamps to be
on along with the fog lamps.
5-2 Lighting
ProCarManuals.com

While driving on a surface with
reduced traction, try your best to
avoid sudden steering, acceleration,
or braking, including reducing vehicle
speed by shifting to a lower gear.
Any sudden changes could cause
the tires to slide. You might not
realize the surface is slippery until
the vehicle is skidding. Learn to
recognize warning clues — such as
enough water, ice, or packed snow
on the road to make a mirrored
surface — and slow down when you
have any doubt.
Remember: Any Antilock Brake
System (ABS) helps avoid only the
braking skid.Driving at Night
Night driving is more dangerous than
day driving because some drivers
are likely to be impaired — by alcohol
or drugs, with night vision problems,
or by fatigue.
Night driving tips include:
Drive defensively.
Do not drink and drive.
Reduce headlamp glare by
adjusting the inside rearview
mirror.
Slow down and keep more space
between you and other vehicles
because headlamps can only
light up so much road ahead.
Watch for animals.
When tired, pull off the road.
Do not wear sunglasses.
Avoid staring directly into
approaching headlamps.
Keep the windshield and all glass
on your vehicle clean — inside
and out.
Keep your eyes moving,
especially during turns or curves.
No one can see as well at night as
in the daytime. But, as we get
older, these differences increase.
A 50-year-old driver might need
at least twice as much light to see
the same thing at night as a
20-year-old.
Driving and Operating 8-23
ProCarManuals.com

Repeat this until help arrives but
only when you feel really
uncomfortable from the cold. Moving
about to keep warm also helps.
If it takes some time for help
to arrive, now and then when you
run the engine, push the accelerator
pedal slightly so the engine runs
faster than the idle speed. This
keeps the battery charged to restart
the vehicle and to signal for help
with the headlamps. Do this as little
as possible to save fuel.
If Your Vehicle is Stuck
in Sand, Mud, Ice,
or Snow
Slowly and cautiously spin the
wheels to free the vehicle when
stuck in sand, mud, ice, or snow.
SeeRocking Your Vehicle to Get It
Out on page 8-29.
{CAUTION
If you let your vehicle’s tires spin
at high speed, they can explode,
and you or others could be
injured. The vehicle can overheat,
causing an engine compartment
re or other damage. Spin the
wheels as little as possible and
avoid going above 35 mph
(55 km/h) as shown on the
speedometer.
For information about using tire
chains on the vehicle, seeTire
Chains on page 9-60.
Rocking Your Vehicle to
Get It Out
Turn the steering wheel left and
right to clear the area around
the front wheels. Turn off any
stability system. Shift back and forth
between R (Reverse) and a
forward gear, or with a manual
transmission, between 1 (First) or
2 (Second) and R (Reverse),
spinning the wheels as little as
possible. To prevent transmission
wear, wait until the wheels stop
spinning before shifting gears.
Release the accelerator pedal while
shifting, and press lightly on the
accelerator pedal when the
transmission is in gear. Slowly
spinning the wheels in the forward
and reverse directions causes a
rocking motion that could free
the vehicle. If that does not get the
vehicle out after a few tries, it
might need to be towed out. If the
vehicle does need to be towed
out, seeTowing Your Vehicle on
page 9-73.
Driving and Operating 8-29
ProCarManuals.com

Vehicle Service
and Care
Service
Service...............................9-2
Accessories and
Modications.....................9-3
California Proposition 65
Warning............................9-3
California Perchlorate
Materials Requirements.....9-3
Doing Your Own
Service Work....................9-4
Adding Equipment to the
Outside of the Vehicle......9-4
Owner Checks
Owner Checks....................9-4
Hood Release.....................9-5
Engine Compartment
Overview...........................9-6
Engine Oil..........................9-7
Engine Oil Life System.......9-9
Engine Air Cleaner/Filter. . .9-11
Automatic Transmission
Fluid................................9-12
Manual Transmission
Fluid................................9-12
Hydraulic Clutch................9-12
Cooling System.................9-12
Engine Coolant.................9-16
Pressure Cap....................9-18
Engine Overheating...........9-18
Power Steering Fluid.........9-20
Windshield Washer
Fluid................................9-20
Windshield Wiper Blade
Replacement...................9-21
Brakes..............................9-22
Battery..............................9-25
Headlamp Aiming
Headlamp Aiming..............9-26
Bulb Replacement
Bulb Replacement.............9-28
Halogen Bulbs..................9-28
Front Turn Signal
Lamps.............................9-28
Center High-Mounted
Stoplamp (CHMSL).........9-29
Taillamps (Five-Door
Hatchback)......................9-30
Taillamps (Three-Door
Hatchback)......................9-32
License Plate Lamp..........9-33
Replacement Bulbs...........9-34
Electrical System
Add-On Electrical
Equipment.......................9-34
Headlamp Wiring..............9-34
Fuses...............................9-35
Engine Compartment
Fuse Block......................9-35
Rear Compartment Fuse
Block...............................9-37
Tires
Tires.................................9-40
Winter Tires......................9-41
Tire Sidewall Labeling.......9-42
Tire Terminology and
Denitions.......................9-44
Ination - Tire Pressure. . . .9-47
High-Speed Operation.......9-48
Tire Pressure Monitor
System............................9-49
Tire Pressure Monitor
Operation........................9-51
Tire Inspection and
Rotation..........................9-52
Vehicle Service and Care 9-1
ProCarManuals.com

Headlamp Aiming
The optical headlamp aiming system
has been preset at the factory and
should need no further adjustment.
However, If the vehicle is damaged
in a crash, the headlamp aim may be
affected and adjustment may be
necessary.
If oncoming vehicles ash their high
beams at you, this may also mean
the vertical aim needs to be adjusted.
It is recommended that the vehicle
is taken to your dealer/retailer for
service if the headlamps need to be
re-aimed. It is possible however,
to re-aim the headlamps as
described.The vehicle should:Be placed so the headlamps
are 25 ft. (7.6 m) from a light
colored wall.
Have all four tires on a perfectly
level surface which is level all
the way to the wall.
Be placed so it is perpendicular
to the wall.
Not have any snow, ice, or
mudonit.
Be fully assembled and all other
work stopped while headlamp
aiming is being done.
Have a full tank of fuel and
one person or 160 lbs (75 kg)
on the driver seat.
Have all tires properly inated.
Headlamp aiming is done with
the vehicle’s low-beam headlamps.
The high-beam headlamps will
be correctly aimed if the low-beam
headlamps are aimed properly.To adjust the vertical aim on the
headlamps:
1. Open the hood. SeeHood
Release on page 9-5for
more information.
2. Locate the aim dot on the lens of
the low-beam headlamp.
3. Record the distance from the
ground to the aim dot on the
low-beam headlamp.
9-26 Vehicle Service and Care
ProCarManuals.com

4. At a wall, measure from the
ground upward (A) to the
recorded distance from Step 3
and mark it.
5. Draw or tape a horizontal line (B)
on the wall the width of the
vehicle at the height of the mark
in Step 4.Notice:Do not cover a headlamp
to improve beam cut-off when
aiming. Covering a headlamp may
cause excessive heat build-up
which may cause damage to the
headlamp.
6. Turn on the low-beam headlamps
and place a piece of cardboard
or equivalent in front of the
headlamp not being adjusted.
Do not place it directly on
the headlamp. This allows only
the beam of light from the
headlamp being adjusted to be
seen on the at surface.7. Locate the vertical headlamp
aiming screws, which are
under the hood near each
headlamp assembly.
The adjustment screw can be
turned with a 6 mm socket
wrench.
8. Turn the vertical aiming screw
until the headlamp beam is
aimed to the horizontal
tape line. Turn it clockwise or
counterclockwise to raise
or lower the angle of the beam.
Vehicle Service and Care 9-27
ProCarManuals.com

9. Make sure that the light from
the headlamp is positioned
at the bottom edge of the
horizontal tape line. The lamp
on the left (A) shows the correct
headlamp aim. The lamp on the
right (B) shows the incorrect
headlamp aim.
10. Repeat Steps 7 through 9 for
the opposite headlamp.
Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs
on page 9-34.
For any bulb changing procedure
not listed in this section, contact
your dealer/retailer.
Halogen Bulbs
{CAUTION
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
Front Turn Signal Lamps
1. The bulbs of the turn signal lamp
are replaced through openings in
the front wheel wells. Turn the
wheel to gain access to the push
tabs and remove the cover.
9-28 Vehicle Service and Care
ProCarManuals.com

Replacement Bulbs
Exterior LampBulb
Number
Front Turn
Signal Lamp3157 NAK
License
Plate LampW5W
Parking Lamp 4157K
Taillamp W21
For replacement bulbs not listed
here, contact your dealer/retailer.
Electrical System
Add-On Electrical
Equipment
Notice:Do not add anything
electrical to the vehicle unless you
check with your dealer/retailer
rst. Some electrical equipment
can damage the vehicle and the
damage would not be covered by
the vehicle’s warranty. Some
add-on electrical equipment can
keep other components from
working as they should.
Add-on equipment can drain the
vehicle battery, even if the vehicle is
not operating.The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing Your Airbag-Equipped
Vehicle on page 1-35.Headlamp Wiring
The headlamp wiring is protected
by fuses in the fuse block.
An electrical overload will cause the
lamps to turn off. If this happens,
have the headlamp wiring checked
right away.
9-34 Vehicle Service and Care
ProCarManuals.com
