82A-8
ENGINE IMMOBILISER
Battery for remote door locking control: Removal - Refitting82A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the bolt (1) .
aOpen the key with a small flat-blade screwdriver at
(2) .aRemove the battery (3) from the door locking remote
control using a small flat-blade screwdriver.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
a
aFit the door locking remote control battery.
aClose the key.
aTighten the bolt.
107732
107733
107731
WARNING
To ensure that the remote control operates cor-
rectly, take care not to damage the battery con-
tacts.
Only handle the new battery with dry, grease-free
hands or wearing clean gloves to avoid any risk
of dir t and oxidation on the battery.

83A-3
INSTRUMENT PANEL
Rev counter: Removal - Refitting
ENGINE REV COUNTER
83A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the rear trim (1) from the rev counter.aRemove the nut (2) from the rev counter.
aDisconnect the rev counter connector.
aRemove the rev counter (3) from above.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
aConnect the rev counter connector.
aRefit:
-the rev counter,
-the rev counter nut.
aTorque tighten the rev counter nut (8 Nm).
aClip on the rev counter rear trim. Tightening torquesm
rev counter nut8 Nm
119501
119500

84A-2
CONTROL - SIGNALS
Steering column switch assembly: Removal - Refitting84A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a
Set the wheels straight ahead.
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(88C, Airbags and pretensioners).
aDisconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .
aRemove the rev counter (see 83A, Instrument pa-
nel, Rev counter: Removal - Refitting, page 83A-
3) .aRemove the lower cover bolts (1) .
aUnclip the upper cover at (2) .
aRemove the upper cover (3) . Equipment required
Diagnostic tool
WARNING
To prevent damaging the rotar y switch, do not turn
the mobile section of the rotary switch.
WARNING
Incorrect wheel alignment could ruin the rotary
switch.
ENGINE REV COUNTER
127437
127438

84A-5
CONTROL - SIGNALS
Steering column switch assembly: Removal - Refitting84A
aCheck that the rotary switch is positioned correctly:
the outlet for the driver's front airbag (9) wiring
always must be facing upwards.
aAt the last moment, remove the immobilised (10)
connector.
II - FINAL OPERATION.
aRefit:
-the steering wheel (see Steering wheel: Removal
- Refitting) (36B, Power-assisted steering),
-the driver's front airbag (see 88C, Air bag and Pre-
tensioners, Driver's frontal airbag: Removal -
Refitting, page 88C-6) .
-the cowlings under the steering wheel.
aRefit the rev counter (see 83A, Instrument panel,
Rev counter: Removal - Refitting, page 83A-3) .
aConnect the battery (see 80A, Battery, Battery: Re-
moval - Refitting, page 80A-2) .
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents) (88C, Airbags and pretensioners).
aSwitch on the ignition.
aCheck the operation of the rotary switch:
-turn the steering wheel to the left until it stops,-turn the steering wheel to the right until it stops,
-check that there are no faults on the instrument pa-
nel.
127766
ENGINE REV COUNTER

84A-6
CONTROL - SIGNALS

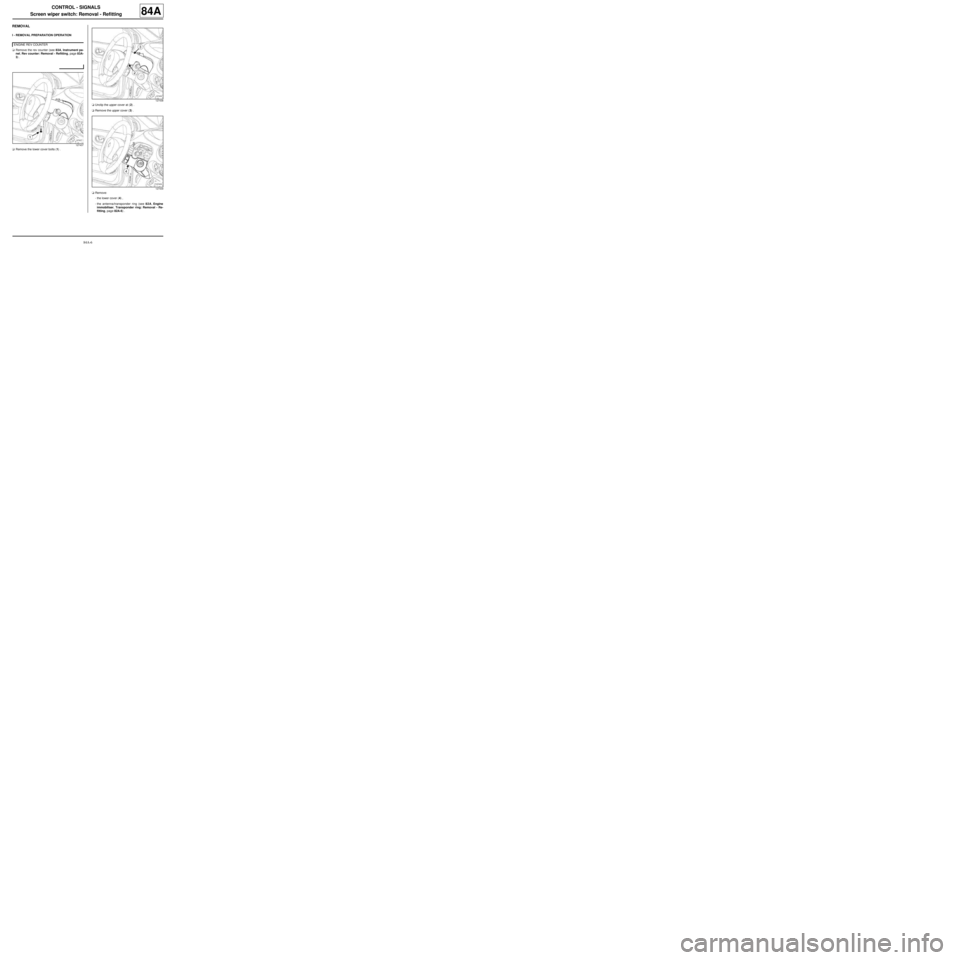

Screen wiper switch: Removal - Refitting
84A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the rev counter (see 83A, Instrument pa-
nel, Rev counter: Removal - Refitting, page 83A-
3) .
aRemove the lower cover bolts (1) .aUnclip the upper cover at (2) .
aRemove the upper cover (3) .
aRemove:
-the lower cover (4) ,
-the antenna/transponder ring (see 82A, Engine
immobiliser, Transponder ring: Removal - Re-
fitting, page 82A-6) . ENGINE REV COUNTER
127437
127438
127439

84A-7
CONTROL - SIGNALS
Screen wiper switch: Removal - Refitting
84A
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect the connector (5) .
aRemove the windscreen wiper switch by pressing
down on the clips (6) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aConnect the wiper switch connector.
aClip the windscreen wiper switch onto the rotary
switch.
II - FINAL OPERATION.
aRefit:
-the antenna/transponder ring (see 82A, Engine
immobiliser, Transponder ring: Removal - Re-
fitting, page 82A-6) ,
-the cowlings under the steering wheel.
aRefit the rev counter (see 83A, Instrument panel,
Rev counter: Removal - Refitting, page 83A-3) .
127765
ENGINE REV COUNTER

84A-8
CONTROL - SIGNALS
Signals and lighting switch: Removal - Refitting
84A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the rev counter (see 83A, Instrument pa-
nel, Rev counter: Removal - Refitting, page 83A-
3) .
aRemove the lower cover bolts (1) .aUnclip the upper cover at (2) .
aRemove the upper cover (3) .
aRemove the lower cover (4) . ENGINE REV COUNTER
127437
127438
127439

84A-9
CONTROL - SIGNALS
Signals and lighting switch: Removal - Refitting
84A
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect the connector (5) .
aRemove the signal lighting switch by pressing on the
clips (6) .
REMOVAL
I - REFITTING OPERATION FOR PART
CONCERNED
aConnect the signalling light switch connector.
aClip the indicator light switch onto the rotary switch.
II - FINAL OPERATION.
aRefit the covers under the steering wheel.
aRefit the rev counter (see 83A, Instrument panel,
Rev counter: Removal - Refitting, page 83A-3) .
121133
ENGINE REV COUNTER
