86A-59
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ003 Fault memory, after pressing the ON/
OFF button.
Deal with any other faults.
V1 MR-413-X44-86A150$120.mif
RADIO
Fault finding – Interpretation of faults86A
R2-08
Vdiag No.: 64
DF064
PRESENT
OR
STOREDACTIVATION SIGNAL
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
CO: Open circuit
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after:
–the + after ignition feed is activated,
–the multimedia system has been switched on using the on/off button.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
For a vehicle equipped with a navigation system, use the multimedia connection unit
computer, component code 1714, for fault finding.
For a vehicle without a navigation system, use the display computer, component code
653, for fault finding.
Check the condition of the connector on the radio, component code 261, and, depending on the equipment level,
on the display, component code 653, or on the multimedia connection unit, component code 1714.
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation, continuity and absence of interference resistance on the following connections:
•34HY between,components 261 and 653 or 1714,
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the connection is correct, replace the radio (see MR 392 (Clio III) or MR 411 (New Twingo) Mechanical, 86A,
Radio, Radio: Removal - Refitting).
If the fault persists, contact your Techline.
R208_V64_DF064

86A-60V1 MR-413-X44-86A150$130.mif
86A
R2-08
Vdiag No.: 64
MAIN SCREEN
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application condition: engine off, ignition on.
FunctionParameter or status
checked or actionDisplay and notes Fault finding
SupplyET057:Activation
signalPRESENT ABSENTIn the event of an
inconsistency, consult the
interpretation of fault DF064
Activation signal.
Presence of
another deviceET001:Presence
of another
devicePRESENT ABSENTIn the event of an
inconsistency, contact the
Techline.
Wake upET065:Activation
requestPRESENT ABSENTIn the event of an
inconsistency, consult the
interpretation of fault DF064
Activation signal.
Radio
receptionPR007:FM1 radio
field
intensity0 dBµV inconsistency, consult the
interpretation of parameter
PR007.
R208_V64_CCONF
RADIO
Fault finding – Conformity check

86A-61V1 MR-413-X44-86A150$130.mif
RADIO
Fault finding – Conformity check86A
R2-08
Vdiag No.: 64
FUNCTION: MULTIMEDIA
SUB-FUNCTION: AUDIO
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application condition: engine off, ignition on.
FunctionParameter or status checked
or actionDisplay and notes Fault finding
Audio testAC004:Test right front
speaker line
This command is used to
successively activate
each speaker.In the event of an
inconsistency, consult the
interpretation of fault DF001
Front right-hand speaker.
AC005:Test left front
speaker lineIn the event of an
inconsistency, consult the
interpretation of fault DF002
Front left-hand speaker.
AC006:Test right rear
speaker lineIn the event of an
inconsistency, consult the
interpretation of fault DF003
Rear right-hand speaker.
AC007:Test left rear
speaker lineIn the event of an
inconsistency, consult the
interpretation of fault DF004
Rear left-hand speaker.
Microphone testAC010:Microphone testThis command is for
testing microphone
operation.
NOTE:
Test in a quiet place.
Command AC010 is
inactive if the auxiliary
source is selected.
Example: presence of
a USB key.In the event of an
inconsistency, consult the
interpretation of fault DF056
Microphone.

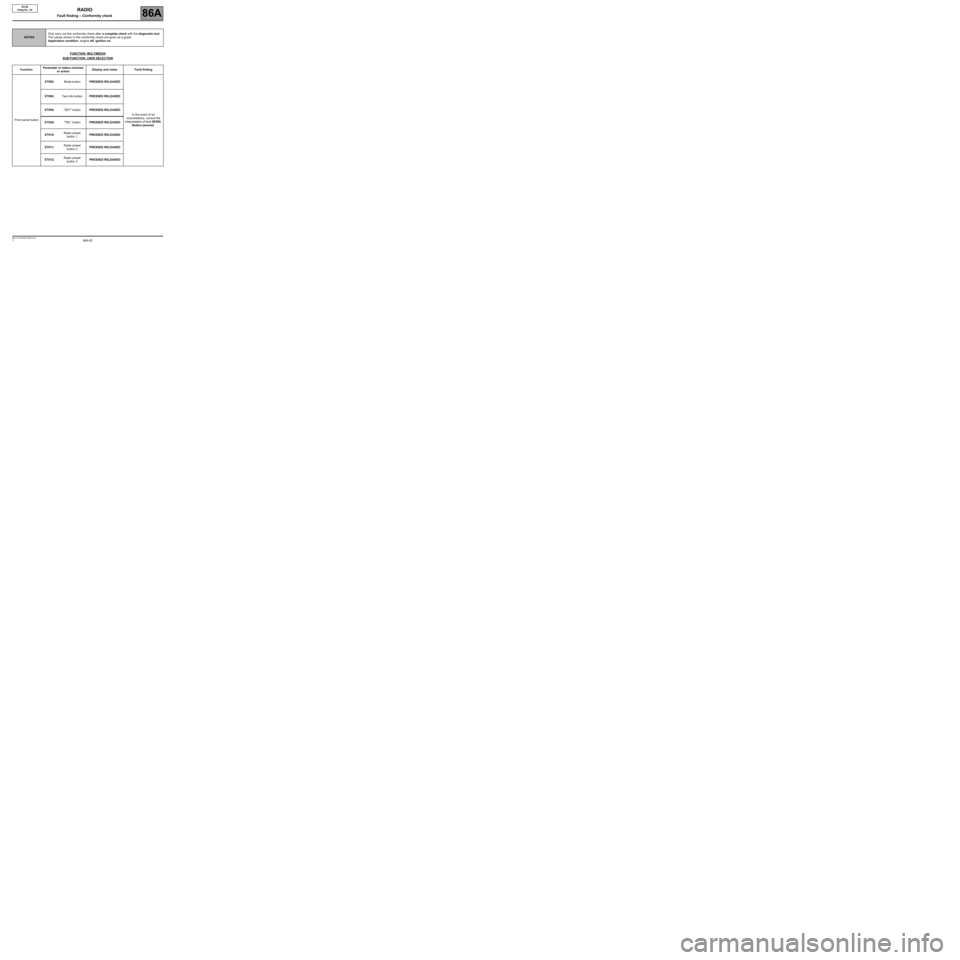

86A-62V1 MR-413-X44-86A150$130.mif
RADIO
Fault finding – Conformity check86A
R2-08
Vdiag No.: 64
FUNCTION: MULTIMEDIA
SUB-FUNCTION: USER SELECTION
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application condition: engine off, ignition on.
FunctionParameter or status checked
or actionDisplay and notes Fault finding
Front panel buttonET002:Mode buttonPRESSED RELEASED
In the event of an
inconsistency, consult the
interpretation of fault DF055
Button jammed. ET062:Text info buttonPRESSED RELEASED
ET040:"SET" buttonPRESSED RELEASED
ET039:"TEL" buttonPRESSED RELEASED
ET010:Radio preset
button 1PRESSED RELEASED
ET011:Radio preset
button 2PRESSED RELEASED
ET012:Radio preset
button 3PRESSED RELEASED

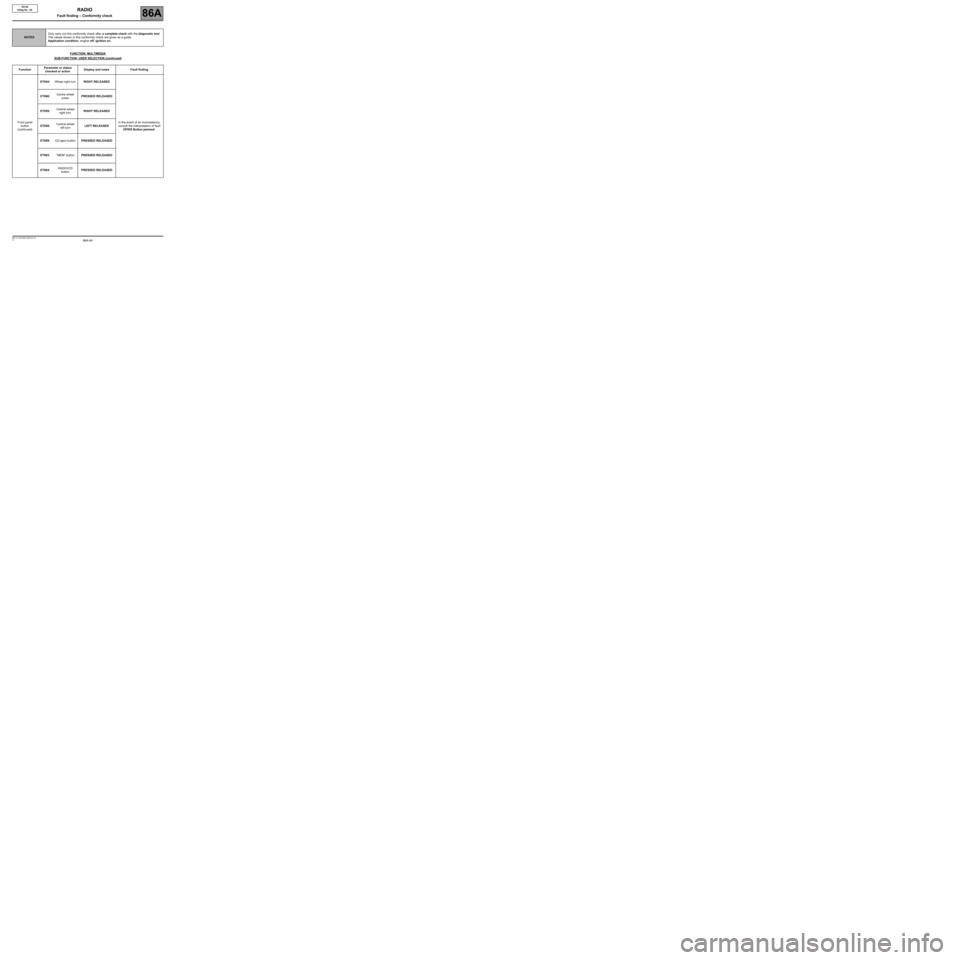

86A-63V1 MR-413-X44-86A150$130.mif
RADIO
Fault finding – Conformity check86A
R2-08
Vdiag No.: 64
FUNCTION: MULTIMEDIA
SUB-FUNCTION: USER SELECTION (continued)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application condition: engine off, ignition on.
FunctionParameter or status checked
or actionDisplay and notes Fault finding
Front panel buttonET013:Radio preset
button 4PRESSED RELEASED
In the event of an
inconsistency, consult the
interpretation of fault DF055
Button jammed. ET014:Radio preset
button 5PRESSED RELEASED
ET015:Radio preset
button 6PRESSED RELEASED
ET003:Right directional
buttonPRESSED RELEASED
ET004:Left directional
buttonPRESSED RELEASED
ET035:Fast forward
buttonPRESSED RELEASED
ET034:Rewind buttonPRESSED RELEASED
ET036:Wheel press on/
offPRESSED RELEASED
ET043:Wheel left turnLEFT RELEASED

86A-64V1 MR-413-X44-86A150$130.mif
RADIO
Fault finding – Conformity check86A
R2-08
Vdiag No.: 64
FUNCTION: MULTIMEDIA
SUB-FUNCTION: USER SELECTION (continued)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application condition: engine off, ignition on.
FunctionParameter or status
checked or actionDisplay and notes Fault finding
Front panel
button
(continued)ET044:Wheel right turnRIGHT RELEASED
In the event of an inconsistency,
consult the interpretation of fault
DF055 Button jammed. ET060:Centre wheel
pressPRESSED RELEASED
ET059:Central wheel
right turnRIGHT RELEASED
ET058:Central wheel
left turnLEFT RELEASED
ET009:CD eject buttonPRESSED RELEASED
ET063:"MEM" buttonPRESSED RELEASED
ET064:RADIO/CD
buttonPRESSED RELEASED

86A-65V1 MR-413-X44-86A150$130.mif
RADIO
Fault finding – Conformity check86A
R2-08
Vdiag No.: 64
FUNCTION: MULTIMEDIA
SUB-FUNCTION: USER SELECTION (continued)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application condition: engine off, ignition on.
FunctionParameter or status
checked or actionDisplay and notes Fault finding
RadioAC013CD ejectionThis command is used for
testing CD ejection from
the CD player.In the event of an inconsistency,
contact the Techline.

86A-68
AFTER REPAIRRepeat the conformity check from the start.
V1 MR-413-X44-86A150$160.mif
86A
R2-08
Vdiag No.: 64
PR007FM1 RADIO FIELD INTENSITY
NOTESThe values shown in this conformity check are given as a guide.
Test conditions: Engine off, ignition on and radio on.
Perform the conformity check outside, in an area with good radio reception and
without obstacles.
Conformity check:
Monitor the PR007 value of the diagnostic tool data display.
Display of frequency received for the radio station currently set.
Radio field intensity parameterRadio reception level
(data display)
Outdoor testUnit: dBµV
Data interpretation:
Radio reception value Status
X > 18 dBµVCorrect radio reception
14 dBµV < X < 18 dBµVCorrect sound quality
RDS decoding (for example: display
of station names) correct
Automatic synchronisation / Presence
in the radio list
not satisfactory
10 dBµV < X < 14 dBµVCorrect sound quality
RDS decoding (for example: display
of station names) not satisfactory
Automatic synchronisation / Presence
in the radio list
not satisfactory
X > 10 dBµVRadio reception not satisfactory
If the fault is still present, contact the Techline.
R208_V64_PR007
RADIO
Fault finding – Interpretation of parameters
