2009 RENAULT TWINGO RS traction control

17B-228V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET415CRUISE CONTROL/SPEED LIMITER DEACTIVATION
STATUS
DEFINITIONThis status varies according to engine specifications.
NOTESSpecial notes:
Perform these checks if the parameters correspond with the system operation
programming.
Conformity check with engine stopped and ignition on, or engine running, and engine coolant
temperature > 80˚C
STATUS 1:Traction control request.
STATUS 2:Brake pedal depressed.
STATUS 3:Clutch pedal depressed.
STATUS 4:Suspend button pressed.
STATUS 5:Cruise control or speed limiter monitoring.
STATUS 6:Inconsistency between the request and the vehicle speed. Gear lever in neutral
(manual gearbox) or the N position (automatic gearbox).
SIM32_V44_ET415/SIM32_V4C_ET415/SIM32_V50_ET415/SIM32_V54_ET415
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

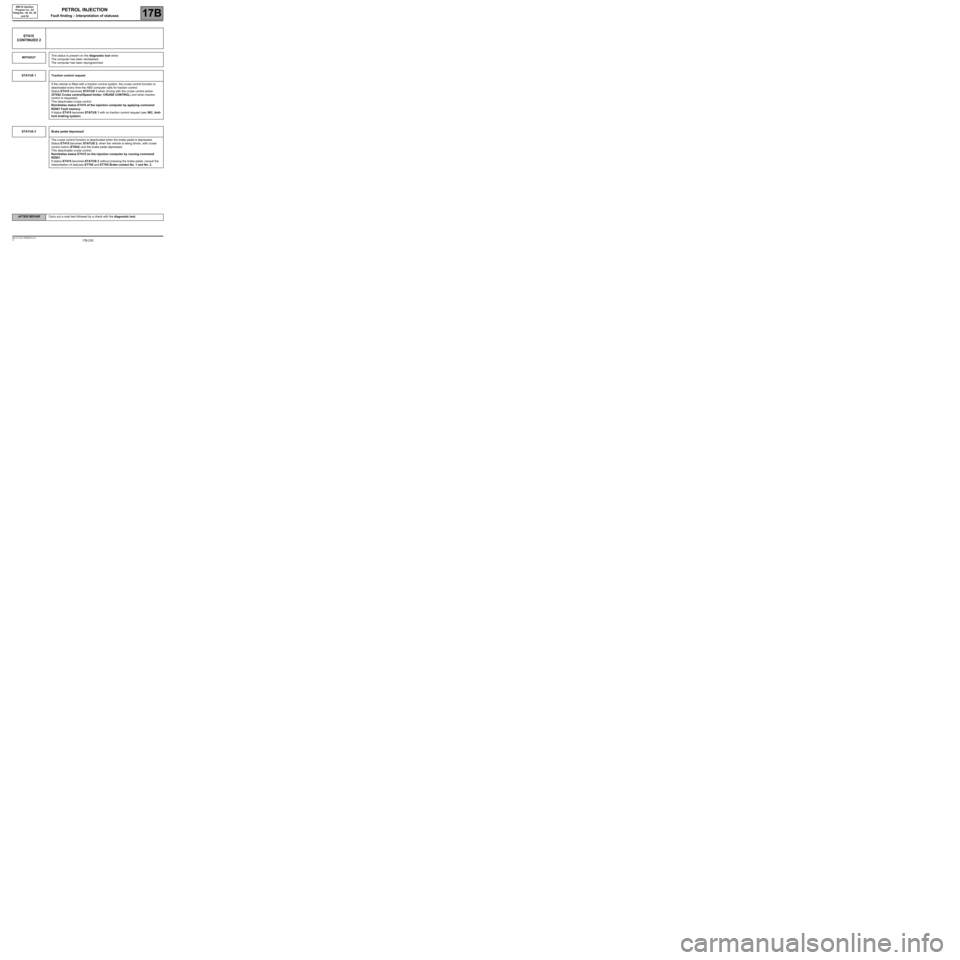

17B-230V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET415
CONTINUED 2
WITHOUTThis status is present on the diagnostic tool when:
The computer has been reinitialised,
The computer has been reprogrammed.
STATUS 1 Traction control request
If the vehicle is fitted with a traction control system, the cruise control function is
deactivated every time the ABS computer calls for traction control.
Status ET415 becomes STATUS 1 when driving with the cruise control active
(ET042 Cruise control/Speed limiter: CRUISE CONTROL) and when traction
control is requested.
This deactivates cruise control.
Reinitialise status ET415 of the injection computer by applying command
RZ001 Fault memory.
If status ET415 becomes STATUS 1 with no traction control request (see 38C, Anti-
lock braking system).
STATUS 2 Brake pedal depressed
The cruise control function is deactivated when the brake pedal is depressed.
Status ET415 becomes STATUS 2, when the vehicle is being driven, with cruise
control active (ET042) and the brake pedal depressed.
This deactivates cruise control.
Reinitialise status ET415 on the injection computer by running command
RZ001.
If status ET415 becomes STATUS 2 without pressing the brake pedal, consult the
interpretation of statuses ET704 and ET705 Brake contact No. 1 and No. 2.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-237V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET557CRUISE CONTROL/SPEED LIMITER DEACTIVATION BY

FUNCTION
STATUS
DEFINITIONSTATUS 1: This status indicates that deactivation occurs when vehicle speed is
considered invalid.
STATUS 2: This status indicates that deactivation occurs when the injection computer
detects a fault.
STATUS 3: This status indicates that deactivation occurs due to a cruise control/speed
limiter fault.
STATUS 4: This status indicates that deactivation is executed when there is an
inconsistency between the request and the vehicle speed.
STATUS 5: This status indicates that deactivation occurs after a traction control
request.
NOTESCruise control remains deactivated as long as the vehicle speed does not exceed
a speed V >18 mph (30 km/h).
IMPORTANT
Certain deactivations are stored by the computer.
To reinitialise this status, run RZ001 Fault memory.
SIM32_V44_ET557/SIM32_V4C_ET557/SIM32_V50_ET557/SIM32_V54_ET557
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.

17B-239V7 MR-413-X44-17B000$152.mif
PETROL INJECTION
Fault finding – Interpretation of statuses17B
SIM 32 Injection
Program no.: D3
Vdiag No.: 44, 4C, 50
and 54
ET557
CONTINUED 2
STATUS 3 Cruise control or speed limiter fault
If status ET557 is STATUS 3, consult the interpretation of status ET042 Cruise
control/speed limiter, to test the cruise control system components and find the
faulty component.
If status ET557 changes to STATUS 3, deal with the faults present or stored in the
computer.
If the fault is still present, contact the Techline.
STATUS 4 Invalid vehicle speed
If status ET557 changes to STATUS 4 if the vehicle speed received by the computer
is not consistent with the request.
In the event of any faults, run fault finding on the ABS computer (see 38C, Anti-lock
braking system).
If the fault is still present, contact the Techline.
STATUS 5 Traction control request
If the vehicle being diagnosed is fitted with traction control, the cruise control function
is deactivated each time traction control is selected.
Status ET557 changes to STATUS 5, when driving, with cruise control active and
traction control requested.
Status ET557 changes to STATUS 5 without a traction control request (see 38C,
Anti-lock braking system).
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
