87B-78
MR-413-X44-87B000$480.mif
V5
UCH
Vdiag No.: 44PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check87B
SUB-FUNCTION: LIGHTING OUTPUT
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
FunctionParameter or Status
Checked or ActionDisplay and notes Fault finding
Front fog lightsAC008:Front fog lightsThis command is used to
activate the front fog
light.In the event of a fault, apply the
interpretation of DF108.
Rear fog lightsAC009:Rear fog lightsThis command is used to
activate the rear fog light.In the event of a fault, apply the
interpretation of DF109.
Direction indicatorsAC022:Left-hand
direction
indicatorsThis command is used to
activate the left-hand
direction indicators.In the event of a fault, refer to the
interpretation for fault DF013
Left-hand direction indicator
circuit.
AC023:Right-hand
direction
indicatorsThis command is used to
activate the right-hand
direction indicators.In the event of a fault, refer to the
interpretation for fault DF012
Right-hand direction indicator
circuit.
LightsAC055:Side lightsThis command enables the
side lights to be activated.In the event of a fault, apply the
interpretation of DF087.
AC054:Dipped
headlightsThis command enables the
dipped beam headlights to
be activated.In the event of a fault, apply the
interpretation of DF088.

87B-79
MR-413-X44-87B000$480.mif
V5
UCH
Vdiag No.: 44PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check87B
SUB-FUNCTION: LIGHTING OUTPUT (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
FunctionParameter or Status
Checked or ActionDisplay and
NotesFault finding
Lights (continued)AC062:Main beam
headlightsThis command enables the
headlights to be activated.In the event of a fault, apply the
interpretation of DF098.
AC063:Progressive
switching on and off
of the courtesy lightThis command is used to
check that the gradual
courtesy light activation and
deactivation function is
operating correctly.In the event of a fault, apply the
interpretation of DF139.
Temperature
displayAC110:Temperature display Controls the display.In the event of a fault, apply the
interpretation of command
AC110.

87B-80
MR-413-X44-87B000$480.mif
V5
UCH
Vdiag No.: 44PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check87B
SUB-FUNCTION: WIPING CONTROL
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
FunctionParameter or Status
Checked or ActionDisplay and notes Fault finding
Wiper controlET077:Wiper stalk positionINACTIVE
INTERMITTENT
LOW-SPEED
HIGH SPEEDIn the event of a fault, apply the
interpretation of status ET077.
ET096:Wiper stalk
intermittent speed
ring position1
2
3
4
5In the event of a fault, apply the
interpretation of status ET096.
ET114:Windscreen wiper
request by rain
sensorABSENT
LOW-SPEED
HIGH SPEEDIn the event of a fault, apply the
interpretation of status ET114.
Windscreen wiper
park positionET078:Windscreen washer
requestACTIVE
INACTIVEIn the event of a fault, apply the
interpretation of status ET078.
ET027:Windscreen wiper
park positionACTIVE
INACTIVEIn the event of a fault, apply the
interpretation of status ET027.
Rear screen wiper
park positionET079:Rear screen washer
requestACTIVE
INACTIVEIn the event of a fault, apply the
interpretation of status ET079.
ET097:Rear screen wiper
park positionACTIVE
INACTIVEIn the event of a fault, apply the
interpretation of fault ET097.
ET080:Windscreen
rear screen wiperACTIVE
INACTIVEIn the event of a fault, apply the
interpretation of status ET080.
Reverse gearET109:Reverse gear
engagedYES
NOIn the event of a fault, apply the
interpretation of status ET109.

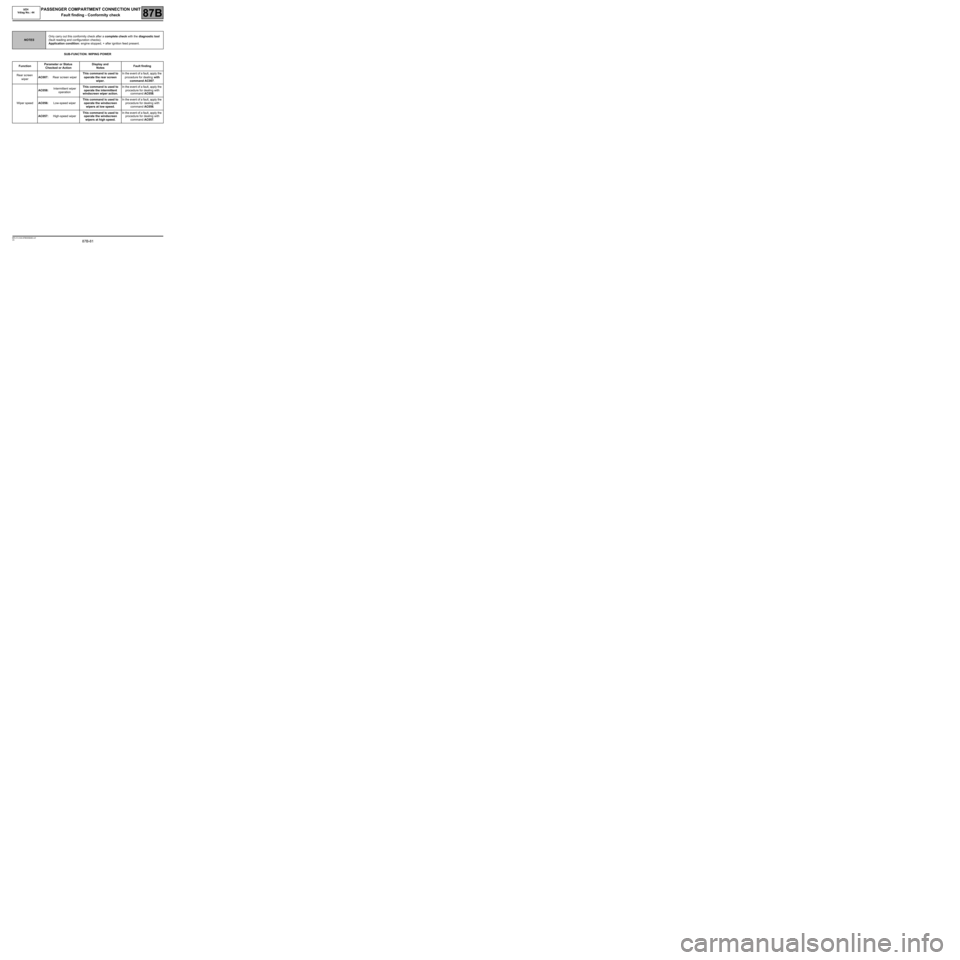

87B-81
MR-413-X44-87B000$480.mif
V5
UCH
Vdiag No.: 44PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check87B
SUB-FUNCTION: WIPING POWER
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
FunctionParameter or Status
Checked or ActionDisplay and
NotesFault finding
Rear screen
wiperAC007:Rear screen wiperThis command is used to
operate the rear screen
wiper.In the event of a fault, apply the
procedure for dealing with
command AC007.
Wiper speedAC058:Intermittent wiper
operationThis command is used to
operate the intermittent
windscreen wiper action.In the event of a fault, apply the
procedure for dealing with
command AC058.
AC056:Low-speed wiperThis command is used to
operate the windscreen
wipers at low speed.In the event of a fault, apply the
procedure for dealing with
command AC056.
AC057:High-speed wiperThis command is used to
operate the windscreen
wipers at high speed.In the event of a fault, apply the
procedure for dealing with
command AC057.

87B-82
MR-413-X44-87B000$480.mif
V5
UCH
Vdiag No.: 44PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check87B
SUB-FUNCTION: BATTERY
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
FunctionParameter or Status
Checked or ActionDisplay and notes Fault finding
Battery voltagePR001:Battery voltage9 V < X < 16 VIn the event of a fault, run fault
finding on the charging circuit
(see 80A, Battery).
PR074:Battery setpoint
voltageIndicates the battery
setpoint in V.In the event of a fault, apply the
interpretation of parameter
PR074.
PR076:Battery voltage after
restIndicates the battery
voltage after rest in V.In the event of a fault, apply the
interpretation of parameter
PR076.
Alternator
operationET142:Engine operating
phaseSTOPPED
STARTING
RUNNING
STALLEDIn the event of a fault, apply the
interpretation of status ET142.

87B-83
MR-413-X44-87B000$480.mif
V5
UCH
Vdiag No.: 44PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check87B
SUB-FUNCTION: ALTERNATOR
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
FunctionParameter or Status
Checked or ActionDisplay and notes Fault finding
Battery voltagePR073:Alternator charge
signalIndicates the
alternator charge in V.In the event of a fault, apply the
interpretation of parameter PR073.
Alternator
setpointPR075:Alternator setpoint
voltage
Indicates the alternator
setpoint in V.In the event of a fault, apply the
interpretation of parameter PR075.
Battery voltagePR001:Battery voltage9 V < X < 16 VIn the event of a fault, run fault finding
on the charging circuit (see, 80A
Battery), run fault finding on the
multiplex network (see 88B,
Multiplex) and run fault finding on the
injection (see 13B, Diesel injection
or 17B, Petrol injection).
EnginePR024:Engine coolant
temperature˚C
PR025:Engine speedrpmIn the event of a fault, run fault finding
on the multiplex network (see 88B,
Multiplex) and run fault finding on the
injection (see 13B, Diesel injection
or 17B, Petrol injection).
ET142:Engine operating
phaseSTOPPED
STARTING
RUNNING
STALLEDIn the event of a fault, apply the
interpretation of status ET142.
AlternatorAC130:Alternator regulationIndicates the
regulation of the
alternator in volts.In the event of a fault, run fault finding
on the charging circuit (see 80A,
Battery).

87B-95
MR-413-X44-87B000$576.mif
V5
UCH
Vdiag No.: 44PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
ET030
AIR CONDITIONING REQUEST 2
NOTESNo faults should be present or stored.
Apply the checks if:
–the status remains PRESENT when a climate control request had been made, with
the engine running.
SPECIFICATIONSABSENT
PRESENT
This is the request for air conditioning sent by the UCH to the engine management computer.
This request may reach the UCH in two ways:
–In the case of a vehicle fitted with manual air conditioning, by pressing on the air conditioning button.
–In the case of a vehicle fitted with climate control, by request from the user or the climate control computer in
automatic mode.
MANUAL AIR
CONDITIONING
Check that status ET142 Engine operating phase is RUNNING; otherwise, carry out
fault finding on the injection.
Check that status ET029 Air conditioning button is PRESSED (button indicator light
lit), otherwise perform fault finding on this status.
Check that status ET015 Passenger compartment blower is RUNNING; otherwise,
carry out fault finding on this status.
If the fault is still present, contact Techline.
If ET030 Air conditioning request 2 is Absent, check that there are no faults in the
UCH and injection system (see 13B, Diesel injection) or (see 17B, Petrol injection).
CLIMATE
CONTROLCarry out fault finding on the climate control computer (see 62B, regulated climate
control).
If the fault is still present, contact Techline.
AFTER REPAIRRepeat the conformity check from the start.
Carry out fault finding on the system.
UCH_V44_ET030

87B-99
MR-413-X44-87B000$576.mif
V5
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
UCH
Vdiag No.: 44
87B
ET046
ENGINE IMMOBILISER
NOTESNo faults should be present or stored.
Apply the checks only if, the status remains ACTIVE after the ignition is switched off
and back on again under the following conditions.
SPECIFICATIONSACTIVE
INACTIVE
Check sure that ET239 Ignition switch position is + after ignition feed. Otherwise, refer to the interpretation of
this status.
Check that ET185 Key code received is YES.
Otherwise, refer to the interpretation of this status.
Check that ET181 Key allocated to vehicle is YES.
Otherwise, refer to the interpretation of this status.
Check that ET008 UCH blank is NO.
Otherwise, refer to the interpretation of this status.
Check that ET229 Injection immobiliser code is PROGRAMMED.
Otherwise, refer to the interpretation of this status.
Check that ET250 Injection is NOT PROTECTED.
Otherwise, refer to the interpretation of this status.
Carry out fault finding on the multiplex network (see 88B, Multiplexing).
If none of the computers on the vehicle has a malfunction and the statuses named in the notes are working
properly, contact Techline.
AFTER REPAIRRepeat the conformity check from the start.
Carry out fault finding on the system.
UCH_V44_ET046
