81B-25
MR-413-X44-81B000$835_eng.mif
V1
INTERIOR LIGHTING
Fault finding chart81B
ALP 12The front ceiling light does not go out when the doors are closed,
when the doors are locked and when the vehicle is started
NOTESCheck that status ET463 “door(s) or tailgate” is open.
Use a test bulb to check for + 12 V between connection 13 E and connection BPT of component 213.
Is the test light lit?
YES
Check the condition of the interior light bulb.
Is the bulb correct?
YES
Check the continuity between connection 13 E and connection BPT of component 213.
Is the continuity correct?
YES
End of procedure.
NO
NO
Replace the interior light bulb.
NO
Replace the front courtesy light.

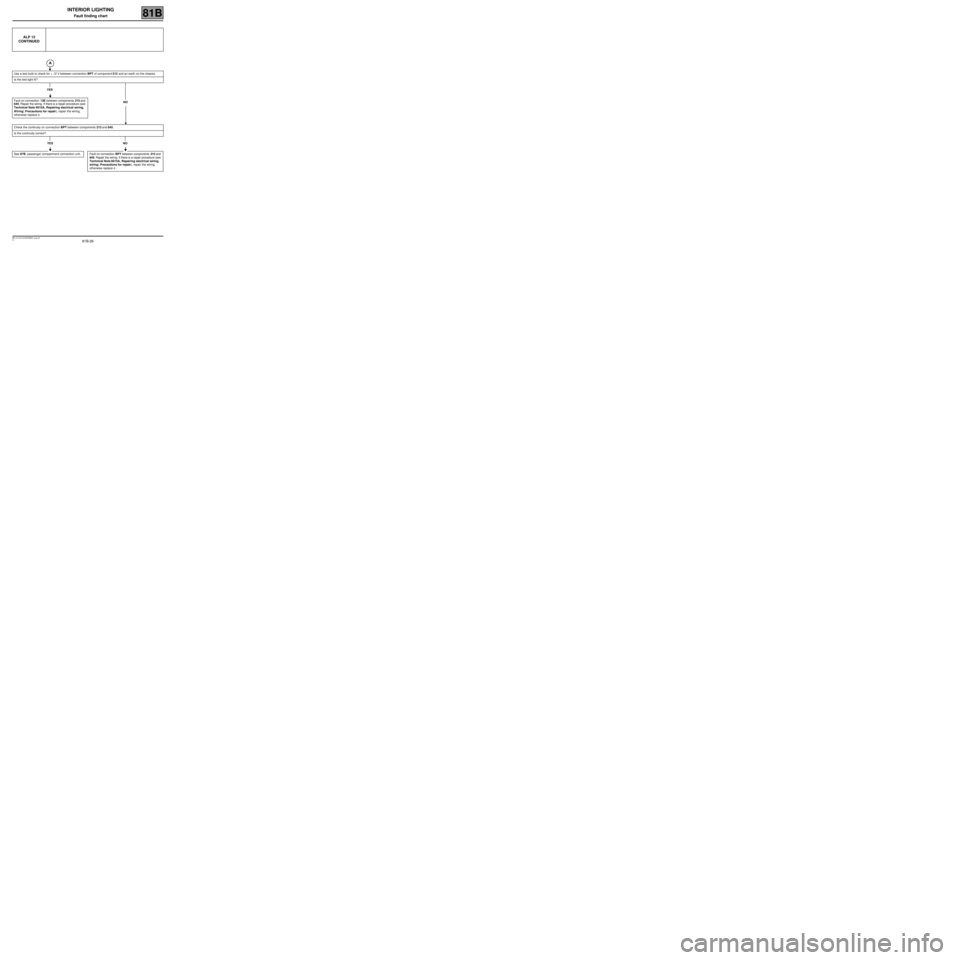

81B-26
MR-413-X44-81B000$835_eng.mif
V1
INTERIOR LIGHTING
Fault finding chart81B
ALP 12
CONTINUED
Use a test bulb to check for + 12 V between connection BPT of component 213 and an earth on the chassis.
Is the test light lit?
NO
Check the continuity on connection BPT between components 213 and 645.
Is the continuity correct?
YES
See 87B, passenger compartment connection unit.
YES
Fault on connection 13E between components 213 and
645. Repair the wiring. If there is a repair procedure (see
Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring,
otherwise replace it.
NO
Fault on connection BPT between components 213 and
645. Repair the wiring. If there is a repair procedure (see
Technical Note 6015A, Repairing electrical wiring,
wiring: Precautions for repair), repair the wiring,
otherwise replace it..
