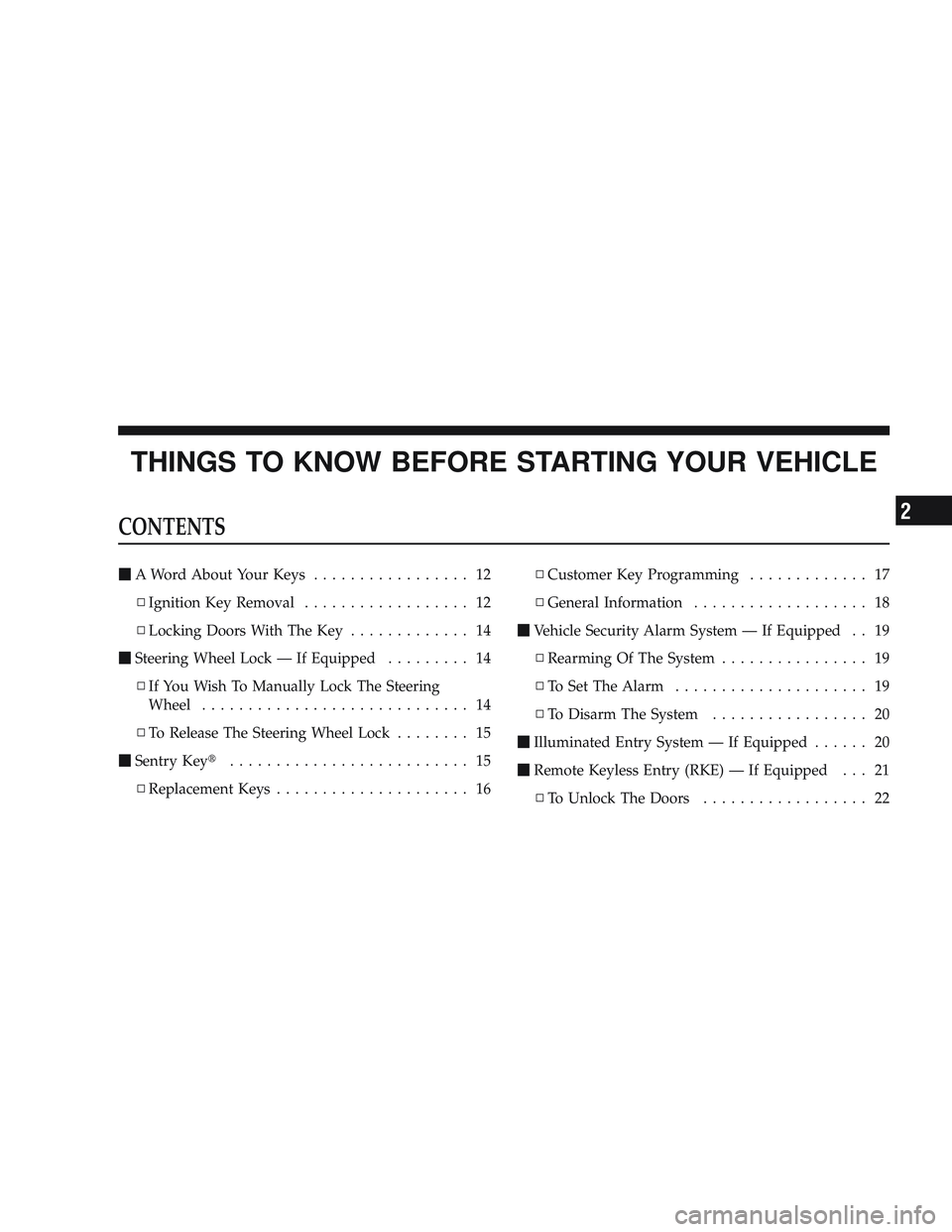

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
\2A Word About Your Keys ................. 12
\4 Ignition Key Removal .................. 12
\4 Locking Doors With The Key ............. 14
\2 Steering Wheel Lock — If Equipped ......... 14
\4 If You Wish To Manually Lock The Steering
Wheel ............................. 14
\4 To Release The Steering Wheel Lock ........ 15
\2 Sentry Key\3 .......................... 15
\4 Replacement Keys ..................... 16 \4
Customer Key Programming ............. 17
\4 General Information ................... 18
\2 Vehicle Security Alarm System — If Equipped . . 19
\4 Rearming Of The System ................ 19
\4 To Set The Alarm ..................... 19
\4 To Disarm The System ................. 20
\2 Illuminated Entry System — If Equipped ...... 20
\2 Remote Keyless Entry (RKE) — If Equipped . . . 21
\4 To Unlock The Doors .................. 22
2

\4To Lock The Doors .................... 22
\4 Using The Panic Alarm ................. 23
\4 Programming Additional RKE Transmitters . . . 24
\4 General Information ................... 24
\4 RKE Transmitter Battery Service ........... 25
\2 Remote Starting System — If Equipped ....... 26
\2 Door Locks ........................... 27
\4 Manual Door Locks ................... 27
\4 Power Door Locks — If Equipped ......... 28
\4 Child Protection Door Lock .............. 30
\2 Windows ............................ 32
\4 Power Windows – If Equipped ............ 32
\4 Power Sliding Rear Window – If Equipped . . . 34 \4
Sliding Rear Window – If Equipped ........ 34
\4 Wind Buffeting ....................... 34
\2 Occupant Restraints ..................... 35
\4 Lap/Shoulder Belts .................... 36
\4 Adjustable Upper Shoulder Belt Anchorage . . . 44
\4 Automatic Locking Restraint (ALR) Mode –
If Equipped ......................... 44
\4 Center Lap Belts ...................... 45
\4 Enhanced Driver Seat Belt Reminder System
(BeltAlert\3) ......................... 46
\4 Seat Belts And Pregnant Women .......... 47
\4 Seat Belt Extender ..................... 47
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
NOTE:
•The Sentry Key\3Immobilizer System is not compat-
ible with some aftermarket remote starting systems. Use of these systems may result in vehicle starting
problems and loss of security protection.
•Exxon/Mobil Speedpass™, additional Sentry Keys
\3,
or any other transponder-equipped components on
the same key chain will notcause a key-related
(transponder) fault unless the additional part is physi-
cally held against the ignition key being used when
starting the vehicle. Cell phones, pagers, or other
Radio Frequency (RF) electronics will not cause inter-
ference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key\3 is programmed to a vehicle, it cannot
be programmed to any other vehicle.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. Insert a blank Sentry Key\3into the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Key\3 is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key\3, contact your
authorized dealer for details. NOTE:
If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Key\3 system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
This Vehicle Security Alarm system monitors the vehicle
doors and ignition for unauthorized operation. When the
alarm is activated, the system provides both audible and
visible signals. For the first three minutes the horn will
sound and the headlights and security light will flash
repeatedly. For an additional 15 minutes only, the head-
lights and security light will flash. The engine will run
only if a valid Sentry Key\3is used to start the vehicle.
Use of the Sentry Key\3 will disable the alarm.
Rearming of the System
The Vehicle Security Alarm system will rearm itself after
the 15 additional minutes of headlights and security light
flashing, if the system has not been disabled. If the
condition which initiated the alarm is still present, the
system will ignore that condition and monitor the re-
maining doors and ignition.
To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly to signal that the
system is arming. The Vehicle Security Light in the
instrument panel cluster will flash rapidly for about
16 seconds to indicate that the alarm is being set. After
the alarm is set, the Vehicle Security Light will flash at a
slower rate to indicate that the system is armed.
NOTE:If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the system checked
by an authorized dealer.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

To Disarm the System
Use the RKE transmitter to unlock the door. If something
has triggered the system in your absence, the horn will
sound three times when you unlock the doors and the
Vehicle Security Light will flash for 30 seconds. Check the
vehicle for tampering.
The Vehicle Security Alarm system will also disarm if the
vehicle is started with a programmed Sentry Key\3.Ifan
unprogrammed Sentry Key\3 is used to start a vehicle, the
engine will run for two seconds and then the Security
Alarm will be initiated. To exit the alarming mode, press
the RKE transmitter UNLOCK button, or start the vehicle
with a programmed Sentry Key\3.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the RKE transmitter, the alarm will sound when you pull the door handle to exit.
The door will be locked, but the Vehicle Security Alarm
system will not arm.
ILLUMINATED ENTRY SYSTEM — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors. This feature is only available if you have Remote
Keyless Entry.
The lights will fade to off after about 30 seconds, or they
will immediately fade to off once the ignition switch is
turned ON.
NOTE:
•The front courtesy overhead console and door cour-
tesy lights do not turn off if the dimmer control is in
the interior lights on position (extreme top position).
•The Illuminated Entry system will not operate if the
dimmer control is in the extreme downward position.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
The system allows you to lock or unlock the doors from
distances up to about 23 ft (7 m) using a Remote Keyless
Entry (RKE) transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.
Three Button RKE Transmitter
1 — Lock
2 — UnlockTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

REMOTE STARTING SYSTEM — IF EQUIPPED
Your vehicle may be equipped with a remote starting
system, which will allow the vehicle to be started from
distances up to approximately 300 ft (91 m) away from
the vehicle using the Remote Keyless Entry (RKE) trans-
mitter, which is part of your ignition key.
In order to remote start your vehicle, the hood and all the
doors must be closed.Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will honk twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
To cancel remote start, press the REMOTE START button
once.
The parking lamps will remain illuminated to indicate
that the vehicle has remote started and the engine is running. The lamps will turn off when the ignition is
turned to RUN or the remote start is cancelled.
To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the RKE transmitter. After the
vehicle is unlocked, you have 15 minutes to enter the
vehicle, insert the key in the ignition and move it to the
RUN position, otherwise the engine will cancel remote
start and automatically turn off.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
