2009 RAM CHASSIS CAB warning

2.To reattach the seat belt to the front center seat, pull the
black buckle latch plate forward from the cab back panel
and insert it into the black keyed buckle until there is an
audible “click”. For proper seatbelt usage, refer “Lap/
Shoulder Belt Operating Instructions” in this section.
WARNING!
•If the black latch and black buckle are not prop-
erly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide
proper restraint and will increase the risk of injury
in a collision.
•When reattaching the black latch and black
buckle, ensure the seat belt webbing is not
twisted. If the webbing is twisted, follow the
preceding procedure to detach the black latch and
black buckle, untwist the webbing, and reattach
the black latch and black buckle.Inserting Latch Plate
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•If the black latch and black buckle are not prop-
erly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide
proper restraint and will increase the risk of injury
in a collision.
•When reattaching the black latch and black
buckle, ensure the seat belt webbing is not
twisted. If the webbing is twisted, follow the
preceding procedure to detach the black latch and
black buckle, untwist the webbing, and reattach
the black latch and black buckle.
In Use Position
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
2

How To Use The Automatic Locking Mode
1. Buckle the combination lap/shoulder belt.
2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
3. Allow the belt to retract. As the belt retracts, you will
hear a clicking sound. This indicates the safety belt is
now in the automatic locking mode.
How To Disengage The Automatic Locking Mode
Disconnect the combination lap/shoulder belt and allow
it to retract completely to disengage the automatic lock-
ing mode and activate the vehicle sensitive (emergency)
locking mode.
Center Lap Belts
The center seating position for the Quad Cab\3front seat
has a lap belt only. To fasten the lap belt, slide the latch
plate into the buckle until you hear a \6click.\6To lengthen
the lap belt, tilt the latch plate and pull. To remove slack,
pull the loose end of the webbing. Wear the lap belt snug
against the hips. Sit back and erect in the seat, then adjust
the belt as tightly as is comfortable.
WARNING!
•A lap belt worn too loose or too high is dangerous.
•A belt worn too loose can allow you to slip down
and under the belt in a collision.
•A belt that is too loose or too high will apply crash
forces to the abdomen, not to the stronger hip
bones. In either case, the risk of internal injuries is
greater. Wear a lap belt low and snug.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
2

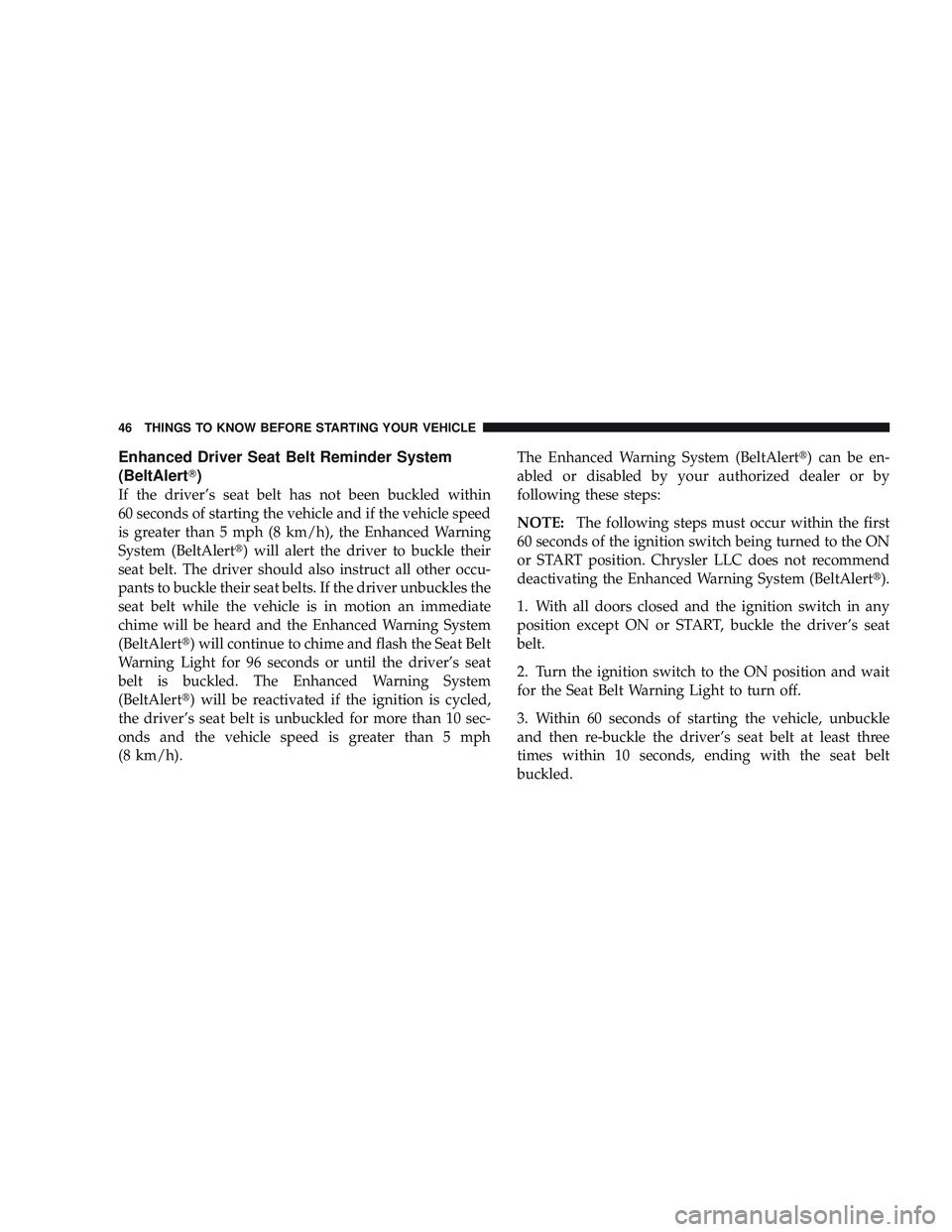

Enhanced Driver Seat Belt Reminder System
(BeltAlert\5)
If the driver’s seat belt has not been buckled within
60 seconds of starting the vehicle and if the vehicle speed
is greater than 5 mph (8 km/h), the Enhanced Warning
System (BeltAlert\3) will alert the driver to buckle their
seat belt. The driver should also instruct all other occu-
pants to buckle their seat belts. If the driver unbuckles the
seat belt while the vehicle is in motion an immediate
chime will be heard and the Enhanced Warning System
(BeltAlert\3) will continue to chime and flash the Seat Belt
Warning Light for 96 seconds or until the driver’s seat
belt is buckled. The Enhanced Warning System
(BeltAlert\3) will be reactivated if the ignition is cycled,
the driver’s seat belt is unbuckled for more than 10 sec-
onds and the vehicle speed is greater than 5 mph
(8 km/h). The Enhanced Warning System (BeltAlert
\3) can be en-
abled or disabled by your authorized dealer or by
following these steps:
NOTE: The following steps must occur within the first
60 seconds of the ignition switch being turned to the ON
or START position. Chrysler LLC does not recommend
deactivating the Enhanced Warning System (BeltAlert \3).
1. With all doors closed and the ignition switch in any
position except ON or START, buckle the driver’s seat
belt.
2. Turn the ignition switch to the ON position and wait
for the Seat Belt Warning Light to turn off.
3. Within 60 seconds of starting the vehicle, unbuckle
and then re-buckle the driver’s seat belt at least three
times within 10 seconds, ending with the seat belt
buckled.
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. Turn off the engine. A single chime will sound to
signify that you have successfully completed the
programming.
The Enhanced Warning System (BeltAlert\3) can be reac-
tivated by repeating this procedure.
NOTE:Although the Enhanced Warning System
(BeltAlert\3) has been deactivated, the Seat Belt Warning
Light will continue to illuminate while the driver’s seat
belt remains unbuckled.
Seat Belts and Pregnant Women
We recommend that pregnant women use seat belts
throughout their pregnancies. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug against the hips as possible. Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short even when fully extended, your
authorized dealer can provide you with a seat belt
extender. This extender should be used only if the
existing belt is not long enough. When it is not required,
remove the extender and store it.
WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
seat belt extender when the lap belt is not long
enough when it is worn low and snug, and in the
recommended seating positions. Remove and store
the extender when not needed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
2

WARNING!
•Do not put anything on or around the airbag
covers or attempt to manually open them. You may
damage the airbags and you could be injured
because the airbags are not there to protect you.
These protective covers for the airbag cushions are
designed to open only when the airbags are inflat-
ing.
•Do not mount any aftermarket equipment such as
trailer brake controllers, snowplow controllers,
auxiliary light switches, radios, etc. on or behind
the knee bolster. Knee bolsters are designed to
work with the airbag and seat belt to protect you.
Mounting any additional equipment on or behind
the knee bolster can cause injury during a crash.Airbags inflate in moderate to high speed impacts. Along
with the seat belts, front airbags work with the instru-
ment panel knee bolsters to provide improved protection
for the driver and front passenger.
The seat belts are designed to protect you in many types
of collisions. The front airbags deploy in moderate to
severe frontal collisions. In certain types of collisions, the
front airbags may be triggered. But even in collisions
where the airbags work, you need the seat belts to keep
you in the right position for the airbags to protect you
properly.
Here are some simple steps you can follow to minimize
the risk of harm from a deploying airbag.
•Children 12 years and under should ride buckled up in
a rear seat, if available.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

•Infants in rear-facing child restraints mustNEVER
ride in the front seat of a vehicle with a passenger front
airbag unless the airbag is turned off (Regular Cab
Vehicles Only). An airbag deployment can cause se-
vere injury or death to infants in that position. Refer to
the “Passenger Airbag On/Off Switch (if equipped)”
in this section.
•If your vehicle does not have a rear seat, refer to the
“Passenger Airbag On/Off Switch (if equipped)” in
this section
•Children that are not big enough to properly wear the
vehicle seat belt (refer to “Child Restraints” in this
section) should be secured in the rear seat in child
restraints or belt-positioning booster seats. Older chil-
dren who do not use child restraints or belt-
positioning booster seats should ride properly buckled
up in the rear seat. Never allow children to slide the
shoulder belt behind them or under their arms.
•All occupants should use their seat belts properly.
•The driver and front passenger seats should be moved
back as far as practical to allow the airbag room to
inflate.
WARNING!
•Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.
•Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri-
ous injury. Airbags need room to inflate. Sit back,
comfortably extending your arms to reach the
steering wheel or instrument panel.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Airbag System Components
The airbag system consists of the following:
•Occupant Restraint Controller (ORC)
•AIRBAG Readiness Light
•Driver Airbag
•Passenger Airbag (if equipped)
•Steering Wheel and Column
•Instrument Panel
•Crash Sensor
•Interconnecting Wiring
•Knee Impact Bolsters
•Passenger’s Side Front Airbag ON/OFF Switch (Regu-
lar Cab Vehicles Only ) (if equipped)
How The Airbag System Works
•
The Occupant Restraint Controller (ORC) determines
if a frontal collision is severe enough to require the
airbags to inflate.
•The ORC will not detect rollover, or rear collisions.
•The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or RUN positions. These include all of the
items listed above except the knee bolsters, the instru-
ment panel, and the steering wheel and column. If the
key is in the OFF position, in the ACC position, or not
in the ignition, the airbags are not on and will not
inflate.
•The ORC also turns on the Airbag Warning Light in
the instrument panel for 6 to 8 seconds when the
ignition is first turned on, and then turns the light off.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
