Buying New Tires.............9-54
Different Size Tires and
Wheels............................9-56
Uniform Tire Quality
Grading...........................9-56
Wheel Alignment and
Tire Balance....................9-58
Wheel Replacement..........9-59
Tire Chains.......................9-60
Tire Changing
If a Tire Goes Flat............9-61
Changing a Flat Tire.........9-62
Removing the Spare
Tire and Tools.................9-63
Removing the Flat Tire
and Installing the
Spare Tire
.......................9-64
Storing a Flat or Spare
Tire and Tools.................9-68
Compact Spare Tire..........9-70
Jump Starting
Jump Starting...................9-71
Towing
Towing Your Vehicle.........9-75
Recreational Vehicle
Towing............................9-75
Towing a Trailer................9-77
Appearance Care
Interior Cleaning................9-83
Exterior Cleaning..............9-86
Sheet Metal Damage........9-89
Finish Damage..................9-89
Underbody Maintenance. . . .9-90
Chemical Paint Spotting. . . .9-90
Service
For service and parts needs, visit
your dealer/retailer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one
of these marks:
9-2 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

The TPMS operates on a radio
frequency and complies with
RSS-210 of Industry and Science
Canada. Operation is subject to
the following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Changes or modications to
this system by other than an
authorized service facility could void
authorization to use this equipment.
Tire Pressure Monitor
Operation
The Tire Pressure Monitor System
(TPMS) warns the driver when a low
tire pressure condition exists. TPMS
sensors are mounted onto each tire
and wheel assembly, excluding the
spare tire and wheel assembly.When a low tire pressure condition
is detected, the low tire pressure
warning light, located on the
instrument panel cluster, comes on.
This light also comes on for a
few seconds and then goes off when
you turn the ignition to ON/RUN.
This indicates the TPMS is
functioning properly. If the low-tire
pressure warning light comes on
while driving the vehicle, the system
may have detected a low-tire
condition. You need to stop as soon
as possible and check the tires.
The low tire pressure warning light
may come on in cool weather when
the vehicle is rst started, and
then turn off as you start to drive.This could be an early indicator that
the air pressure in the tire(s) are
getting low and need to be inated
to the proper pressure.
A Tire and Loading Information
label, attached to the vehicle, shows
the size of the vehicle’s original
equipment tires and the correct
ination pressure for the tires when
they are cold. SeeLoading the
Vehicle on page 8-32, for an
example of the Tire and Loading
Information label and its location on
your vehicle. Also seeInflation - Tire
Pressure on page 9-47.
The vehicle’s TPMS can warn you
about a low tire pressure condition
but it does not replace normal tire
maintenance. SeeTire Inspection
and Rotation on page 9-53andTires
on page 9-41.
9-50 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

TPMS Malfunction Light
The TPMS will not function properly
if one or more of the TPMS sensors
are missing or inoperable. When the
system detects a malfunction, the
low tire warning light ashes for
about one minute and then stays
on for the remainder of the ignition
cycle. The low tire warning light
comes on at each ignition cycle until
the problem is corrected. Some of
the conditions that can cause the
malfunction light to come on are:
One of the road tires has been
replaced with the spare tire. The
spare tire does not have a TPMS
sensor. The TPMS malfunction
light and DIC message should go
off once you re-install the road tire
containing the TPMS sensor.
The initialization (reset) procedure
failed. See “TPMS Reset” later in
this section.
One or more TPMS sensors
are missing or damaged.
The TPMS malfunction light
should go off when the TPMS
sensors are installed and the
sensor matching process is
performed successfully. See
your dealer/retailer for service.
Replacement tires or wheels do
not match the vehicle’s original
equipment tires or wheels. Tires
and wheels other than those
recommended for your vehicle
could prevent the TPMS from
functioning properly. SeeBuying
New Tires on page 9-54.
Operating electronic devices or
being near facilities using radio
wave frequencies similar to the
TPMS could cause the TPMS
sensors to malfunction.
If tire chains are installed on the
vehicle.
If there is a lot of snow or ice
around the wheels or wheel
housings.
If a window tint that affects the
radio wave signals is installed.
If the TPMS is not functioning it
cannot detect or signal a low tire
condition. See your dealer/retailer for
service if the TPMS malfunction light
comes on and stays on.
Vehicle Service and Care 9-51
2009 - Pontiac Vibe Owner Manual

Tire Inspection and
Rotation
We recommend that you
regularly inspect the vehicle’s
tires, including the spare tire, for
signs of wear or damage. See
When It Is Time for New Tires on
page 9-54for more information.
Tires should be rotated every
5,000 to 8,000 miles (8 000 to
13 000 km). SeePart A:
Scheduled Maintenance
Services on page 11-3.
The purpose of a regular tire
rotation is to achieve a uniform
wear for all tires on the vehicle.
This will ensure that the vehicle
continues to perform most like it
did when the tires were new.
Any time you notice unusual
wear, rotate the tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels.
SeeWhen It Is Time for NewTires on page 9-54andWheel
Replacement on page 9-59for
more information.
When rotating the vehicle’s tires,
always use the correct rotation
pattern shown here.
Tires should only be moved from
front to rear and rear to front on
the same side of the vehicle.
Do not include the compact
spare tire in the tire rotation.
After the tires have been rotated,
adjust the front and rear ination
pressures to the amounts
shown on the Tire and
Loading Information label.SeeInflation - Tire Pressure on
page 9-47andLoading the
Vehicle on page 8-32.
{CAUTION
Rust or dirt on a wheel, or on
the parts to which it is fastened,
can make wheel nuts become
loose after time. The wheel
could come off and cause an
accident. When you change a
wheel, remove any rust or dirt
from places where the wheel
attaches to the vehicle. In an
emergency, you can use a
cloth or a paper towel to do
this; but be sure to use a
scraper or wire brush later, if
needed, to get all the rust or
dirt off. SeeChanging a Flat
Tire on page 9-62.
Make certain that all wheel
nuts are properly tightened.
See “Wheel Nut Torque” under
Capacities and Specifications
on page 10-2.
Vehicle Service and Care 9-53
2009 - Pontiac Vibe Owner Manual

GM recommends replacing tires
in sets of four. This is because
uniform tread depth on all tires will
help keep the vehicle performing
most like it did when the tires were
new. Replacing less than a full set
of tires can affect the braking and
handling performance of the vehicle.
SeeTire Inspection and Rotation on
page 9-53.
{CAUTION
Mixing tires could cause you to
lose control while driving. If you
mix tires of different sizes,
brands, or types (radial and
bias-belted tires), the vehicle
may not handle properly, and
you could have a crash. Using
tires of different sizes, brands,
or types may also cause
(Continued)
CAUTION (Continued)
damage to the vehicle.
Be sure to use the correct
size, brand, and type of tires
on all wheels. It is all right
to drive with the compact
spare temporarily, as it was
developed for use on the
vehicle. SeeCompact
Spare Tire on page 9-70.
{CAUTION
If you use bias-ply tires on the
vehicle, the wheel rim anges
could develop cracks after
many miles of driving. A tire
and/or wheel could fail
suddenly, causing a crash.
Use only radial-ply tires with
the wheels on the vehicle.
Vehicles that have a tire pressure
monitoring system could give
an inaccurate low-pressure warning
if tires not recommended for the
vehicle are installed. Tires that do
not match the original equipment
tires could give a low-pressure
warning that is higher or lower
than the proper warning level you
would get with original equipment
tires. SeeTire Pressure Monitor
System on page 9-48.
The vehicle’s original equipment
tires are listed on the Tire and
Loading Information Label. See
Loading the Vehicle on page 8-32,
for more information about the
Tire and Loading Information label
and its location on the vehicle.
Vehicle Service and Care 9-55
2009 - Pontiac Vibe Owner Manual

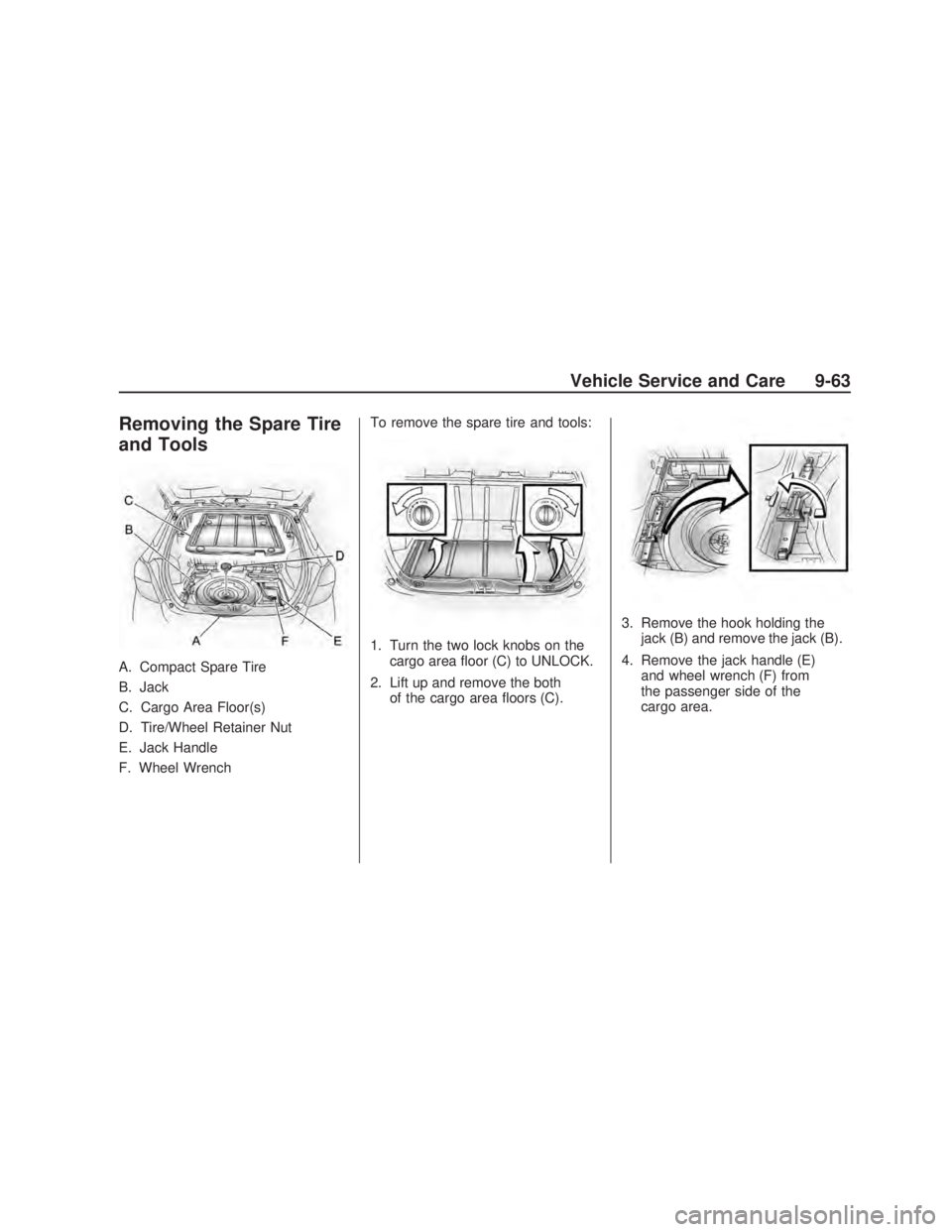

Removing the Spare Tire
and Tools
A. Compact Spare Tire
B. Jack
C. Cargo Area Floor(s)
D. Tire/Wheel Retainer Nut
E. Jack Handle
F. Wheel WrenchTo remove the spare tire and tools:
1. Turn the two lock knobs on the
cargo area oor (C) to UNLOCK.
2. Lift up and remove the both
of the cargo area oors (C).3. Remove the hook holding the
jack (B) and remove the jack (B).
4. Remove the jack handle (E)
and wheel wrench (F) from
the passenger side of the
cargo area.
Vehicle Service and Care 9-63
2009 - Pontiac Vibe Owner Manual

5. Remove the tire/wheel
retainer (D) from the compact
spare tire (A) and remove
the compact spare tire (A).
SeeCompact Spare Tire on
page 9-70.
6. Place the compact spare tire (A)
next to the at tire.
Removing the Flat Tire
and Installing the
Spare Tire
1. Do a safety check before
proceeding. SeeChanging
a Flat Tire on page 9-62.
2. If the vehicle has steel wheels
with plastic wheel nut caps,
loosen the plastic wheel
nut caps. You may need the
wheel wrench to loosen them.
Do not pry off wheel covers that
have plastic wheel nut caps.
3. Remove the wheel cover and set
it off to the side.
4. Attach the jack handle to the jack
and turn clockwise to raise the
lift head a little.5. Loosen all the wheel nuts.
Do not remove them yet.
9-64 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

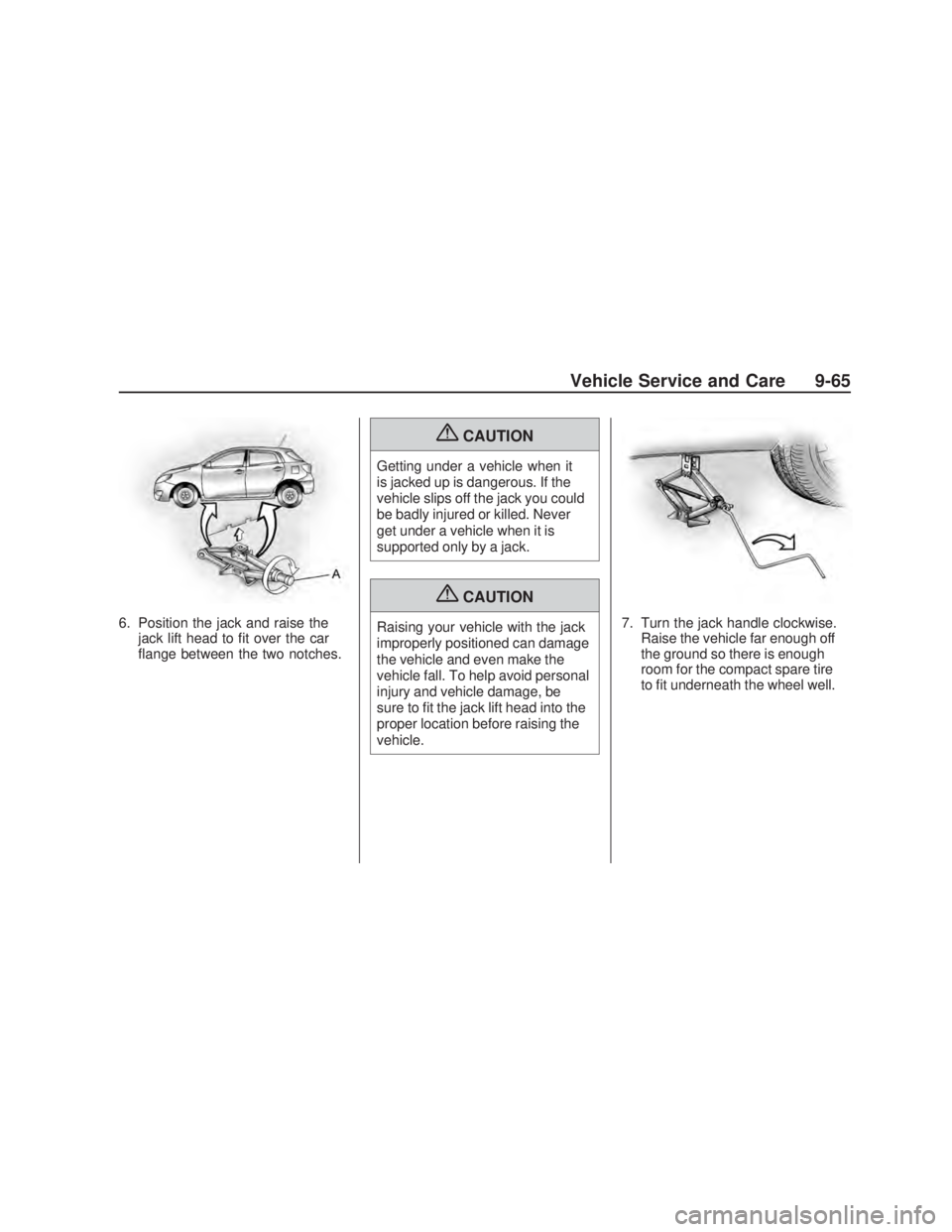

6. Position the jack and raise the
jack lift head to t over the car
ange between the two notches.
{CAUTION
Getting under a vehicle when it
is jacked up is dangerous. If the
vehicle slips off the jack you could
be badly injured or killed. Never
get under a vehicle when it is
supported only by a jack.
{CAUTION
Raising your vehicle with the jack
improperly positioned can damage
the vehicle and even make the
vehicle fall. To help avoid personal
injury and vehicle damage, be
sure to t the jack lift head into the
proper location before raising the
vehicle.7. Turn the jack handle clockwise.
Raise the vehicle far enough off
the ground so there is enough
room for the compact spare tire
to t underneath the wheel well.
Vehicle Service and Care 9-65
2009 - Pontiac Vibe Owner Manual
