Instruments and
Controls
Instrument Panel
Overview
Instrument Panel
Overview...........................4-2
Hazard Warning Flashers. . . .4-3
Horn...................................4-3
Tilt Wheel...........................4-4
Turn Signal/Multifunction
Lever................................4-4
Cruise Control....................4-4
Turn and Lane-Change
Signals.............................4-7
Headlamp High/
Low-Beam Changer..........4-7
Flash-to-Pass......................4-7
Windshield Wipers..............4-7
Windshield Washer.............4-8
Rear Window Wiper/
Washer.............................4-8
Accessory Power
Outlet(s)............................4-9
Power Outlet 115 Volt
Alternating Current..........4-10
Ashtray(s).........................4-10
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators.................4-11
Instrument Panel Cluster. . .4-12
Speedometer and
Odometer........................4-13
Trip Odometer(s)...............4-13
Tachometer.......................4-13
Safety Belt Reminders......4-14
Airbag Readiness Light.....4-14
Passenger Airbag Status
Indicator..........................4-15
Service Airbag Notication
System Message.............4-16
Charging System Light......4-16
Brake System Warning
Light................................4-17
Antilock Brake System
(ABS) Warning Light.......4-18
Speed Sensitive Power
Steering (SSPS)
Warning Light
..................4-18
Low Tire Pressure
Warning Light..................4-18
Traction Control System
(TCS) Warning Light.......4-19
StabiliTrak®Indicator
Light................................4-19
Engine Coolant
Temperature Gage..........4-19
Malfunction
Indicator Lamp................4-20
Security Light....................4-22
Oil Pressure Light.............4-22
Fog Lamp Light................4-23
Lights On Reminder..........4-23
Taillamp Indicator Light.....4-23
Cruise Control Light..........4-23
Low Washer Fluid
Warning Light..................4-23
Service All-Wheel Drive
Light................................4-24
Highbeam On Light...........4-24
Door Ajar Light.................4-24
Fuel Gage........................4-24
Low Fuel Warning Light. . . .4-25
OnStar®System
OnStar®System................4-25
Instruments and Controls 4-1
2009 - Pontiac Vibe Owner Manual

These numbers on an oil
container show its viscosity,
or thickness. Do not use
other viscosity oils such as
SAE 20W-50.
Oils meeting these requirements
should have the starburst symbol
on the container. This symbol
indicates that the oil has been
certied by the American
Petroleum Institute (API).
Notice:Use only engine oil
identied as meeting GM Standard
GM6094M and showing the
American Petroleum Institute
Certied For Gasoline Engines
starburst symbol. Failure to use
the recommended oil can result in
engine damage not covered by the
vehicle warranty.If you are in an area of extreme
cold, where the temperature
falls below−20°F (−29°C), it is
recommend that you use an
SAE 0W-20 oil. SAE 0W-20 oil
provides easier cold starting and
better protection for the engine
at extremely low temperatures.
Engine Oil Additives / Engine
Oil Flushes
Do not add anything to the oil.
The recommended oils with the
starburst symbol that meet GM
Standard GM6094M are all you
need for good performance and
engine protection.
Engine oil system ushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
When to Change Engine Oil
Change the oil and lter
every 5,000 miles (8 000 km) or
3 months, whichever occurs rst.
SeeScheduled Maintenance on
page 11-4.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer’s warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your own
oil, be sure to drain all the oil from the
lter before disposal. Never dispose
of oil by putting it in the trash, pouring
it on the ground, into sewers, or into
streams or bodies of water. Recycle
it by taking it to a place that collects
used oil.
Vehicle Service and Care 9-11
2009 - Pontiac Vibe Owner Manual

Engine Air Cleaner/Filter
The engine air cleaner/lter is
in the engine compartment on
the driver side of the vehicle.
SeeEngine Compartment Overview
on page 9-6for more information
on location.
When to Inspect the Engine
Air Cleaner/Filter
If you are driving in dusty/dirty
conditions, inspect the air
cleaner/lter at each engine oil
change. Replace the lter every
30,000 miles (48 000 km) or
24 months, whichever occurs rst.
SeePart A: Scheduled Maintenance
Services on page 11-3for more
information.
How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/lter
remove the lter from the vehicle
and lightly shake the lter to release
loose dust and dirt. If the lter
remains caked with dirt, a new
lter is required.
To inspect or replace the engine air
cleaner/lter:
1. Release the two clips that hold
the cover.2. Lift the cover.
3. Inspect or replace the engine air
cleaner/lter.
4. Reinstall the cover.
1.8L Engine
9-12 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

Manual Transmission
Fluid
When to Check
A good time to have your manual
transmission uid level checked
is when the engine oil is changed.
However, the uid in your manual
transmission does not require
changing.
How to Check
This operation can be difficult, you
may choose to have this done
at your dealer/retailer service
department.
If you do it yourself, be sure to
follow all the instructions here,
or you could get a false reading.
Notice:Too much or too
little uid can damage your
transmission. Too much can
mean that some of the uid couldcome out and fall on hot engine
parts or exhaust system parts,
starting a re. Too little uid
could cause the transmission
to overheat. Be sure to get
an accurate reading if you
check your transmission uid.
Check the uid level only when your
engine is off, the vehicle is parked on
a level place and the transmission is
cool enough for you to rest your
ngers on the transmission case.
Then, follow these steps:
1. Remove the ller plug.
2. Check that the lubricant level is
up to the bottom of the ller
plug hole.
3. If the uid level is good, install
the plug and be sure it is fully
seated. If the uid level is low,
add more uid as described in
the next steps.
How to Add Fluid
Here is how to add uid. Refer
to the Maintenance Schedule
to determine what kind of uid to
use.Part D: Recommended
Fluids and Lubricants on
page 11-18.
1. Remove the ller plug.
2. Add uid at the ller plug hole.
Add only enough uid to bring
the uid level up to the bottom
of the ller plug hole.
3. Install the ller plug. Be sure the
plug is fully seated.
9-16 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

8. Remove the wheel nuts and the
at tire.
9. Install the spare tire.
{CAUTION
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause an accident. When
you change a wheel, remove any
rust or dirt from places where the
wheel attaches to the vehicle.
In an emergency, you can use a
cloth or a paper towel to do this;
but be sure to use a scraper
or wire brush later, if needed,
to get all the rust or dirt off.
SeeChanging a Flat Tire on
page 9-62.10. Remove any rust or dirt from
the wheel bolts, mounting
surfaces and spare wheel.
11. Place the compact spare tire on
the wheel-mounting surface.
{CAUTION
Never use oil or grease on bolts
or nuts because the nuts might
come loose. The vehicle’s wheel
could fall off, causing a crash.
9-66 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

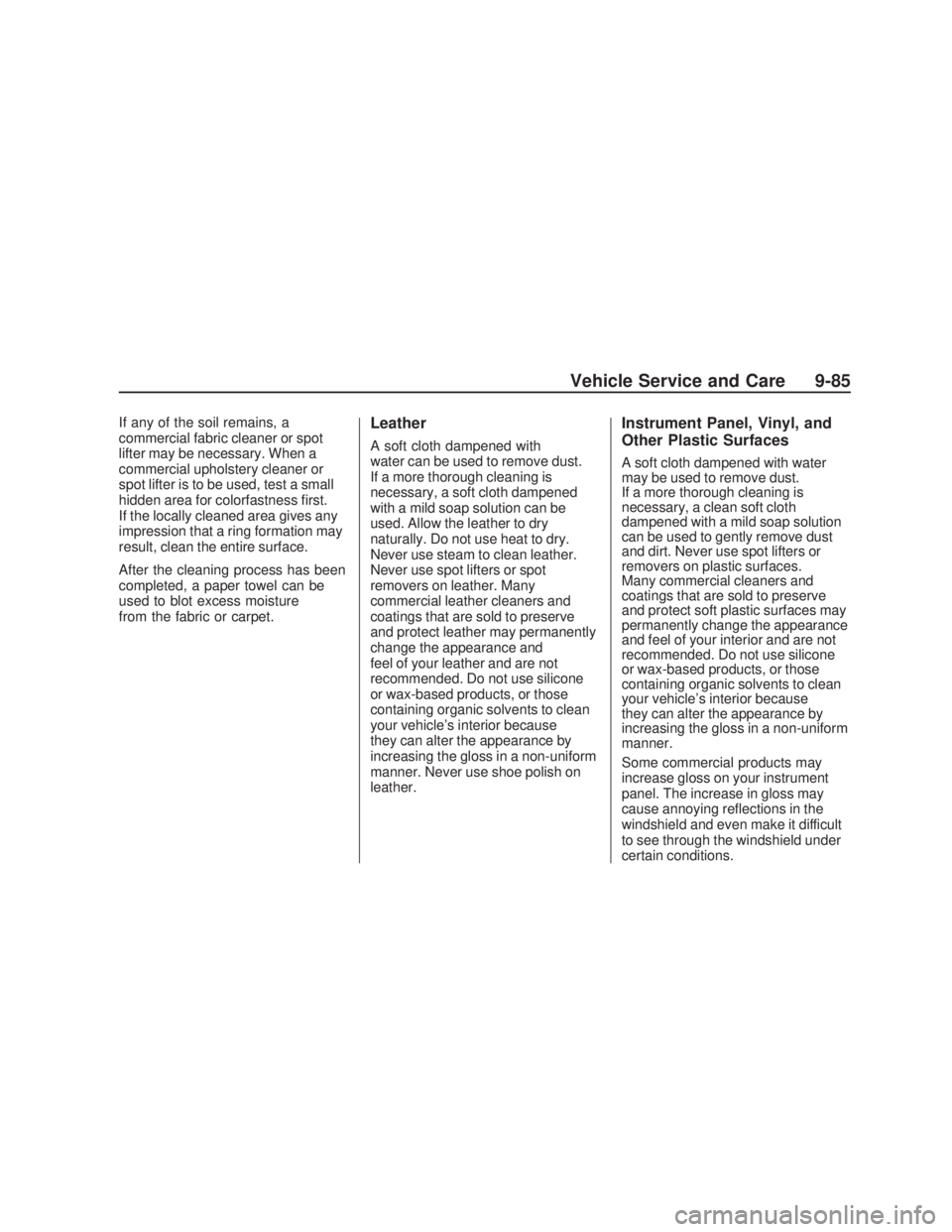

If any of the soil remains, a
commercial fabric cleaner or spot
lifter may be necessary. When a
commercial upholstery cleaner or
spot lifter is to be used, test a small
hidden area for colorfastness rst.
If the locally cleaned area gives any
impression that a ring formation may
result, clean the entire surface.
After the cleaning process has been
completed, a paper towel can be
used to blot excess moisture
from the fabric or carpet.Leather
A soft cloth dampened with
water can be used to remove dust.
If a more thorough cleaning is
necessary, a soft cloth dampened
with a mild soap solution can be
used. Allow the leather to dry
naturally. Do not use heat to dry.
Never use steam to clean leather.
Never use spot lifters or spot
removers on leather. Many
commercial leather cleaners and
coatings that are sold to preserve
and protect leather may permanently
change the appearance and
feel of your leather and are not
recommended. Do not use silicone
or wax-based products, or those
containing organic solvents to clean
your vehicle’s interior because
they can alter the appearance by
increasing the gloss in a non-uniform
manner. Never use shoe polish on
leather.
Instrument Panel, Vinyl, and
Other Plastic Surfaces
A soft cloth dampened with water
may be used to remove dust.
If a more thorough cleaning is
necessary, a clean soft cloth
dampened with a mild soap solution
can be used to gently remove dust
and dirt. Never use spot lifters or
removers on plastic surfaces.
Many commercial cleaners and
coatings that are sold to preserve
and protect soft plastic surfaces may
permanently change the appearance
and feel of your interior and are not
recommended. Do not use silicone
or wax-based products, or those
containing organic solvents to clean
your vehicle’s interior because
they can alter the appearance by
increasing the gloss in a non-uniform
manner.
Some commercial products may
increase gloss on your instrument
panel. The increase in gloss may
cause annoying reections in the
windshield and even make it difficult
to see through the windshield under
certain conditions.
Vehicle Service and Care 9-85
2009 - Pontiac Vibe Owner Manual

Service and
Maintenance
Service and Maintenance
Introduction.......................11-1
Maintenance
Requirements..................11-2
Your Vehicle and the
Environment....................11-2
How This Section is
Organized.......................11-2
Part A: Scheduled
Maintenance Services......11-3
Using the Maintenance
Schedule.........................11-3
Scheduled Maintenance. . . .11-4
Part B: Owner Checks
and Services.................11-12
At Each Fuel Fill.............11-12
At Least Once a Month. . .11-13
At Least Twice a Year. . . .11-13
At Least Once a Year.....11-13
Part C: Periodic
Maintenance
Inspections
....................11-16
Steering, Suspension and
Front Drive Axle Boot
and Seal Inspection
.......11-16
Exhaust System
Inspection......................11-16
Fuel System Inspection. . .11-16
Engine Cooling System
Inspection......................11-17
Throttle System
Inspection......................11-17
Brake System
Inspection......................11-17
Part D: Recommended
Fluids and Lubricants. . . .11-18
Part E: Maintenance
Record..........................11-20
Service and
Maintenance
Introduction
Important: Keep engine oil at
the proper level and change as
recommended.
Have you purchased the GM
Protection Plan? The Plan
supplements the vehicle warranties.
See the Warranty and Owner
Assistance booklet or your
dealer/retailer for details.
Service and Maintenance 11-1
2009 - Pontiac Vibe Owner Manual

The proper uids and lubricants to
use are listed in Part D. Make
sure whoever services the vehicle
uses these. All parts should be
replaced and all necessary repairs
done before you or anyone else
drives the vehicle.
These schedules are for
vehicles that:
carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. SeeLoading the Vehicle
on page 8-32.
are driven on reasonable road
surfaces within legal driving limits.
use the recommended fuel.
SeeGasoline Octane on
page 8-36.
Scheduled Maintenance
The services shown in this schedule
up to 120,000 miles (192 000 km)
should be repeated after
120,000 miles (192 000 km) at the
same intervals for the life of this
vehicle.
SeePart B: Owner Checks and
Services on page 11-12,Part C:
Periodic Maintenance Inspections
on page 11-16, andPart D:
Recommended Fluids and
Lubricants on page 11-18.
Footnotes
†The U.S. Environmental Protection
Agency or the California Air
Resources Board has determined
that the failure to perform this
maintenance item will not nullify the
emissions warranty or limit recall
liability prior to the completion of the
vehicle’s useful life. We, however,
urge that all recommended
maintenance services be performed
at the indicated intervals and the
maintenance be recorded.+A good time to check your brakes
is during tire rotation. See Brake
System Inspection on page 11-17.
5,000 Miles (8 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission Control
Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
10,000 Miles (16 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
11-4 Service and Maintenance
2009 - Pontiac Vibe Owner Manual
