2009 PONTIAC TORRENT bluetooth

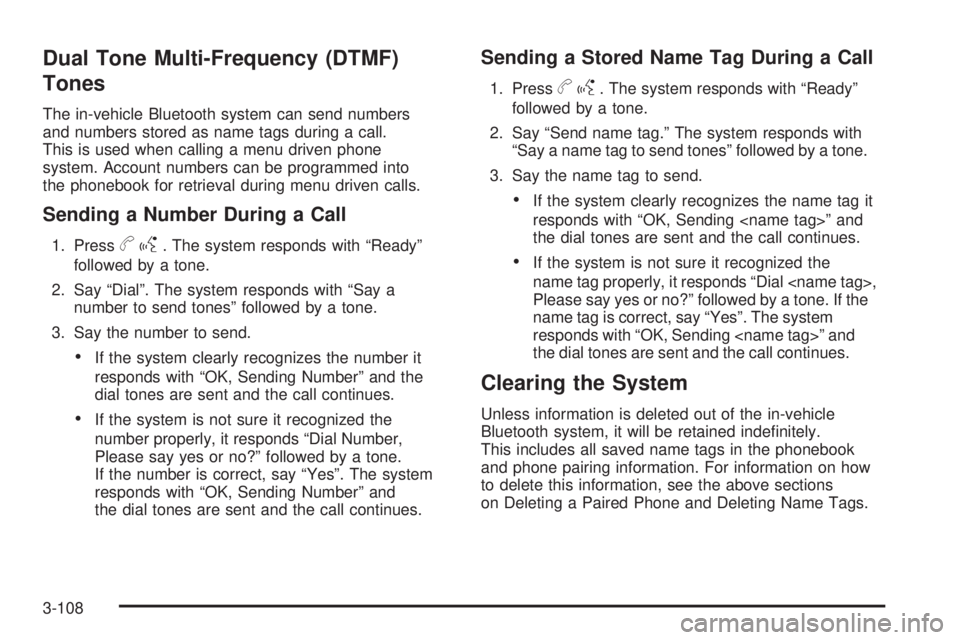

Dual Tone Multi-Frequency (DTMF)
Tones
The in-vehicle Bluetooth system can send numbers
and numbers stored as name tags during a call.
This is used when calling a menu driven phone
system. Account numbers can be programmed into
the phonebook for retrieval during menu driven calls.
Sending a Number During a Call
1. Pressbg. The system responds with “Ready”
followed by a tone.
2. Say “Dial”. The system responds with “Say a
number to send tones” followed by a tone.
3. Say the number to send.
If the system clearly recognizes the number it
responds with “OK, Sending Number” and the
dial tones are sent and the call continues.
If the system is not sure it recognized the
number properly, it responds “Dial Number,
Please say yes or no?” followed by a tone.
If the number is correct, say “Yes”. The system
responds with “OK, Sending Number” and
the dial tones are sent and the call continues.
Sending a Stored Name Tag During a Call
1. Pressbg. The system responds with “Ready”
followed by a tone.
2. Say “Send name tag.” The system responds with
“Say a name tag to send tones” followed by a tone.
3. Say the name tag to send.
If the system clearly recognizes the name tag it
responds with “OK, Sending ” and
the dial tones are sent and the call continues.
If the system is not sure it recognized the
name tag properly, it responds “Dial ,
Please say yes or no?” followed by a tone. If the
name tag is correct, say “Yes”. The system
responds with “OK, Sending ” and
the dial tones are sent and the call continues.
Clearing the System
Unless information is deleted out of the in-vehicle
Bluetooth system, it will be retained indenitely.
This includes all saved name tags in the phonebook
and phone pairing information. For information on how
to delete this information, see the above sections
on Deleting a Paired Phone and Deleting Name Tags.
3-108

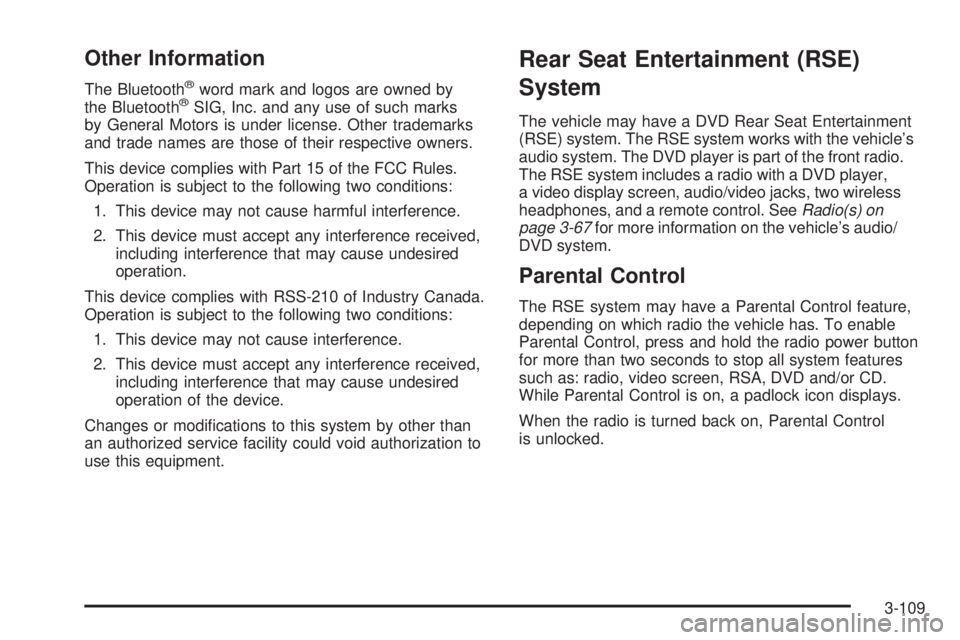

Other Information
The Bluetooth®word mark and logos are owned by
the Bluetooth®SIG, Inc. and any use of such marks
by General Motors is under license. Other trademarks
and trade names are those of their respective owners.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Rear Seat Entertainment (RSE)
System
The vehicle may have a DVD Rear Seat Entertainment
(RSE) system. The RSE system works with the vehicle’s
audio system. The DVD player is part of the front radio.
The RSE system includes a radio with a DVD player,
a video display screen, audio/video jacks, two wireless
headphones, and a remote control. SeeRadio(s) on
page 3-67for more information on the vehicle’s audio/
DVD system.
Parental Control
The RSE system may have a Parental Control feature,
depending on which radio the vehicle has. To enable
Parental Control, press and hold the radio power button
for more than two seconds to stop all system features
such as: radio, video screen, RSA, DVD and/or CD.
While Parental Control is on, a padlock icon displays.
When the radio is turned back on, Parental Control
is unlocked.
3-109

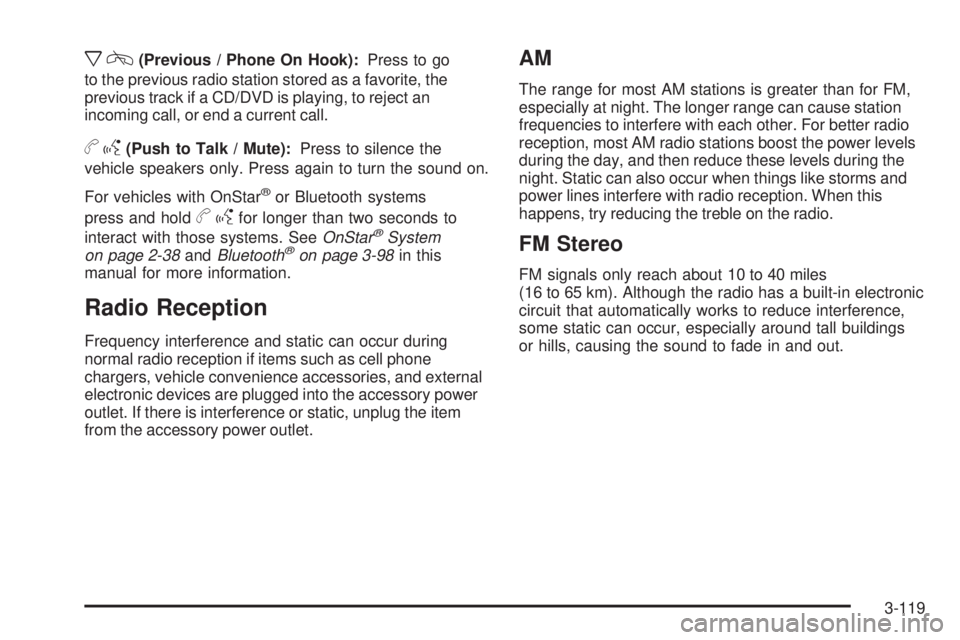

xc(Previous / Phone On Hook):Press to go
to the previous radio station stored as a favorite, the
previous track if a CD/DVD is playing, to reject an
incoming call, or end a current call.
bg(Push to Talk / Mute):Press to silence the
vehicle speakers only. Press again to turn the sound on.
For vehicles with OnStar
®or Bluetooth systems
press and hold
bgfor longer than two seconds to
interact with those systems. SeeOnStar®System
on page 2-38andBluetooth®on page 3-98in this
manual for more information.
Radio Reception
Frequency interference and static can occur during
normal radio reception if items such as cell phone
chargers, vehicle convenience accessories, and external
electronic devices are plugged into the accessory power
outlet. If there is interference or static, unplug the item
from the accessory power outlet.
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range can cause station
frequencies to interfere with each other. For better radio
reception, most AM radio stations boost the power levels
during the day, and then reduce these levels during the
night. Static can also occur when things like storms and
power lines interfere with radio reception. When this
happens, try reducing the treble on the radio.
FM Stereo
FM signals only reach about 10 to 40 miles
(16 to 65 km). Although the radio has a built-in electronic
circuit that automatically works to reduce interference,
some static can occur, especially around tall buildings
or hills, causing the sound to fade in and out.
3-119

Audio System.................................................3-64
Audio Steering Wheel Controls....................3-118
Navigation/Radio System,
see Navigation Manual..............................3-98
Setting the Clock.........................................3-65
Audio System(s).............................................3-67
Audio Systems
Radio Reception........................................3-119
Theft-Deterrent Feature...............................3-118
Automatic Headlamp System............................3-14
Automatic Transmission
Fluid..........................................................5-22
Operation...........................................2-24, 2-27
B
Battery..........................................................5-35
Electric Power Management..........................3-16
Run-Down Protection...................................3-17
Belt Routing, Engine.......................................6-16
Bluetooth
®.....................................................3-98
Brake
Emergencies................................................ 4-5
Brake Fluid....................................................5-32
Brakes..........................................................5-32
Antilock....................................................... 4-5
Parking......................................................2-31
System Warning Light..................................3-30Braking........................................................... 4-4
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-19
Bulb Replacement...........................................5-46
Fog Lamp ..................................................3-14
Halogen Bulbs............................................5-43
Headlamp Aiming........................................5-43
Headlamps.................................................5-43
Headlamps, Front Turn Signal, Sidemarker,
and Parking Lamps..................................5-44
License Plate Lamps....................................5-46
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-45
Buying New Tires...........................................5-64
C
Calibration.....................................................3-47
California
Perchlorate Materials Requirements................. 5-4
California Fuel.................................................. 5-6
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications............................5-97
Carbon Monoxide
Engine Exhaust...........................................2-35
Liftgate......................................................2-12
Winter Driving.............................................4-17
2

P
Paint, Damage...............................................5-89
Park
Shifting Into................................................2-32
Shifting Out of............................................2-33
Parking
Over Things That Burn.................................2-34
Parking Brake................................................2-31
Passenger Airbag Status Indicator.....................3-29
Passenger Compartment Air Filter.....................3-23
Passenger Sensing System..............................1-63
Passing.........................................................4-12
PASS-Key
®III+ Electronic Immobilizer...............2-17
PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-18
Perchlorate Materials Requirements, California...... 5-4
Phone
Bluetooth
®..................................................3-98
Power
Door Locks.................................................2-10
Reduced Engine Light..................................3-38
Retained Accessory (RAP)............................2-21
Seat ............................................................ 1-3
Steering Fluid.............................................5-30
Windows....................................................2-15
Pregnancy, Using Safety Belts..........................1-30Privacy..........................................................7-17
Navigation System.......................................7-19
OnStar.......................................................7-19
Radio Frequency Identication (RFID).............7-19
Program
Courtesy Transportation................................7-10
Programmable Automatic Door Locks.................2-11
Proposition 65 Warning, California....................... 5-4
R
Radio Frequency Identication (RFID), Privacy....7-19
Radio(s)........................................................3-67
Radios
Navigation/Radio System, see Navigation
Manual...................................................3-98
Reception.................................................3-119
Setting the Clock.........................................3-65
Theft-Deterrent..........................................3-118
Range Adjustment, Headlamps........................... 1-7
Rear Compartment Storage Panel/Cover............2-44
Rear Door Security Locks................................2-11
Rear Seat Armrest..........................................2-45
Rear Seat Entertainment System.....................3-109
Rear Window Washer/Wiper.............................3-10
Rearview Mirror, Automatic Dimming..................2-37
