2009 PEUGEOT 3008 DAG parking brake
[x] Cancel search: parking brakePage 3 of 290
26
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
- follow-me-home and welcome ligh- ting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibi- lity" section),
- daytime lights (refer to the "Visibi- lity" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Selection of the units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).
Selection of the language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
The general menu and its as-
sociated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the display,
above a certain speed threshold, in-
dicating that the general menu can-
not be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2 and 3 (refer to the "Trip com-
puter" paragraph).
General menu
Press button 1 to gain access to the
general menu and select one of the
following functions:
- "Vehicle parameters",
- "Selection of the language",
- "Selection of the units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection.
* According to country. INDICATOR AND WARNING LIGHTS
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
When the ignition is switched on
Certain warning lights come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible signal
and a message on the multifunction dis-
play or on the instrument panel display. The warning lights may come
o n c o n t i n u o u s l y o r fl a s h .
Certain warning lights may
come on in two different modes. Only
by relating the type of lighting to the
operating status of the vehicle can it
be ascertained whether the situation
is normal or whether a fault has oc-
curred.
Page 4 of 290
26
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
- follow-me-home and welcome ligh- ting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibi- lity" section),
- daytime lights (refer to the "Visibi- lity" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Selection of the units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).
Selection of the language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
The general menu and its as-
sociated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the display,
above a certain speed threshold, in-
dicating that the general menu can-
not be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2 and 3 (refer to the "Trip com-
puter" paragraph).
General menu
Press button 1 to gain access to the
general menu and select one of the
following functions:
- "Vehicle parameters",
- "Selection of the language",
- "Selection of the units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection.
* According to country. INDICATOR AND WARNING LIGHTS
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
When the ignition is switched on
Certain warning lights come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible signal
and a message on the multifunction dis-
play or on the instrument panel display. The warning lights may come
o n c o n t i n u o u s l y o r fl a s h .
Certain warning lights may
come on in two different modes. Only
by relating the type of lighting to the
operating status of the vehicle can it
be ascertained whether the situation
is normal or whether a fault has oc-
curred.
Page 6 of 290
28

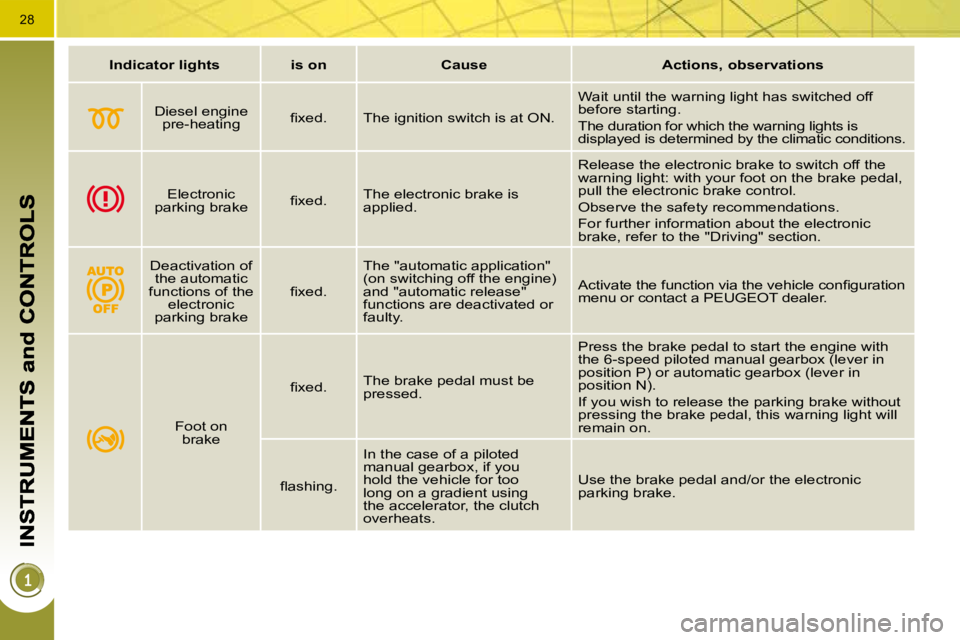

Indicator
lights is on Cause
Actions, observations
Diesel engine pre-heating fi x e d .
The ignition switch is at ON.
Wait until the warning light has switched off
before starting.
The duration for which the warning lights is
displayed is determined by the climatic conditions.
Electronic
parking brake fi x e d . The electronic brake is
applied.
Release the electronic brake to switch off the
warning light: with your foot on the brake pedal,
pull the electronic brake control.
Observe the safety recommendations.
For further information about the electronic
brake, refer to the "Driving" section.
Deactivation of the automatic
functions of the electronic
parking brake fi x e d . The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty.
A c t i v a t e t h e f u n c t i o n v i a t h e v e h i c l e c o n fi g u r a t i o
n
menu or contact a PEUGEOT dealer.
Foot on brake fi x e d .
The brake pedal must be
pressed. Press the brake pedal to start the engine with
the 6-speed piloted manual gearbox (lever in
position P) or automatic gearbox (lever in
position N).
If you wish to release the parking brake without
pressing the brake pedal, this warning light will
remain on.
fl a s h i n g . In the case of a piloted
manual gearbox, if you
hold the vehicle for too
long on a gradient using
the accelerator, the clutch
overheats. Use the brake pedal and/or the electronic
parking brake.
Page 8 of 290
30
Warning lights
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lights indicates the
occurrence of a fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning ligh t must be investigated further by reading the associated message on
the multifunction display.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.
Warning lights is on Cause Actions, observations
STOP fi x e d , a s s o c i a t e d w i t h
another warning light and accompanied by a message on the display. It is associated with a
punctured wheel, the
braking, the power steering,
the engine oil pressure or
the coolant temperature.
You must stop immediately where it is
safe to do so.
Park, switch off the ignition and call a
PEUGEOT dealer.
Identify the fault by consulting the
message shown on the display, such as:
- the closing of the doors, boot or
bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) .
For any other faults, contact a
PEUGEOT dealer.
Service temporarily.
A minor fault which does not
h a v e a s p e c i fi c w a r n i n g l i g h t
has occurred.
fi x e d . A major fault which does not
h a v e a s p e c i fi c w a r n i n g l i g h t
has occurred.
Identify the fault by consulting the
message shown on the display and
contact a PEUGEOT dealer.
Electronic
parking brake fl a s h i n g . The electronic brake is not
applied automatically. You must stop immediately where it is
safe to do so.
Park on level ground, switch off the
ignition and contact a PEUGEOT dealer.
Page 9 of 290
31

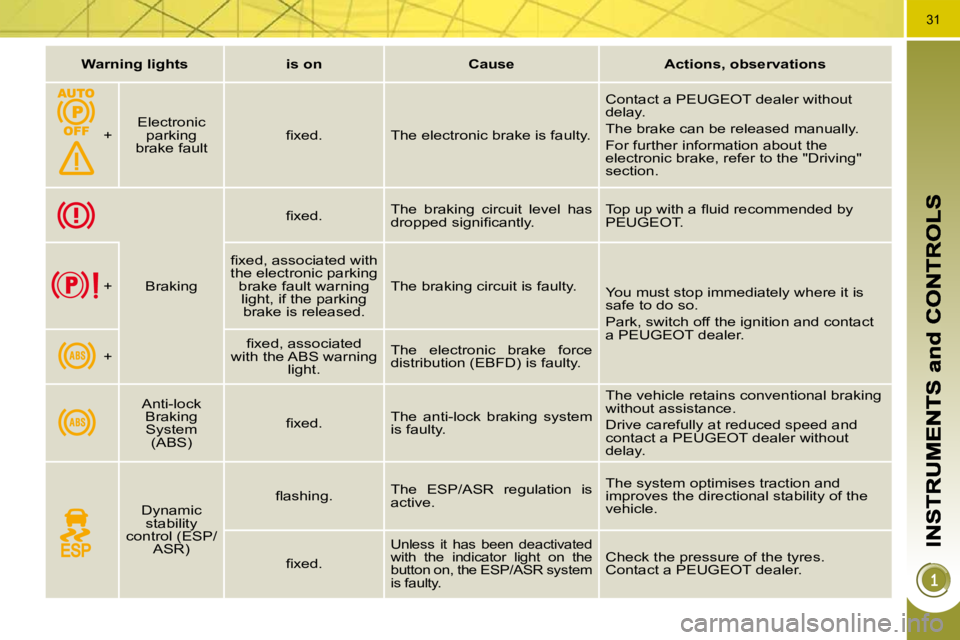

Warning lights is on Cause Actions, observations
+ Electronic
parking
brake fault fi x e d .
The electronic brake is faulty.
Contact a PEUGEOT dealer without
delay.
The brake can be released manually.
For further information about the
electronic brake, refer to the "Driving"
section.
fi x e d . The braking circuit level has
d r o p p e d s i g n i fi c a n t l y . T o p u p w i t h a fl u i d r e c o m m e n d e d b y
PEUGEOT.
+ Braking fi x e d , a s s o c i a t e d w i t h
the electronic parking
brake fault warning light, if the parking brake is released. The braking circuit is faulty.
You must stop immediately where it is
safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer.
+ fi x e d , a s s o c i a t e d
with the ABS warning light. The electronic brake force
distribution (EBFD) is faulty.
Anti-lock BrakingSystem (ABS) fi x e d .
The anti-lock braking system
is faulty.
The vehicle retains conventional braking
without assistance.
Drive carefully at reduced speed and
contact a PEUGEOT dealer without
delay.
Dynamic stability
control (ESP/ ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of the
vehicle.
fi x e d .
Unless it has been deactivated
with the indicator light on the
button on, the ESP/ASR system
is faulty. Check the pressure of the tyres.
Contact a PEUGEOT dealer.
Page 18 of 290
40
V e h i c l e c o n fi g u r a t i o n Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the "OK" button to change its
value.
Wait for approximately ten seconds
without any action to allow the changed
data to be recorded or press the "ESC" button to cancel.
The display then returns to the normal
display.
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
-
"follow-me-home" and welcome light-
ing (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ... For safety reasons, it is impera-
t i v e t h a t c o n fi g u r a t i o n o f t h e
multifunction displays by the
driver takes place when sta-
tionary.
Page 20 of 290
42
For safety reasons, it is impera-
t i v e t h a t c o n fi g u r a t i o n o f t h e m u l -
tifunction displays by the driver
takes place when stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).
Units
Once the "Units" menu has been selected,
you can change the units of the following
parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
-
"follow-me-home" and welcome light-
ing (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ...
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Page 22 of 290
44
"Vehicle diagnostics" menu
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the " Vehicle diag-
nostics
" menu.
On the " Vehicle diagnostics
" menu, select the following application:
Warnings log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction display.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the warnings
log.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
- "follow-me-home" and welcome lighting (refer to the "Visibility" sec-
tion),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ...
"Personalisation-Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- selection of the language.
