2009 PEUGEOT 3008 DAG door lock

38
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
Lighting rheostat
System for manual adjustment of the
brightness of the instrument panel in rela-
tion to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.

 With the ignition on, press the but-
ton until zeros appear. Activation
When the lights are on:

 press the button to change the
brightness of the instrument panel,

 when the lighting reaches the mini-
mum setting, release the button,
then press again to increase it,
or

 when the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it,

 when the lighting reaches the level
of brightness required, release the
button. When the lights are on, you
cannot switch the lighting off
but you can adjust it to mini-
mum.
Deactivation
When the lights are off, or in day mode
on vehicles fi tted with daytime lights,
pressing the button does not have any
effect.

71
Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle

 Press the open padlock to
unlock the vehicle.
Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft. Complete unlocking using the key

 Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the exterior mir-
rors unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key

 Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.

 Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.
 Press the open padlock
once to unlock the driver's
door only.

 Press the open padlock again to un-
lock the other doors and the boot. Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the exterior mir-
rors unfold at the same time as the fi rst
unlocking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction dis-
play confi guration menu.
Complete unlocking is activated by
default.

72
Locating your vehicle

 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direc-
tion indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote control
Deadlocking using the key

 Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically in
addition to locking.

 Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Folding the key

 First press button A to fold the key.

 Press the closed padlock to
lock the vehicle completely
or press the closed padlock
for more than two seconds
to close the windows auto-
matically in addition to locking
(according to version).

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for approxi-
mately two seconds.
According to version, the exterior mir-
rors fold at the same time.
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key

 Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the exterior mirrors
fold at the same time.
The folding and unfolding of
the exterior mirrors using the
remote control can be deacti-
vated by a PEUGEOT dealer.
Locking the vehicle

 Press the closed padlock
to lock the vehicle com-
pletely.

 Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).
Normal locking using the remote
control

75

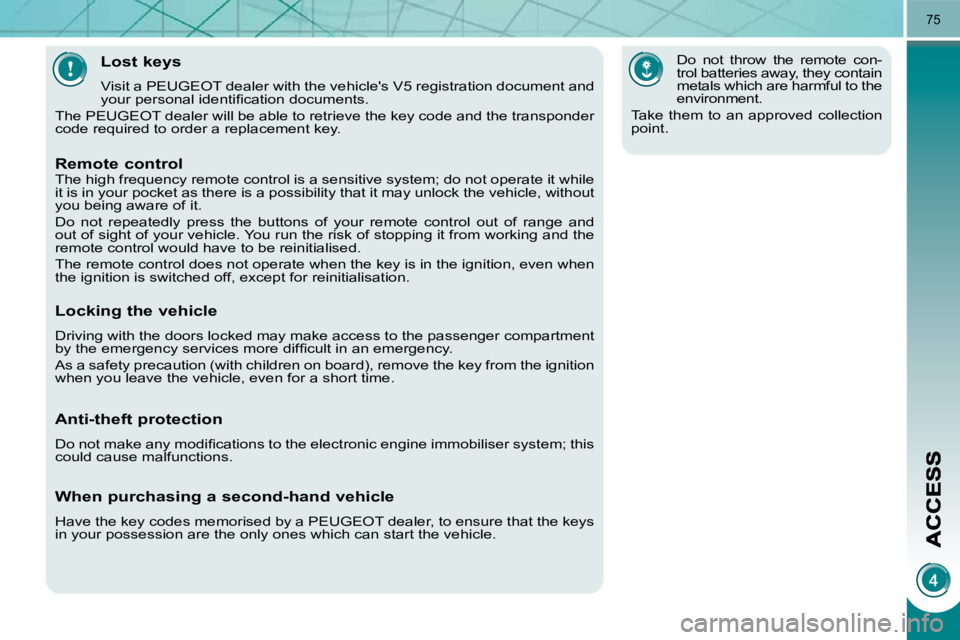

Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and
your personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder
code required to order a replacement key. Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control The high frequency remote control is a sensitive system; do not o perate it while
it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when
the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system; this
could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys
in your possession are the only ones which can start the vehicle.

76
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function.
Locking the vehicle with full alarm
Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions. To be effective, this deactivation
must be carried out each time
the ignition is switched off.
Reactivation of the interior
volumetric protection

 Unlock the vehicle using the unlock-
ing button on the remote control.

 Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp
on button A switches off.
Locking the vehicle with exterior protection alarm only
Activation

 Switch off the ignition and get out of
the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl ashes once per second.
Exterior perimiter protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service. Deactivation

 Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
volumetric protection

 Switch off the ignition.

 Within ten seconds, press button A
until the indicator lamp is lit continu-
ously.

 Get out of the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone
remains activated; the indicator lamp on
button A fl ashes once per second.

77
Triggering
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, the alarm is
again operational. If the alarm is triggered ten times
in succession, the eleventh
time will result in it becoming
inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during your
absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the lock on the driver's
door.
Do not activate the alarm before dis-
connecting the battery, otherwise the
siren will sound. Failure of the remote control

 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is trig-
gered.

 Switch on the ignition; the alarm
stops.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.

 To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
* According to country.

78
The electric window controls
remain operational for ap-
proximately 45 seconds after
the ignition is switched off or until the
vehicle is locked after a front door is
opened.
If one of the passenger windows can-
not be operated from the driver's door
control pad, carry out the operation
from the control pad of the passenger
door concerned, and vice versa.
ELECTRIC WINDOWS
System intended to open or close a win-
dow manually or automatically. Fitted
with a safety auto-reverse system and
a system for deactivation in the event of
misuse of the rear controls.

1. Driver's electric window control.

2.
Passenger's electric window control.

3. Rear right electric window control.

4. Rear left electric window control.

5. Deactivation of the rear electric
window and door controls. If the window cannot be closed
(for example, in the presence
of ice), immediately after the
movement is reversed:

 press and hold the control until
the window opens fully,

 then pull the control immediately
and hold it until the window closes,

 continue to hold the control for
approximately one second after
the window has closed.

The safety auto-reverse function
is not operational during these
operations.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers
again.
-
automatic mode

 Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.

 Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
- manual mode

 Press or pull the control gently.
The window stops when the
control is released. After approximately ten con-
secutive complete opening/
closing movements of the win-
dow, a protection function is activated
to prevent damage to the electric
window motor.
After this, you have approximately
one minute within which to close the
window.
Once the window is closed, the con-
trols will become available again
after approximately 40 minutes.

79
Indicator light on, the rear con-
trols are deactivated.
Indicator light off, the rear con-
trols are activated.
This control also deactivates
the interior controls for the
rear doors (refer to the section
"Child safety - § Electric child lock").
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:

 pull the control until the window
stops,

 release the control and pull it again,
repeat these operations until the
window closes fully,

 continue to hold the control for ap-
proximately one second after the
window has closed,

 press the control to lower the window
automatically to the low position,

 when the window has reached the
low position, press the control again
for approximately one second. Any other status of the indica-
tor light indicates a malfunc-
tion of the electric child lock.
Have it checked by a PEUGEOT
dealer.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the controls
for the passengers' electric windows,
he must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Deactivation of the rear electric window and door controls

 For the safety of your children, with
the ignition on, press control 5 to
deactivate the rear electric window
controls regardless of their position.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.

The safety auto-reverse function is
not operational during these opera-
tions.
