152
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the handbrake to
immobilise the vehicle, unless it is pro-
grammed to automatic mode.
Operating fault
When the ignition is on, the
lighting of this warning light,
accompanied by an audible
signal and a message on the
multifunction display, indicates
a gearbox malfunction.
In this case, the gearbox switches to
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
the gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Have it checked by a PEUGEOT dealer.
This warning light may also come on if a
door is opened.
I f t h e b a t t e r y i s fl a t a n d t h e l e -
ver is in position P , it will not
be possible to change to an-
other position.
Above all, do not force the lever as
this could damage the gearbox.
Never press the brake and accelera-
tor pedals at the same time. Brake or
accelerate using the right foot only.
Pressing both pedals simultaneously
could damage the gearbox.
Manual operation
Select position M for sequential
changing of the six gears.
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
If the lever is not in position
P , when the driver's door
is opened or approximately
45 seconds after the ignition is
switched off, an audible signal is
heard and a message appears.
Return the lever to position P ; the
audible signal stops and the mes-
sage disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selec-
tor between two positions).
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode.
In the event of under-revving or over-
r e v v i n g , t h e g e a r s e l e c t e d fl a s h e s f o r a
few seconds, then the actual gear en-
gaged is displayed.
Page 162 of 290
CHECKS
161
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m -
ful to health or indeed very
corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to a PEUGEOT
dealer (France) or an authorised
waste disposal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by lighting
of the service warning lamp, accompa-
nied by an audible warning and a mes-
sage on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Maintenance and Warranty Guide
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
B a t t e r y
The battery does not require any
maintenance.
H o w e v e r , c h e c k t h a t t h e t e r m i n a l s
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, re-
fer to the "Practical information" section for
details of the precautions to be taken before
disconnecting the battery and following its
reconnection.
Air filter
Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
t h e m t w i c e a s o f t e n i f n e c e s s a r y (refer
to the "Engines" paragraph). Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component. Following prolonged opera-
tion of the vehicle at very low
speed or at idle, you may, in
exceptional circumstances, notice the
emission of water vapour at the ex-
haust on acceleration. This does not
affect the behaviour of the vehicle or
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Dust filter/Anti-odour filter
(activated carbon)
Y o u r v e h i c l e i s fi t t e d w i t h a fi l t e r w h i c h
traps certain dust and limits odours in
the ventilation and air conditioning.
Refer to the servicing booklet for its re-
placement interval.
Do not hesitate to change it if you notice
unpleasant odours, contact a PEUGEOT
dealer.
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may reduce the performance of the air
conditioning system and produce unde-
sirable odours.
Page 163 of 290
CHECKS
161
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m -
ful to health or indeed very
corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to a PEUGEOT
dealer (France) or an authorised
waste disposal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by lighting
of the service warning lamp, accompa-
nied by an audible warning and a mes-
sage on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Maintenance and Warranty Guide
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
B a t t e r y
The battery does not require any
maintenance.
H o w e v e r , c h e c k t h a t t h e t e r m i n a l s
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, re-
fer to the "Practical information" section for
details of the precautions to be taken before
disconnecting the battery and following its
reconnection.
Air filter
Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
t h e m t w i c e a s o f t e n i f n e c e s s a r y (refer
to the "Engines" paragraph). Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component. Following prolonged opera-
tion of the vehicle at very low
speed or at idle, you may, in
exceptional circumstances, notice the
emission of water vapour at the ex-
haust on acceleration. This does not
affect the behaviour of the vehicle or
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Dust filter/Anti-odour filter
(activated carbon)
Y o u r v e h i c l e i s fi t t e d w i t h a fi l t e r w h i c h
traps certain dust and limits odours in
the ventilation and air conditioning.
Refer to the servicing booklet for its re-
placement interval.
Do not hesitate to change it if you notice
unpleasant odours, contact a PEUGEOT
dealer.
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may reduce the performance of the air
conditioning system and produce unde-
sirable odours.
Page 168 of 290
PRACTICAL INFORMATION
166

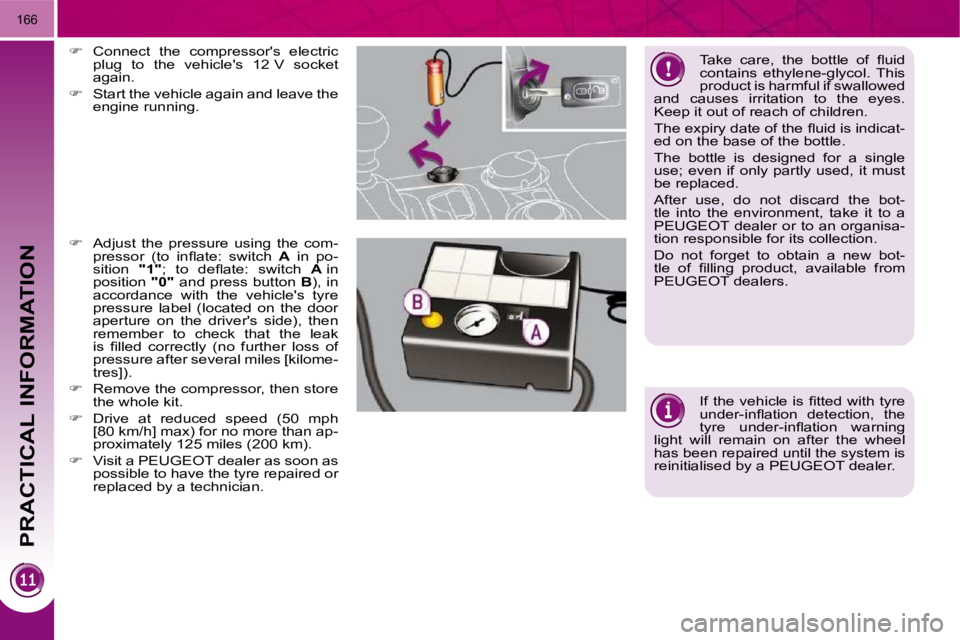

T a k e c a r e , t h e b o t t l e o f fl u i d
contains ethylene-glycol. This
product is harmful if swallowed
and causes irritation to the eyes.
Keep it out of reach of children.
T h e e x p i r y d a t e o f t h e fl u i d i s i n d i c a t -
ed on the base of the bottle.
The bottle is designed for a single
u s e ; e v e n i f o n l y p a r t l y u s e d , i t m u s t
be replaced.
A f t e r u s e , d o n o t d i s c a r d t h e b o t -
t l e i n t o t h e e n v i r o n m e n t , t a k e i t t o a
P E U G E O T d e a l e r o r t o a n o r g a n i s a -
tion responsible for its collection.
Do not forget to obtain a new bot-
t l e o f fi l l i n g p r o d u c t , a v a i l a b l e f r o m
P E U G E O T d e a l e r s .
C o n n e c t t h e c o m p r e s s o r ' s e l e c t r i c
p l u g t o t h e v e h i c l e ' s 1 2 V s o c k e t
again.
Start the vehicle again and leave the
engine running.
Adjust the pressure using the com-
p r e s s o r ( t o i n fl a t e : s w i t c h A in po-
sition "1" ; t o d e fl a t e : s w i t c h A in
position "0" and press button B ) , i n
a c c o r d a n c e w i t h t h e v e h i c l e ' s t y r e
pressure label (located on the door
a p e r t u r e o n t h e d r i v e r ' s s i d e ) , t h e n
remember to check that the leak
i s fi l l e d c o r r e c t l y ( n o f u r t h e r l o s s o f
pressure after several miles [kilome-
t r e s ] ) .
R e m o v e t h e c o m p r e s s o r , t h e n s t o r e
the whole kit.
Drive at reduced speed (50 mph
[ 8 0 k m / h ] m a x ) f o r n o m o r e t h a n a p -
p r o x i m a t e l y 1 2 5 m i l e s ( 2 0 0 k m ) .
V i s i t a P E U G E O T d e a l e r a s s o o n a s
possible to have the tyre repaired or
replaced by a technician. I f t h e v e h i c l e i s fi t t e d w i t h t y r e
u n d e r - i n fl a t i o n d e t e c t i o n , t h e
t y r e u n d e r - i n fl a t i o n w a r n i n g
light will remain on after the wheel
has been repaired until the system is
r e i n i t i a l i s e d b y a P E U G E O T d e a l e r .
Page 194 of 290
PRACTICAL INFORMATION
188
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
t r a n s p o r t i n g p e o p l e a n d l u g g a g e , b u t i t
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
ambient temperature.
I n a l l c a s e s , p a y a t t e n t i o n t o t h e c o o l a n t
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
A s t h e f a n i s e l e c t r i c a l l y c o n t r o l l e d , i t s
cooling capacity is not dependent on
the engine speed.
T o l o w e r t h e e n g i n e s p e e d , r e d u c e
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the
t o w i n g v e h i c l e a n d o f t h e t r a i l e r ,
observing the recommended pres-
sures.
Lighting
Check the electrical signalling on
the trailer.
The rear parking assistance
will be deactivated automati-
c a l l y i f a n o r i g i n a l P E U G E O T
towbar is used.
I f t h e w a r n i n g l a m p a n d t h e
STOP warning lamp come
o n , s t o p t h e v e h i c l e a n d
switch off the engine as
soon as possible.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
A i r d e n s i t y d e c r e a s e s w i t h a l t i t u d e , t h u s
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
R e f e r t o t h e " T e c h n i c a l D a t a " s e c t i o n f o r
details of the weights and towing loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
We recommend the use of
g e n u i n e P E U G E O T t o w b a r s
and their harnesses that have
been tested and approved from the
d e s i g n s t a g e o f y o u r v e h i c l e , a n d t h a t
t h e fi t t i n g o f t h e t o w b a r i s e n t r u s t e d
t o a P E U G E O T d e a l e r .
I f t h e t r a i l e r i s n o t fi t t e d b y a P E U G E O T
d e a l e r , i t i s i m p e r a t i v e t h a t i t i s fi t t e d
u s i n g t h e e l e c t r i c a l p r e - e q u i p m e n t
i n s t a l l e d a t t h e r e a r o f t h e v e h i c l e , i n
a c c o r d a n c e w i t h t h e m a n u f a c t u r e r ' s
instructions.
