154
The parking assistance sys-
tem cannot, in any circum-
stances, replace the need for
vigilance and responsibility on
the part of the driver.
The parking assistance is
switched off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been station-ary for more than three seconds in
forward gear. Deactivation Operating fault
The system will be deactivat-
ed automatically when a trailer
is being towed or when a bicy-
c l e c a r r i e r i s fi t t e d ( v e h i c l e fi t t e d w i t h
a towbar or bicycle carrier recom-
mended by PEUGEOT).
Reactivation
Press button A again, the warning
lamp switches off, the system is re-
activated.
Press button A , the warning lamp
comes on, the system is fully deacti-
vated. In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged, an
audible signal (long beep) indicates
that the sensors may be dirty.
When the vehicle is being driven at
a speed below approximately 6 mph
(10 km/h), certain sources of noise
(motorcycles, lorries, pneumatic
drills, ...) may trigger the parking as-
sistance audible signals. If an operating fault occurs,
this warning lamp is displayed
on the instrument panel and/
or a message appears on
the multifunction screen, ac-
companied by an audible signal (short
beep), when reverse gear is engaged.
Consult a PEUGEOT dealer.
Page 161 of 290
CHECKS
160
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or using
the dipstick.
Between two oil changes, the consump-
tion should not exceed 0.5 litre per
600 miles (1,000 km). T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Power steering fluid level T h e p o w e r s t e e r i n g fl u i d l e v e l
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
m i n i m u m l e v e l o f t h i s fl u i d i s
indicated by an audible signal
and a message on the multi-
function display.
Top up the level when you stop the vehicle.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engi-
neand conform to the manufacturer's
recommendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Draining the circuit
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s c o l d . F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
Page 183 of 290
PRACTICAL INFORMATION
180

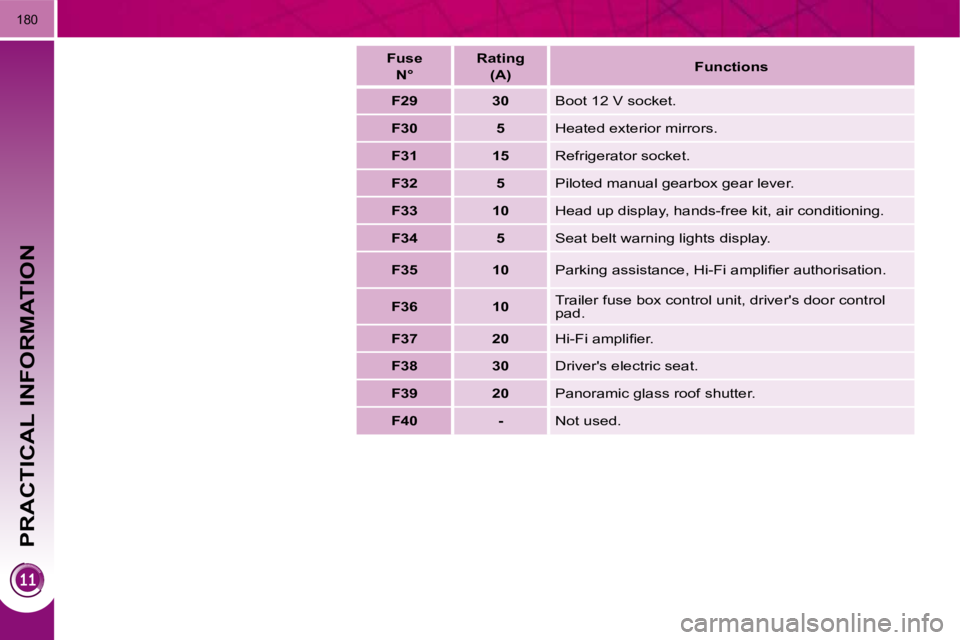

Fuse N° Rating
(A) Functions
F29 30 Boot 12 V socket.
F30 5 H e a t e d e x t e r i o r m i r r o r s .
F31 15 R e f r i g e r a t o r s o c k e t .
F32 5 P i l o t e d m a n u a l g e a r b o x g e a r l e v e r .
F33 10 H e a d u p d i s p l a y , h a n d s - f r e e k i t , a i r c o n d i t i o n i n g .
F34 5 Seat belt warning lights display.
F35 10 P a r k i n g a s s i s t a n c e , H i - F i a m p l i fi e r a u t h o r i s a t i o n .
F36 10 T r a i l e r f u s e b o x c o n t r o l u n i t , d r i v e r ' s d o o r c o n t r o l
pad.
F37 20 H i - F i a m p l i fi e r .
F38 30 D r i v e r ' s e l e c t r i c s e a t .
F39 20 Panoramic glass roof shutter.
F40 - Not used.
Page 188 of 290
PRACTICAL INFORMATION
185
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
w i t h r e g u l a t i o n s a n d m u s t n o t , i n a n y
c i r c u m s t a n c e s , b e d i s c a r d e d w i t h
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and con-
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 189 of 290
PRACTICAL INFORMATION
185
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
w i t h r e g u l a t i o n s a n d m u s t n o t , i n a n y
c i r c u m s t a n c e s , b e d i s c a r d e d w i t h
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and con-
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 190 of 290
PRACTICAL INFORMATION
185
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
w i t h r e g u l a t i o n s a n d m u s t n o t , i n a n y
c i r c u m s t a n c e s , b e d i s c a r d e d w i t h
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and con-
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 207 of 290
204
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
6 1 2
9
7
8
115
TU
PQRS
0
*
1 . CD eject.
2 . RADIO: access to the "Radio" Menu. D i s p l a y i n g o f t h e l i s t o f s t a t i o n s i n a l p h a b e t i c a l o r d e r ( F M w a v e b a n d ) o r f r e q u e n c y o r d e r ( A M w a v e b a n d ) .
M E D I A : a c c e s s t o t h e " M e d i a " M e n u ( A u d i o C D , J u k e b o x , E x t e r n a l D e v i c e ) . D i s p l a y i n g o f t h e l i s t o f t r a c k s . C h a n g e o f s o u r c e .
N A V : a c c e s s t o t h e " N a v i g a t i o n " M e n u a n d d i s p l a y i n g o f t h e last destinations.
E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y .
T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n d e s c r i b e d in detail in sections 02 and 10).
A D D R B O O K : a c c e s s t o t h e " A d d r e s s b o o k " M e n u ( f u n c t i o n described in detail in section 10).
S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) ( f u n c t i o n described in detail in sections 02 and 10). L o n g p r e s s : G P S c o v e r a g e .
3 . A u d i o s e t t i n g s ( B a l a n c e / F a d e r , B a s s / T r e b l e , M u s i c a l Ambience...).
4 . Volume adjustment. Short press: mute.
5 . Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6 . A u t o m a t i c s e a r c h f o r a r a d i o s t a t i o n o n a h i g h e r f r e q u e n c y . S e l e c t i o n o f t h e n e x t C D o r M P 3 t r a c k .
FIRST STEPS
PC Com 3D CONTROL PANEL
7 . Normal display or black screen.
8 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y i n g o n t h e s c r e e n o f " M A P " / " N A V " ( i f n a v i g a t i o n i s i n p r o g r e s s ) / " T E L " ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) / " R A D I O " o r " M E D I A " c u r r e n t l y b e i n g p l a y e d .
9 . PICK UP: access to the "Phone" menu. W i t h B l u e t o o t h c o n n e c t i o n , a c c e p t a n i n c o m i n g c a l l .
1 0 . HANG UP: access to the "Phone" menu. H a n g u p t h e c u r r e n t c a l l o r r e f u s e a n i n c o m i n g c a l l , w i t h Bluetooth connection.
1 1 . Telephone numeric keypad, pre-selection of 10 radio frequencies.
1 2 . SD card reader.
Short press: clears the last character.
L o n g p r e s s : a c t i v a t e s t h e v o i c e r e c o g n i t i o n .
Page 208 of 290
205
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
13
1 4

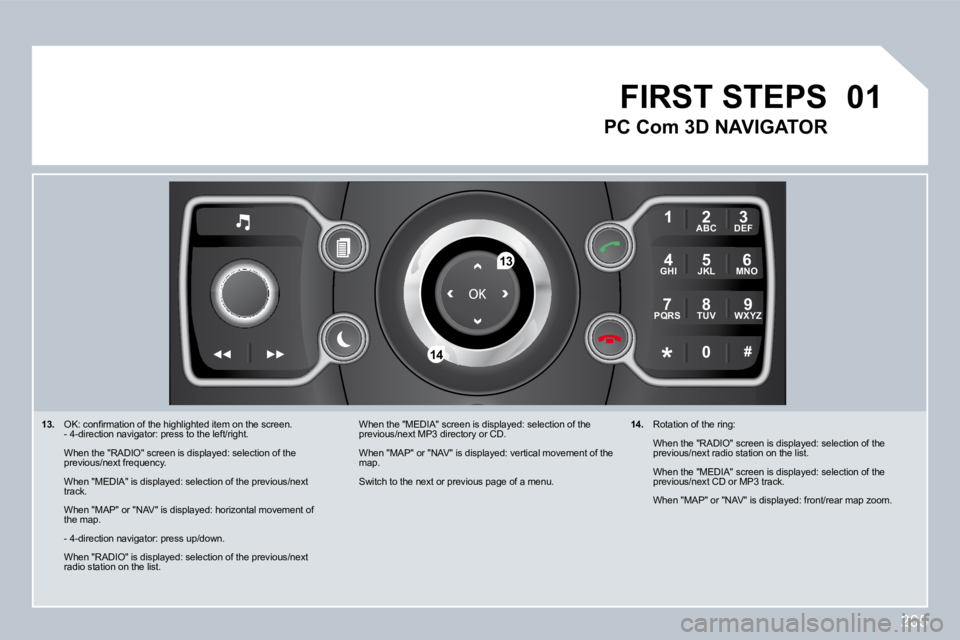

1 3 . O K : c o n fi r m a t i o n o f t h e h i g h l i g h t e d i t e m o n t h e s c
r e e n . - 4 - d i r e c t i o n n a v i g a t o r : p r e s s t o t h e l e f t / r i g h t .
When the "RADIO" screen is displayed: selection of the p r e v i o u s / n e x t f r e q u e n c y .
W h e n " M E D I A " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t track.
When "MAP" or "NAV" is displayed: horizontal movem ent of the map.
- 4 - d i r e c t i o n n a v i g a t o r : p r e s s u p / d o w n .
W h e n " R A D I O " i s d i s p l a y e d : s e l e c t i o n o f t h e p r e v i o u s / n e x t radio station on the list.
When the "MEDIA" screen is displayed: selection of the p r e v i o u s / n e x t M P 3 d i r e c t o r y o r C D .
When "MAP" or "NAV" is displayed: vertical movemen t of the map.
S w i t c h t o t h e n e x t o r p r e v i o u s p a g e o f a m e n u .
FIRST STEPS
P C C o m 3 D N A V I G A T O R
1 4 . R o t a t i o n o f t h e r i n g :
When the "RADIO" screen is displayed: selection of the p r e v i o u s / n e x t r a d i o s t a t i o n o n t h e l i s t .
When the "MEDIA" screen is displayed: selection of the p r e v i o u s / n e x t C D o r M P 3 t r a c k .
W h e n " M A P " o r " N A V " i s d i s p l a y e d : f r o n t / r e a r m a p z o o m .
