2009 PEUGEOT 207 Owners Manual

FAMILIARISATION
Lighting
Ring A Switching on "AUTO" mode

 Push the stalk downwards and
release it.
Ring B Stalk A: windscreen wipers

2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

AUTO
 Automatic wiping or single wipe.
Wash-wipe: pull the control towards
you.

 89
Wipers
Switching off "AUTO" mode

 Push the stalk upwards and return it
to position "0" .

 91
Ring B: rear wiper

 85
 90
Lights off.
Side lights.
Dippedmain beam headlamps.
Rear foglamps.
or
Front and rear foglamps.
Park.
Intermittent wipe.
Wash-wipe.
Automatic lighting.

–
FAMILIARISATION

Automatic air conditioning: use of the fully automatic mode by pressing the "AUTO" button is preferable.
I require...
Heating or Manual air conditioning

Air distribution Air fl ow
Air recirculation

Exterior air intake
Temperature Manual A/C

HEAT


COOL

DEMISTING

DEFROSTING
Advice on interior settings

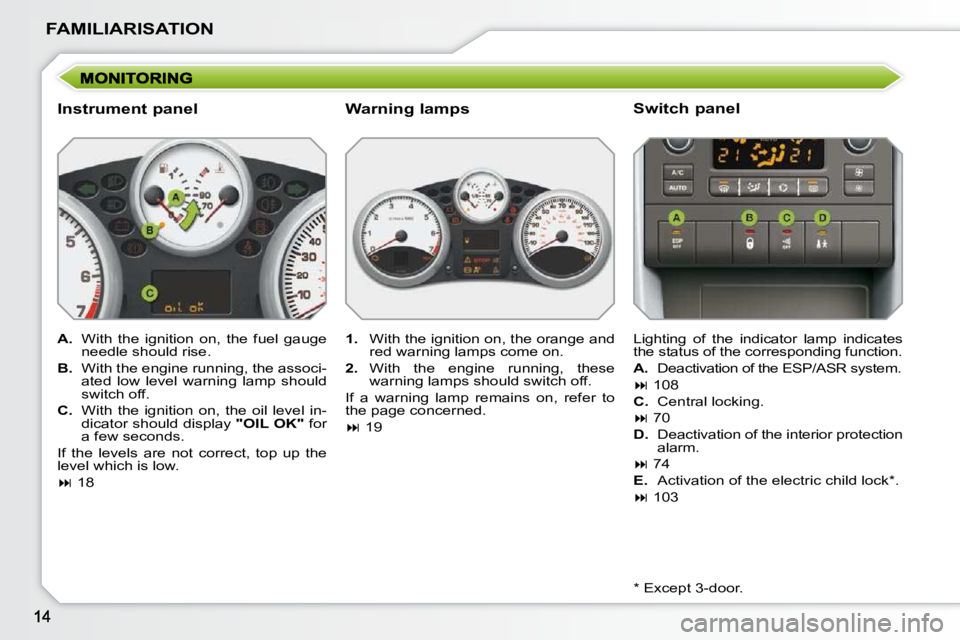

FAMILIARISATION
Instrument panel

A. With the ignition on, the fuel gauge
needle should rise.

B. With the engine running, the associ-
ated low level warning lamp should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
level which is low.

 18
1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should switch off.
If a warning lamp remains on, refer to
the page concerned.

 19
Warning lamps
* Except 3-door.
Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Deactivation of the ESP/ASR system.

 108

C. Central locking.

 70

D. Deactivation of the interior protection
alarm.

 74

E. Activation of the electric child lock * .

 103
Switch panel

!
FAMILIARISATION
Front passenger airbag

1. Open the glove box.

2. Insert the key.

3. Select position:
"ON" (activation), with front passen-
ger or "forwards facing" child seat,
"OFF" (deactivation), with "rear fac-
ing" child seat".

4. Remove the key keeping the switch
in the new position.

 113 Ignition switch

A. Front left seat belt not fastened or
unfastened warning lamp lit in red.

B. Front right seat belt not fastened or
unfastened warning lamp lit in red.

C. Rear left seat belt not fastened or
unfastened warning lamp lit in red.

D. Rear centre seat belt not fastened or
unfastened warning lamp lit in red ** .

E. Rear right seat belt not fastened or
unfastened warning lamp lit in red.

 109
Front and rear seat belts
** Except GTi.

1. Stop position.

2. Ignition position.

3. Starting position.

 72
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

FAMILIARISATION
Speed limiter "LIMIT" Instrument panel display

1. SelectingSwitching off speed limiter
mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter onoff.
The values must be set with the engine
running.

 124 The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1. SelectingSwitching off cruise control
mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Cruise control off/resume.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear on the "2 Tronic" or auto-
matic gearbox).

 126
Cruise control "CRUISE"
Cruise control Speed limiter

FAMILIARISATION
"2 Tronic" gearbox (Saloon)
This fi ve-speed electronically controlled
gearbox offers a choice between the
comfort of fully automatic operation or
the pleasure of manual gear changing.

1. Gear lever.

2. Steering wheel "-" paddle.

3. Steering wheel control "+"
paddle. Display on the instrument panel
The gear or the driving mode selected
appears on the instrument panel.

N: neutral.

R: reverse.

1 2 3 4 5: gears engaged.

AUTO: automatic mode.

 : automatic "snow" mode. Moving off

 Select position N and press the
brake pedal fi rmly while starting the
engine.

 Engage fi rst gear (position A or M )
or reverse (position R ) using the
gear lever 1 .

 Release the parking brake.

 Take your foot off the brake pedal
and accelerate.

 118

18
PETROL - DIESEL MANUAL GEARBOX OR "2 TRONIC" OR
AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel which groups together the vehicle
operation dials and indicator lamps.
5. Screen
.

6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service in-
dicator).

7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.

8. "2 Tronic " or automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Fuel gauge.
Indicates the quantity of fuel remaining in the tank.

3. Coolant
temperature.
Indicates the temperature of the en- gine coolant (°Celsius).

4. Speedometer.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter.
or
Cruise control.
(km/h or mph)

B. Trip distance recorder.
(km or miles)

C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
These three functions are displayed in succession when the ignition is
switched on.
Display
For further information, refer to the sec-
tion which corresponds to the function
and to the display associated with it.

!
19
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (wa rning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehi cle's ignition is
switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen. The warning lamps may come on
continuously (fi xed) or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.

Warning lamp is on Cause Action/Observations

Left-hand
direction
indicato
r fl ashing with
buzzer. The lighting stalk is pushed
down.


Right-hand
direction
indicator fl ashing with
buzzer. The lighting stalk is pushed
up.


Dipped beam
headlamps fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the control to the desired position

Main beam
headlamps fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
