2009 PEUGEOT 107 Owners Manual

4
47
ACCESS

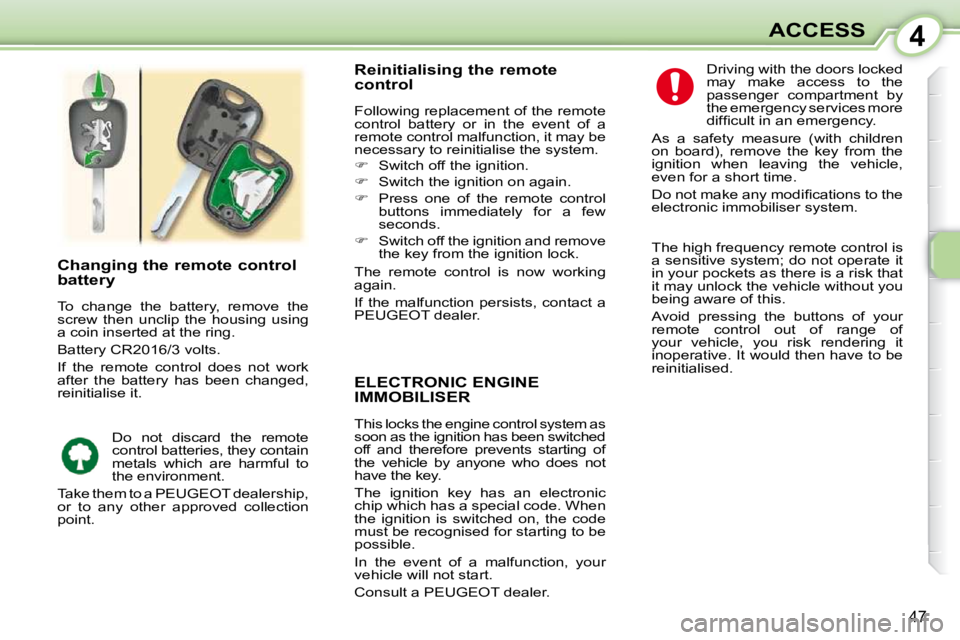

ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched
off and therefore prevents starting of
the vehicle by anyone who does not
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a PEUGEOT dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a
remote control malfunction, it may be
necessary to reinitialise the system.

 Switch off the ignition.

 Switch the ignition on again.

 Press one of the remote control
buttons immediately for a few
seconds.

 Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
PEUGEOT dealer. Driving with the doors locked
may make access to the
passenger compartment by
the emergency services more
diffi cult in an emergency.
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
Do not make any modifi cations to the
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of
your vehicle, you risk rendering it
inoperative. It would then have to be
reinitialised.

4
47
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched
off and therefore prevents starting of
the vehicle by anyone who does not
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a PEUGEOT dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a
remote control malfunction, it may be
necessary to reinitialise the system.

 Switch off the ignition.

 Switch the ignition on again.

 Press one of the remote control
buttons immediately for a few
seconds.

 Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
PEUGEOT dealer. Driving with the doors locked
may make access to the
passenger compartment by
the emergency services more
diffi cult in an emergency.
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
Do not make any modifi cations to the
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a PEUGEOT dealership,
or to any other approved collection
point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of
your vehicle, you risk rendering it
inoperative. It would then have to be
reinitialised.

4
48

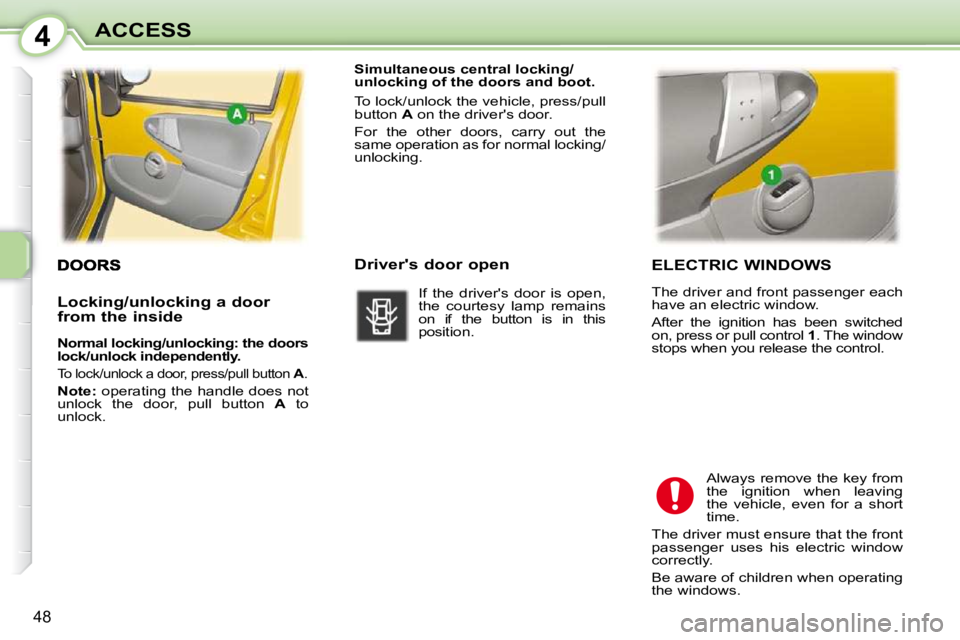

ACCESS ELECTRIC WINDOWS
The driver and front passenger each
have an electric window.
After the ignition has been switched
on, press or pull control 1 . The window
stops when you release the control.
Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
The driver must ensure that the front
passenger uses his electric window
correctly.
Be aware of children when operating
the windows.
Simultaneous central locking/unlocking of the doors and boot.
To lock/unlock the vehicle, press/pull button A on the driver's door.
For the other doors, carry out the same operation as for normal locking/unlocking.
Driver's door open
If the driver's door is open,
the courtesy lamp remains
on if the button is in this
position.
Locking/unlocking a door
from the inside

Normal locking/unlocking: the doors
lock/unlock independently.

To lock/unlock a door, press/pull button A .

Note: operating the handle does not
unlock the door, pull button A to
unlock.

4
49
ACCESS

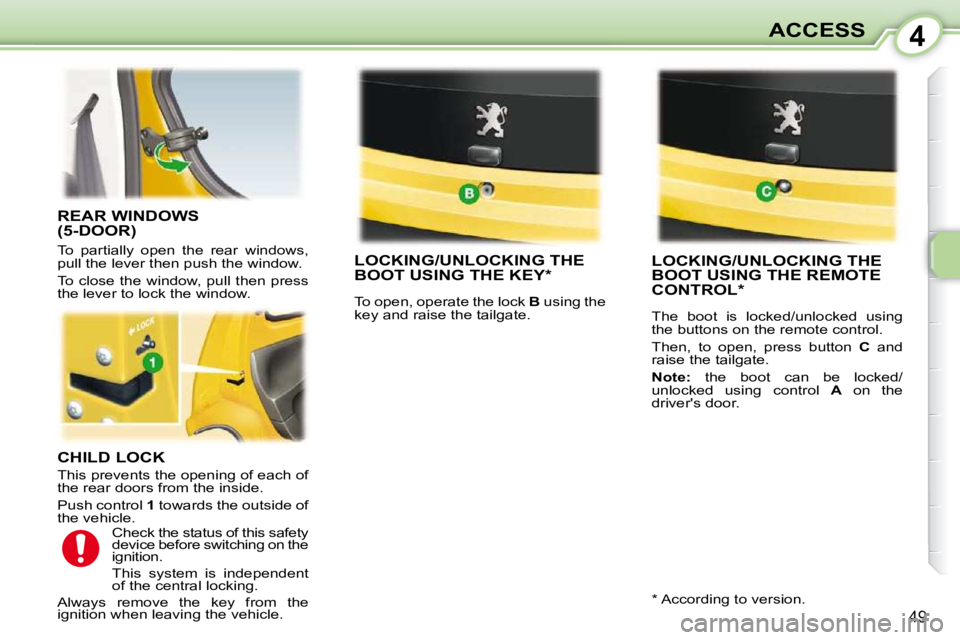

CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.

Note: the boot can be locked/
unlocked using control A on the
driver's door.
REAR WINDOWS(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on the
ignition.
This system is independent
of the central locking.
Always remove the key from the
ignition when leaving the vehicle. * According to version.

4
49
ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.

Note: the boot can be locked/
unlocked using control A on the
driver's door.
REAR WINDOWS(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on the
ignition.
This system is independent
of the central locking.
Always remove the key from the
ignition when leaving the vehicle. * According to version.

4
50
ACCESS

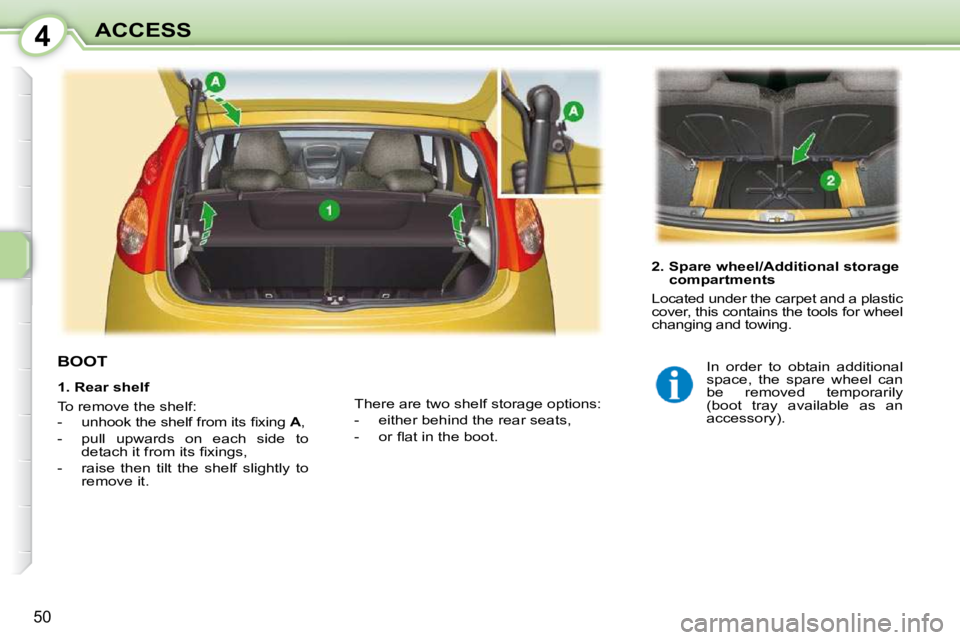

BOOT
2. Spare wheel/Additional storage compartments
Located under the carpet and a plastic
cover, this contains the tools for wheel
changing and towing.
There are two shelf storage options:
- either behind the rear seats,
- or fl at in the boot.
1. Rear shelf
To remove the shelf:
- unhook the shelf from its fi xing
A ,
- pull upwards on each side to detach it from its fi xings,
- raise then tilt the shelf slightly to remove it. In order to obtain additional
space, the spare wheel can
be removed temporarily
(boot tray available as an
accessory).

4
51
ACCESS
FILLING THE FUEL TANK

 Open the fuel fi ller fl ap.

 Insert the key, turn it slightly to the
left then return to the right. The
key returns to its initial position
and the cap is unlocked.
Low fuel level
When the fuel tank minimum
level is reached, the last
segment fl ashes, accompanied
by an audible signal.

You have approximately
5 litres remaining.
In certain driving conditions and depending
on the engine, the distance which can be
travelled with the fuel remaining may be
less than 30 miles (50 km).
When the frequency of the fl ashing increases,

you have approximately 3 litres remaining .
 Unscrew the cap and hook it onto
the clip located on the inside of
the fl ap.
A label affi xed on the inside of the
fl ap reminds you which type of fuel
to use.
When you fi ll the fuel tank, do not con-
tinue after the 3rd cut-off of the pump.
This could cause malfunctions.

 Remove the key.

Note
: if you run out of fuel,
the emission control system
warning lamp may come on
on the instrument panel. It
will switch off automatically after the
engine has been started a few times.
The fuel tank must be fi lled

with the engine switched off .
The capacity of the fuel tank is
approximately 35 litres.

 After fi lling the fuel tank, screw
the cap back on fully to the right
until it clicks and close the fl ap.

5
52
VISIBILITY
LIGHTING STALK S

1. Lamps off

2. Sidelamps

3. Dipped headlamps/
Main beam
headlamps Dipped headlamps/main beam
headlamps

Dipped headlamps: pull the stalk.

Main beam headlamps: push the
stalk.
Lamps on buzzer
When the driver's door is opened with
the ignition off, a continuous audible
signal is heard if you have left your
lamps on. Rear foglamp
With the dipped head-
lamps on, selection is
by rotation of ring B for-
wards to switch on and
rearwards to switch off.
The status is displayed by the indicator
lamp on the instrument panel.
In clear weather or in rain,
both day and night, the rear
foglamps are dazzling and
are prohibited.
Do not forget to switch them off when
they are no longer needed.
Direction indicators
(flashers)
Left: stalk downwards.

Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lamps
Selection is by rotation of ring
A .
Note: Switching to sidelamps does
not switch off the rear foglamps if
they are on.
