2009 OPEL ZAFIRA stop start

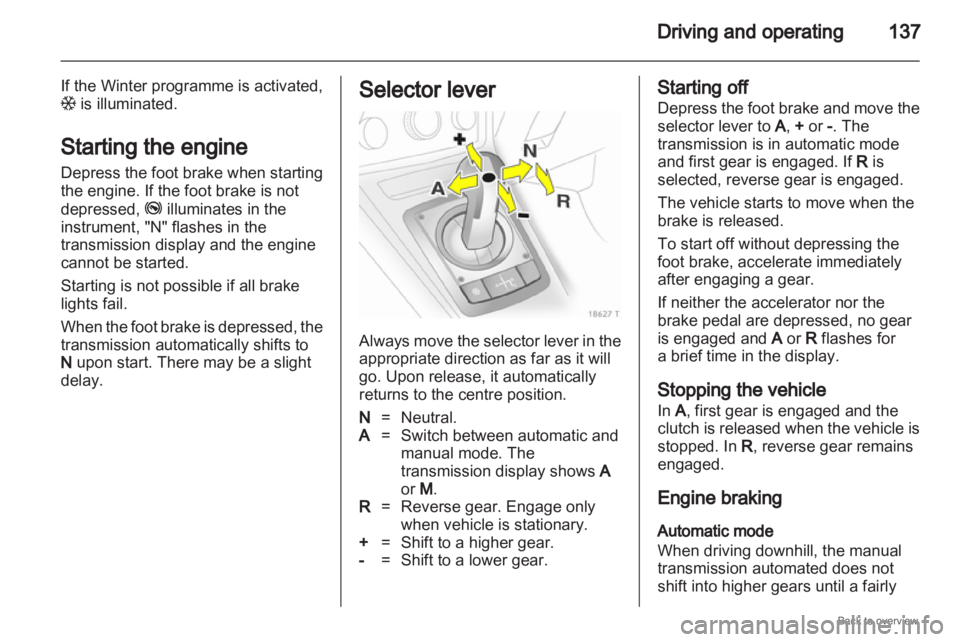

Driving and operating
137
If the Winter programme is activated,
T is illuminated.
Starting the engine
Depress the foot brake when starting
the engine. If the foot brake is not
depressed, j illuminates in the
instrument, "N" flashes in the
transmission display and the engine
cannot be started.
Starting is not possible if all brake
lights fail.
When
the foot brake is depressed, the
transmission automatically shifts to
N upon start. There may be a slight
delay. Selector lever
Always move the selector lever in the
appropriate direction as far as it will
go. Upon release, it automatically
returns to the centre position.
N
= Neutral.
A = Switch between automatic and
manual mode. The
transmission display shows A
or M.
R = Reverse gear. Engage only
when vehicle is stationary.
+ = Shift to a higher gear.
- = Shift to a lower gear. Starting off
Depress
the foot brake and move the
selector lever to A, + or -. The
transmission is in automatic mode
and first gear is engaged. If R is
selected, reverse gear is engaged.
The vehicle starts to move when the
brake is released.
To start off without depressing the
foot brake, accelerate immediately
after engaging a gear.
If neither the accelerator nor the
brake pedal are depressed, no gear
is engaged and A or R flashes for
a brief time in the display.
Stopping the vehicle
In A, first gear is engaged and the
clutch is released when the vehicle is
stopped. In R , reverse gear remains
engaged.
Engine braking
Automatic mode
When driving downhill, the manual
transmission automated does not
shift into higher gears until a fairly

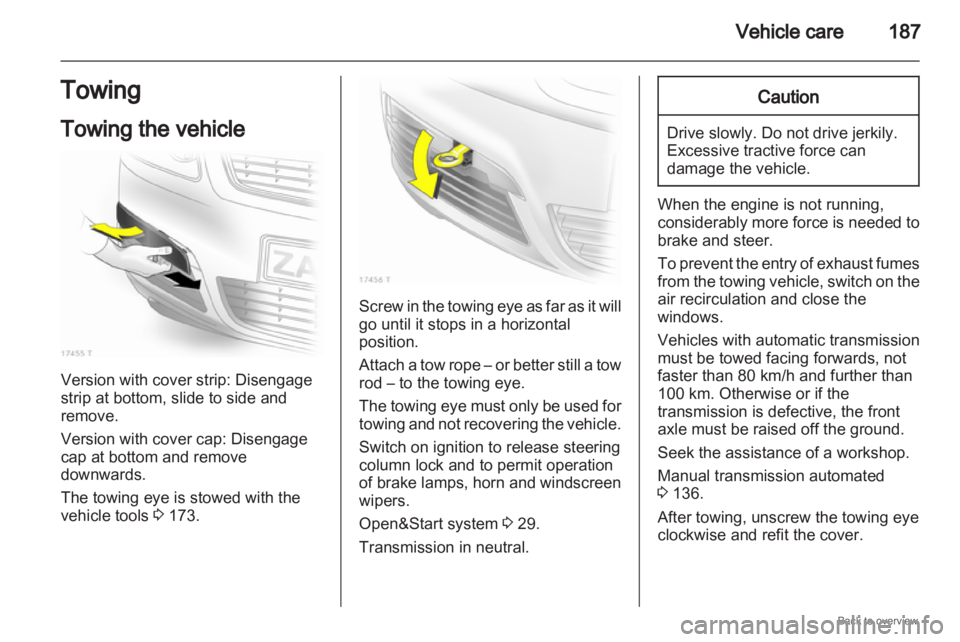

Vehicle care
187
Towing
Towing the vehicle Version with cover strip: Disengage
strip at bottom, slide to side and
remove.
Version with cover cap: Disengage
cap at bottom and remove
downwards.
The towing eye is stowed with the
vehicle tools
3 173. Screw in the towing eye as far as it will
go until it stops in a horizontal
position.
Attach
a tow rope – or better still a tow
rod – to the towing eye.
The towing eye must only be used for
towing and not recovering the vehicle.
Switch on ignition to release steering
column lock and to permit operation
of brake lamps, horn and windscreen
wipers.
Open&Start system 3 29.
Transmission in neutral. Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.
When the engine is not running,
considerably

more force is needed to
brake and steer.
To prevent the entry of exhaust fumes
from the towing vehicle, switch on the
air recirculation and close the
windows.
Vehicles with automatic transmission
must be towed facing forwards, not
faster than 80 km/h and further than
100 km. Otherwise or if the
transmission is defective, the front
axle must be raised off the ground.
Seek the assistance of a workshop.
Manual transmission automated
3 136.
After towing, unscrew the towing eye
clockwise and refit the cover.

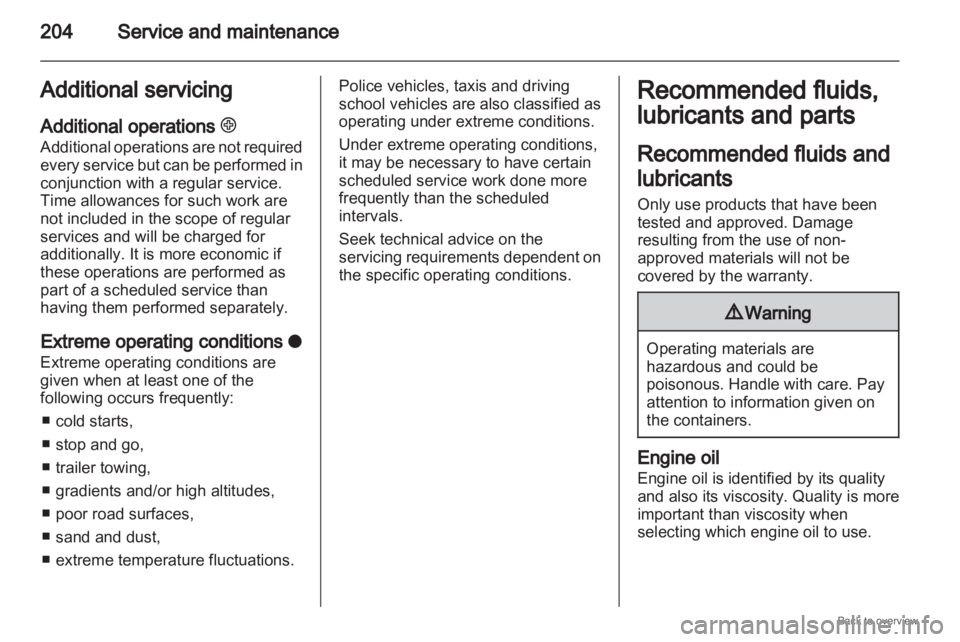

204
Service and maintenance
Additional servicing
Additional operations +
Additional operations are not required
every service but can be performed in
conjunction with a regular service.
Time allowances for such work are
not included in the scope of regular
services and will be charged for
additionally. It is more economic if
these operations are performed as
part of a scheduled service than
having them performed separately.
Extreme operating conditions o
Extreme operating conditions are
given when at least one of the
following occurs frequently:
■ cold starts,
■ stop and go,
■ trailer towing,
■ gradients and/or high altitudes,
■ poor road surfaces,
■ sand and dust,
■ extreme temperature fluctuations. Police vehicles, taxis and driving
school vehicles are also classified as
operating under extreme conditions.
Under extreme operating conditions,
it may be necessary to have certain
scheduled service work done more
frequently than the scheduled
intervals.
Seek technical advice on the
servicing
requirements dependent on
the specific operating conditions. Recommended fluids,
lubricants and parts
Recommended fluids and
lubricants
Only use products that have been
tested and approved. Damage
resulting from the use of non-
approved materials will not be
covered by the warranty.
9
Warning Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and also its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use.

227
Rear seat audio system .......24, 116
Rear window wiper/washer .......... 79
Recommended fluids and lubricants ................................ 204
Refuelling ................................... 147
Reversing lights .........................112
Roof panelling .............................. 68
Roof rack ..................................... 74
Run-flat tyres ............................. 174
S
Safety net .................................... 72
Seat adjustment ....................... 7, 46
Seat belt ........................................ 8
Seat belt reminder .......................87
Seat belts ..................................... 54
Seat folding .................................. 48
Seat occupancy recognition ..61, 87
Seat position ................................ 46
Seats in second row ....................20
Seats in third row ......................... 21
Second row seats ........................49
Selector lever ..................... 132, 137
Service ............................... 126, 192
Service display ............................ 85
Service information ....................192
Service schedules ......................194
Service vehicle soon .................... 88
Side airbag system ......................59
Side turn signal lights ................165 Spare wheel ............................... 183
Speedometer
............................... 83
Sport mode .................... 24, 89, 143
Starting off ................................... 17
Starting the engine ............128, 137
Steering wheel adjustment ......9, 77
Steering wheel controls ...............77
Stop watch ................................. 106
Sunglasses storage .....................68
Sunvisor lights ........................... 114
Sun visors .................................... 43
Symbols ......................................... 4
T
Tachometer ................................. 83
Tail lights ................................... 164
Third row seats ............................ 51
Three-point seat belt ....................
55
Tools .......................................... 173
Top-tether child restraint systems .................................... 65
Towing another vehicle .............188
Towing equipment .....................150
Towing hitch installation dimensions ............................. 223
Towing the vehicle .....................187
Trailer stability assist .................153
Trailer towing ............................. 150
Transmission ............................... 16
Transmission display .........131, 136 Tread depth ...............................
177
Trip computer .............................. 23
Trip computer in Board-Info- Display ................................... 102
Trip computer in Graphic-Info- Display or Colour-Info-
Display ................................... 104
Triple-Info-Display .......................93
Trip odometer .............................. 83
Turn and lane-change signals ...111
Turn signal ................................... 87
Tyre chains ................................ 178
Tyre deflation detection system. .......................................... 25, 177
Tyre designations ......................175
Tyre pressure .................... 101, 175
Tyre pressure monitoring system .............................. 25, 176
Tyre pressures ...................
107, 220
Tyre repair kit ............................. 179
Tyres .......................................... 174
U
Ultrasonic parking assist .............. 89
Underseat storage .......................68
Using this manual .......................... 3
V
Vehicle dimensions .................... 218
Vehicle Identification Number ....207
