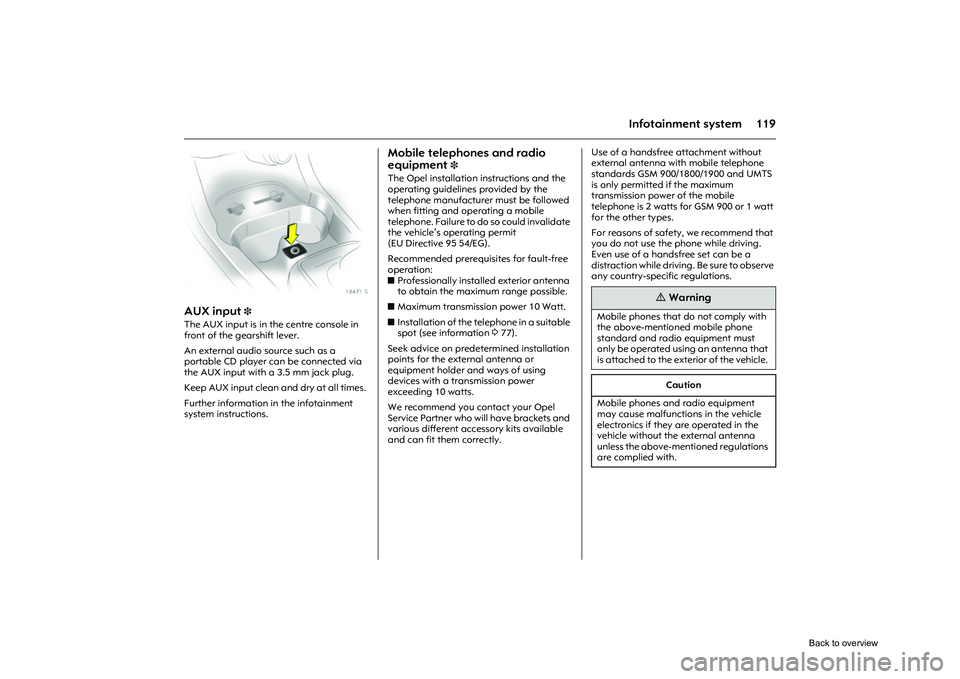

119
Infotainment system
Picture no: 18471s.tif
AUX input
3
The AUX input is in the centre console in
front of the gearshift lever.
An external audio source such as a
portable CD player can be connected via
the AUX input with a 3.5 mm jack plug.
Keep AUX input clean and dry at all times.
Further information in the infotainment
system instructions.
Mobile telephones and radio
equipment
3
The Opel installation instructions and the
operating guidelines provided by the
telephone manufacturer must be followed
when fitting and operating a mobile
telephone. Failure to do so could invalidate
the vehicle’s operating permit
(EU Directive 95 54/EG).
Recommended prerequisites for fault-free
operation:
z Professionally installed exterior antenna
to obtain the maximum range possible.
z Maximum transmission power 10 Watt.
z Installation of the te lephone in a suitable
spot (see information 377).
Seek advice on predetermined installation
points for the external antenna or
equipment holder and ways of using
devices with a transmission power
exceeding 10 watts.
We recommend you contact your Opel
Service Partner who will have brackets and
various different accessory kits available
and can fit them correctly. Use of a handsfree attachment without
external antenna with mobile telephone
standards GSM 900/1800/1900 and UMTS
is only permitted if the maximum
transmission power of the mobile
telephone is 2 watts for GSM 900 or 1 watt
for the other types.
For reasons of safety, we recommend that
you do not use the phone while driving.
Even use of a handsfree set can be a
distraction while
driving. Be sure to observe
any country-specific regulations.
9
Warning
Mobile phones that do not comply with
the above-mentioned mobile phone
standard and radio equipment must
only be operated using an antenna that
is attached to the exterior of the vehicle.
Caution
Mobile phones and radio equipment
may cause malfunctions in the vehicle
electronics if they are operated in the
vehicle without the external antenna
unless the above-mentioned regulations
are complied with.
Back to overview
202 Self-help, vehicle care
Picture no: 18316s.tif
3. The jacking points are marked. With versions of the Corsa OPC with sill
panelling 3 or retrofitted sill panelling 3
no jack 3 must be used. The vehicle may
be damaged.
Picture no: 18429s.tif
4. Before attaching the jack 3, set it to the
required height. Fit the jack arm at the
front – or rear – in such a way that the
jack claw (arrow in figure) goes around
the vertical ridge and engages in the
recess in the ridge. Ensure that the claw
is properly positioned.
Picture no: 18430s.tif
The edge of the jack base must be
planted firmly and vertically in line with
the contact point.
Raise vehicle by turning crank handle.
If this is not the case, carefully lower the
vehicle immediately and reposition the
jack.
