Driving and operation164

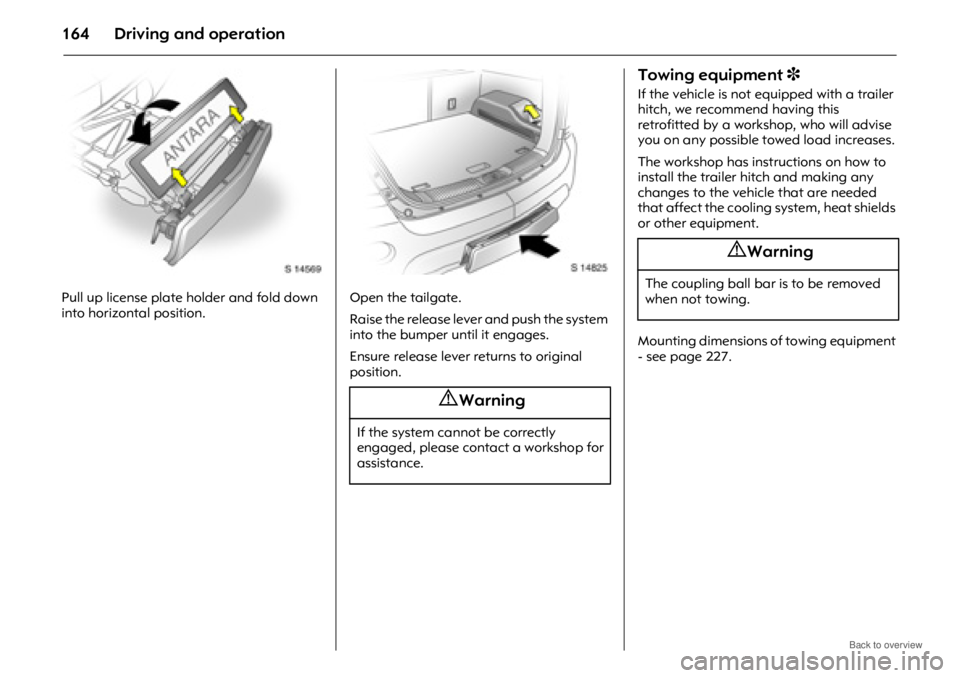

Pull up license plate holder and fold down
into horizontal position.Open the tailgate.
Raise the release lever
and push the system
into the bumper until it engages.
Ensure release lever returns to original
position.
Towing equipment 3
If the vehicle is not equipped with a trailer
hitch, we recommend having this
retrofitted by a workshop, who will advise
you on any possible towed load increases.
The workshop has instructions on how to
install the trailer hitch and making any
changes to the vehicle that are needed
that affect the coolin g system, heat shields
or other equipment.
Mounting dimensions of towing equipment
- see page 227.
9 Warning
If the system cannot be correctly
engaged, please contact a workshop for
assistance.
9 Warning
The coupling ball bar is to be removed
when not towing.

Technical data215
Technical data
Vehicle documents,
identification plate
The technical data is determined in
accordance with European Community
standards. We reserve the right to make
modifications. Specifications in the vehicle
documents always have priority over those
given in this manual.
The Vehicle Identification Number (VIN) is
on the vehicle identification plate,
attached to the top of the front panel
support, visible when the bonnet is open.
The vehicle identification plate may also
list, in kilograms, the Gross Vehicle Weight
(GVW), the Gross Train Weight (GTW) and
the maximum front and rear axle loads
respectively. Observe these limits when
using the full load or towing capacity of
your vehicle. Information on identification plate
1):
1 Manufacturer
2 Trim level
3 Colour code
4 Type approval number
5 Vehicle Identifi cation Number
6 Permissible Gross Vehicle Weight
7 Permissible Gross Train Weight
8 Maximum permissible front axle load
9 Maximum permissible rear axle load
Vehicle documents,
identification plate........................... 215
Coolant, brake fluid, oils .................... 216
Engine data......................................... 217
Performance........................................ 218
Fuel consumption, CO
2emissions ..... 219
Weights, payload and roof load ....... 221
Tyres .................................................... 223
Electrical system ................................. 225
Capacities ........................................... 225
Dimensions .......................................... 226
Mounting dimensions of caravan/ trailer towing equipment ................. 227
1)The VIN plate on your ve hicle may differ from
the illustration shown.

226 Technical data
Dimensions
Overall length (mm)4576
Width (mm) 1850
Overall height with roof rails (mm) 1747
Wheelbase (mm) 2707
Track width (mm): Front
Rear 1562
1572
Turning circle diameter, wall to wall (m) 12.78
Maximum wading depth (mm)
(at 5 km/h (3 mph)) 450
Approach angle 24°
Ramp angle 17.6°
Departure angle 23°

Technical data 227
Mounting dimensions of caravan/
trailer towing equipment
Dimension mm
A 416
B 507
C 482
D 734
E 1039
F (fully laden)
353
G (at kerb weight)
446
9 Warning
Only use towing equipment approved for
your vehicle. We recommend entrusting
fitting of towing equipment at a later
date to a workshop.
