2009 NISSAN GT-R key

Black plate (114,1)
Model "R35-D" EDITED: 2008/ 5/ 20
INTELLIGENT KEY BATTERY DIS-
CHARGE INDICATORThis indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (
“INTELLIGENT KEY BATTERY
REPLACEMENT” page 8-23)
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood, or trunk lid when the system is armed. It is
not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your GT-R
certified NISSAN dealer may also offer such
equipment. Check with your insurance company
to see if you may be eligible for discounts for
various theft protection features.
2-42
Instruments and controls
SECURITY SYSTEMS
,QIRUPDWLRQ3URYLGHGE\

Black plate (115,1)
Model "R35-D" EDITED: 2008/ 5/ 20
How to arm the vehicle security
system1. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF or LOCK position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch. The power door
lock switch should be operated while the
door is open, and then closed. 5. Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
withtheignitionswitchintheLOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatica lly turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
.
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
. Opening the hood.
How to stop an activated alarmThe alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent Key
or the door handle request switch. The alarm will
not stop if the ignition switch is pushed to the
ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by a GT-R
certified NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY - CARD SLOT)
This device complies with part 15 of the
Instruments and controls
2-43
,QIRUPDWLRQ3URYLGHGE\

Black plate (116,1)
Model "R35-D" EDITED: 2008/ 5/ 20
FCC Rules and RSS-210 of Industry Cana-
da. Operation is subject to the following
two conditions;
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER-
ATE THE EQUIPMENT.
Security indicator lightThe security indicator light is located on the
instrument panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks after the ignition switch was in
the LOCK position. This function indicates the
security systems equipped on the vehicle are
operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, see a GT-R certified
NISSAN dealer for NISSAN Vehicle Immo-bilizer System service as soon as possible.
Please bring all Intelligent Keys that you
have when visiting a GT-R certified
NISSAN dealer for service.
2-44
Instruments and controls
,QIRUPDWLRQ3URYLGHGE\

Black plate (127,1)
Model "R35-D" EDITED: 2008/ 5/ 20
DOOR POCKETDoor pockets are located inside the driver’s side
and passenger’s side doors.
NOTICE
Do not grasp the door pockets to open
and close the doors. Doing so may
damage the pockets.
GLOVE BOX
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
Pull the knob toward you to open the glove box.
To close the glove box, press the lid forward until
it locks in place.
Use the mechanical key to lock
*1
and unlock
*2
the glove box. (
“Mechanical key” page
3-3)
The mechanical key stops when it is inserted
approximately halfway in.
Instruments and controls
2-55
,QIRUPDWLRQ3URYLGHGE\

Black plate (131,1)
Model "R35-D" EDITED: 2008/ 5/ 20
INTERIOR LIGHT CONTROL SWITCHThe interior light control switch has three
positions: ON
*1, DOOR
*2
and OFF
*3.
ON positionWhen the switch is in the ON position
*1, the
map lights will illuminate.
NOTICE
Do not use the light for extended
periods of time with the engine
stopped. This could result in a dis-
charged battery.
NOTE:The lights will also turn off after 30
minutes when the lights remain illumi-
nated after the ignition switch has been
pushed to the OFF or LOCK position to
prevent the battery from becoming dis-
charged.DOOR positionWhen the switch is in the DOOR position
*2,
the map lights will turn on when the door is
opened and turn off when the door is closed.
The map lights will turn off approximately 15
seconds after the door is closed with the ignition
switch in the OFF or LOCK position.
NOTE:When the interior light control switch is in
the DOOR position and the door is open,
the light will remain on even when the map
light switch is pressed to turn off.Key-linked interior light control system:The map lights will turn on and off linked with the
locking and unlocking of the door.
This function operates when the interior light
control switch is in the DOOR position.
. When entering the vehicle
When the driver’s seat door is unlocked, the
map light illuminates for approximately 15 seconds, then it turns off.
While the map light is on, if the ignition switch is
pushed to the Acc or ON position, or if the
driver’s side door is locked, the light turns off.
.
When exiting the vehicle
When the ignition switch is pushed to the OFF
or LOCK position, the map lights turn on for
approximately 15 seconds, then it turns off.
If the driver’s side door is locked while the map
lights are on, the light turns off.
NOTE:It is possible to cancel the key-linked
interior light control system setting. See
the separate Multi Function Display Own-
er’s Manual.OFF positionWhen the switch is in the OFF position
*3, the
map lights will not illuminate, regardless of any
condition.
Instruments and controls
2-59
,QIRUPDWLRQ3URYLGHGE\

Black plate (13,1)

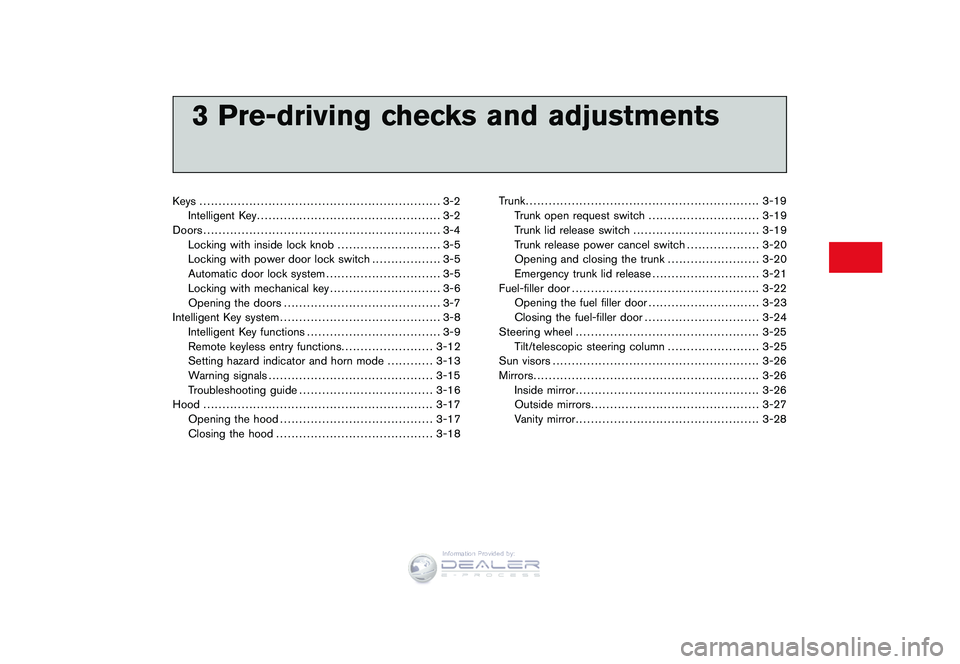

3 Pre-driving checks and adjustments
Model "R35-D" EDITED: 2008/ 5/ 20
Keys ............................................................... 3-2Intelligent Key ................................................ 3-2
Doors .............................................................. 3-4
Locking with inside lock knob ........................... 3-5
Locking with power door lock switch .................. 3-5
Automatic door lock system .............................. 3-5
Locking with mechanical key ............................. 3-6
Opening the doors ......................................... 3-7
Intelligent Key system .......................................... 3-8
Intelligent Key functions ................................... 3-9
Remote keyless entry functions ........................ 3-12
Setting hazard indicator and horn mode ............ 3-13
Warning signals ........................................... 3-15
Troubleshooting guide ................................... 3-16
Hood ............................................................ 3-17
Opening the hood ........................................ 3-17
Closing the hood ......................................... 3-18 Trunk
............................................................. 3-19
Trunk open request switch ............................. 3-19
Trunk lid release switch ................................. 3-19
Trunk release power cancel switch ................... 3-20
Opening and closing the trunk ........................ 3-20
Emergency trunk lid release ............................ 3-21
Fuel-filler door ................................................. 3-22
Opening the fuel filler door ............................. 3-23
Closing the fuel-filler door .............................. 3-24
Steering wheel ................................................ 3-25
Tilt/telescopic steering column ........................ 3-25
Sun visors ...................................................... 3-26
Mirrors ........................................................... 3-26
Inside mirror ................................................ 3-26
Outside mirrors ............................................ 3-27
Vanity mirror ................................................ 3-28
,QIRUPDWLRQ3URYLGHGE\

Black plate (138,1)
Model "R35-D" EDITED: 2008/ 5/ 20
A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, see a GT-R certified
NISSAN dealer for duplicates by using the key
number. NISSAN does not record any key
numbers so it is very important to keep track of
your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a GT-R certified NISSAN dealer.
1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Keys) (2 sets)
3. Key number plate (1 set)INTELLIGENT KEYYour vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a GT-R certified
NISSAN dealer prior to use with the Intelligent
Key system and NISSAN Vehicle Immobilizer
System of your vehicle. Since the registration
process requires erasing all memory in the
Intelligent Key components when registeringnew keys, be sure to take all Intelligent Keys
that you have to a GT-R certified NISSAN
dealer.
NOTICE
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
— The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
— Do not bend, drop or strike it against another object.
— Do not place the Intelligent Key foranextendedperiodina
place where temperatures ex-
ceed 140 8F (60 8C) .
— Do not change or modify the Intelligent Key.
— Do not use a magnet key holder.
— Do not place the Intelligent Key near an electric appliance such
as a television set, personal
3-2
Pre-driving checks and adjustments
KEYS
,QIRUPDWLRQ3URYLGHGE\

Black plate (139,1)
Model "R35-D" EDITED: 2008/ 5/ 20
computer or cellular phone.
— Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a GT-R certified NISSAN dealer.
Mechanical keyTo remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors and the glove box. (
“LOCKING
WITH MECHANICAL KEY” page 3-6)
(
“GLOVE BOX” page 2-55)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
Valet hand-offWhen you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your
belongings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow the
procedures below.
1. Push the trunk release power cancel switch to the OFF side. (
“TRUNK RELEASE
POWER CANCEL SWITCH” page 3-20)
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key. (
“GLOVE BOX” page 2-55)
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag for
insertion into the Intelligent Key when you
retrieve your vehicle.
Pre-driving checks and adjustments
3-3
,QIRUPDWLRQ3URYLGHGE\
