2009 NISSAN ALTIMA COUPE tow

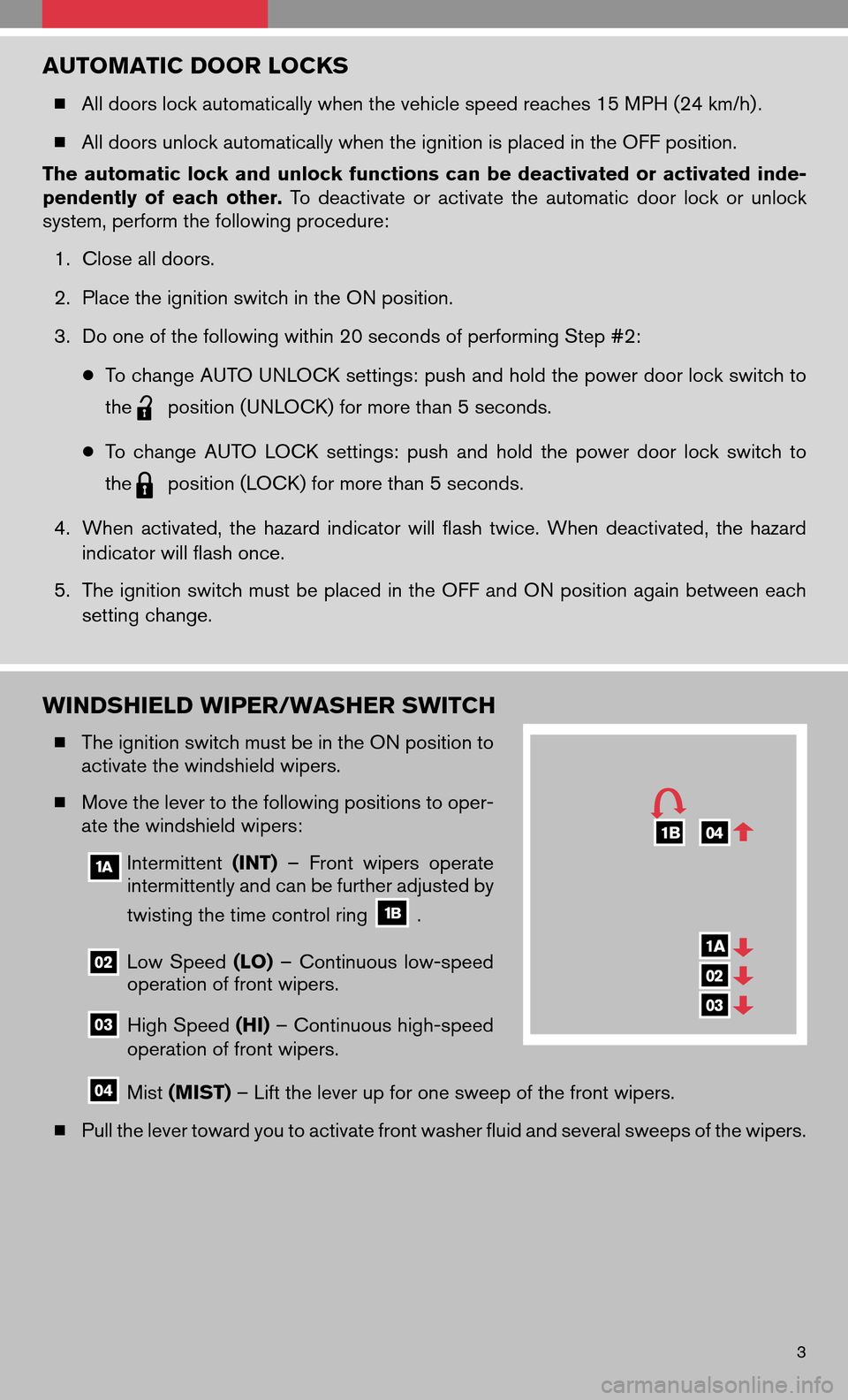

AUTOMATIC DOOR LOCKS
All doors lock automatically when the vehicle speed reaches 15 MPH (24 km/h) .
 All doors unlock automatically when the ignition is placed in the OFF position.
The automatic lockandunlock functions canbedeactivated oractivated inde-
pendently ofeach other. Todeactivate oractivate theautomatic doorlockorunlock
system, perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Do one of the following within 20 seconds of performing Step #2:
● To change AUTO UNLOCK settings: push and hold the power door lock switch to
the
position (UNLOCK) for more than 5 seconds.
● To change AUTOLOCK settings: pushandhold thepower doorlockswitch to
the
position (LOCK) for more than 5 seconds.
4. When activated, thehazard indicator willflash twice. When deactivated, thehazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
WINDSHIELD WIPER/WASHER SWITCH
 The ignition switch must be in the ON position to
activate the windshield wipers.
 Move the lever to the following positions to oper-
ate the windshield wipers:
Intermittent (INT)–Front wipers operate
intermittently and can be further adjusted by
twisting the time control ring
.
Low Speed (LO)–Continuous low-speed
operation of front wipers.
High Speed (HI)– Continuous high-speed
operation of front wipers.
Mist (MIST) – Lift the lever up for one sweep of the front wipers.
 Pull the lever toward you to activate front washer fluid and several sweeps of the wipers.
3

FUEL-FILLER CAP
To tighten, turn the fuel-filler cap clockwise until ratcheting
clicks are heard. If the cap is not fully tightened, the service
engine soon light may illuminate.
 If
light illuminates because the fuel cap is loose or
missing, tightenorre-install thecap. The
should
turn off after a few driving trips.
AUTOMATIC CLIMATE CONTROL (if so equipped)
AUTO BUTTON
 Press the AUTObutton
. Turn the driver’s side temperature control dialto
the desired temperature. Thiswillallow thefanspeed, airflow distribution and
temperature to be automatically maintained.
 When AUTO is pressed, AUTOwill illuminate. When DUAL
is pressed,DUAL
will illuminate.
 To disable auto mode, press one of the air flow mode control buttons
, turn the
fan speed control dial
or press the front defroster control button.
DRIVER’S SIDE TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air.
DUAL BUTTON
Press the DUALbutton to turn the passenger’s side temperature controls on or off. This
will allow the passenger’s side temperature to be adjusted independently from driver’s
side control.
6

TRUNK LID CANCEL SWITCH
When the cancel switch (located inside the glove box)
is OFF, the trunk lid cannot be opened with the trunk lid
opener (located onthe instrument panel) ,thetrunk
Request Switch button (if so equipped) or the Intelli-
gent Key button.
 It can be opened by using the Emergency Inside Trunk
Release.
MOONROOF CONTROLS (if so equipped)
The ignition switch must be in the ON position to operate
the moonroof controls.
TILTING THE MOONROOF
 To tiltthe moonroof up,push thetiltswitch toward
the
position.
 To tilt the moonroof down, push the tilt switch toward
the
position.
SLIDING THE MOONROOF
 To fully open the moonroof, push the switch toward theposition.
 To fully close the moonroof, push the switch toward the
position.
 To open orclose themoonroof partway, push theswitch ineither direction (
or) while the moonroof is sliding to stop it in the desired position.
FRONT SEAT ADJUSTMENTS
With manual seats (if so equipped):
FORWARD AND BACKWARD
 Pull the center of the bar up
under the front of the
seat andhold itwhile youslide theseat forward or
backward. Release the bar to lock the seat in position.
SEAT LIFTER (driver’s seat, if so equipped)
 Pull up or push down the adjusting lever
repeat-
edly to adjust the seat height.
RECLINING
 Lift the lever
on the side of the seat to adjust the seatback forward or backward.
Release thelever when youhave found acomfortable angleandtheseat beltfits
properly.
14
