2009 NISSAN ALTIMA COUPE navigation

CD/AUX BUTTON
 Press the CD/AUX button to play a CD loaded into the CD changer.
 Press the CD/AUX button again to play a compatible device such as an MP3 player
when it is plugged into the auxiliary jack (cable not included) .
NOTE: Youmay need toadjust thevolume onany compatible deviceplugged intothe
auxiliary jack to find the most desired sound level of the audio system.
EJECT BUTTON
 EJECT ASINGLE DISC-Press
the
button forless than 1.5
seconds. Selecttheeject slotby
pressing one of the CD insert se-
lect buttons (1-6 ) . The CDwill
then eject.
 EJECT ALL DISCS - Press and hold the
button for more than 1.5 seconds. The
CDs will be ejected one after another.
CD SELECT/LOAD BUTTONS
 LOAD A SINGLE DISC - Press one of the CD insert select buttons (1 -6 ) for less
than 1.5 seconds, wait for the CD slot door to open, then insert the CD.
 LOAD UP TO 6 DISCS - Press and hold one of the CD insert select buttons ( 1-6)
for more than 1.5 seconds. Wait for the CD slot door to open before loading each
disc. The slot numbers (1-6) will illuminate on the display when CDs are loaded into
the changer
*XM Satellite Radioisonly available onvehicles equipped withoptional XMsatellite
subscription service.
CLOCK SET/ADJUSTMENT
NAVIGATION SYSTEM ONLY (if so equipped)
Press theSETUP button,thentouch the
“Clock” keytoaccess thefollowing clock
settings:
 On-screen Clock–When thisitem is
turned toON, aclock isalways dis-
played inthe upper rightcorner ofthe
screen. Theclock isautomatically ad-
justed by the GPS system.
 Clock Format – Choose either the 12-hour clock display or the 24-hour clock display.
 Offset Adjust – Adjust the time by increasing or decreasing per minute.
 Daylight Saving Time – Turn this item to ON for daylight savings time application.
 Time Zone – Choose the time zone.
9

3.Using both hands, simultaneously press and hold both the HomeLink button you want
to program and the hand-held transmitter button. DO NOT release the buttons until
step 4 has been completed.
4. Hold down bothbuttons untiltheindicator lightonthe HomeLink flashes, changing
from a “slow blink” to a “rapidly flashing blink”. This could take up to 90 seconds. When
the indicator lightflashes rapidly, bothbuttons maybereleased. Therapidly flashing
light indicates successful programming. Toactivate thegarage doororother pro-
grammed device, press and hold the programmed HomeLink button - releasing when
the device begins to activate.
5. Ifthe indicator lightonthe HomeLink blinksrapidly fortwo seconds andthen turns
solid, HomeLink haspicked upa“rolling code” garage dooropener signal.Youwill
need to proceed with the next steps to train the HomeLink to complete the program-
ming, which may require a ladder and another person for convenience.
6. Press andrelease the“smart” or “learn” program buttonlocated onthe garage door
opener’s motor to activate the “training mode”. This button is usually located near the
antenna wire that hangs down from the motor. If the wire originates from under a light
lens, you will need to remove the lens to access the program button.
NOTE: Onceyouhave pressed andreleased theprogram buttononthe garage
door opener’s motor and the “training light” is lit, you have 30 seconds in which
to perform step 7. Use the help of a second person for convenience to assist when
performing this step.
7. Quickly within 30 seconds of pressing and releasing the garage door opener program
button, firmly press and release the HomeLink button you’ve just programmed. Press
and release the HomeLink button up to three times to complete the training.
8. Your HomeLink buttonshould now
beprogrammed. (T

oprogram theremaining
HomeLink buttons for additional door or gate openers, follow steps 2-8 only.)
BLUETOOTH HANDS-FREE PHONE SYSTEM (Without Navigation
System – if so equipped)
With anoverhead microphone andsound
transmitted throughtheaudio system
speaker, theBluetooth Hands-Free Phone
System utilizesBluetooth wirelesstechnol-
ogy and voice recognition toprovide hands-
free cellular phone communication.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere with system operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the tone before speaking.
 Begin speaking a command within 5 seconds of the tone.
 To go back to the previous command, say “Go back” or “Correction”.
 To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit”, or
press the
button.17

HOW TO SAY NUMBERS
NISSAN voice recognition permits numbers to be spoken in a variety of ways. Say “zero” or “oh” for “0”. Example: 1-800-662-6200 – Say “one eight zero zero six six
two six two oh oh”.
 Say “pound” for“#”. Say“star” for“*”(available whenusingthe“Call International”
command, and the “Send” command during a call) .
 Say “plus” for “+” (available only when using the “Call International” command) .
 Say “pause” for a 2 second pause (available only when storing a phonebook number) .
BLUETOOTH HANDS-FREE PHONE SYSTEM (Navigation System
only – if so equipped)
With anoverhead microphone andsound
transmitted throughtheaudio system
speaker, theBluetooth Hands-Free Phone
System utilizesBluetooth wirelesstechnol-
ogy, touch-screen, andvoice recognition to
provide hands-free cellularphonecommuni-
cation.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere with system operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the “Please say a command” prompt and the listening tone before speaking.
 Begin speaking a command within 1.5 seconds of the listening tone.
 To cancel a voice recognition session, press and hold the
button or press the
button.
 Toincrease ordecrease thevolume ofthe voice prompts, pushthe+or –(volume)
control buttons onthe steering wheelorturn theVOL (volume) knobonthe audio
system while the system is responding.
 Speak in a clear and natural voice without pausing between words.
 Some commands are not available while the vehicle is in motion.
 The “Help” command will bring up the voice recognition command list.
 Please refer to the cellular phone manufacturer Owner’s Manual for detailed information
regarding your Bluetooth phone.
 For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth .
20

To hang up the phone at the end of a call or to disconnect during call placement, press
the
button.

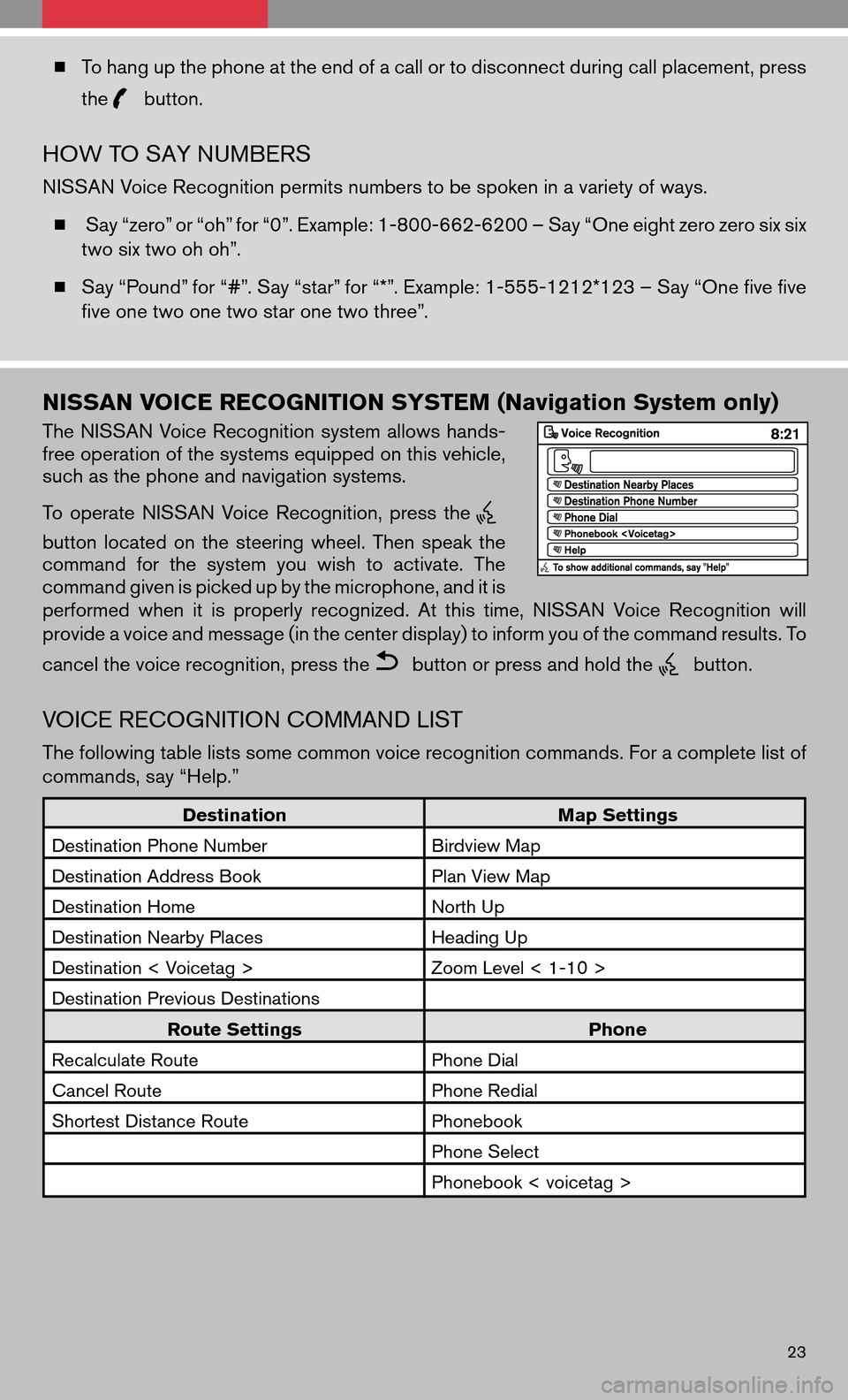

HOW TO SAY NUMBERS
NISSAN Voice Recognition permits numbers to be spoken in a variety of ways.
 Say “zero” or “oh” for “0”. Example: 1-800-662-6200 – Say “One eight zero zero six six
two six two oh oh”.
 Say “Pound” for “#”. Say “star” for “*”. Example: 1-555-1212*123 – Say “One five five
five one two one two star one two three”.
NISSAN VOICE RECOGNITION SYSTEM (Navigation System only)
The NISSAN VoiceRecognition systemallowshands-
free operation of the systems equipped on this vehicle,
such as the phone and navigation systems.
To operate NISSAN VoiceRecognition, pressthe
button located onthe steering wheel.Thenspeak the
command forthe system youwish toactivate. The
command given is picked up by the microphone, and it is
performed whenitis properly recognized. Atthis time, NISSAN VoiceRecognition will
provide a voice and message (in the center display) to inform you of the command results. To
cancel the voice recognition, press the
button or press and hold thebutton.
VOICE RECOGNITION COMMAND LIST
The following table lists some common voice recognition commands. For a complete list of
commands, say “Help.”
Destination Map Settings
Destination Phone Number Birdview Map
Destination Address Book Plan View Map
Destination Home North Up
Destination Nearby Places Heading Up
Destination < Voicetag > Zoom Level < 1-10 >
Destination Previous Destinations
Route Settings Phone
Recalculate Route Phone Dial
Cancel Route Phone Redial
Shortest Distance Route Phonebook
Phone Select
Phonebook < voicetag >
23

NAVIGATION SYSTEM (if so equipped)
GETTING STARTED
The Navigation System begins when the ignition switch is placed in the ACC or ON position.
To help ensure safe driving, some functions are grayed out, or muted, while driving. Park the
vehicle in a safe location and then operate the Navigation System.
BASIC FUNCTIONS
START-UP SCREEN
Read the precautions carefully, and touch the
“I agree” key to accept.
NAVIGATION DISPLAY SCREEN
 Displays navigation features and map.
DISABLED WHILE DRIVING
Not allfeatures canbemanually operated
while thevehicle isin motion. Thetextfor
these restricted featuresturnsfromwhite to
gray and cannot be selected. Alternatively, the
voice recognition systemmayhave arelated
command that can be used at any time.
24

DAY/NIGHT BUTTON
Press thebuttontoswitch be-
tween theday screen (bright) andthenight
screen (dark) . Within 10 seconds of pressing
the
button, you can adjust the
brightness ofthe map display screenby
touching the
key or thekey.
USING THE TOUCH-SCREEN
 To maneuver aroundthenavigation display
screen, touch the screen to select the item or
key displayed. Tomove around themap
screen, touch and hold to scroll around.
SETUP BUTTON
 Press theSETUP buttontochange or
set navigation preferences.
DEST (DESTINATION) BUTTON
 Press theDEST buttontodisplay the
address bookandalternative waysofpro-
gramming a destination.
MAP BUTTON
 Press theMAP buttontodisplay the
current location map screen.
INFO BUTTON
 Press theINFO buttontoview various
information including real-time traffic informa-
tion (requires a subscription to XM NavTraf-
fic™ service) and other navigation information.
25

ROUTE KEY
Press the MAPbuttonto show the cur-
rent location mapscreen. Touchthe“Route”
key while in a current location map screen to
display theRoute menuscreen. TheRoute
menu screen displays various ways to modify
the route to a destination.
ZOOM OUT/IN KEYS
 Touch the“ZOOM OUT” key orthe “ZOOM
IN” key toincrease ordecrease thescale of
the map display.
BACK KEY
 Touch the “Back” key to return to the previous
function shown on the navigation display.
VOICE KEY
 Touch the“Voice” keytohear thecurrent
navigation instructions.
SWITCHING THE MAP VIEW
 Press theMAP button.The current lo-
cation map screen is displayed.
 Touch the “Menu” key.
26
