2009 NISSAN ALTIMA COUPE buttons

FUEL-FILLER CAP
To tighten, turn the fuel-filler cap clockwise until ratcheting
clicks are heard. If the cap is not fully tightened, the service
engine soon light may illuminate.
 If
light illuminates because the fuel cap is loose or
missing, tightenorre-install thecap. The
should
turn off after a few driving trips.
AUTOMATIC CLIMATE CONTROL (if so equipped)
AUTO BUTTON
 Press the AUTObutton
. Turn the driver’s side temperature control dialto
the desired temperature. Thiswillallow thefanspeed, airflow distribution and
temperature to be automatically maintained.
 When AUTO is pressed, AUTOwill illuminate. When DUAL
is pressed,DUAL
will illuminate.
 To disable auto mode, press one of the air flow mode control buttons
, turn the
fan speed control dial
or press the front defroster control button.
DRIVER’S SIDE TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air.
DUAL BUTTON
Press the DUALbutton to turn the passenger’s side temperature controls on or off. This
will allow the passenger’s side temperature to be adjusted independently from driver’s
side control.
6

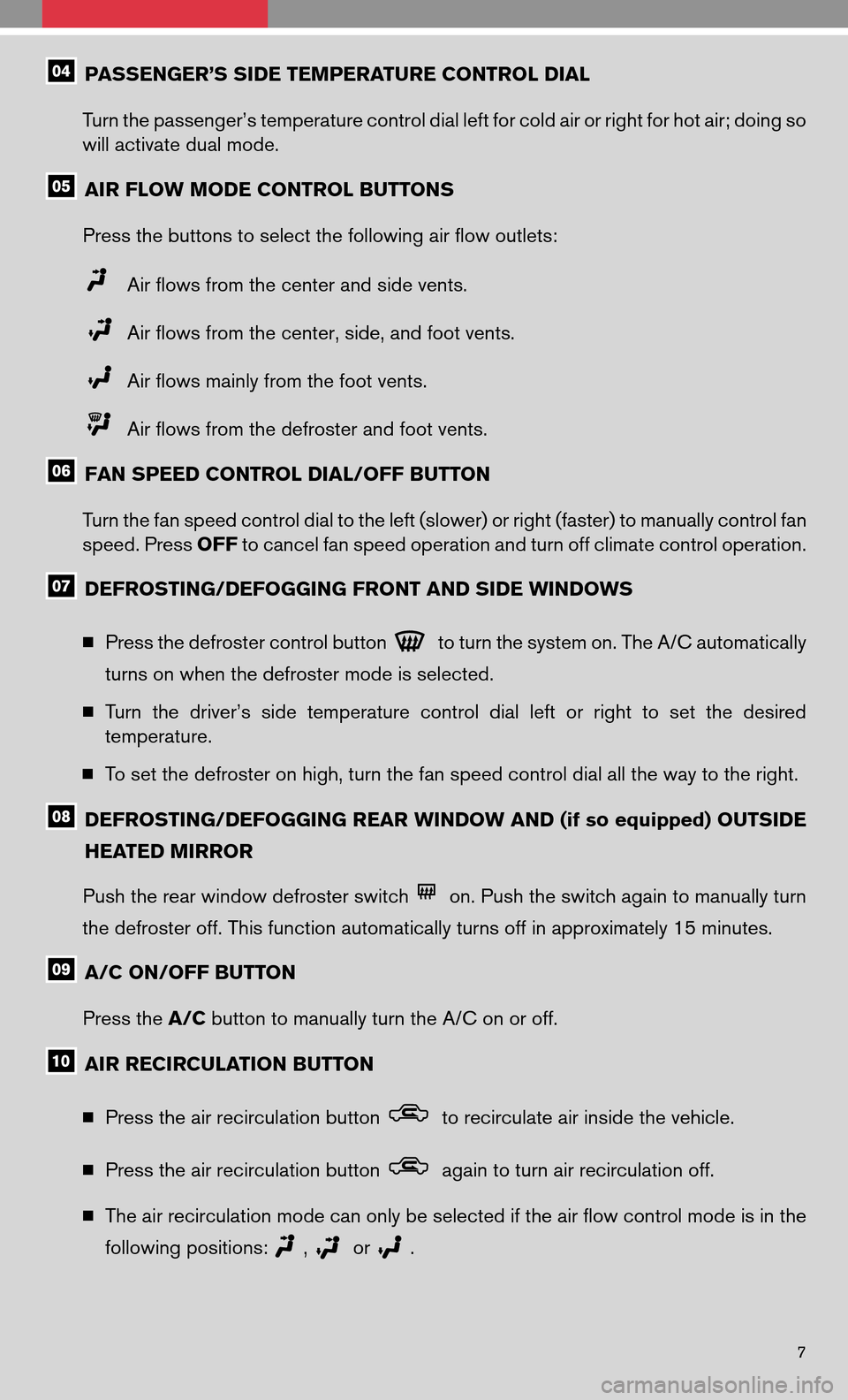

PASSENGER’S SIDE TEMPERATURE CONTROL DIAL
Turn the passenger’s temperature control dial left for cold air or right for hot air; doing so
will activate dual mode.
AIR FLOW MODE CONTROL BUTTONS
Press the buttons to select the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
FAN SPEED CONTROL DIAL/OFF BUTTON
Turn the fan speed control dial to the left (slower) or right (faster) to manually control fan
speed. Press OFFto cancel fan speed operation and turn off climate control operation.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
 Press the defroster control button
to turn the system on. The A/C automatically
turns on when the defroster mode is selected.
 Turn thedriver’s sidetemperature controldialleftorright toset the desired
temperature.
 To set the defroster on high, turn the fan speed control dial all the way to the right.
DEFROSTING/DEFOGGING REAR WINDOW AND (if so equipped) OUTSIDE
HEATED MIRROR
Push the rear window defroster switch
on. Push the switch again to manually turn
the defroster off. This function automatically turns off in approximately 15 minutes.
A/C ON/OFF BUTTON
Press the A/Cbutton to manually turn the A/C on or off.
AIR RECIRCULATION BUTTON
 Press the air recirculation button
to recirculate air inside the vehicle.
 Press the air recirculation button
again to turn air recirculation off.
 The air recirculation mode can only be selected if the air flow control mode is in the
following positions:
,or.
7

FM/AM/XM* RADIO WITH CD CHANGER (if so equipped)
RADIO BUTTON
Pressing theRADIO buttonwillchange theband toeither FM,AM, orXM radio
stations.
SEEK/TRACK/CAT BUTTON
 To scan quickly through each broadcasting station, press the SEEK/TRACK/CAT
button.
 To skip from one track to another on a CD, press the SEEK/TRACK/CATbutton.
TUNING AND AUDIO CONTROL KNOB (Bass, Treble, etc.)
 To manually tune the radio, turn the TUNE·FOLDERknob. To adjust the Bass, Treble,
Balance andFade, presstheAUDIO knobuntilthedesired modeappears inthe
display. Then turn the TUNE·FOLDERknob to adjust to the desired level.
 While playing an MP3 CD, turn the TUNE·FOLDERknob right or left to skip forward
or backward through the available folders. This function will only operate on an MP3
CD with multiple folders.
STATION AND CD SELECT BUTTONS
 To store a station in a preset you must first select A, B, or C memory bank by pressing
the PRESET A·B·Cbutton andtune tothe desired FM,AMorXM station. Then
press andhold thedesired stationselectbutton foratleast 2seconds. Whenthe
preset indicator illuminates, a beep will sound, indicating memorization is complete.
To retrieve a previously set station, select the memory bank where the preset was set,
then press the corresponding station select button.
 While playing a CD, press one of the CD select buttons (1 -6 ) to select a different
CD loaded into the CD changer.
PRESET A·B·C BUTTON
Press thePRESET A·B·Cbutton untilyoureach thedesired setting.Theradio is
equipped with three separate banks, each with six station presets. You may store any
combination of FM, AM or XM radio presets on each bank.
8

CD/AUX BUTTON
 Press the CD/AUX button to play a CD loaded into the CD changer.
 Press the CD/AUX button again to play a compatible device such as an MP3 player
when it is plugged into the auxiliary jack (cable not included) .
NOTE: Youmay need toadjust thevolume onany compatible deviceplugged intothe
auxiliary jack to find the most desired sound level of the audio system.
EJECT BUTTON
 EJECT ASINGLE DISC-Press
the
button forless than 1.5
seconds. Selecttheeject slotby
pressing one of the CD insert se-
lect buttons (1-6 ) . The CDwill
then eject.
 EJECT ALL DISCS - Press and hold the
button for more than 1.5 seconds. The
CDs will be ejected one after another.
CD SELECT/LOAD BUTTONS
 LOAD A SINGLE DISC - Press one of the CD insert select buttons (1 -6 ) for less
than 1.5 seconds, wait for the CD slot door to open, then insert the CD.
 LOAD UP TO 6 DISCS - Press and hold one of the CD insert select buttons ( 1-6)
for more than 1.5 seconds. Wait for the CD slot door to open before loading each
disc. The slot numbers (1-6) will illuminate on the display when CDs are loaded into
the changer
*XM Satellite Radioisonly available onvehicles equipped withoptional XMsatellite
subscription service.
CLOCK SET/ADJUSTMENT
NAVIGATION SYSTEM ONLY (if so equipped)
Press theSETUP button,thentouch the
“Clock” keytoaccess thefollowing clock
settings:
 On-screen Clock–When thisitem is
turned toON, aclock isalways dis-
played inthe upper rightcorner ofthe
screen. Theclock isautomatically ad-
justed by the GPS system.
 Clock Format – Choose either the 12-hour clock display or the 24-hour clock display.
 Offset Adjust – Adjust the time by increasing or decreasing per minute.
 Daylight Saving Time – Turn this item to ON for daylight savings time application.
 Time Zone – Choose the time zone.
9

FOLDING DOWN THE REAR SEATS
FROM INSIDE THE VEHICLE The rear seats canbelocked usingthemechanical keyto
prevent unauthorized access.
 Open the access cover and press the release button
to
fold down the center/passenger’s side rear seat.
 Reach through the opening and pull on the strap
located
behind the seat to fold down the driver’s side rear seat.
FROM THE TRUNK
 Pull thestrap
located behindtheseat tofold down the
center/passenger’s side rear seat.
 Pull on the strap
located behind the seat to fold down the
driver’s side rear seat.
HOMELINK UNIVERSAL TRANSCEIVER (if so equipped)
SYSTEM OPERATING TIPS
 Garage doors, electrical gates, entry doors, etc. will be activated during programming.
To avoid injury, make sure that people and objects are clear of all doors or gates during
programming. Yourvehicle’s engineshouldbeturned offwhile programming the
HomeLink Transceiver.
 To program your HomeLink Transceiver to operate a garage door, gate, or entry door
opener, home or office lighting, you need to be at the same location as the device.
NOTE: Garage dooropeners (manufactured after1996) have“rolling codepro-
tection”. Toprogram agarage dooropener equipped with“rolling codeprotec-
tion”, you will need to use a ladder to get up to the garage door opener motor to
be able to access the “smart” or “learn” program button.
PROGRAMMING YOUR HOMELINK UNIVERSAL TRANSCEIVER (Mirror,
Sun Visor or Overhead Console)
1. To begin, pressandhold thetwo
outer HomeLink buttons(toclear
the memory) until the indicator light
blinks slowly (after20seconds) .
Release both buttons.
2. Position theend ofthe hand-held
transmitter 1-3 in (26-76 mm) away
from the HomeLink surface.
16

3.Using both hands, simultaneously press and hold both the HomeLink button you want
to program and the hand-held transmitter button. DO NOT release the buttons until
step 4 has been completed.
4. Hold down bothbuttons untiltheindicator lightonthe HomeLink flashes, changing
from a “slow blink” to a “rapidly flashing blink”. This could take up to 90 seconds. When
the indicator lightflashes rapidly, bothbuttons maybereleased. Therapidly flashing
light indicates successful programming. Toactivate thegarage doororother pro-
grammed device, press and hold the programmed HomeLink button - releasing when
the device begins to activate.
5. Ifthe indicator lightonthe HomeLink blinksrapidly fortwo seconds andthen turns
solid, HomeLink haspicked upa“rolling code” garage dooropener signal.Youwill
need to proceed with the next steps to train the HomeLink to complete the program-
ming, which may require a ladder and another person for convenience.
6. Press andrelease the“smart” or “learn” program buttonlocated onthe garage door
opener’s motor to activate the “training mode”. This button is usually located near the
antenna wire that hangs down from the motor. If the wire originates from under a light
lens, you will need to remove the lens to access the program button.
NOTE: Onceyouhave pressed andreleased theprogram buttononthe garage
door opener’s motor and the “training light” is lit, you have 30 seconds in which
to perform step 7. Use the help of a second person for convenience to assist when
performing this step.
7. Quickly within 30 seconds of pressing and releasing the garage door opener program
button, firmly press and release the HomeLink button you’ve just programmed. Press
and release the HomeLink button up to three times to complete the training.
8. Your HomeLink buttonshould now
beprogrammed. (T

oprogram theremaining
HomeLink buttons for additional door or gate openers, follow steps 2-8 only.)
BLUETOOTH HANDS-FREE PHONE SYSTEM (Without Navigation
System – if so equipped)
With anoverhead microphone andsound
transmitted throughtheaudio system
speaker, theBluetooth Hands-Free Phone
System utilizesBluetooth wirelesstechnol-
ogy and voice recognition toprovide hands-
free cellular phone communication.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere with system operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the tone before speaking.
 Begin speaking a command within 5 seconds of the tone.
 To go back to the previous command, say “Go back” or “Correction”.
 To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit”, or
press the
button.17

Toincrease ordecrease thevolume ofthe voice prompts, pushthe+or –(volume)
control buttons onthe steering wheelorturn theVOL (volume) knobonthe audio
system while the system is responding.
 Speak in a clear and natural voice without pausing between words.
 Ifthe Voice Recognition systemdoesnotrecognize yourvoice commands, trainthe
system using the Speaker Adaptation Mode. Refer to your Owner’s Manual for a list of
commands and further instructions.
 Some commands are not available while the vehicle is in motion.
 The “Help” command can be used in any menu to hear a list of available commands.
 Please refer to the cellular phone manufacturer Owner’s Manual for detailed information
regarding your Bluetooth phone.
 For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth .
PAIRING YOUR PHONE
Touse thehands-free feature,youneed toset-up, orpair, thesystem torecognize your
compatible cellular phone(s) . Five Bluetooth-enabled phones can be paired. After set-up,
the system automatically connects with a paired phone when the ignition is in the ACC or ON
position, as long as the phone is on and in the vehicle.
PAIRING PROCEDURE
NOTE: The vehicle must be stationary when pairing the phone.
1. Press the
button on the steering wheel and wait for the tone.
2. Say “Setup”.
3. Wait for the tone, then say “Pair phone”.
4. Wait for the tone, then say “New phone”.
5. Initiate pairing from the phone.
 The pairing procedure varies according to each cellular phone model. For detailed
pairing instructions and a list of compatible phones, please visit
www.nissanusa.com/bluetooth .
 When prompted for a PASSKEY code, enter “1234” from the handset. (The PASS-
KEY code is assigned by NISSAN and cannot be changed.)
6. Say a name for the phone when the system asks you to provide one. You can give the
phone a name of your choice.
7. Say a number between 1 and 5 when the system asks you for a priority level. The priority
level determines whichphone interacts withthesystem whentwoormore paired
phones are active in the vehicle at the same time. Choose 1 if this is the only phone or
the primary phone.
8. Say “Yes” or “No” when the system asks if you would like to select a custom ring tone.
Follow the instructions provided by the system to choose a ring tone.
18

HOW TO SAY NUMBERS
NISSAN voice recognition permits numbers to be spoken in a variety of ways. Say “zero” or “oh” for “0”. Example: 1-800-662-6200 – Say “one eight zero zero six six
two six two oh oh”.
 Say “pound” for“#”. Say“star” for“*”(available whenusingthe“Call International”
command, and the “Send” command during a call) .
 Say “plus” for “+” (available only when using the “Call International” command) .
 Say “pause” for a 2 second pause (available only when storing a phonebook number) .
BLUETOOTH HANDS-FREE PHONE SYSTEM (Navigation System
only – if so equipped)
With anoverhead microphone andsound
transmitted throughtheaudio system
speaker, theBluetooth Hands-Free Phone
System utilizesBluetooth wirelesstechnol-
ogy, touch-screen, andvoice recognition to
provide hands-free cellularphonecommuni-
cation.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere with system operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the “Please say a command” prompt and the listening tone before speaking.
 Begin speaking a command within 1.5 seconds of the listening tone.
 To cancel a voice recognition session, press and hold the
button or press the
button.
 Toincrease ordecrease thevolume ofthe voice prompts, pushthe+or –(volume)
control buttons onthe steering wheelorturn theVOL (volume) knobonthe audio
system while the system is responding.
 Speak in a clear and natural voice without pausing between words.
 Some commands are not available while the vehicle is in motion.
 The “Help” command will bring up the voice recognition command list.
 Please refer to the cellular phone manufacturer Owner’s Manual for detailed information
regarding your Bluetooth phone.
 For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth .
20
