2009 NISSAN 370Z clutch

or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake and clutch fluid” in the
“8. Maintenance and do-it-yourself” section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.

CAUTION

Do not rest your foot on the clutch
pedal while driving. This may damage
the clutch.
SSD0536
Starting and driving
5-13

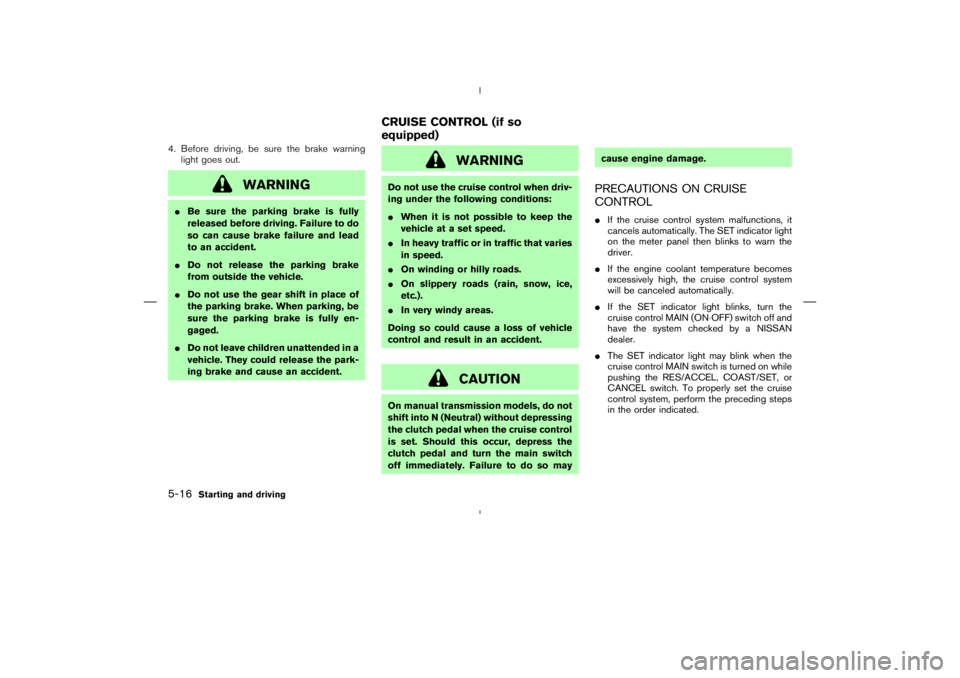

WARNING
Do not use the cruise control when driv-
ing under the following conditions:

When it is not possible to keep the
vehicle at a set speed.

In heavy traffic or in traffic that varies
in speed.

On winding or hilly roads.

On slippery roads (rain, snow, ice,
etc.).

In very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.
CAUTION
On manual transmission models, do not
shift into N (Neutral) without depressing
the clutch pedal when the cruise control
is set. Should this occur, depress the
clutch pedal and turn the main switch
off immediately. Failure to do so maycause engine damage.
PRECAUTIONS ON CRUISE
CONTROL
If the cruise control system malfunctions, it
cancels automatically. The SET indicator light
on the meter panel then blinks to warn the
driver.

If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.

If the SET indicator light blinks, turn the
cruise control MAIN (ON⋅OFF) switch off and
have the system checked by a NISSAN
dealer.

The SET indicator light may blink when the
cruise control MAIN switch is turned on while
pushing the RES/ACCEL, COAST/SET, or
CANCEL switch. To properly set the cruise
control system, perform the preceding steps
in the order indicated.
CRUISE CONTROL (if so
equipped)
5-16
Starting and driving

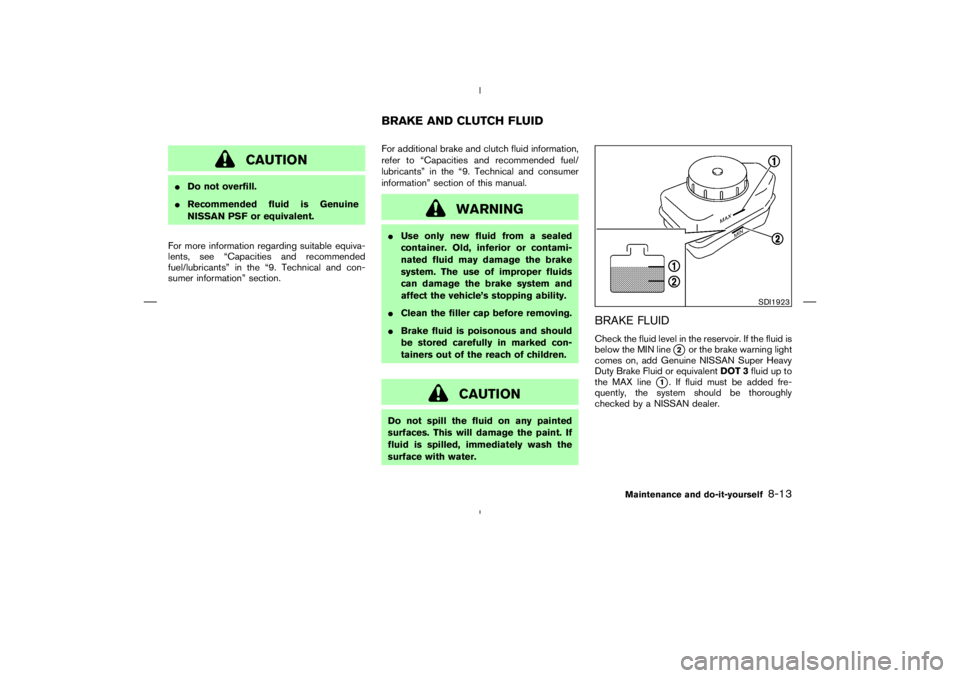

CAUTION
Do not spill the fluid on any painted
surfaces. This will damage the paint. If
fluid is spilled, immediately wash the
surface with water.
BRAKE FLUIDCheck the fluid level in the reservoir. If the fluid is
below the MIN line
2or the brake warning light
comes on, add Genuine NISSAN Super Heavy
Duty Brake Fluid or equivalentDOT 3fluid up to
the MAX line
1. If fluid must be added fre-
quently, the system should be thoroughly
checked by a NISSAN dealer.
SDI1923
BRAKE AND CLUTCH FLUID
Maintenance and do-it-yourself
8-13

Hands-Free Phone System with
NISSAN Voice Recognition .................................. 4-31
Brake
Anti-lock Braking System (ABS) .................... 5-21
Brake and clutch fluid ....................................... 8-13
Brake fluid............................................................. 8-13Brake system ....................................................... 5-21
Parking brake operation .................................... 5-15
Warning light ....................................................... 2-12
Break-in schedule ..................................................... 5-18
Brightness control, Instrument panel ................... 2-26
Bulb check/instrument panel.................................. 2-11
Bulb replacement ...................................................... 8-26
C
Capacities and recommended fuel/lubricants...... 9-2
Car phone or CB radio............................................ 4-31
Cargo (See vehicle loading information)............. 2-33
Cargo net .................................................................... 2-33
Catalytic converter, Three way catalyst ................. 5-3
CD care and cleaning .............................................. 4-29
Child restraints ........................................................... 1-17
Booster seats ...................................................... 1-25
Installation on front passenger seat ............. 1-20
Precautions on child restraints........................ 1-17
Top tether strap .................................................. 1-24
Top tether strap anchor point location ......... 1-24
Child safety ................................................................. 1-12
Chimes, Audible reminders..................................... 2-17
Circuit breaker, Fusible link .................................... 8-23
Cleaning exterior and interior .......................... 7-2, 7-5
Clock ............................................................................ 2-30
Clutch fluid.................................................................. 8-13
Coat hook .................................................................. 2-38

Hands-Free
Phone System)........................................................... 4-37
Compact Disc (CD) changer (See audio
system) ......................................................................... 4-26
Compact Disc (CD) player (See audio
system) ......................................................................... 4-21
Compact spare tire ................................................... 8-40
Console box................................................................ 2-35
Control panel buttons (models with navigation
system) ........................................................................... 4-2
Controls
Control panel buttons (display with
navigation system) ................................................ 4-2
Heater and air conditioner controls
(automatic) .............................................................. 4-9
Steering wheel audio controls ........................ 4-29
Coolant
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Checking engine coolant level........................... 8-8
Corrosion protection ................................................... 7-6
Cruise control............................................................. 5-16
Cup holders ................................................................ 2-33
D
Daytime running light system ................................. 2-25
Defroster switch, Rear window and outside
mirror defroster switch ............................................. 2-23
Dimensions and weights ............................................ 9-8
Display controls (See control panel buttons),
With navigation system .............................................. 4-2Door open warning light .......................................... 2-12
Drive belts ................................................................... 8-17
Driving
Cold weather driving ......................................... 5-25
Driving with automatic transmission ..... 5-7, 5-10
Driving with manual transmission .......... 5-7, 5-13
Precautions when starting and driving ............ 5-2
E
Economy, Fuel............................................................ 5-18
Elapsed time ............................................................... 2-10
Emission control information label ........................ 9-10
Emission control system warranty......................... 9-23
Engine
Before starting the engine .................................. 5-9
Break-in schedule............................................... 5-18
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Changing engine oil and filter ......................... 8-10
Checking engine coolant level........................... 8-8
Checking engine oil level .................................... 8-9
Coolant temperature gauge ............................... 2-5
Engine block heater ........................................... 5-26
Engine compartment check locations.............. 8-7
Engine cooling system ......................................... 8-8
Engine oil................................................................. 8-9
Engine oil and oil filter recommendation......... 9-5
Engine oil viscosity ............................................... 9-5
Engine serial number ......................................... 9-10
Engine specifications ........................................... 9-7
If your vehicle overheats ...................................... 6-9
Oil pressure gauge ............................................... 2-7Starting the engine ............................................... 5-9
Event data recorders ................................................ 9-25
Exhaust gas (Carbon monoxide).............................. 5-2
F
F.M.V.S.S./C.M.V.S.S. certification label ............. 9-10
Filter, Changing engine oil and filter .................... 8-10
Flashers (See hazard warning flasher switch) ... 2-27
Flat tire............................................................................ 6-2
Flat towing .................................................................. 9-21
Floor mat cleaning ....................................................... 7-5
Fluid
Automatic transmission fluid (ATF) ................ 8-12
Brake and clutch fluid ....................................... 8-13
Brake fluid............................................................. 8-13
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Engine coolant ....................................................... 8-8
Engine oil................................................................. 8-9
Power steering fluid ........................................... 8-12
Window washer fluid ......................................... 8-14
FM-AM radio with Compact Disc (CD)
player ............................................................................ 4-19
FM-AM-SAT radio with Compact Disc (CD)
changer ........................................................................ 4-23
Front manual seat adjustment ................................. 1-3
Front power seat adjustment .................................. 1-3
Front passenger air bag and status light ............ 1-36
Front power seat adjustment .................................... 1-4
Front seat active head restraints ......................... 1-10
Fuel
Average fuel consumption .................................. 2-9
